Лучшая цена 3 Осевая пластина Mach3 филировать CNC

Number of control axes

3axes (X, Y, Z)

Minimum programming

0.001mm

Maximum programming

± 99999.999mm

Top speed

 30m / min

Feed speed

0.001-15m / min

Manual continuous

one axis or simultaneous multi-axis

Interpolation method

straight line, arc, thread interpolation

Tool offset

length compensation, nose radius C compensation

Spindle functions

gear, dual analog control, rigid tapping

Handwheel functions

panel type, plug-in hand-held

Screen saver function

screen saver function

Communication function

RS232, U disk interface

Compensation function

knife compensation, between compensation, screw compensation, radius compensation

Program editing

male / English, relative / absolute programming

Limit function

software limit, hardware limit

Pre-reading function

Short line preprocessing 10,000 lines

Password protection

multi-level password protection

Input and output

I / O point 24X24

PLC programming

The user is free to design PLC function

Acceleration and deceleration control

linear acceleration and deceleration, the number of additions and subtractions

Encoder lines

any setting

User macro program

Yes

Electronic gear functions

Yes

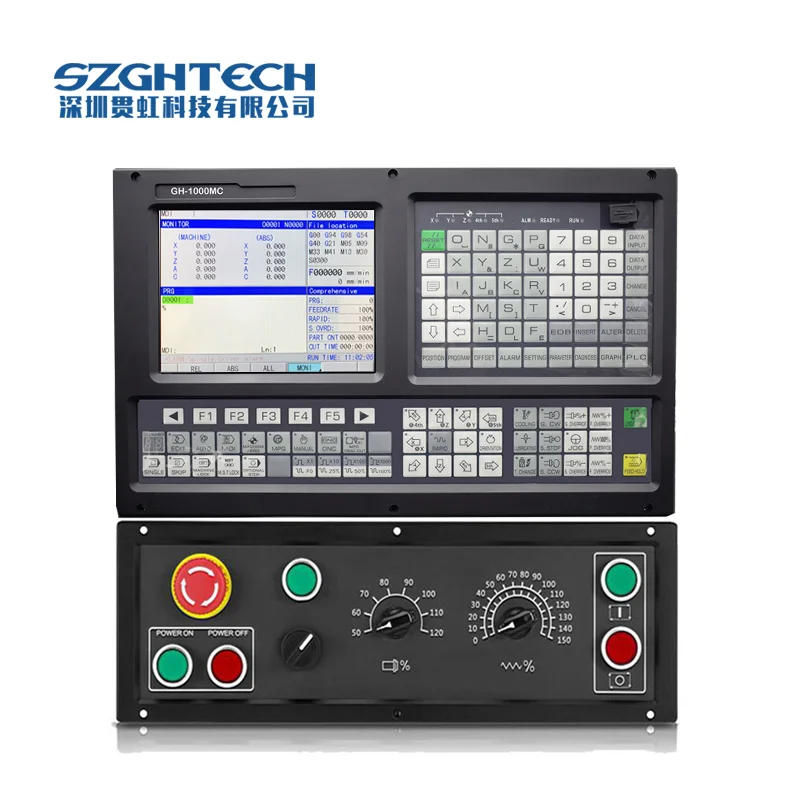

Vice-panel

A-type panel with hand wheel; B band band switch

Applicable machine tools

milling machine, boring machine, drilling machine
