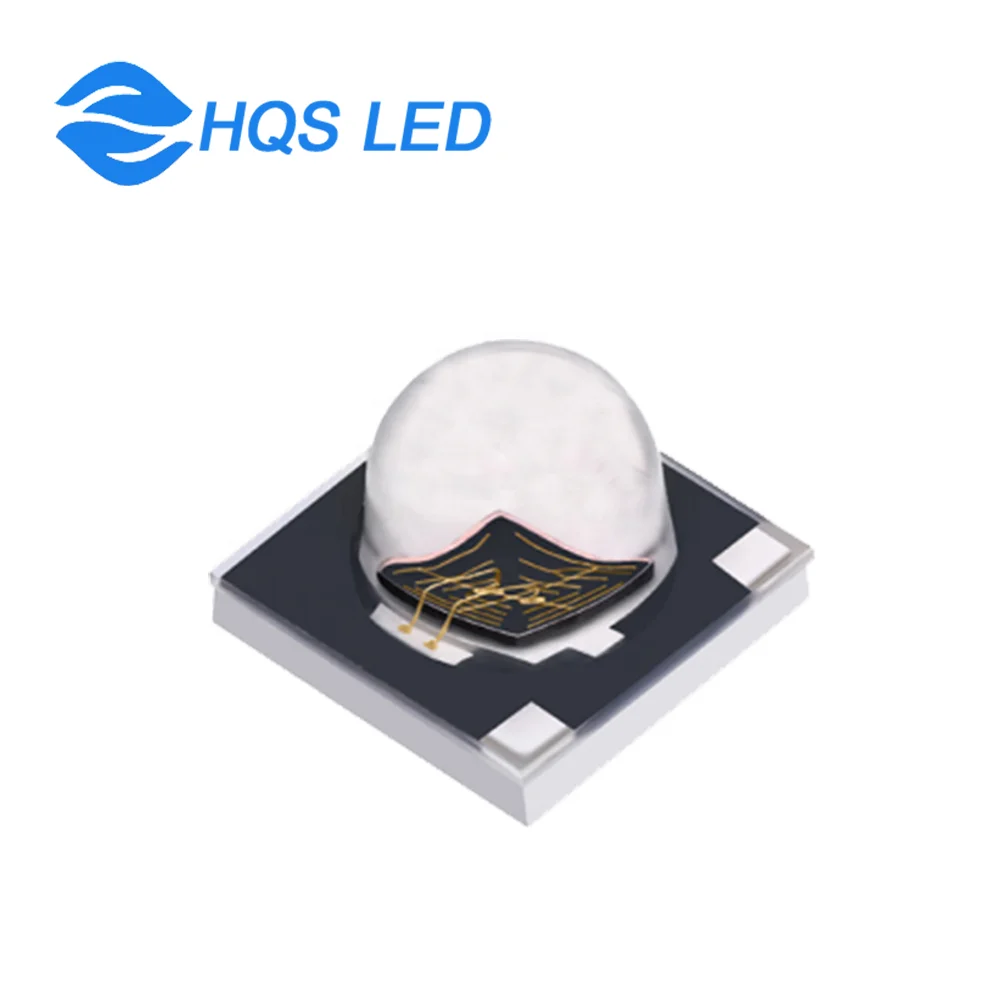

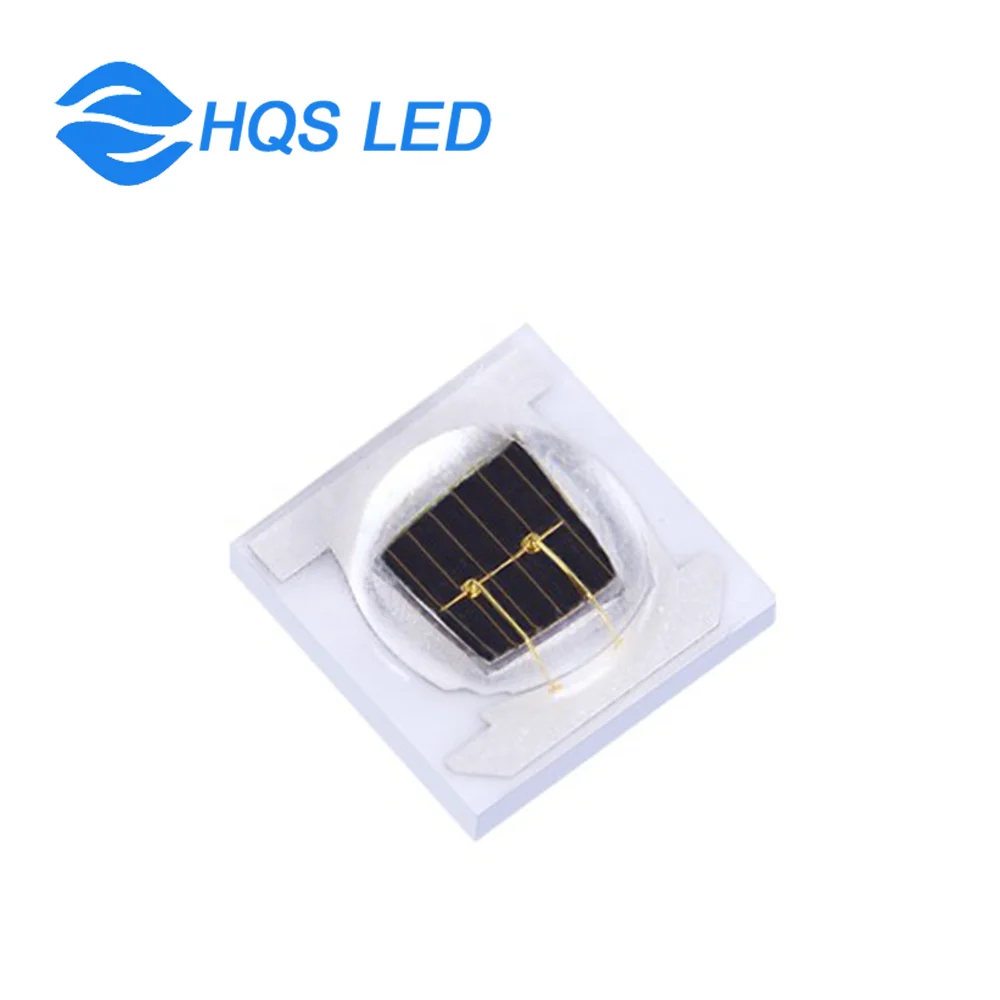

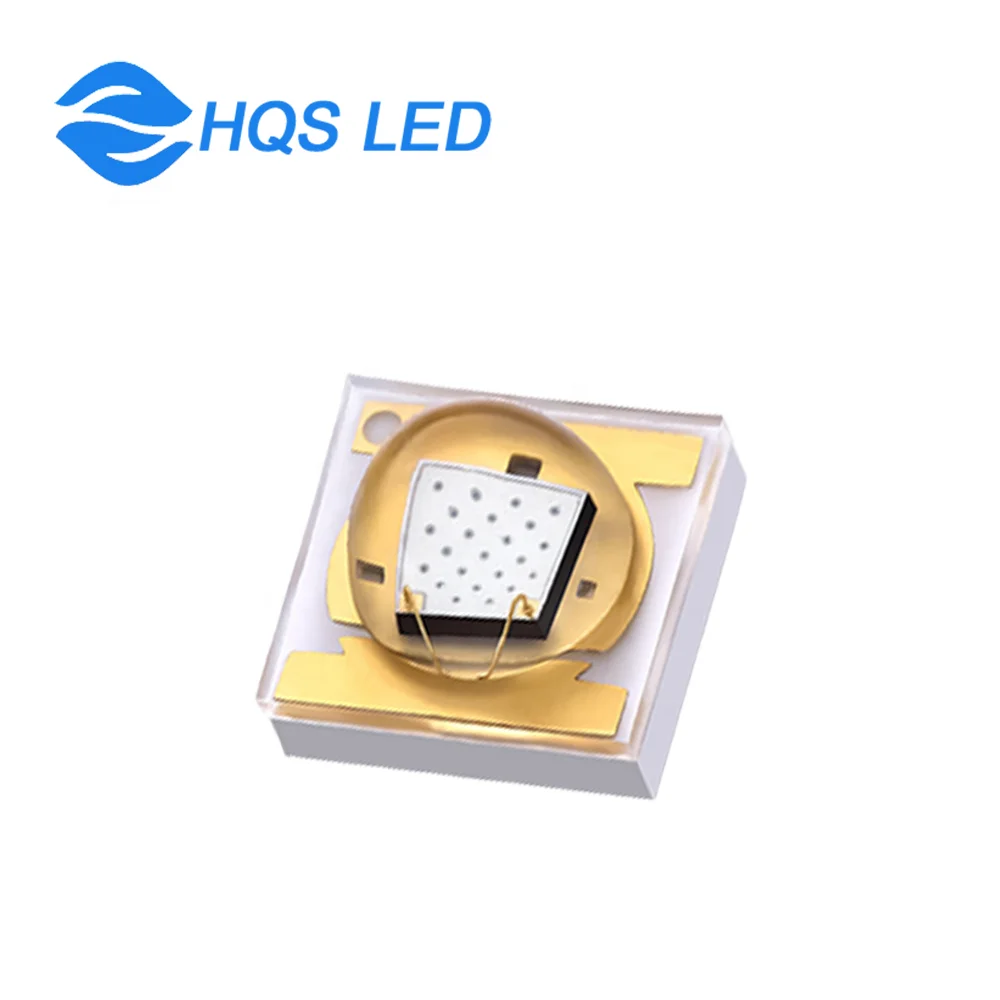

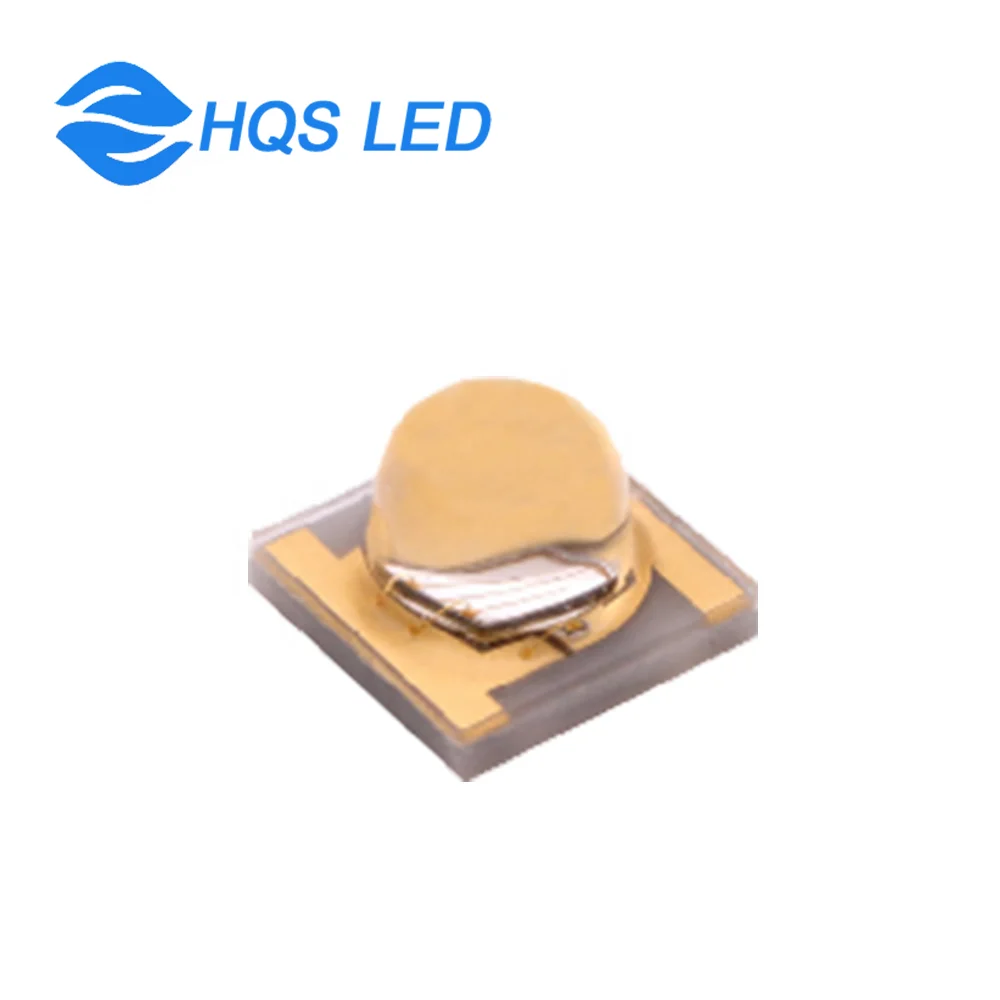

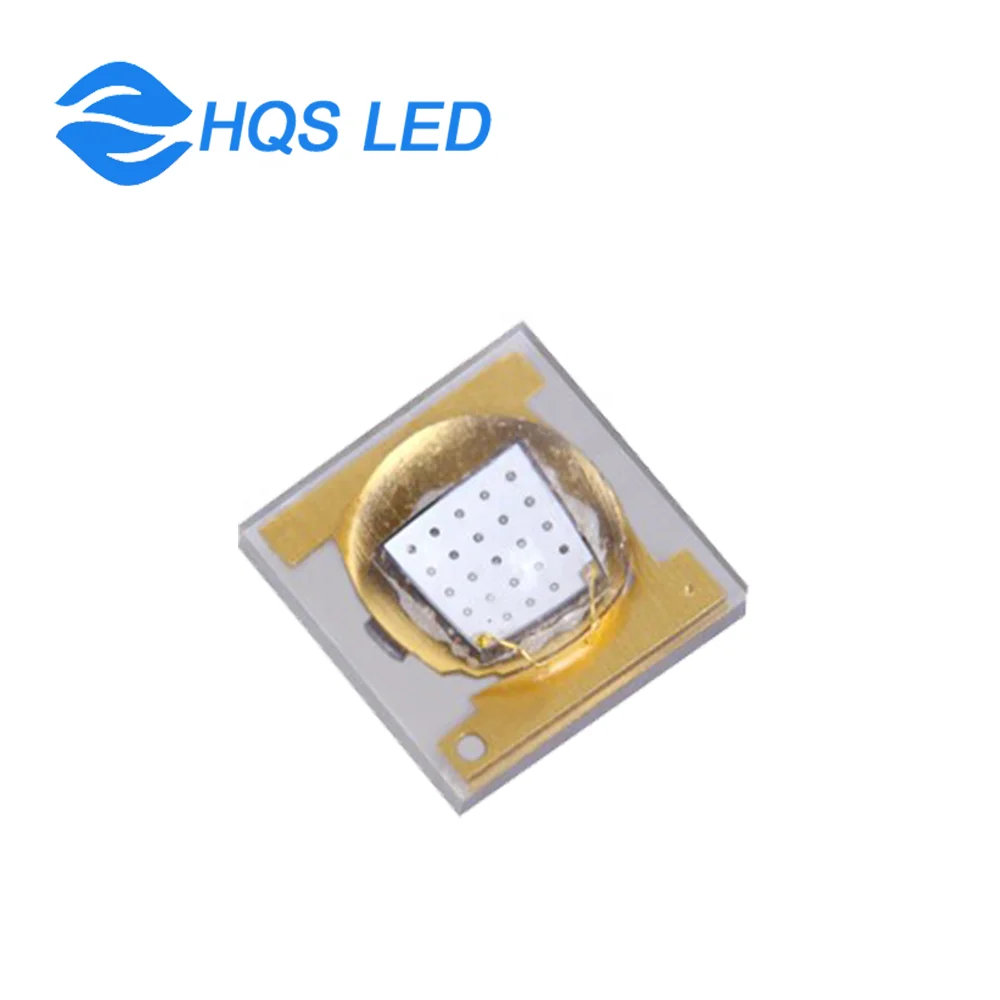

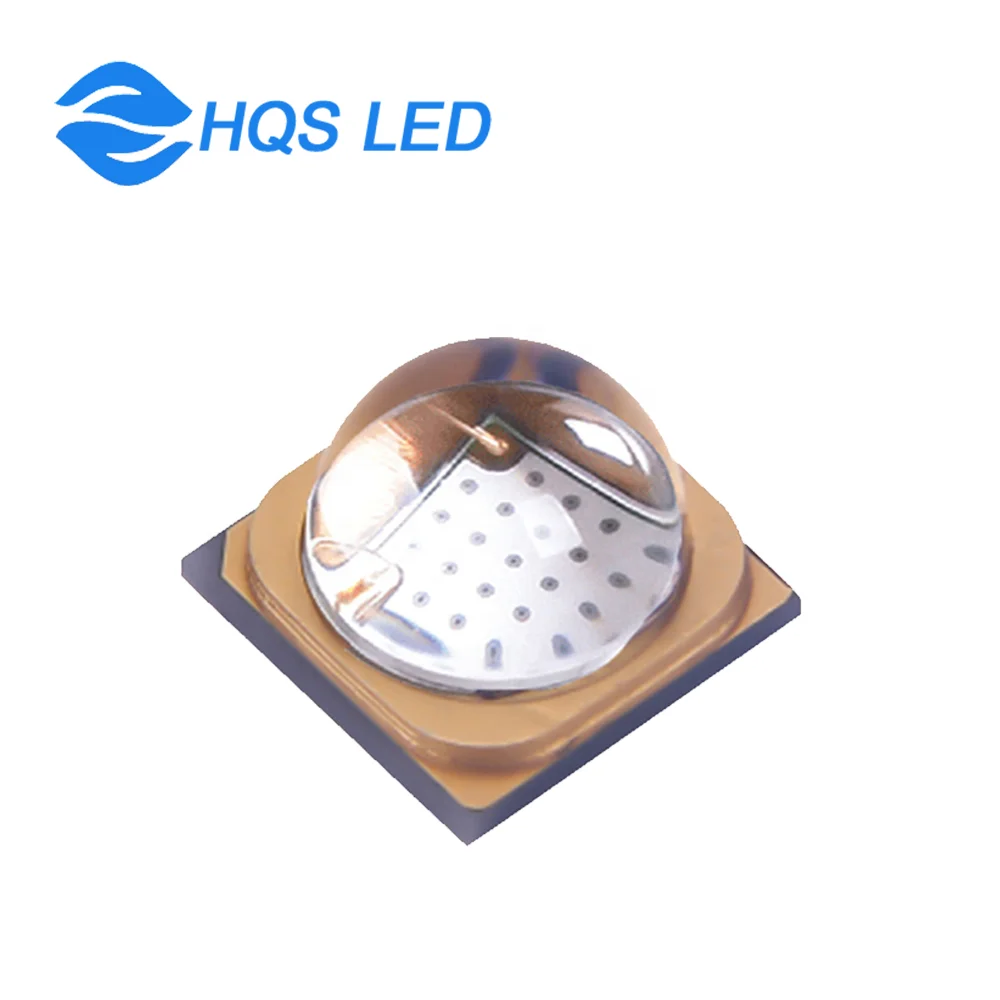

Алюминиевый нитрид керамическая основа вертикальный Ультрафиолетовый чип LG 365 нм светодиод 1-2 Вт SMD 3535 UVA

Описание и отзывы

Трекер стоимости

Характеристики

Product Name	1-2W SMD 3535 UVA LED	Product Model	HQS-3535-365nm
Power Dissipation	3W	Light Color	UV Lights
Forward Voltage	3.0-3.8V	Viewing Angle	60° /120°
Forward Current	350-500mA	Operating Temperature	-40~+60 ℃
Radiant Flux	350mA: 600-1000mW, 500mA: 1000-1200mW	Storage Temperature	-40~+85 ℃
Wavelength	365-370nm	Soldering Temperature	260℃
LENS	Imported UV resistant silica gel	Holder	Aluminium Nitride





Other 3535 UV SMD LED SERIES SPECIFICATION
Product Name	Wavelength	Voltage	Current	Radiant Flux	Viewing Angle
3535 UV LED	365-370nm	3.0-3.6V	350-500mA	600-800mW	120°
3535 UV LED	365-370nm	3.2-3.8V	350-700mA	1600-2000mW	60°/120°
3535 UV LED	375-385nm	3.2-3.8V	350-500mA	900-1100mW	120°
3535 UV LED	375-385nm	3.2-3.8V	350-700mA	1600-2000mW	60°/120°
3535 UV LED	390-420nm	3.2-3.8V	350-500mA	1000-1100mW	120°
3535 UV LED	390-410nm	3.2-3.8V	350-700mA	1100-1300mW	60°/120°
5050 UV LED	365-370nm	6.0-8.0V	700-1500mA	7000-9000mW	60°/120°
5050 UV LED	380-385nm	6.0-8.0V	700-1500mA	4500-6000mW	60°
5050 UV LED	390-405nm	6.0-8.0V	700-1500mA	2500-3500mW	120°
5050 UV LED	390-405nm	6.0-8.0V	700-1500mA	5000-6000mW	60°/120°
5050 UV LED	410-415nm	6.0-8.0V	700-1500mA	3500-4500mW	60°



Product Features

UV Wavelength Range: 270nm 280nm 310nm 365nm 370-380nm 390nm 400nm 410-420nm

UV LED Package Type: 2835, 5730, 3030, 3535, 1-3W High Power LED Type

Imported UV Resistant Silica Gel

Brand UV Chip, LG or Epileds Chip

100% Purity UV wavelength

60 degrees 120 degrees Beam Angle

Aluminium Nitride Ceramic Base

Customized UV LED PCB Board Available







For the Curing of Thick Layers, Curing Printing, Ink Silk Screen, Plant Growth...



For Curing Printing, 3D Printing, Ink Coats, Beauty Nail, Insect Trap, Jewelry Detection, Inspection, Plant Growth...



Medical Phototherapy, Animal Husbandry, Plant Growth...





Sterilization, Food Preservation, Air Purification, Water Purification...



WHAT IS UV?

Ultraviolet (UV) radiation is electromagnetic radiation of a wavelength shorter than that of the visible
region and longer than that of X-rays.

As air is opaque to UV radiation of less than 200nm wavelength, it is often subdivided into:
Near UV (380-200nm wavelength)
Extreme or Vacuum UV (200-10nm)

More commonly, when used in connection with human health and the environment, it is subdivided into:
UV-A: 315-400nm
UV-B: 280-315nm
UV-C: 10-280nm
In respect of UV curing there is also UVV (UV visible, 400-450nm). As the name suggests, UVV extends into the visible light spectrum.



Shenzhen HuaQiSheng Technology CO., LTD has delivered the best quality LED components to different lighting application for clients under our strong technological support, professional management system and perfect & stable supply clain system. Our LEDs (SMD LED, High Power LED, COB LED---Wavelength range: 275nm-940nm) apply to Plant Growing Lighting, Studio Lights, Beauty & Manicure, UVA Sterilization & Disinfection, UV Curing, Exposing, Stage Light, Infrared Sensor, Night Camera and Landscape Lighting and so on.

We got unparalleled customer trust level around the domestic and overseas marketing for over years. 10 Years' LED experience, thank you very much for the attention and support.



HuaQiSheng, with 30 fully automatic production line, which can produce 10kk pcs SMD LED per day. And we has one of the most experienced R & D team in the world, by focusing on technological innovation.

HQS offer the LED products to our lighting designers and tell their stories through light...
