Zigbee Беспроводная умная светодиодная уличная система управления
- Категория: Диммеры >>>
- Поставщик: Shanghai,Shuncom,AIOT,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 29.57 $* | 30.31 $* |
| Aug-16-2025 | 28.33 $* | 29.62 $* |
| Jul-16-2025 | 24.81 $* | 25.41 $* |
| Jun-16-2025 | 28.0 $* | 29.22 $* |
| May-16-2025 | 24.47 $* | 25.60 $* |
| Apr-16-2025 | 27.54 $* | 28.11 $* |
| Mar-16-2025 | 27.5 $* | 28.48 $* |
| Feb-16-2025 | 27.65 $* | 28.33 $* |
| Jan-16-2025 | 27.3 $* | 28.60 $* |
Характеристики
Specification
Setting Information | ||
Dimensions | 118.3×43×30（mm） | |
Transmission distance | 400M | |
Product output | Single-phase AC | |
Data collection | U,I,P.Q.W.COSΦ | |
Antenna band | 2.4G | |
Antenna gain | 3DB | |
Antenna VSWR | 《2.0 | |
Antenna type | External | |
Product Description
Product Details

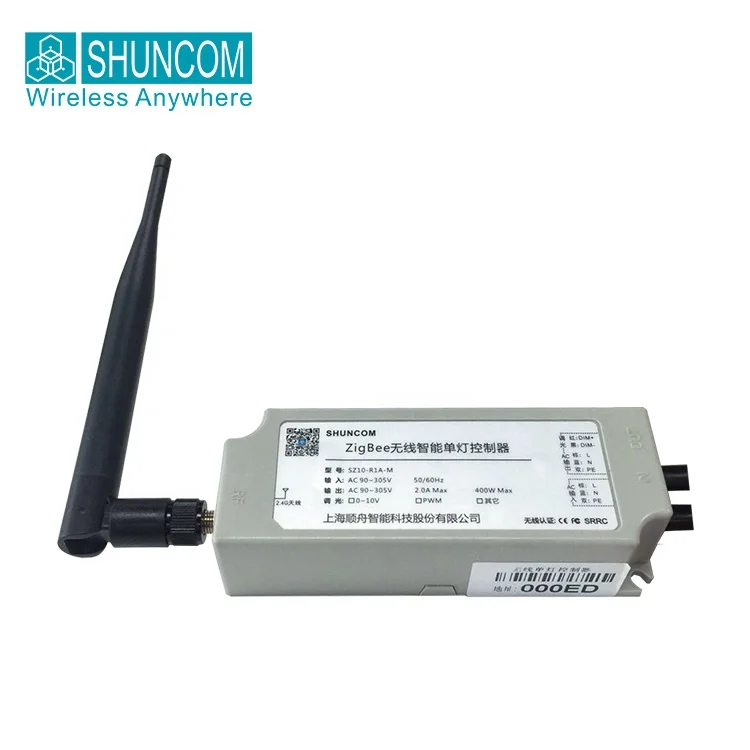

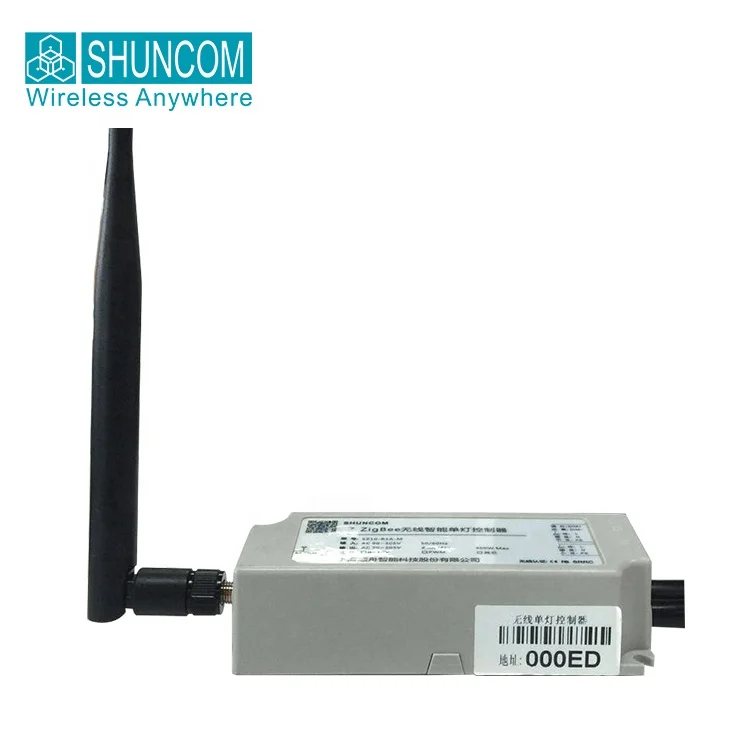

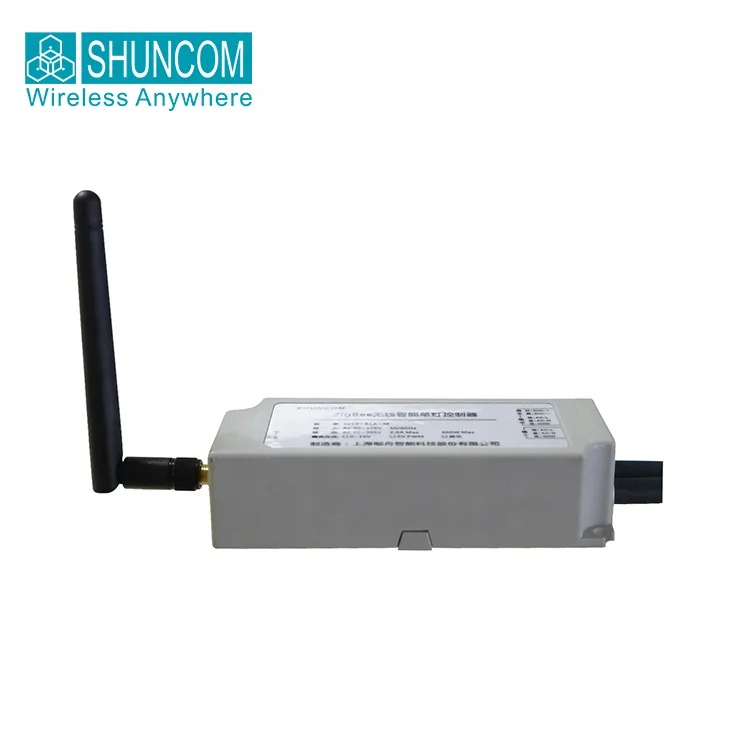

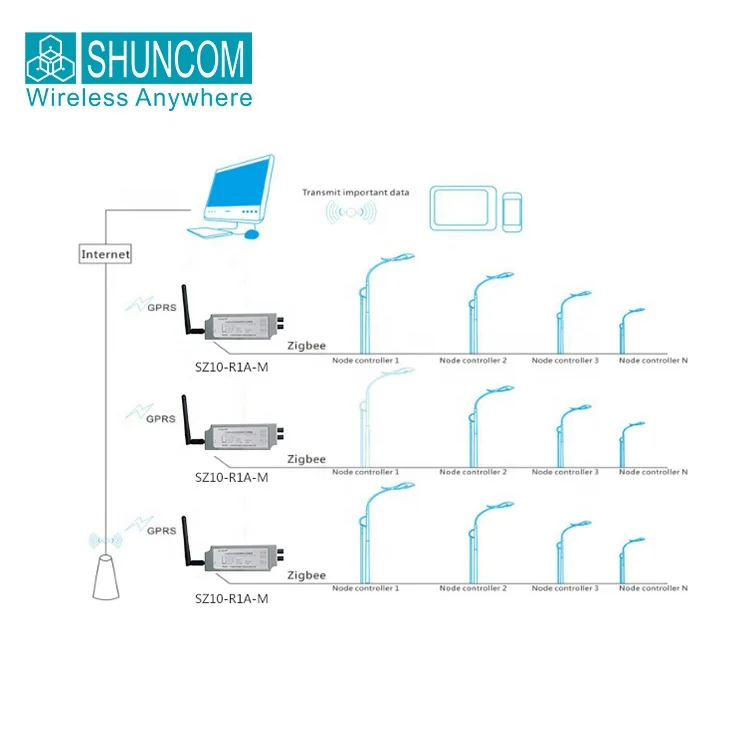

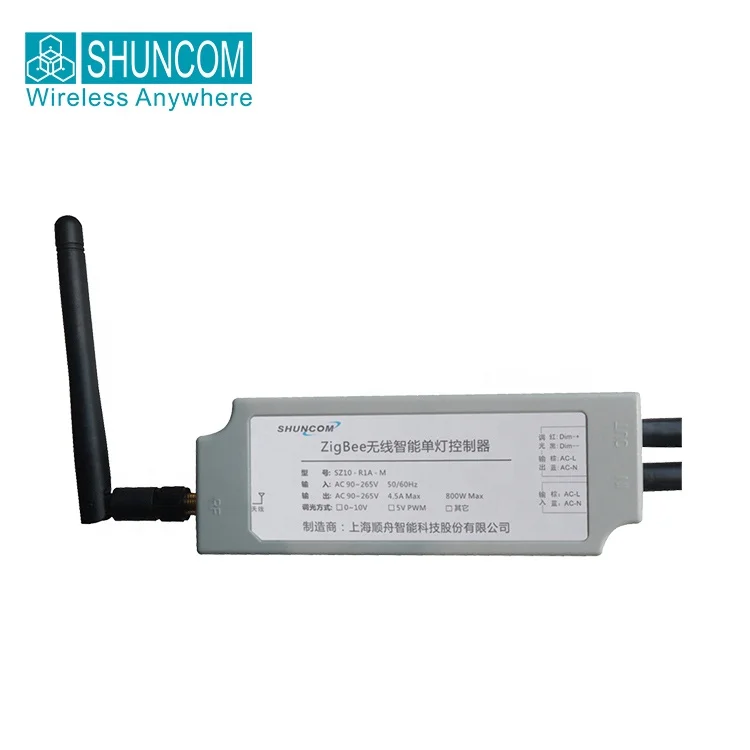

SZ10-R1A-M controller is compliant with IEEE802.15.4 protocol of ZIGBEE communication standard. It has the advantages of far communication distance, strong anti-interference capability and flexible networking, realizing peer-to-peer and peer-to-multi peer transparent data transmission among devices, and constructing star network or mesh network topology.
Product Details
SZ10-R1A-M single-lamp controller consists of current, voltage and electric energy metering circuit which collect real-time load performance and power consumption of single-lamp controller. It helps to largely reduce work load of street lamp management department, and improve working efficiency, therefore significantly improve energy-saving benefit of all society.
Installation Process
Applications
Certifications
Company Information
FAQ
Q1. Can I have a sample order for light Controller?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for light Controller order?
A: Low MOQ, 5 pcs for sample checking is available
Q4. Have you any protocol of controller, supporting DALI protocol?
A: Our Zigbee proprietary protocol and do not support DALI.
Q5. If the gateway is not working or lost, can the lighting controller switch automatically?
A:There are local strategies. Lighting controller can solve this problem.
Q6.How many lighting controllers can a gateway usually control?
A: A gateway can control 200 pcs lighting controller under normal circumstances.
