LM2596 4 0 ~ 40 до 1 3-37V DC-DC s-ТЭП вниз Модуль питания постоянного тока регулятор
- Категория: >>>
- Поставщик: Shenzhen,Yuzens,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.91 $* | 0.26 $* |
| Aug-15-2025 | 0.34 $* | 0.75 $* |
| Jul-15-2025 | 0.69 $* | 0.56 $* |
| Jun-15-2025 | 0.2 $* | 0.0 $* |
| May-15-2025 | 0.96 $* | 0.69 $* |
| Apr-15-2025 | 0.54 $* | 0.57 $* |
| Mar-15-2025 | 0.97 $* | 0.31 $* |
| Feb-15-2025 | 0.79 $* | 0.77 $* |
| Jan-15-2025 | 0.27 $* | 0.3 $* |
Характеристики

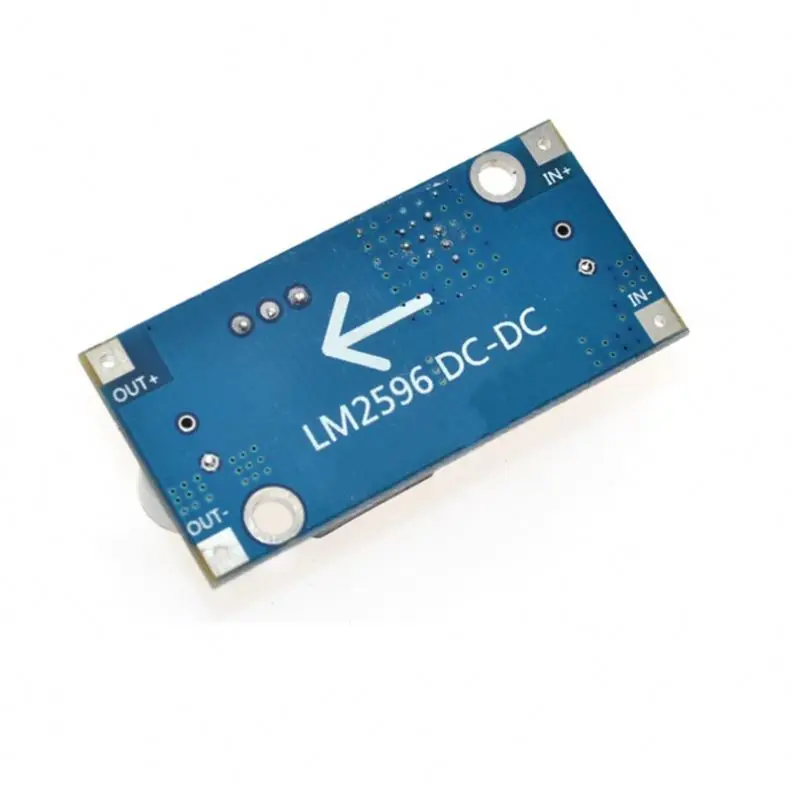

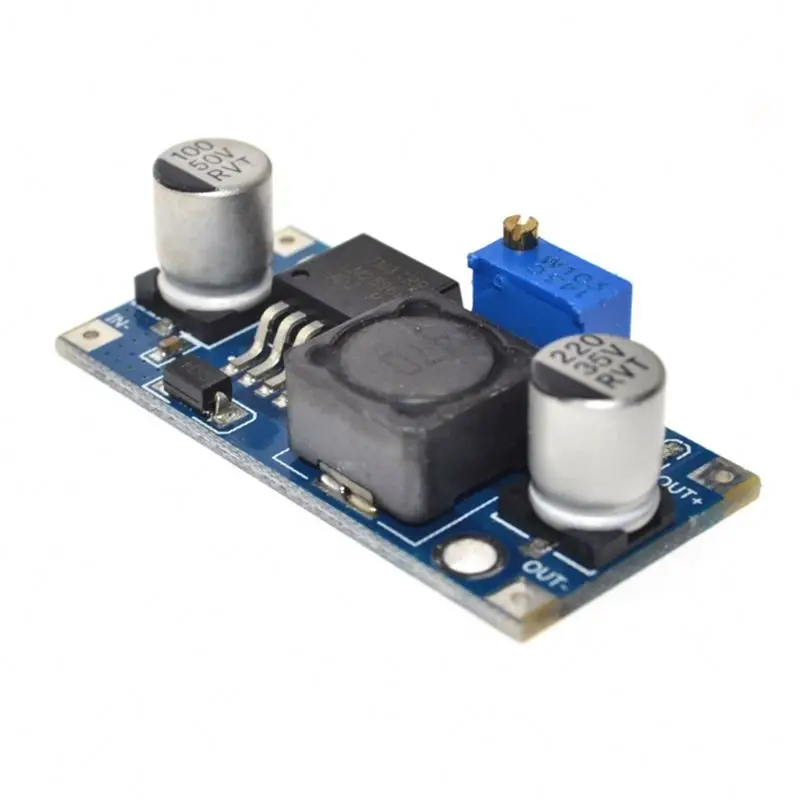

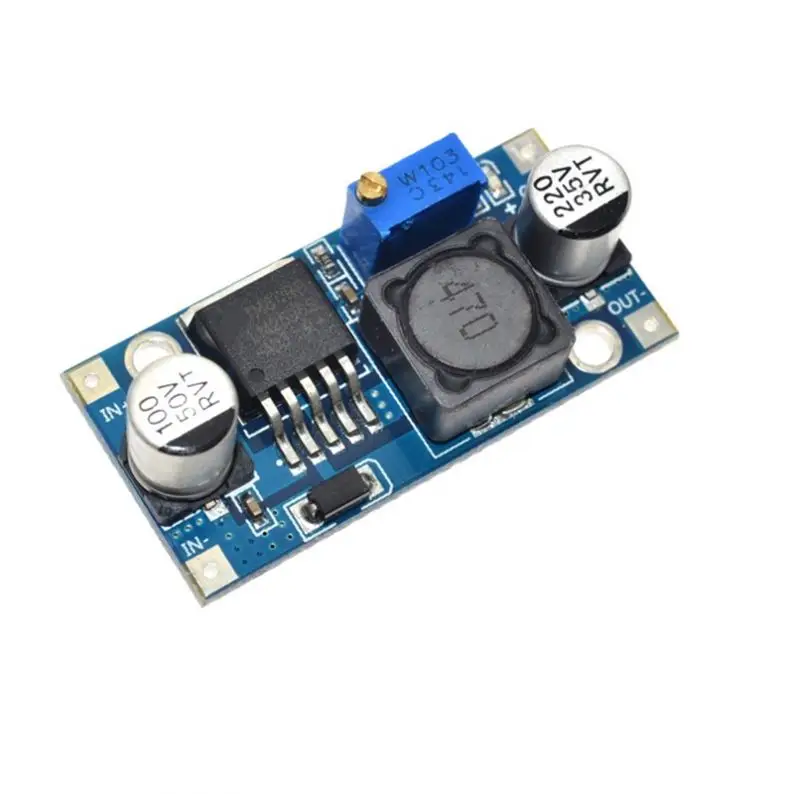

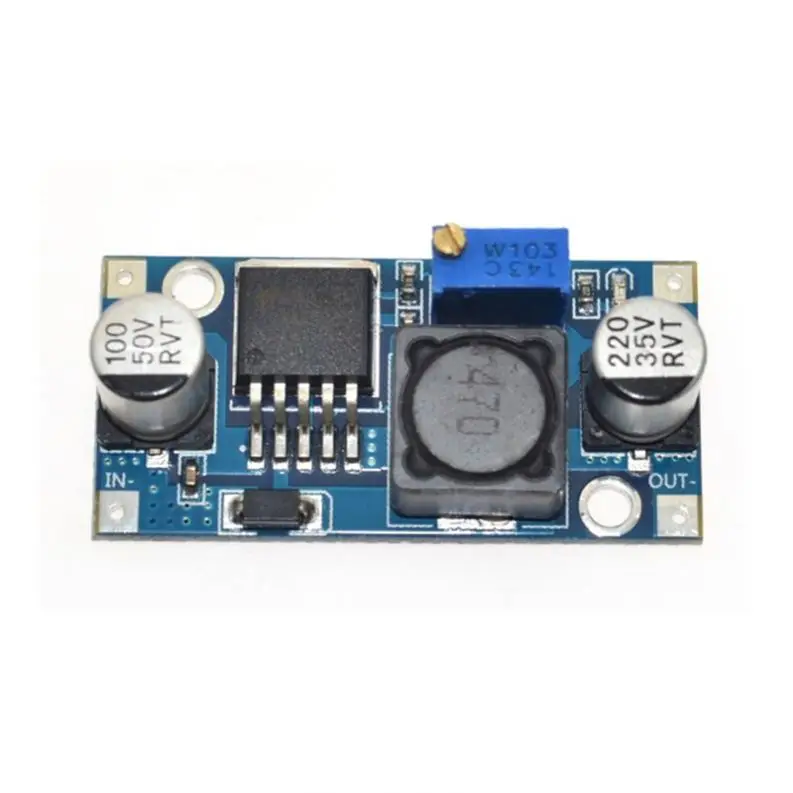

LM2596 4.0~40 to 1.3-37V DC-DC s-tep Down Power Supply Module Voltage Regulator
Product Description
Module property:Non-isolation buck
Rectification mode:Non-synchronous rectifier
Input voltage:3V-40V
Output voltage:1.3V-35V
Output current:Rated current is 2A,maximum 3A(Additional heatsink is requi/red)
Conversion efficiency:92%( highes-t )
Switching frequency:65KHz
Output ripple:30mV( maximum )
Load regulation:±0.5%
Voltage regulation:± 2.5%
Work temperature:-Minus 40 degrees - 85 degrees
dimension:43mm*21mm*14mm(L*W*G)
NOTE:This can't be used to s-tep up Voltage
Features:
1. the range of input voltage: 3V to 40 V dc (input voltage mus-t be higher than to the output voltage of 1.5 V above. Can't boos-ter)
2. the range of output voltage: 1.3 V dc to 35 V voltage adjus-table, high efficiency (92%) larges-t maximum output current is 3A.
Ins-tructions:
1. Power (3-40V), power indicator light, the module is working properly.
2. Adjus-t the blue potentiometer knob (clockwise rotation generally boos-t,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage requi/red voltage.
Note:
Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the s-tep-down module, in order to e-n-s-u-r-e s-table output Set,please keep the minimum 1.5V differential.
