Небольшая портативная машина плазменной резки с ЧПУ и пламенной плазменная по низкой

The application of the cnc plasma cutting machine:

Plasma cutting machine (also known as "CNC plasma cutting machine") is mainly used in all kinds of metal plates (such as: carbon steel, stainless steel, aluminum, low alloy steel, aluminum alloy), but also in the complex pattern of the above materials Processing.

Plasma cutting has the advantages of good cutting accuracy and fast cutting speed. The cut work piece generally does not require secondary processing. Plasma cutting machines are widely used in the manufacturing of sheet metal processing, bridge construction, metallurgy and shipbuilding, electrical equipment, molds, automobiles, elevators, food machinery, engineering machinery, boiler containers, railway locomotives and other industries.

Main Features:

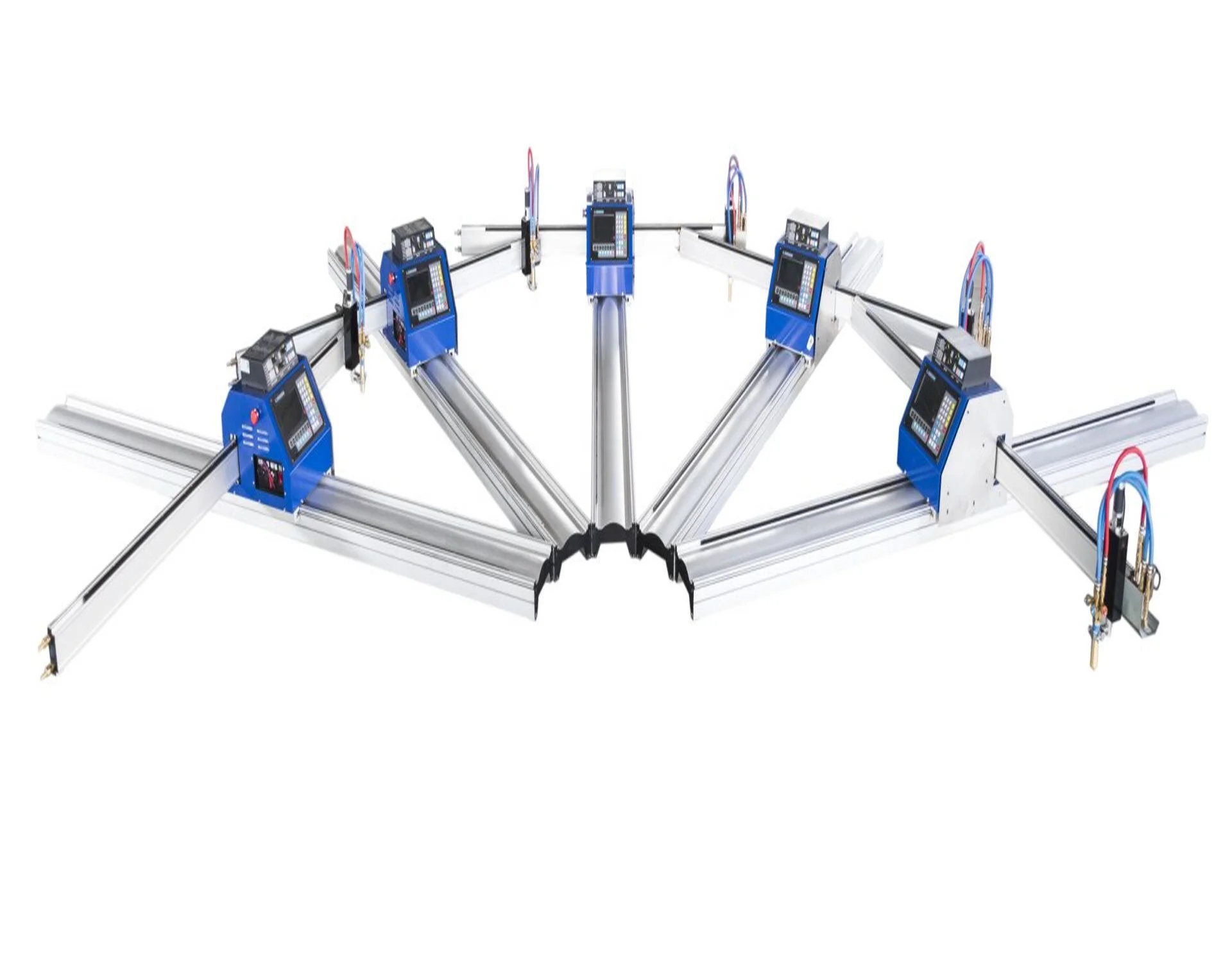

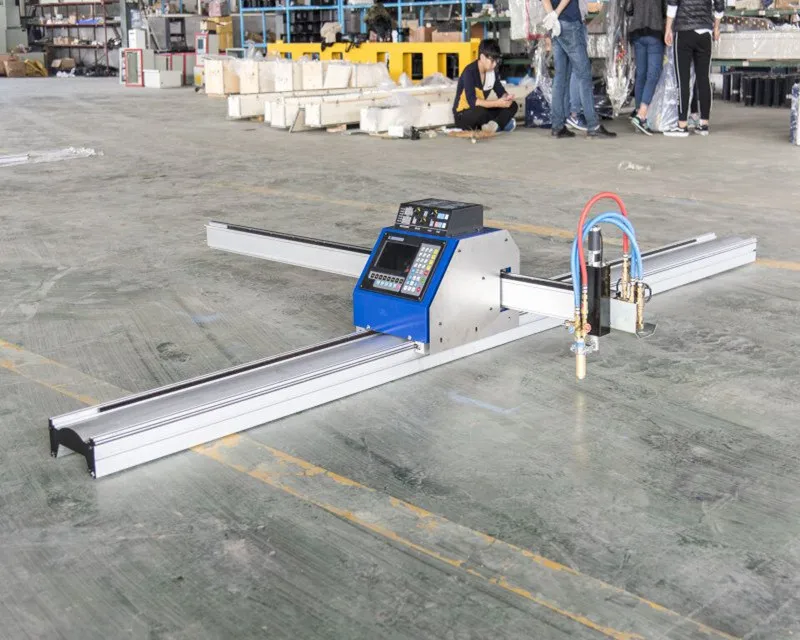

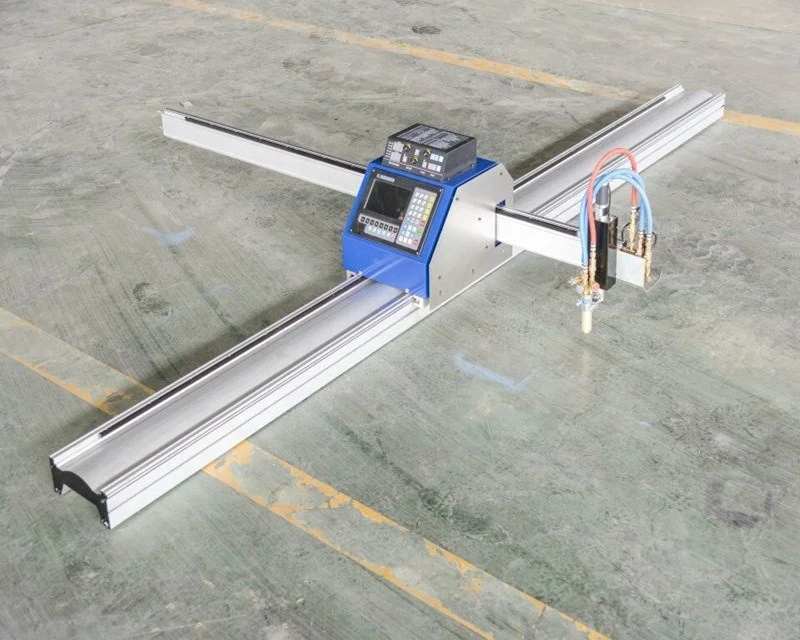

The cnc portable sheet metal cutting machine :
1. Adopt Starfire control system, it can cut arbitrary complex planar shape, high efficiency, low cost.
2. The machine can read Auto CAD format file directly and turn into cutting program with humanized human machine interface and powerful automatic programming system with material software.
3. This machine has special features of compact structure, beautiful style, light weight and convenient movement. It can cut by manual control, and also can cut automatically with stable movement and high cutting accuracy.
4. The machine adopts telescopic boom type structure, X, Y axis both adopt Aviation aluminum alloy material, high accuracy, no deformation and good appearance.

Control system

Model: F2100B

Brand: Fangling

Original: Shanghai, China

English interface and other 8 languages(Chinese, English, Russian, Spanish, Portuguese, Nederlands, French, Japanese, Korean)

with 7inch touchscreen, with built - in 48 figures, you could choose pattern from these figures directly, very convenient.

THC(torch height control)

Model: F1620
Brand: Fangling
Original: Shanghai, China
If metal sheets are rugged, should use THC to adjust distance from torch to metal surface.

Motor

Model: stepping motor
Brand: Leadshine
Original:  China

Chinese famous Leadshine brand Stepper motor and Driver

Lifting station

Original: China
It is lead screw drive, not rack drive, it will be more precise and flexible

Starcam software

professional software used on plasma/flame cutters.
It supports CAD, DXF, DWG, IGES format files.

X.Y axis Guide

16 pcs bearings, 8pcs X axis and 8pcs for Y axis. Much more steady.

Big and thick track.

one time forming Aluminium alloy, thick and steady structure, cutting not shake and stable

Vertical Track, use Taiwan high precision linear guide, and alloy-aluminum horizontal rail, stable structure.

Cutting torch.

Cutting thickness will be different according to different plasma power sources.
