Высокое качество CG1-2 газа кислородной резки с ЧПУ h-образная балка автомат
- Категория: Gas Cutting Machine >>>
- Поставщик: Nanning,Chuanjun,Welding,Hardware,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1280.91 $* | 1344.71 $* |
| Aug-16-2025 | 1270.2 $* | 1334.23 $* |
| Jul-16-2025 | 1065.8 $* | 1118.83 $* |
| Jun-16-2025 | 1248.32 $* | 1310.76 $* |
| May-16-2025 | 1087.84 $* | 1141.97 $* |
| Apr-16-2025 | 1227.53 $* | 1288.1 $* |
| Mar-16-2025 | 1216.18 $* | 1277.84 $* |
| Feb-16-2025 | 1205.73 $* | 1265.48 $* |
| Jan-16-2025 | 1194.32 $* | 1254.92 $* |
Характеристики

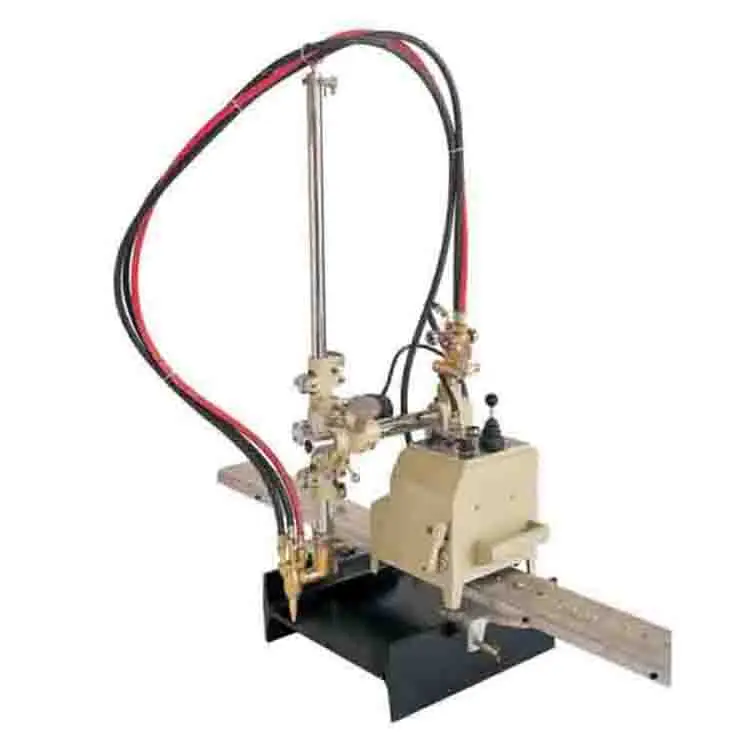

High Quality CG1-2 Gas Flame Cutting Machine H Beam Cutting Machine
Product Description
* “CG1-2A” portable H Structural section gas cutter is designed for cutting large-sized structural section.

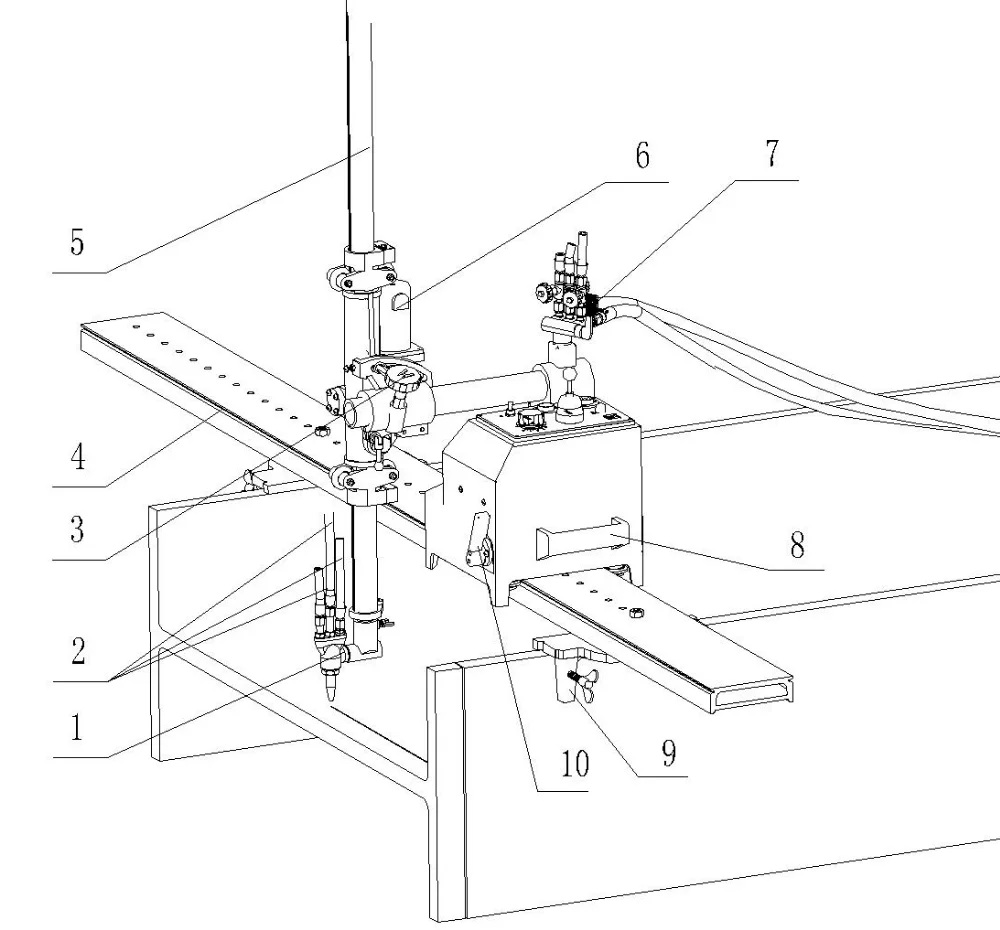

* The cutter is constituted of web plate cutting mechanism, wing plate cutting mechanism, control box, gas distributor and torch.
* Every section is connected with web plate cutting mechanism.
* The web plate mechanism is composed of box of reducing speed, motor and clutch.
* The wing plate cutting mechanism is installed on one side of the web plate and four pulley sustaining bars move vertically in the way that gear moves with gear rack.
* All operations are completed on the control panel such as quadruple switches, quick return push-button, speed modulation, power source switch.
1.Weight (body) | :21.5kilograms |
Accessory(track sections) | :15.5 kilograms |
2.Machine dimension | :400mm×340mm×440mm(Body); : 270mm×220mm×2200mm(Track) |
3.Speed control | :SCR control |
4.Power source | : AC 220V±10% |
5.Cutting speed | :50~75mm/min |
6.Cutting thickness | :5-50mm |
7.Bevel angle | :0~30°( wing plate; web plate) |
8.Maximum fly past of web plate cutting | :A=1600mm |
9.Maximum fly past of wing plate cutting | : B=800mm |
10.Maximum angle of wing plate slanting cutting | :30°(maximum height of slanting cutting 690mm) |
11.Maximum angle of web plate slanting cutting | :35°(maximum length of slanting cutting 1300mm |
12.Tip | :G02(for acetylene) or G03(for propane) |
13.Motor | : 1) web plate motor 110V 50HZ 30W Rotational speed,3600 rpm : 2) wing plate motor 110V 50HZ 40W Rotational speed,2200 rpm |
Packaging & Shipping
1.Machine body is packed into carton box, guide rail is packed into wooden case.
Company Information
Nanning ChuanJun Welding Hardware Co., Ltd. , founded in 2004, focus on welding equipment and accessory for more than 10 years. Our products are MMA, TIG welder, MAG/MIG welding machine, SAW welding machines, cutting machine, welding accessories, and welding materials.
Workshop
Quality Control
Warehouse
Exhibition
FAQ
1.Q:Are you a factory or trading company?
A, Yes we are the factory and have 5 production lines for us.
2.Q:Does the machine have CE certificate?
A:Yes, others certifications also can be sent
3.Q:What's the shipping method?
A: International express and sea transportation,Depend on customer.
4.Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in China, you can let your forwarder ship the products for you.
5.Q:What's the Payment method?
A:T/T, 30% deposit before production, the balance before delivery.(only big order)
We sugguest you transfer the full price at one time. Cause there is bank process fee, it would be a lot of money if you make twice transfer.
6.Q: What is our payment term?
A:We can accept the payment by Credit card and T/T and Trade assueance .
7: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
8.Q:How to Place an order?
A:Please kinldy send us your order by email,we will confirm the PI with you .we wish to know the below:your details address,phone/fax number,destination,transportation way ;
Product informaiton:item number,size,quantity,logo,etc
