Sale of mining ore vibrating feeder coal vibrating hopper feeder
US $4000-$10000
Китайский производитель каменный Вибрационный питатель для
- Категория: >>>
- Поставщик: Henan,Xingyang,Mining,Machinery,Manufactory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1131.72 $* | 1188.1 $* |
| Aug-19-2025 | 1121.90 $* | 1177.42 $* |
| Jul-19-2025 | 941.99 $* | 988.51 $* |
| Jun-19-2025 | 1102.85 $* | 1157.48 $* |
| May-19-2025 | 960.73 $* | 1008.90 $* |
| Apr-19-2025 | 1083.57 $* | 1137.97 $* |
| Mar-19-2025 | 1074.73 $* | 1128.35 $* |
| Feb-19-2025 | 1064.38 $* | 1117.99 $* |
| Jan-19-2025 | 1055.98 $* | 1108.3 $* |
Характеристики
Product Description

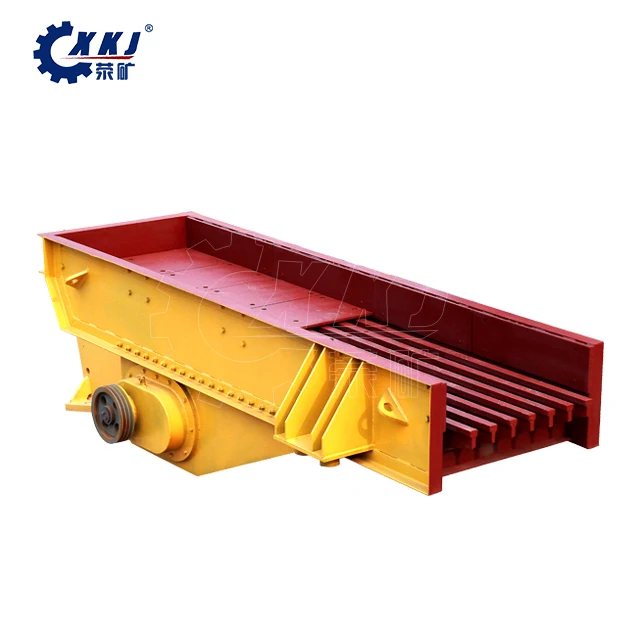

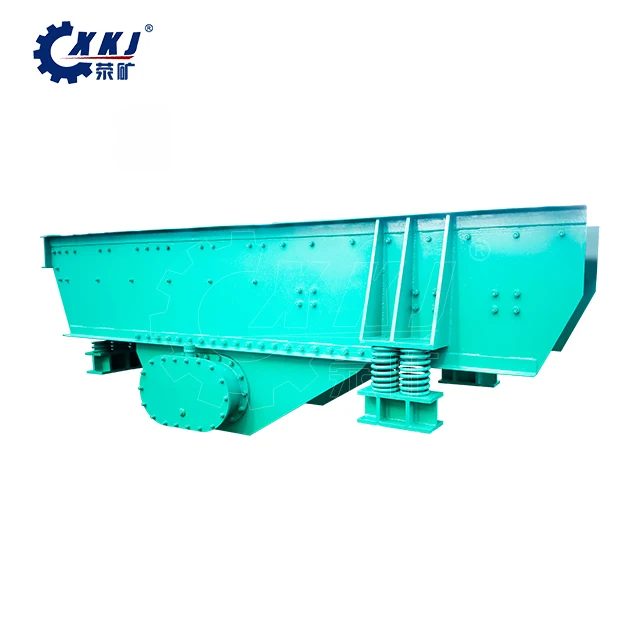

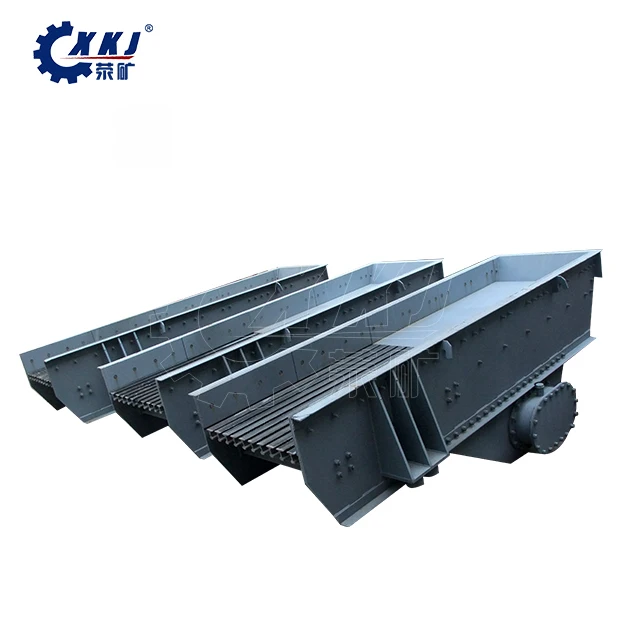

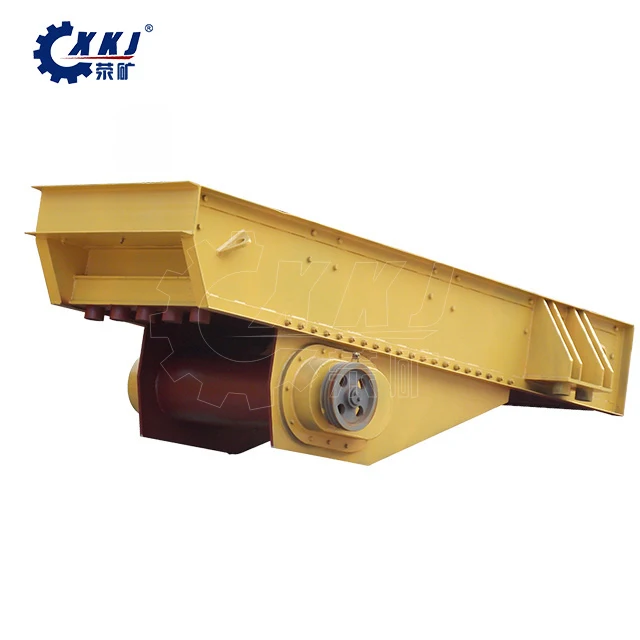

ZSW Series Vibrating Feeder is mainly used for coarse crushing, continuously and evenly feeding before the crusher, while screening fines, to increase crushing capacity. Especially in the feeding of heavy crushing construction equipment, it has been used greatly! Features and Advantages: linear trajectory, stable vibration, special rack design, adjustable to prevent trash material clogging rack space.
During processing, ZSW vibrating feeder can send various materials into the crushers continuously and evenly, at the same time, it can screen fine material to increase the crusher ability. The machine adopts double eccentric shaft vibration exciter, and the vibrating feeder can support impact force. It is widely used in metallurgy, coal ore, building material, chemical industry, etc.
Structure of mineral vibration feeder:

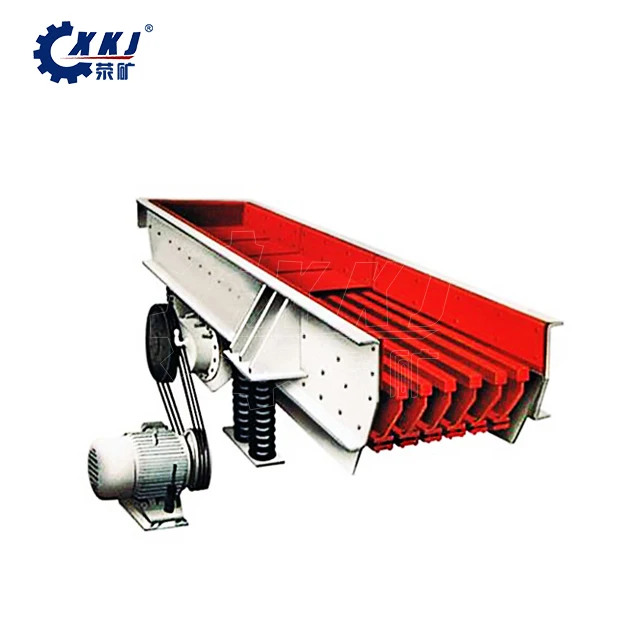

It consists of vibrating frame, spring, vibrator, motor vibration frame and motor etc
Feature:
1:Linear motion trajectory, vibration smoothly;
2. Grid special designed, it can prevent material blocked;
3. Grid distance can be adjustment.
Mineral Vibrating Feeder Specification:
Model | Max. feeding particle size | Processing capacity | Eccentric shaft speed | Motor power | Installation obliquity | Machine weight, motor not included | Trough dimension | Overall dimension(L*W*H) |
ZSW-380*95 | 700 | 96-160 | 500-714 | 11 | 0 | 4082 | 3800×950 | 3882×2210×2066 |
ZSW-420*110 | 800 | 120-240 | 500-800 | 15 | 0 | 4740 | 4200×1100 | 4282×2400×2150 |
ZSW -490*96 | 900 | 120-240 | 500-800 | 15 | 0 | 5351 | 4900×960 | 4957×2277×2150 |
ZSW-490*110 | 620 | 120-280 | 500-800 | 15 | 0 | 5830 | 4900×1100 | 4950×2420×2150 |
ZSW-590*110 | 650 | 220-350 | 500-800 | 22 | 0 | 6130 | 5900×1100 | 6000×2500×2150 |
ZSW-600*130 | 760 | 400-550 | 500-800 | 22 | 0 | 7780 | 6000×1300 | 6082×2580×2080 |
ZSW-600*150 | 1000 | 500-700 | 500-800 | 30 | 0 | 9970 | 6000×1500 | 6082×2780×2180 |
Note: This specification is just for reference, any changes are subject to the products.
Packaging & Shipping
Our Services
As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
Company Information
FAQ
