Dual Rails SMT Assembly Line LED Light Making Machines PCB Loader From OUBEL
Features:

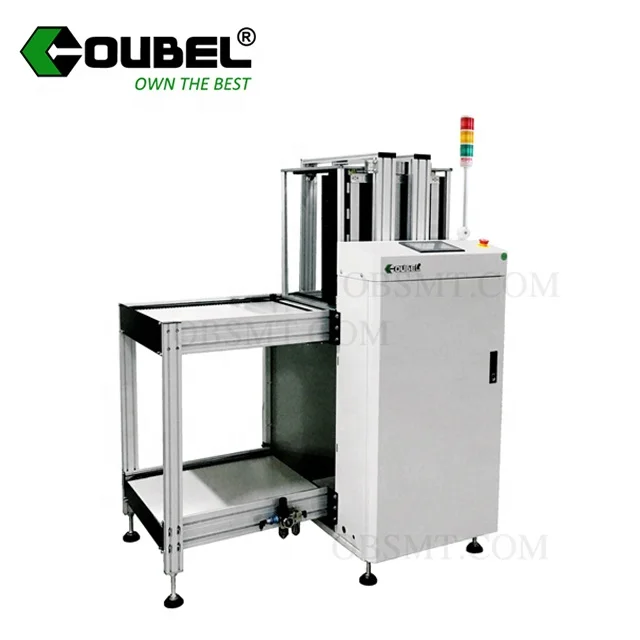

PCB Magazine Loader Unloader:
1.Applies to the PLC+touch screen controller.
2.Special gas circuit design to ensure no PCB breakage.
3.It can hold 1magazine, small footprint.
4.With SMEMA signal.
Solder Paste Printer:
1.High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2.PLC+PC with Windows XP control system.
3.Automatic PCB calibration, squeegee pressure adjustable, automatic printing and stencil cleaning.
4.Unique design to improve the lifespan of squeegee blade.

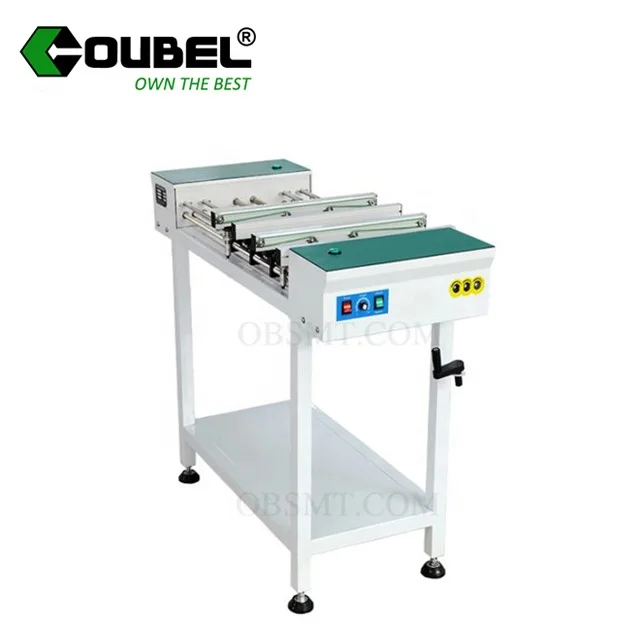

PCB Conveyor:
1.Precise M-screw,manual guide rail width adjustable,which ensures two guide rails move smoothly.
2.Imported round special belt, and the patent tracks ,decrease the PCB drop problem.
3.Stucture is made by the aluminum alloy,more stable and longer lifespan.
4.With SMEMA.
Pick and Place Machine:
1.Class leading speed, up to 42,000 cph.
2.New head design automatically adjusts the centering height based on components placed.
3.Wide component range
Shuttle Conveyor:
1.PLC+LED touch screen control, easy to operate.
2.Smooth and precise width adjustment (leadscrew).
3.With SMEMA signal.

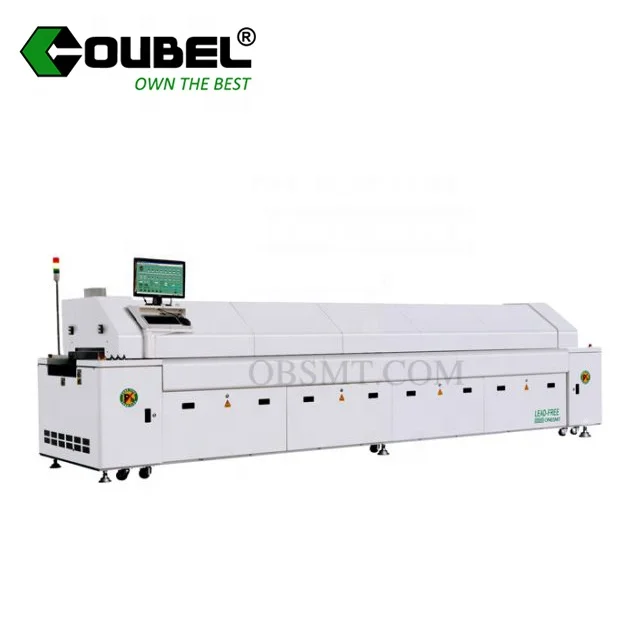

Reflow Oven:
1.Lenovo PC , windows 7 operation system, Chinese-English interface screen.
2.15% heat transferring efficiency was improved ,which is more suitable for the LEAD-FREE welding process.
3.Siemens PLC control, more durable and stable.
Dual Rails Unloader:
1.Panasonic PLC+Touch screen control , easy to operate.
2.Special gas path design ensures that the PCB panel is not pushed.
3.With SMAMA.
PCB Magazine Loader | Dimensions | 850*765*1250mm | Magazine size | 355*320*563mm | ||||
Dimensions | PCB size | 50*50-330*250mm | Magazine quantity | 1 | ||||
Air pressure | 4-6bar,10L/min max | Weight | Approx.120Kgs | |||||
Solder Paste Printer | PCB Size | 50*50-400*340mm | Cleaning System | Dry, Wet, Vacumm | ||||
Printing Accuracy | ±0.025mm | Air Pressure | 4.5 ~ 6Kg/cm2 | |||||
Power Supply | 220±10%, 50/60HZ | Dimension(mm) | 1240*1450*1510mm | |||||
PCB Conveyor | Dimensions(mm) | Length×640×910 | PCB Width | 50-350(mm) | ||||
PCB Direction | L-R or R-L | Speed | 0-1000(mm)/Min | |||||
Communication Plug | SMEMA Signal | Platform Material | ESD Rubber Mat | |||||
Pick and Place Machine | Component height | 25mm | Placement speed | 42,000CPH | ||||
Placement accuracy | ±0.035mm | Feeder inputs | max.112 | |||||
Board size(Min) | 50×50mm | Board size(Max) | 650×370mm | |||||
PCB Shuttle Conveyor | Dimensions | 500*W*1050mm | PCB size | 50*50-330*250mm | ||||
PCB thickness | Min.0.6mm | Conveyor height | 900±20mm | |||||
Conveyor direction | L-R or R-L （optional) | Weight | Approx.140Kgs | |||||
Reflow Oven | Heating zones | Top8 /bottom8 | Max width of PCB | 400mm | ||||
Width of conveyor | 50~400mm | Conveyor speed | 0～2000mm/Min | |||||
Heating time | Approx. 20min | Dimensions(mm) | 5400*1370*1555 | |||||
Dual Rails Unloader | Dimensions | 1510*1550*1250(mm) | Conveyor speed | 0.5-20M/min | ||||
Power | AC 110V/220V 50/60HZ | Up/down pitches | 10/20/30/40mm | |||||
Conveyor direction | L-R or R-L (optional) | Weight | Approx. 320KGS | |||||
Need more details about the SMT Line,please check here.
SMT Line Scheme

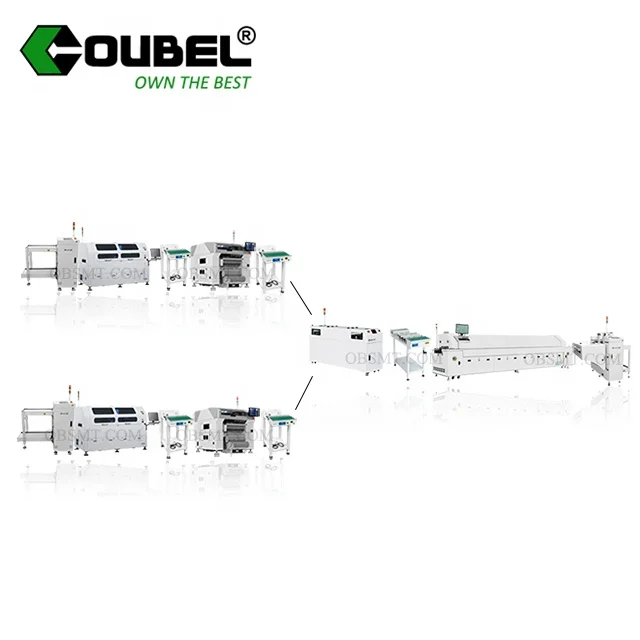

2*(PCB Magazine Loader-Solder Paste Printer-PCB Conveyor-Pick And Place Machine-
PCB Conveyor)-Shuttle Conveyor-Dual Rails Conveyor-Reflow Oven-Dual Rails Unloader
PCB Conveyor)-Shuttle Conveyor-Dual Rails Conveyor-Reflow Oven-Dual Rails Unloader
(All conveyor can choose chain or belt conveyor,and you can send your pcb to us,we can provide Free Proofing service)
