Products Description
Scope of application
The AC charging pile provides AC 50Hz, rated voltage 220V AC power supply, and is supplied to an electric vehicle with a vehicle charger.Mainly applicable to the following places Large, medium and small electric vehicle charging stations;
Various public places with electric car parking spaces, such as urban residential quarters, shopping plazas, and electric power business places;High-speed service area, station terminal and other transportation hub areas.
working environment
The ambient air temperature during operation is -25 ° C ~ 50 ° C, 24 h daily average temperature ≤ 35 ° C;
Monthly average relative humidity ≤ 90% (25 ° C), no condensation on the surface;
Atmospheric pressure 80kPa ~ 110kPa;
Installation vertical inclination ≤ 5%;
The harsh level of vibration and impact of the place is ≤I level, and the external magnetic field induction intensity in any
direction is ≤1.5mT;
The use site must not have explosive atmospheres. The surrounding media does not contain harmful metals and conductive gases that damage the insulation and conduct electricity.Medium, not allowed to be filled with water vapor and more serious mold;
The place of use should avoid direct sunlight. When installing outdoors, it is recommended to install a shading facility for the charging pile;
When the user has special requirements, it can be resolved through consultation with our company.
Features

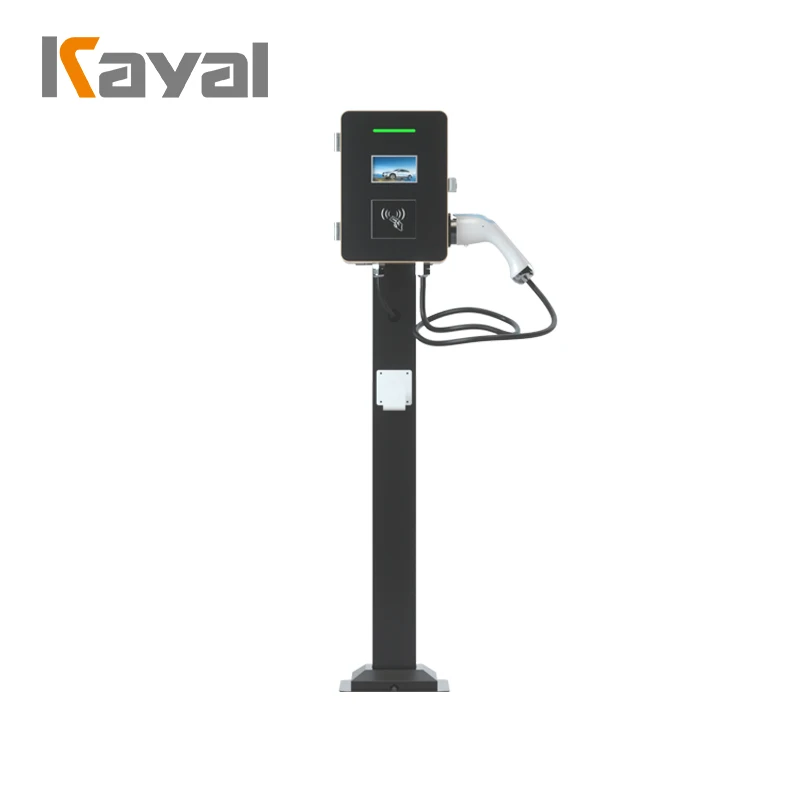

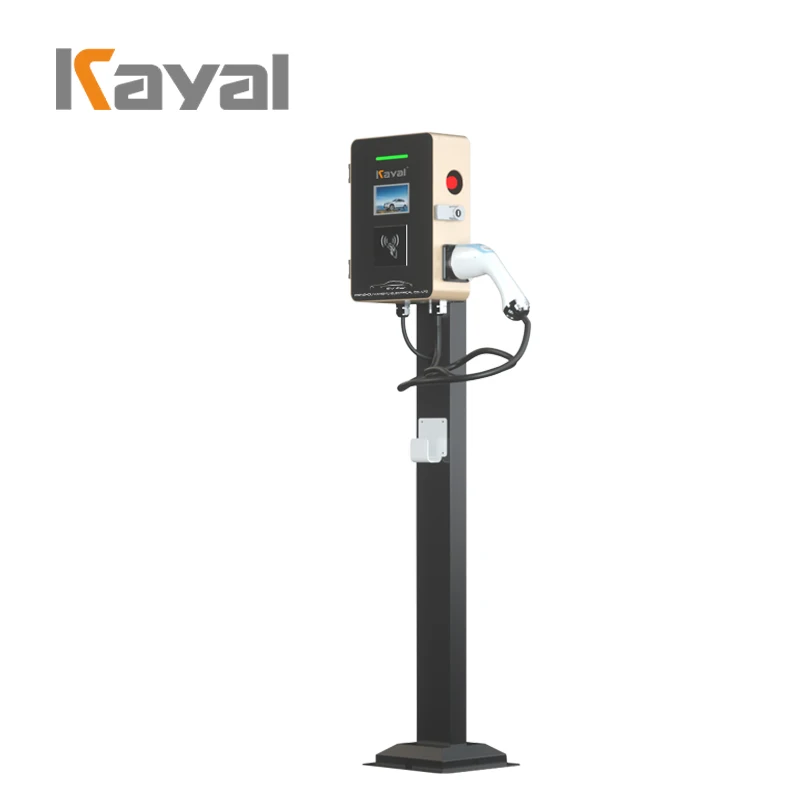

Available in both vertical and wall mount versions;
AC220V AC input;
The main control board adopts a single-chip microcomputer with an embedded operating system. The charging mode is divided into four types: automatic full, fixed time, fixed amount, and fixed power. The RS-485 networking communication interface can be reserved and provided.With GPRS networking mode.
The color touch screen display is 4.3 inch 480x272 resolution, and the charging mode can be set by touch button operation;
The single-phase electronic energy meter is used for electrical metering, and communicates with the main control board through theRS-485 interface;
The AC charging pile provides AC 50Hz, rated voltage 220V AC power supply, and is supplied to an electric vehicle with a vehicle charger.Mainly applicable to the following places Large, medium and small electric vehicle charging stations;
Various public places with electric car parking spaces, such as urban residential quarters, shopping plazas, and electric power business places;High-speed service area, station terminal and other transportation hub areas.
working environment
The ambient air temperature during operation is -25 ° C ~ 50 ° C, 24 h daily average temperature ≤ 35 ° C;
Monthly average relative humidity ≤ 90% (25 ° C), no condensation on the surface;
Atmospheric pressure 80kPa ~ 110kPa;
Installation vertical inclination ≤ 5%;
The harsh level of vibration and impact of the place is ≤I level, and the external magnetic field induction intensity in any
direction is ≤1.5mT;
The use site must not have explosive atmospheres. The surrounding media does not contain harmful metals and conductive gases that damage the insulation and conduct electricity.Medium, not allowed to be filled with water vapor and more serious mold;
The place of use should avoid direct sunlight. When installing outdoors, it is recommended to install a shading facility for the charging pile;
When the user has special requirements, it can be resolved through consultation with our company.
Features
Available in both vertical and wall mount versions;
AC220V AC input;
The main control board adopts a single-chip microcomputer with an embedded operating system. The charging mode is divided into four types: automatic full, fixed time, fixed amount, and fixed power. The RS-485 networking communication interface can be reserved and provided.With GPRS networking mode.
The color touch screen display is 4.3 inch 480x272 resolution, and the charging mode can be set by touch button operation;
The single-phase electronic energy meter is used for electrical metering, and communicates with the main control board through theRS-485 interface;
Using a non-contact smart card reader, reading information about the IC card, communicating with the main control board through the RS-485 interface, and mastering
The board background program performs charger identity identification, user information recording, charging cost calculation,etc.; the line switch adopts a switch with leakage protection function, and installs an emergency stop button;
The shape is made of sheet metal and part of ABS plastic structure.
The main technical parameters
The board background program performs charger identity identification, user information recording, charging cost calculation,etc.; the line switch adopts a switch with leakage protection function, and installs an emergency stop button;
The shape is made of sheet metal and part of ABS plastic structure.
The main technical parameters
7KW single gun AC charging pile | ||||||
Detailed specification | User Interface | 4.3 inch bright color display touch screen | ||||
Charging equipment | Installation method | Wall-mounted | Column type | |||
Way of routing | Down and down | |||||
Dimensions | 292*126*417(mm) | 292*176*4131(mm) | ||||
Input voltage | AC220V±20% | |||||
Input frequency | 50±10Hz | |||||
The output voltage | AC220V±20% | |||||
Maximum output current | 32A | |||||
Cable length | 5m | |||||
Measurement accuracy | Level 0.5 | |||||
Electrical index | ≥11 | |||||
Electrical index | Current limit protection value | / | ||||
Voltage regulation accuracy | / | |||||
Steady flow accuracy | / | |||||
Ripple coefficient | / | |||||
effectiveness | / | |||||
Power factor | / | |||||
Harmonic content THD | / | |||||
feature design | HMI | 4.3 inch LCD display touch screen, LED indicator | ||||
Charging mode | Auto full / fixed power / fixed amount / fixed time | |||||
payment method | APP payment / credit card payment /scan code payme | |||||
Ethernet/2/3/4G | ||||||
Safety design | Safety standard | GB\\T 20234,GB/T 18487,GB/T 27930, NB\\T 33008,NB\\T 33002 | ||||
security function | Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, lightning protection, emergency stop protection, leakage protection | |||||
Environmental indicators | Operating temperature | —25°C~+50℃ | ||||
Working humidity | 5%~95% non-condensing cream | |||||
Working elevation | <2000m | |||||
Protection level | Level IP55 | |||||
cooling method | Forced air cooling | |||||
Noise control | ≤60dB | |||||
MTBF | 100,000 hours | |||||
