32A 7KW Wall-mounted Intelligent AC Electric Car Charger
- Категория: New Energy Vehicle Parts & Accessories >>>
- Поставщик: Star,Charger,New,Energy,Technology,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 240.3 $* | 245.75 $* |
| Jul-15-2025 | 195.60 $* | 199.0 $* |
| Jun-15-2025 | 236.38 $* | 241.53 $* |
| May-15-2025 | 234.7 $* | 239.1 $* |
| Apr-15-2025 | 187.88 $* | 191.97 $* |
| Mar-15-2025 | 231.57 $* | 236.11 $* |
| Feb-15-2025 | 229.45 $* | 234.41 $* |
| Jan-15-2025 | 227.97 $* | 232.42 $* |
Характеристики
Products Description
Parameter | Product model | Dark house Series | ||

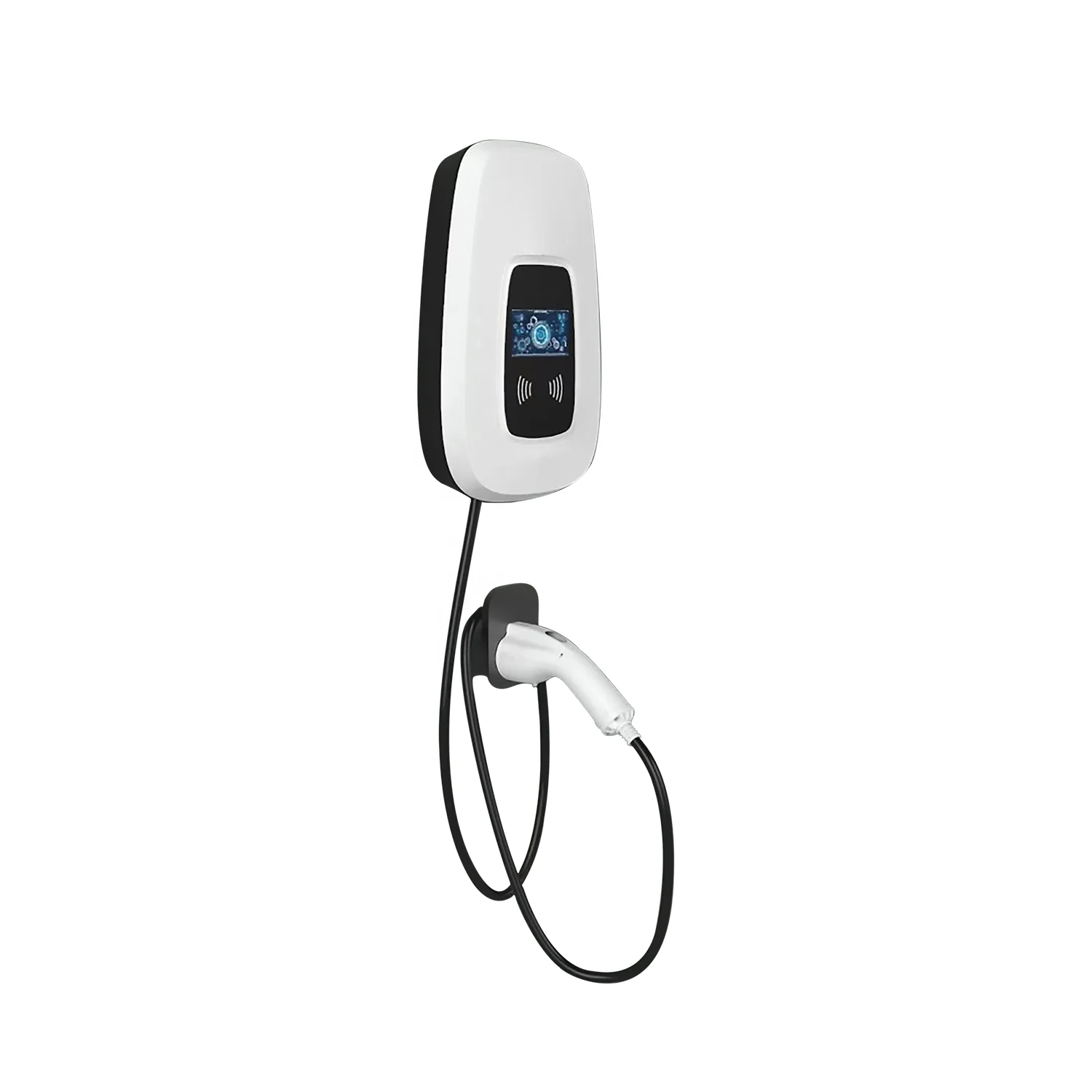

Structure | Installation | Wall-mounted Type / Floor-standing Type Installation | ||
Charging cable | 5M(16.4FT) standard, 7.5m / 10m or other size customizable | |||
Weight | 6.0kg (Including charging gun) | |||
Electrical Specifications | Input voltage | AC220V±20% | ||
Frequency rating | 45~65HZ | |||
Power rating | 7KW /3.5KW Optional | |||
Measuring accuracy | 1.0 grade | |||
Output voltage | AC 220V±20% | |||
Output current | 7KW:32A | |||
Measurement accuracy | OBM 1.0 | |||
Function | Indicator light | Y | ||
4.3 inch display screen | Optional | |||
Communication interface | charger and plug | |||
Operating conditions | Working temperature | -30~+65℃ | ||
Relative humidity permission | 5%~95%(non-condensation) | |||
Maximum altitude permission | ≤3000m | |||
IP grade | ≥IP55 | |||
Cooling way | Natural cooling | |||
Applicable ambient | Indoor/outdoor | |||
ECT | UV resistance | |||
MTBF | ≥100000H | |||
Company Profile
About us
Starcharger New Energy Technology (Shanghai) Co., Ltd. is an enterprise specializing in Research & Development of Electric Vehicle Charging
products. The company has a strong R&D team and the team director conducted a visiting scholar study at the University of Michigan
Dearborn from 2011 to 2012. And the company also has a complete production supporting system integrating mold design,
manufacturing and injection molding. We can provide customized services to meet different needs from customers, in addition to our
regular standard products. We constantly strive to provide each customer with better products along with customized services. We
are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to
vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging
products.
products. The company has a strong R&D team and the team director conducted a visiting scholar study at the University of Michigan
Dearborn from 2011 to 2012. And the company also has a complete production supporting system integrating mold design,
manufacturing and injection molding. We can provide customized services to meet different needs from customers, in addition to our
regular standard products. We constantly strive to provide each customer with better products along with customized services. We
are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to
vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging
products.
Product packaging
FAQ
How AC ev charger works?
The output of the AC charging post is AC, which requires the OBC to rectify the voltage itself, and is limited by the power of the OBC, which is generally small, with 3.3 and 7kw being the majority.
What ev charger do I need?
The output of the AC charging post is AC, which requires the OBC to rectify the voltage itself, and is limited by the power of the OBC, which is generally small, with 3.3 and 7kw being the majority.
What ev charger do I need?
It is best to choose according to the OBC of your vehicle, e.g. if the OBC of your vehicle is 3.3KW then you can only charge your vehicle at 3.3KW even if you buy 7KW or 22KW
How to use ev charger?
You need to connect the ev charger to the power supply and then insert the charging plug into your car. If you have selected the RFID card, it will only start charging after you have swiped the RFID card. app version you can control the start or stop of
charging on your mobile phone, and you can also make appointments to charge at certain times.
what's the MOQ?
If you are ordering just one product, we can also customise the logo or change the colour of the panel for you, but these customisations are available at an additional cost. Please contact us for more information.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
What is your terms of delivery?
A:EXW, FOB, CIF.
What is your terms of payment?
We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
How to use ev charger?
You need to connect the ev charger to the power supply and then insert the charging plug into your car. If you have selected the RFID card, it will only start charging after you have swiped the RFID card. app version you can control the start or stop of
charging on your mobile phone, and you can also make appointments to charge at certain times.
what's the MOQ?
If you are ordering just one product, we can also customise the logo or change the colour of the panel for you, but these customisations are available at an additional cost. Please contact us for more information.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
What is your terms of delivery?
A:EXW, FOB, CIF.
What is your terms of payment?
We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
Thank you for watching！
Please click on the SEND button below for more information
