Система Daf и Флотация растворенным воздухом для очистки

DAF System Introduction

Dissolved Air Flotation is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids.

The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air atmospheric pressure in a flotation tank basin.

The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.

DAF System Work Process

The wastewater enter RT1 (coagulation reaction tank) and  RT2 (flocculation reaction tank) from the equalization tank through the lift pump, and coagulates with PAC  floculates with (PAM) respectively form the flocs.

Then the wastewater and dissolved water enter the reaction zone of the DAF tank, and the microbubbles and flocs in the dissolved water are mixed and adhered to form solid particles ,which the density less than water, and float up to the surface of the DAF tank .

Under the action of buoyancy, scum is scraped to the slag tank. The clean water is collected down to the collect tank through the water collecting pipe, and most of the outer water is discharged (or into the next process), and a small part of the water is recirculated to form the dissolved water.

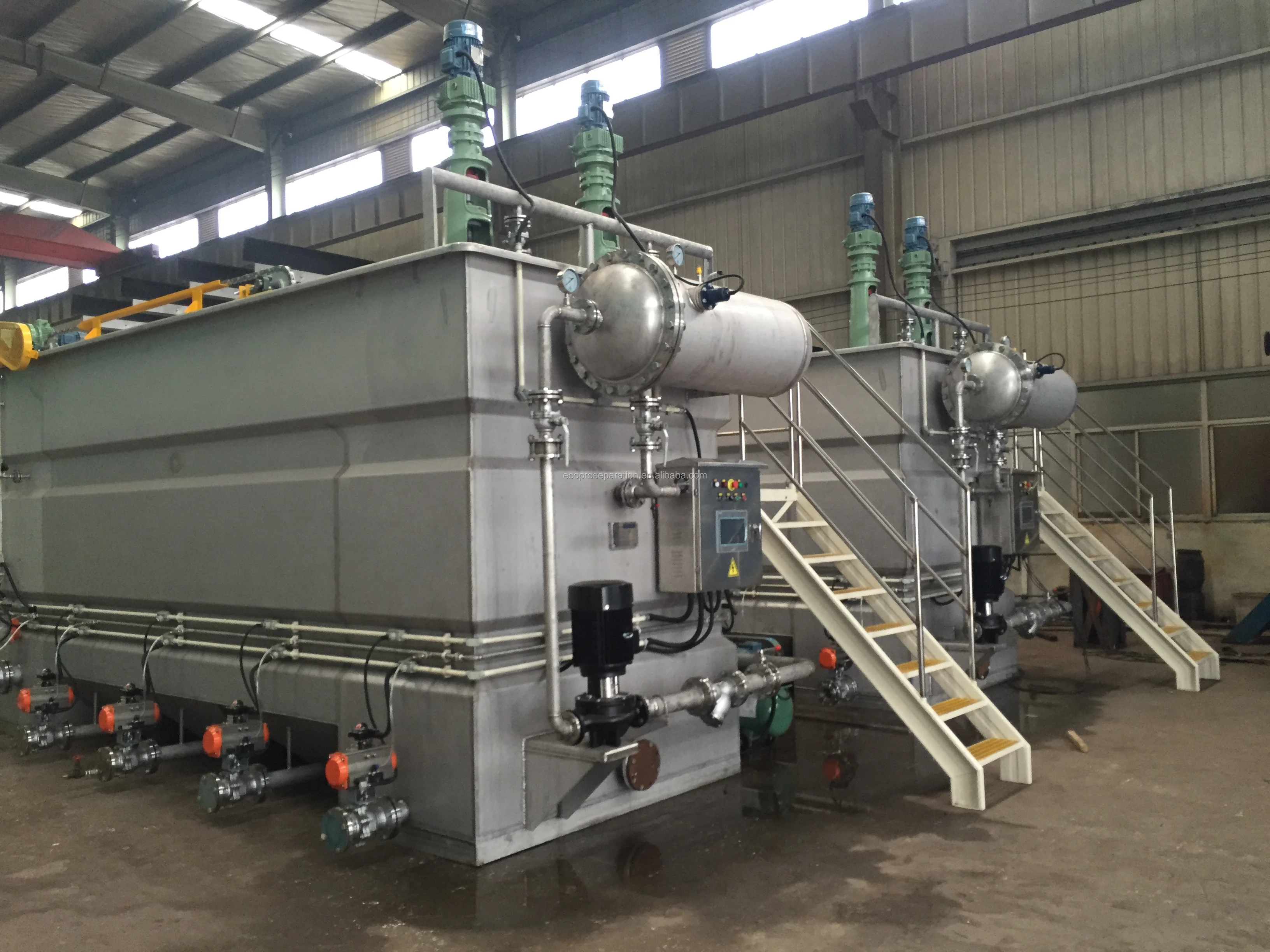

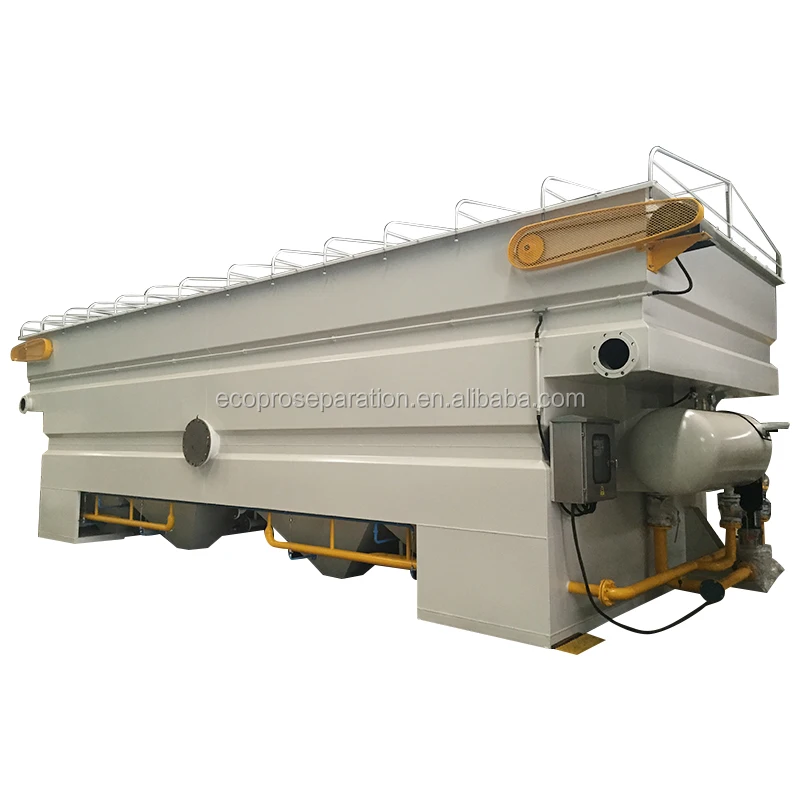

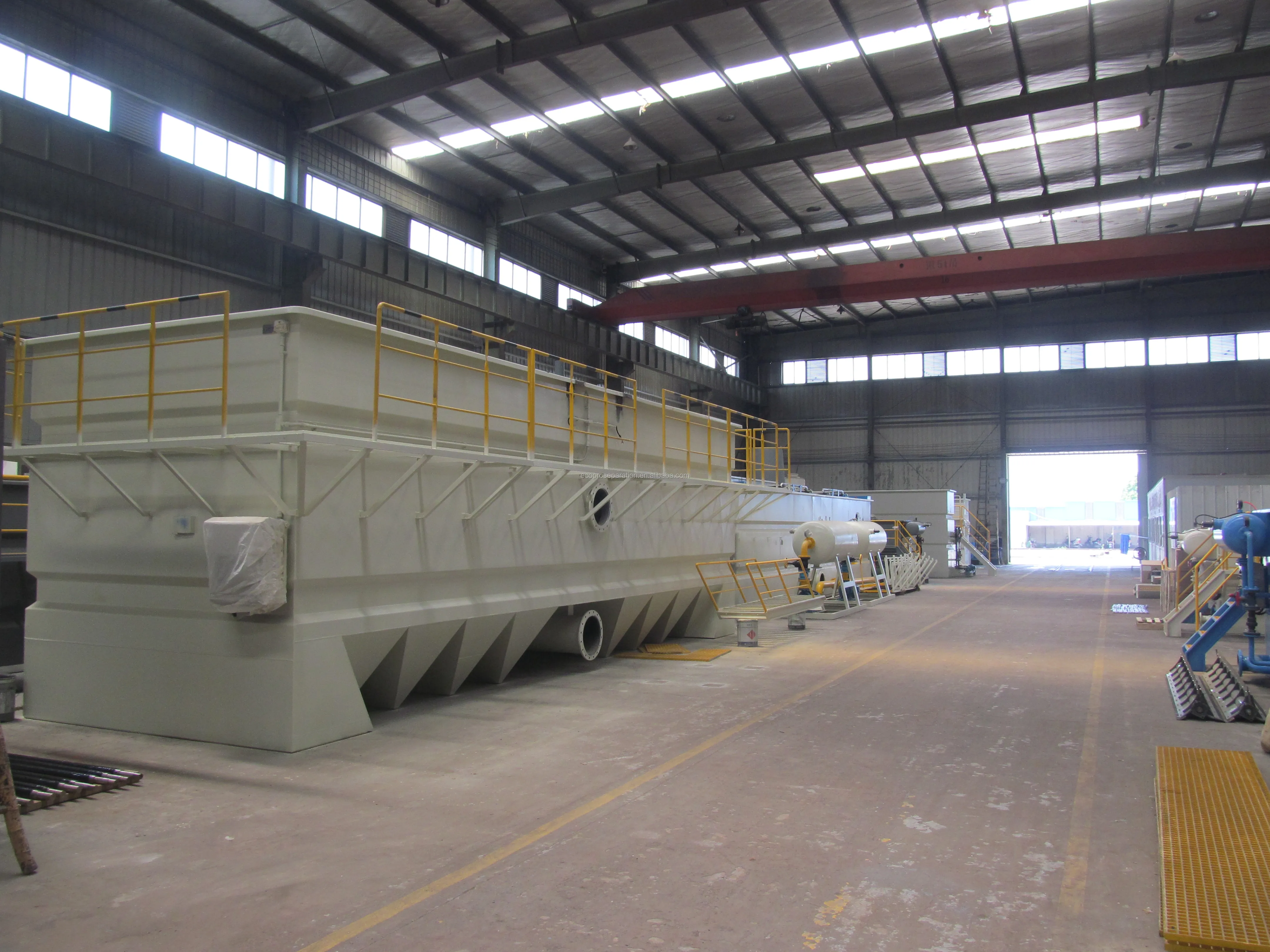

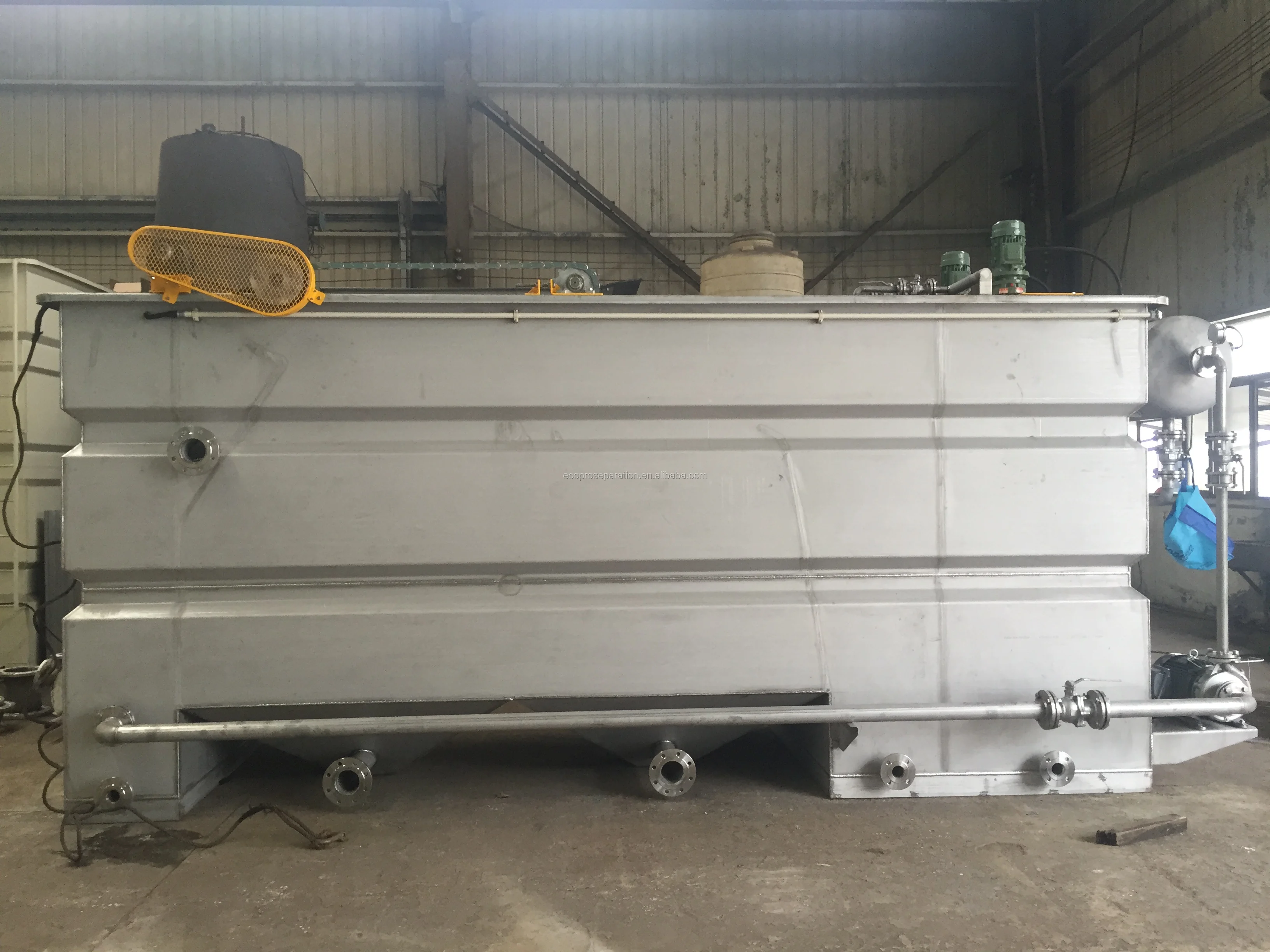

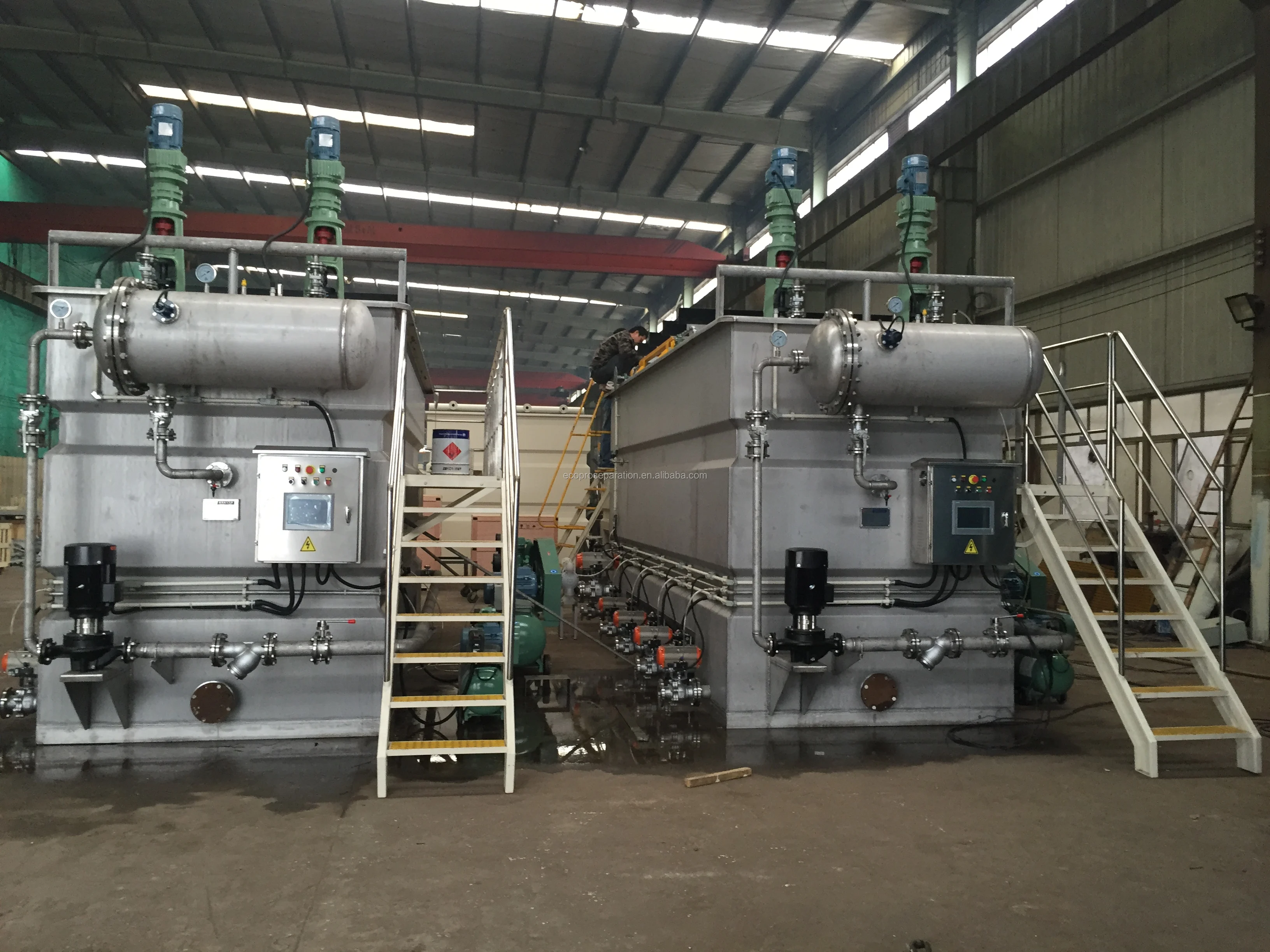

DAF System Details
DAF System Features
1. Micro bubbles generating
2. Subsurface capture
3. Automatic slagging controlled by liquid level
4. Non-clogging releasing with high efficiency.
Technical Data of DAF System

Technical Drawing of DAF System
Application of DAF System
Municipal Sewage
Slaughter House
Metallurgical  Industry Wastewater
Spraying Sewage
Printing  & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage
How to select right model?
     Wastewater  type ( dairy wastewater , car washing wastewater ,slaughter house wastewater, food wastewater , river water …..)
     SS  content  (ppm or mg/L)
     Oil & Grease &Fat & FOG  content  (ppm or mg/L )
     PH  (6~9 is preferred . Otherwise consider PH adjust tank before DAF tank , also have to consider the material of the DAF because of Corrosive substance )
    BOD   (ppm or mg/L)
    COD   (ppm or mg/L)
DAF System for References
