Характеристики
Product Paramenters
Model | TTF-700AF |
Forming Area | 700mm x 550 mm |
Forming Depth (Max.) | 120mm |
Sheet thickness | 0.2-2.0mm |
Forming Speed (Max.) | 30times/min |
Air pressure | 0.6-0.8mpa |
Air consumption | 3.6 m³/min |
Water consumption | 0.7 m³/h |
Sheet width (Max.) | 730mm |
Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Used power | 105Kw |
Rated power | 210Kw |
Heating power | 118Kw |
Procedure | Forming-punching-cutting-stacking |
Dimension | L13000*W4700*H2750mm |
Weight | About 25.0T |
MAIN ELECTRICAL COMPONENTS | ||
PARTS | BRAND | |
Filter | CKD (Japan) | |
Forming valve | MAC (USA) | |
Temperature control module | WEST (UK) | |
Proximity switch | ROCKWELL (USA) | |
AC contactor\\Circuit breaker\\Button | SCHNEIDER (France) | |
Intermediate relay | IDEC (Japan) | |
Intermediate Relay Base | OMRON (Japan) | |
Vacuum Pump | ELMO RIDTSCHLE (Germany) | |
Products Description
Application:

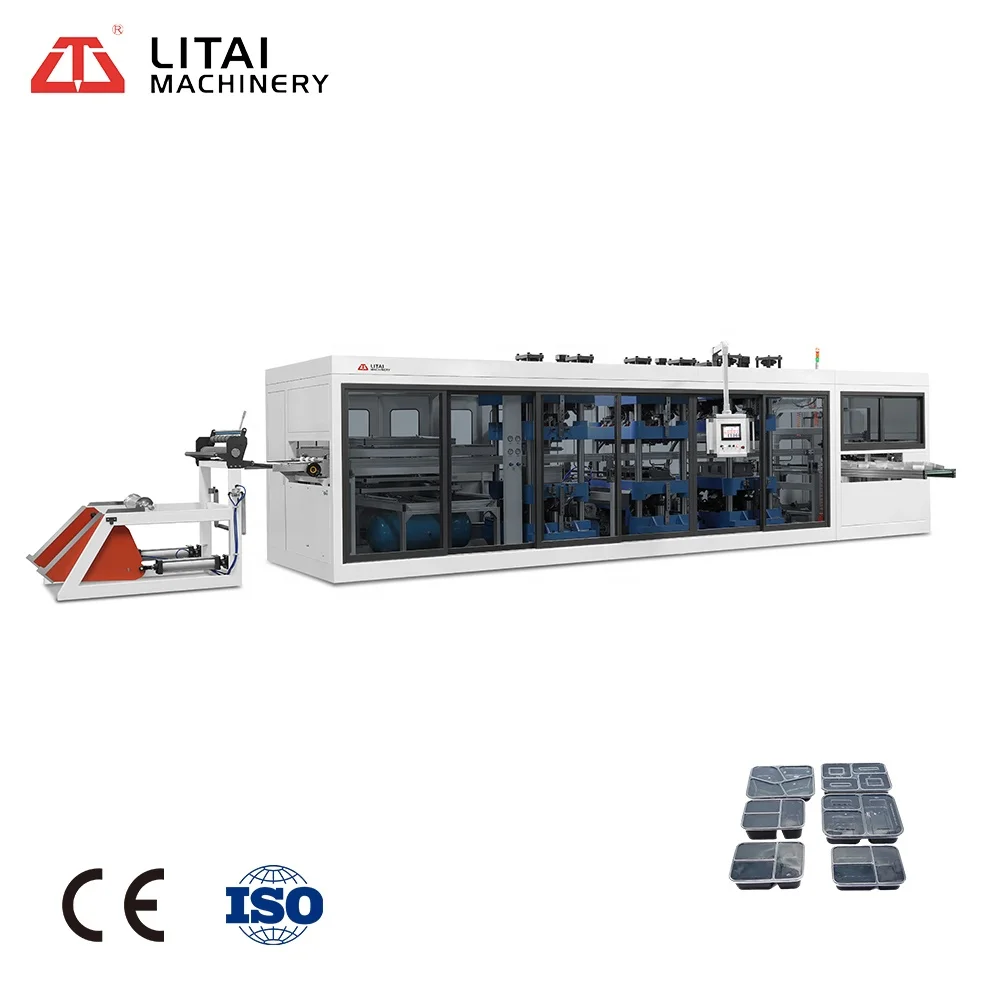

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, punching, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.
Sample:

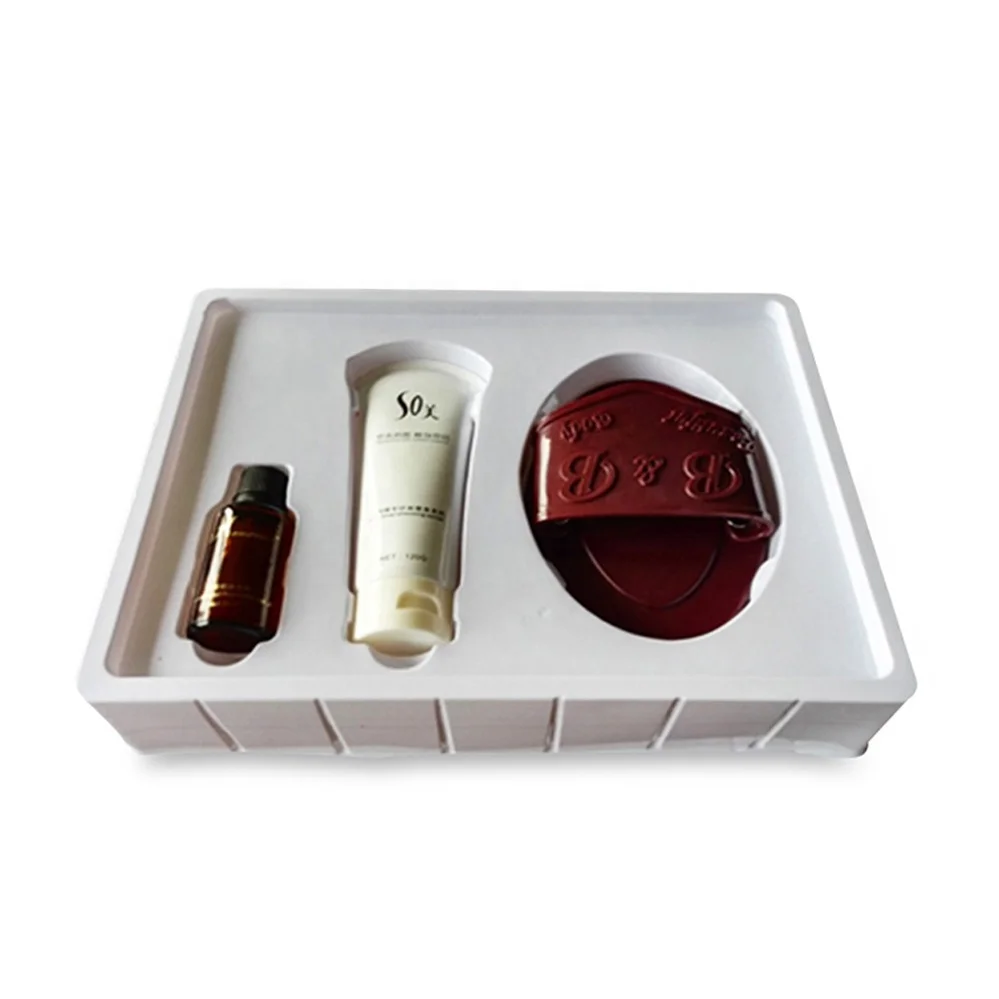

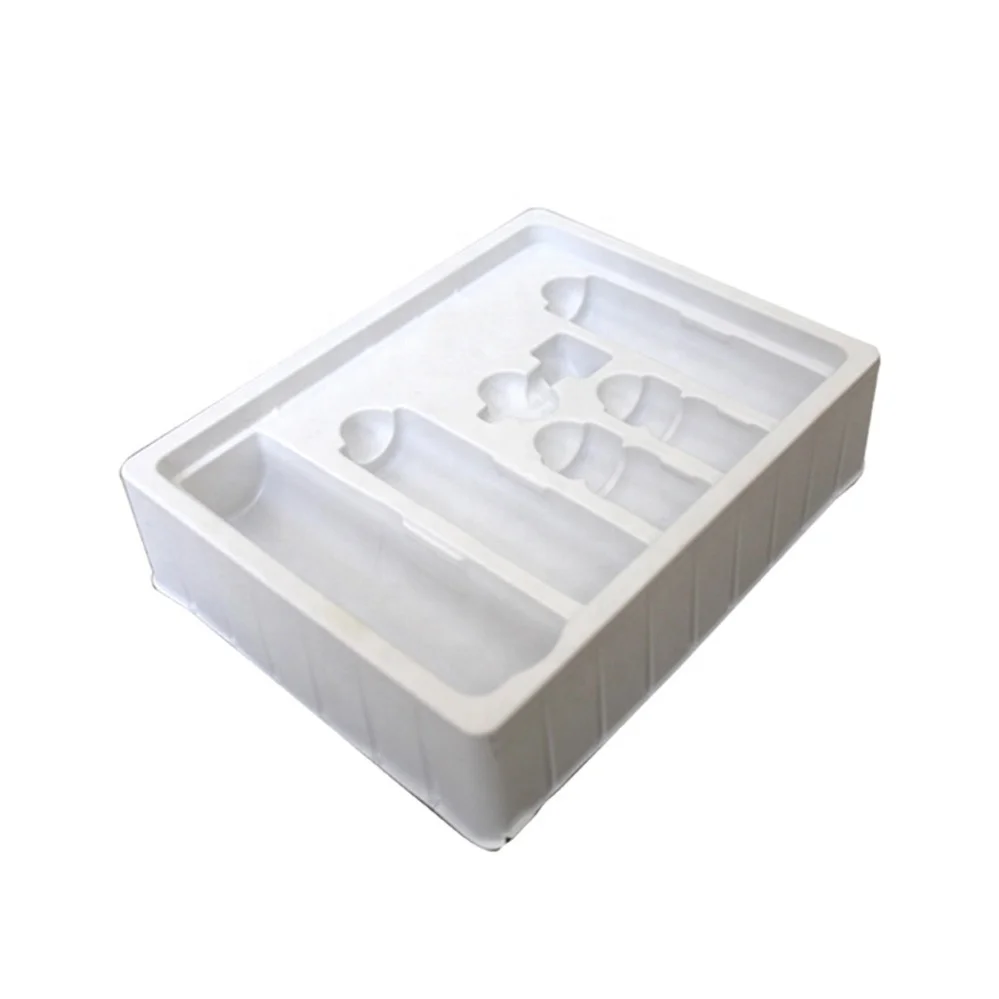

Cosmetic tray
Common uses for a plastic thermoformed tray include packaging inserts or shipping trays. Depending on the end use, plastic materials used to manufacture a tray can vary. For shipping, storage, and material handling trays, less costly materials can be used to provide a durable and protective tray without the need for clarity.
Egg tray
The egg tray can be made PET or PVC plastic material.
There are 4,6,8,9,10,12,15,30 cells tray.
The diameter of it is 4 cm , 4.3 cm, 4.6 cm.
It can be printed as your requirement.
There are 4,6,8,9,10,12,15,30 cells tray.
The diameter of it is 4 cm , 4.3 cm, 4.6 cm.
It can be printed as your requirement.

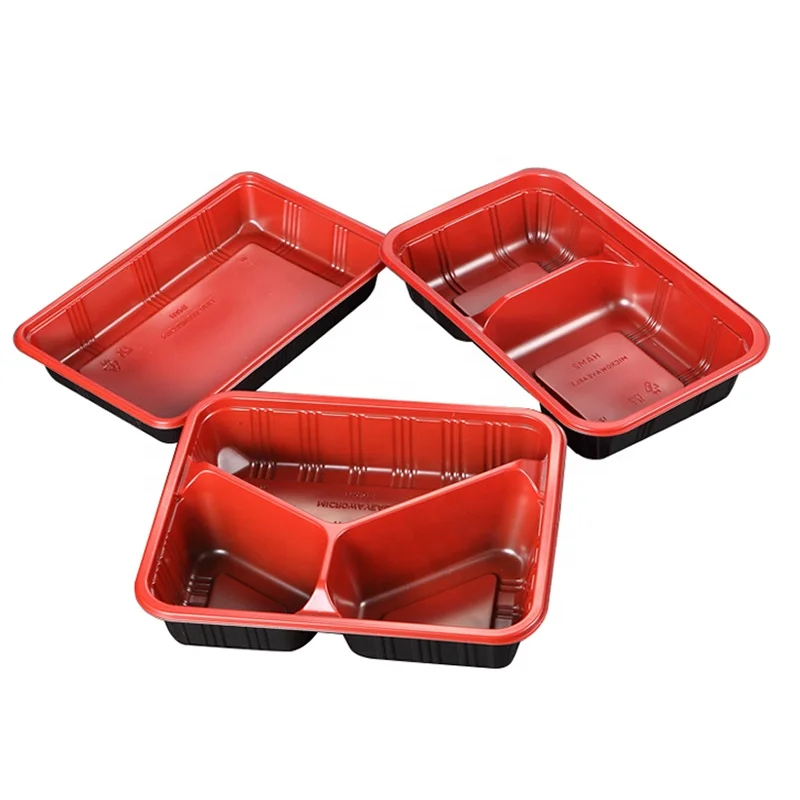

Disposable lunch box
Advance meal prep, diet portion control, healthy nutritious meals and to-go meals are super convenient to prepare in these durable food containers. The hard-plastic construction will ensure no cracks or breaking along the way. The leak proof lids will tightly seal the containers, preventing any annoying leaks or spills in your bag or freezer
Plastic fruit box
Our machine can manufacture 100% new food grade non-toxic and odorless material, which has high transparency and environmental friendliness.Accurate lid makes our products lock tightly,which is not loose,leakage,strict and fresh.The thicker material box shape does not change when stacking up.

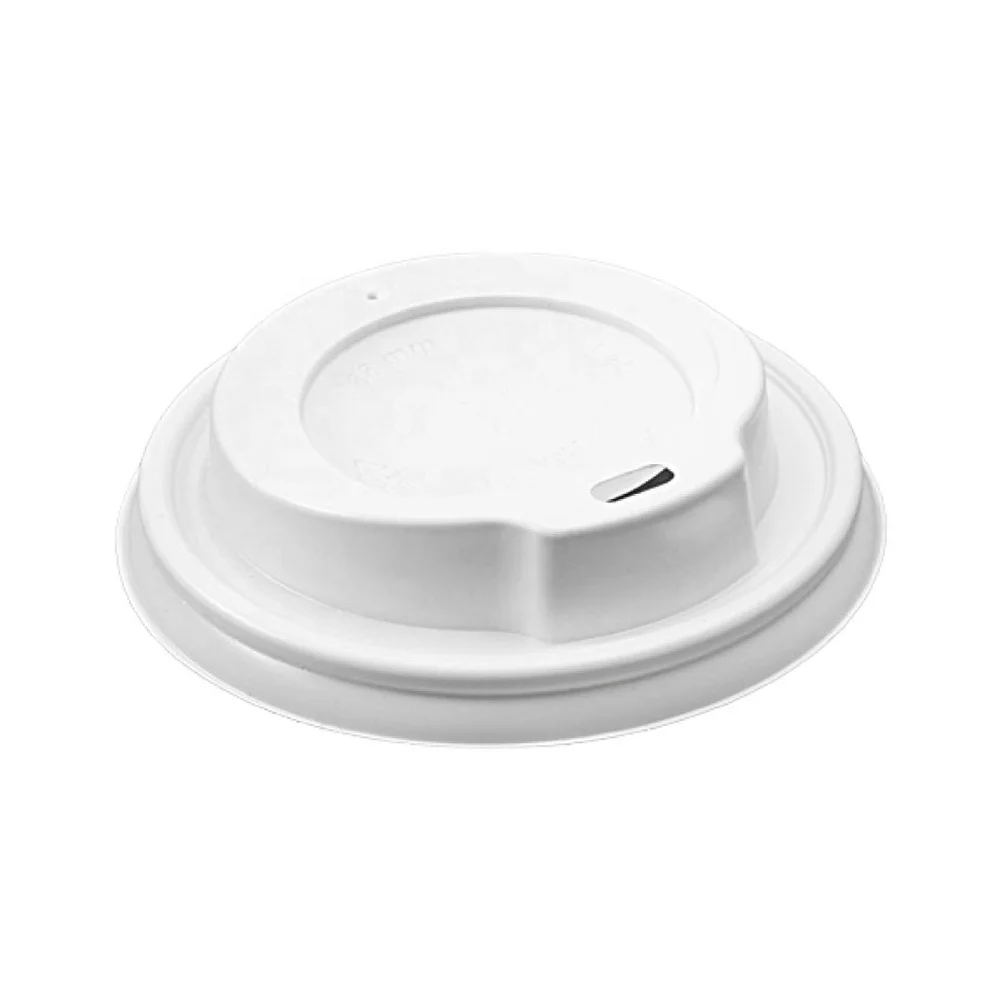

Coffee cup lid
Our machine supports 100% biodegradable and compostable materials: our fiber thermal cover is made of 100% plant-based materials, which is completely environmentally friendly. We are honored to provide you with an innocent alternative that is easy to compost and biodegradable. While reducing plastic waste, you can also better enjoy your favorite hot drinks!
plastic bowl
Elastic thermoforming is the preferred process for manufacturing plastic parts because it is ideal for producing large numbers of low-cost plastic parts with high tolerance accuracy, repeatability and almost no completion.
Punching station
Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.
Working station
sheet feeding and rolling part all completely driven by servo motor system, more accurate and efficient.
ceramic heater
The ceramic heater (Germany·ELSTEIN) added vacuum insulation cotton, it shows quick response rate, short processing time, and save energy.
Console
Industrial manual interface (Delta) has storage function. All parameters can be stored in recipes, it is convenient for the next-time operation.
Material frame
Material holder combines with the machine for saving workshop space, and it is easy to control.
SUMMARY OF MACHINE
1. Every station is driven by the eccentric crank linkage structure.
2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5. There is a rapid mould change device, which shortens the time for mould change extremely.
6. Each servo motor has overload protection for machine’s overworking.
7. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
8. There is an alarm function of the sliding doors.
Why Choose Us
Company Profile
About us
Rui‘’An Litai Machinery Co., Ltd. (formerly named as Rui'an Litai Factory which was established in 2000) is a professional manufacturer of a full complete production line of full-automatic plastic thermoforming machine, cup thermoforming machine, cup printing machine, sheet extruder, plastic vacuum forming machine, packing machine, plastic machine and other industrial machinery.
Having been involved in designing and manufacturing machines for several years (beginning from the year of 2000), we have employed experienced designers and have built a high-qualified technical team. We are one of the enterprises that have passed ISO9001 international quality management system in China. Now we are handling production strictly conforming to these standards and supplying high quality products at competitive prices.
We have established several branch offices in main cities in China. Meanwhile, our products are exported to Southeast Asia and other countries and regions and have won a good reputation.
Aiming at becoming a modernized enterprise and supplying the best products and services, we are looking forward to cooperating with you in the near future.
Having been involved in designing and manufacturing machines for several years (beginning from the year of 2000), we have employed experienced designers and have built a high-qualified technical team. We are one of the enterprises that have passed ISO9001 international quality management system in China. Now we are handling production strictly conforming to these standards and supplying high quality products at competitive prices.
We have established several branch offices in main cities in China. Meanwhile, our products are exported to Southeast Asia and other countries and regions and have won a good reputation.
Aiming at becoming a modernized enterprise and supplying the best products and services, we are looking forward to cooperating with you in the near future.
Certifications
Exhibition
Product packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, and we export our machines to more than 80 countries since 2001.
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 13months calculated from the date of shipment from our factory.During warranty period,
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Ruian city, near to Wenzhou airport, about 40minutes to our factory by car. We will provide transporation service during your visit at our factory.
