Автоматический переключатель MCB 63A 220V AC PC класса Dual Power

Автоматический переключатель MCB 63A 220V AC PC класса Dual Power

Категория: Другие переключатели >>>
Поставщик: Siqi,Technology,Co.,Ltd.

Цена:15,50 $ - 16,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	19.76 $*	19.85 $*
Jul-16-2025	15.58 $*	15.78 $*
Jun-16-2025	19.78 $*	19.30 $*
May-16-2025	19.76 $*	19.67 $*
Apr-16-2025	15.60 $*	15.17 $*
Mar-16-2025	18.33 $*	18.9 $*
Feb-16-2025	18.69 $*	18.17 $*
Jan-16-2025	18.77 $*	18.30 $*

Характеристики

Products Description

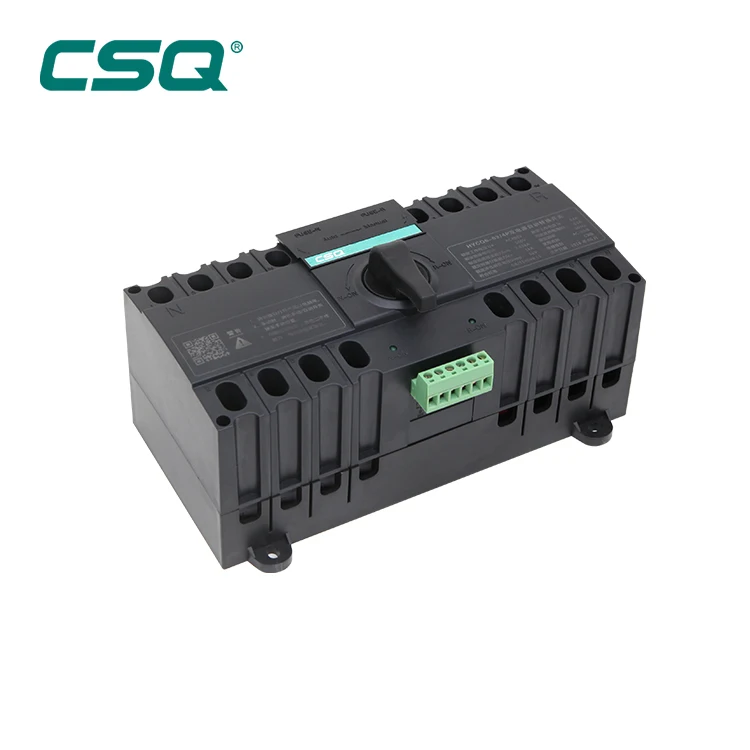

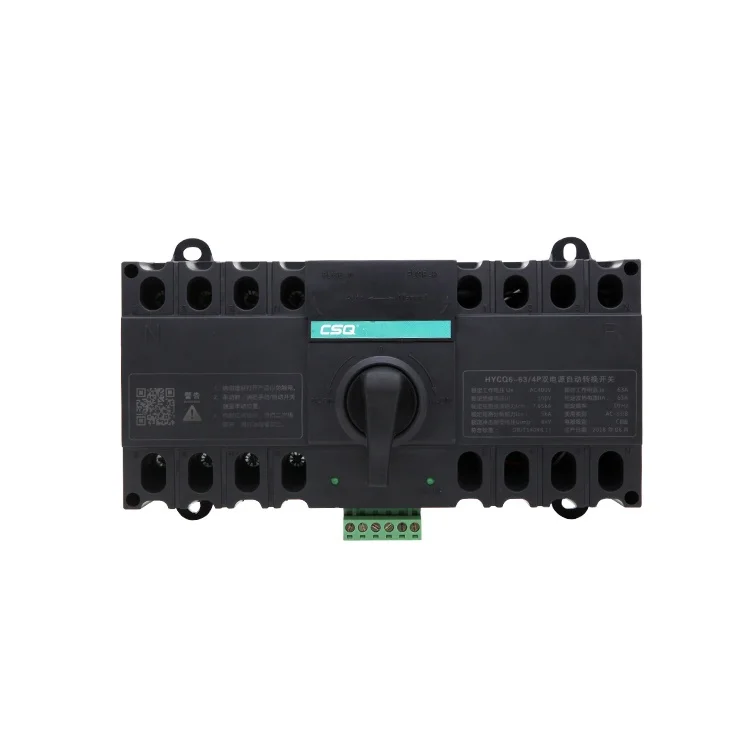

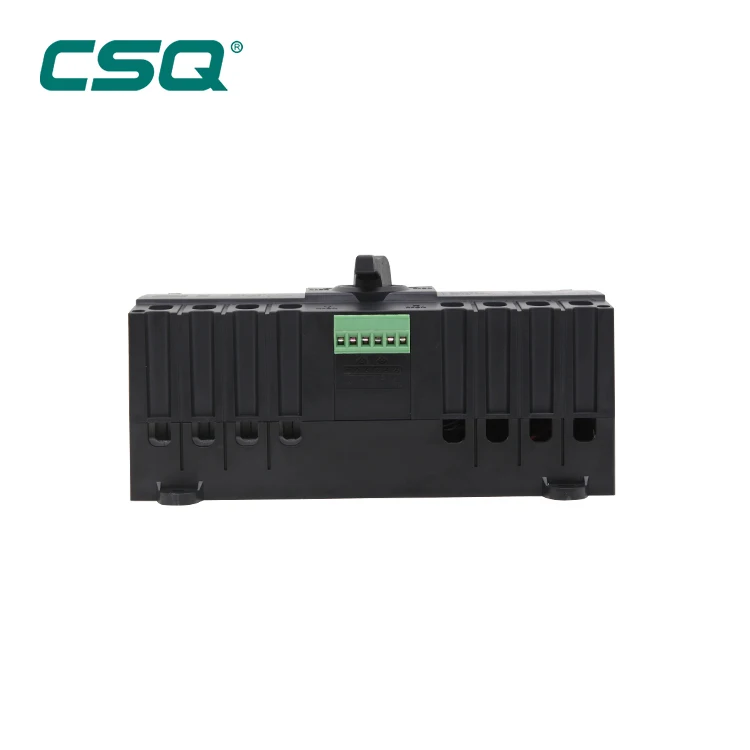

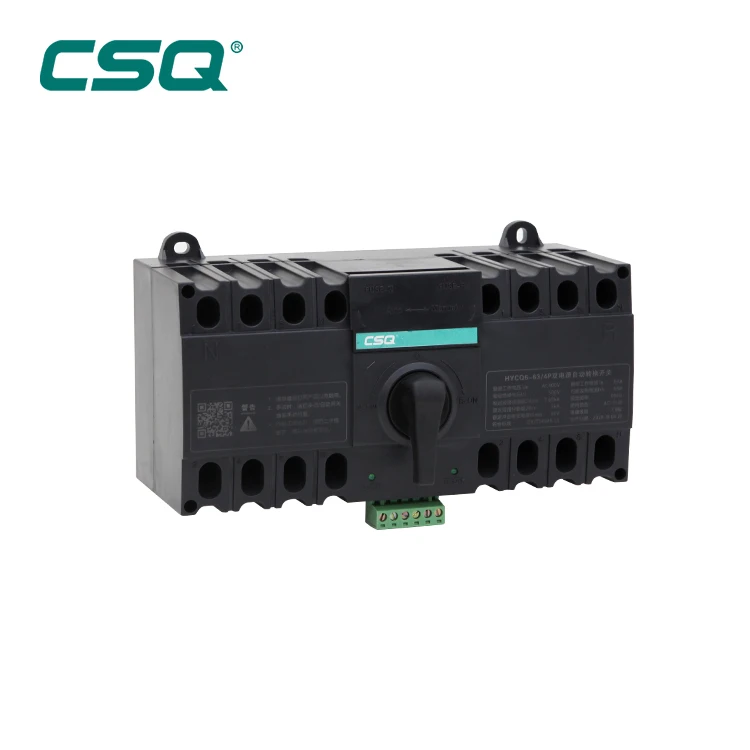

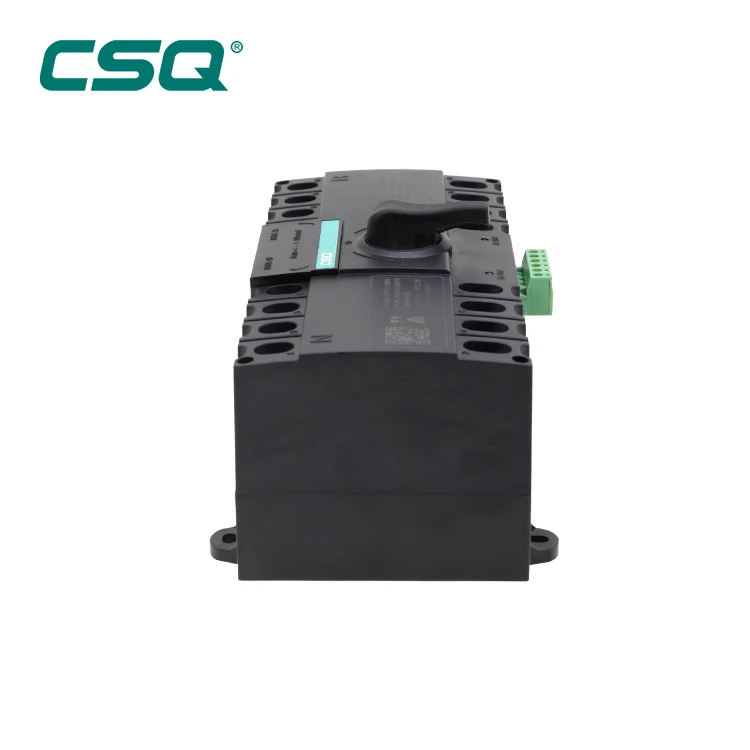

HYCQ6-63 is terminal type automatic transfer device. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase), it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits. The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11

Product Paramenters

Current	16A	20A	32A	40A	63A
Rated insulation voltage Ui	690V
Rated impaction withstand voltage Uimp	8KV
Rated working voltage Ue	AC380V
Rated working current Ie	16A	20A	32A	40A	63A
Load character	AC33iB
Rated making capacity	10Ie
Rated breaking capacity	8Ie
Rated limting short-circuit current	50KA
Rated short time withstand current Ie	7KA
Change-over time	1S
Voltage of control power supply	AC220V
Energy consumption of the motor	40W
Weight Kg	3	3	3	3	3

Company Profile

About Siqi

Siqi Technology Co.,Ltd is a high-tech enterprise specializing in research and development, production, sales and services of automatic transfer switch, miniature circuit breaker, molded case circuit breaker and switch disconnector, load break switch, power meter, contactor, which is located in Yueqing city, the global capital of low-voltage electrical appliances.

Recommend Products

Factory introduction

Exhibition

Certifications

FAQ

1. How long is your products warranty?
A1: The warranty period of our products is 24 months.

2. How about inspection?
A2: We have the whole inspection system from raw material to end products including temperature rise test, salt spraying test conductor type test, mechanical life test and so on.

3. What do you have for certificates?
A3: CE&CB. Our products are passed through IEC60947-3 and IEC60269-2 standards.

4. What is payment terms?
A4: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance is all acceptable.

5. What is the service offered by company?
A5: We have the professional R&D team which can design and develop the mould to achieve all kinds of customer’s requirements. We also have the sales team to offer good services from sales and after-sale.

6. How to become the agents for CSQ?
A6: We will depends on the sales turn over and do research on your market. We can discuss it if you are interested.
