Бездымная древесная печь опилки для непрерывного карбонизации

Описание и отзывы

Трекер стоимости

Характеристики



Model	Power	Capacity	Weight	Raw material requirement
THJ1	7.22kw ( main machine: 5.5kw, fan 1.5kw+0.22kw)	150-180kg/h	Net/Gross 11.2/11.5ton	sawdust, Size: 3-5mm, moisture:8-12%



 Product Description

    This machine can change the sawdust to the charcoal powder directly. The finished product is widely used in firework working, charcoal briquette extruding, mosquito-repellent incense producing, activated carbon manufacturing and used in clinical at the same time.



 Working Process

1. Primary screening sawdust of different sizes to eliminate bigger impurity

2. Drying the materials to be 8-12% water content

3.Produce charcoal powder directly

Gas recycle part: When during the process of carbonizing, there will be some smoke.( can be burning) the smoke can return to the furnace through tube for purifying, after purification , the gas recycle tubes can be flow into the heating room of the main furnace for heating the machine again;

Cooling parts: in the back side of the machine, there is one tube for cooling the hot charcoal powder, so we can get the charcoal powder directly;

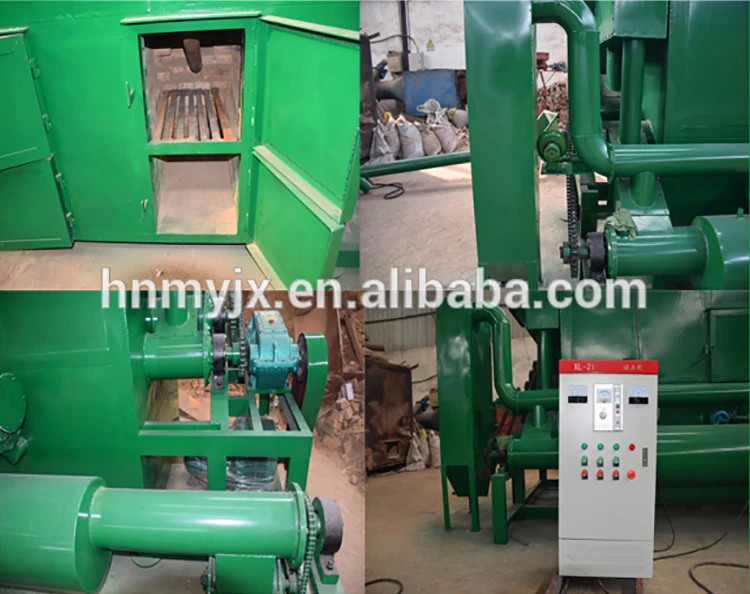

Main Parts

Heating parts: includes three heating room (for heating the stove), furnace body and heat keeping layer (it is made of the heat insulating material, used for keep the heating) and the drought fan;
Carbonizing parts: consist of four carbonizing tubes, Both of them are made of the heat resistance thermal steel, under the drive of the machine, the sawdust will be delivery to the tube 1, when the sawdust reach to the end of the tube 1,it will turn around to the tube 2, and so on, after four tubes carbonization, the sawdust will become charcoal powder;
Smoking purification parts: in this machine, there are two purification tank, the first one to purify the smoking ( can not burning ), and the other one are used to purification the gas smoking when the working process, The smoking through the purification system will become water vapor, and it will not pollute the air;
Controlling parts: the whole machine we will equip one electrical control box to control the three electrical motors.

Advantages of Sawdust Continuous Carbonization Kiln Price

Click picture to get more information

Click picture to get more information



 Our Company information

     Gongyi Xiaoyi MingYang Machinery Plant which was founded in 1988,  is a manufacture of new energy-saving environmental protection equipment.

     In the twenty years of development, our factory brings together elte of this field, and use professional technics to build the equipment. "Ming Yang Machinery" from a single charcoal machine and equipment to production equipment series, with three series of more than 30 machinery products. Have exported to britain, Russia, Sweden, Malaysia, Indonesia,Vietnam and other countries, more than 30 countries and regions.

    Manufacturing quality products for industy, and create value for society!

    Gongyi MingYang Machinery warmly welcome new and regular customers to visit and guidance.
