Полностью автоматическая трафаретная печатная машина для футболок одежды носков с
- Категория: Установки трафаретной печати >>>
- Поставщик: Wenzhou,Changs,InternationalWenzhou,International
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 532784.60 $* | 559423.34 $* |
| Aug-15-2025 | 528307.24 $* | 554722.23 $* |
| Jul-15-2025 | 443241.2 $* | 465403.66 $* |
| Jun-15-2025 | 519353.44 $* | 545321.28 $* |
| May-15-2025 | 452195.14 $* | 474805.84 $* |
| Apr-15-2025 | 510399.53 $* | 535919.9 $* |
| Mar-15-2025 | 505921.28 $* | 531217.93 $* |
| Feb-15-2025 | 501444.0 $* | 526516.84 $* |
| Jan-15-2025 | 496967.87 $* | 521815.65 $* |
Характеристики

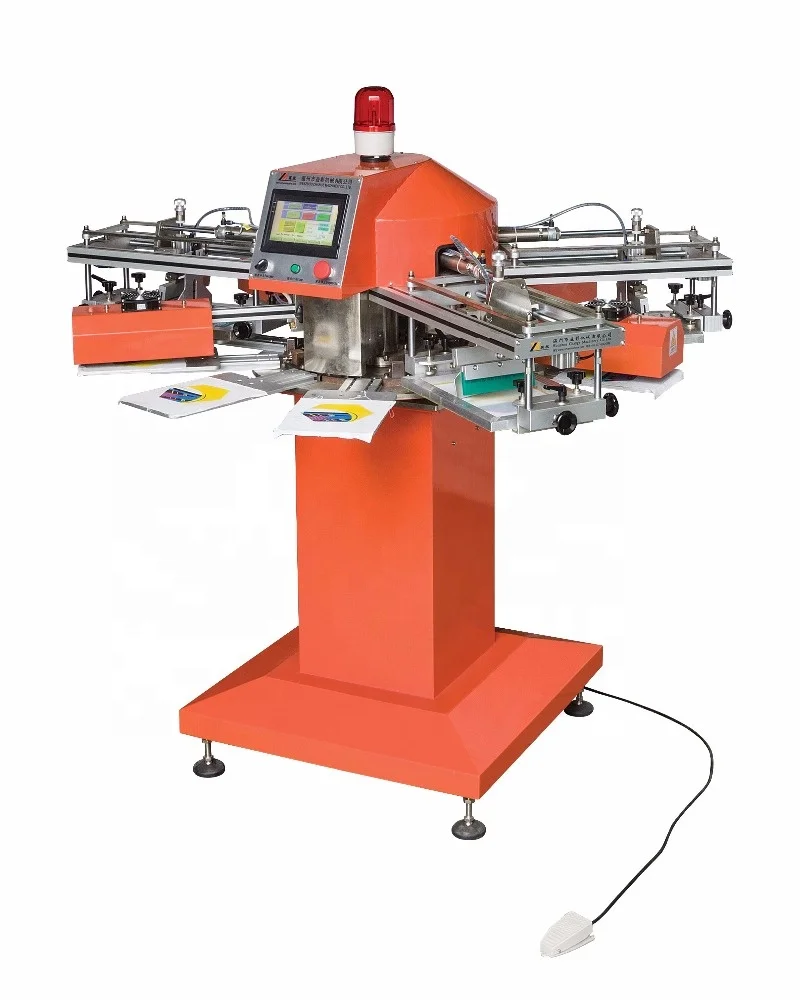

SPF 1-4colors automatic tshirt screen printing machine
Products Display
Product attributes
Model | SPF-1/6 | SPF-2/6 | SPF-3/8 | SPF-4/10 |
Print Color/Sation | 1/6 | 2/6 | 3/8 | 4/10 |
Max.Printing Area | 150*150mm | 150*150mm | 150*150mm | 150*150mm |
Dryer | 1or 2 | 2 | 3 | 4 |
Pallet Size | 200*320mm | 200*320mm | 200*320mm | 200*320mm |
Max.Printing Speed | 1800pcs/hr | 1800pcs/hr | 1800pcs/hr | 1600pcs/hr |
Total Power | 3.0kw | 3.8kw | 4.2kw | 5.0kw |
Rated Voltage | AC220v50/60Hz | AC220v50/60Hz | AC220v50/60Hz | AC220v50/60Hz |
Air Consumption | 10Litre/min0.6Mpa | 20Litre/min0.6Mpa | 25Litre/min0.6Mpa | 42Litre/min0.6Mpa |
Dimension | ∅1200*1450mm | ∅1500*1500mm | ∅1500*1550mm | ∅1700*1500mm |
Weight | 230kg | 260kg | 280kg | 320kg |
Product Description
Applications:
Applied to the garment industry's ultra-fast no tag / label screen printing and other industries. This screen printing machine speed up to 2000 / hour, can greatly increase production.
Suitable material: Cloth, clothing, body-shirts, labels.
Applied to the garment industry's ultra-fast no tag / label screen printing and other industries. This screen printing machine speed up to 2000 / hour, can greatly increase production.
Suitable material: Cloth, clothing, body-shirts, labels.
1, PLC control, human-machine interface, features clear, easy to operate.

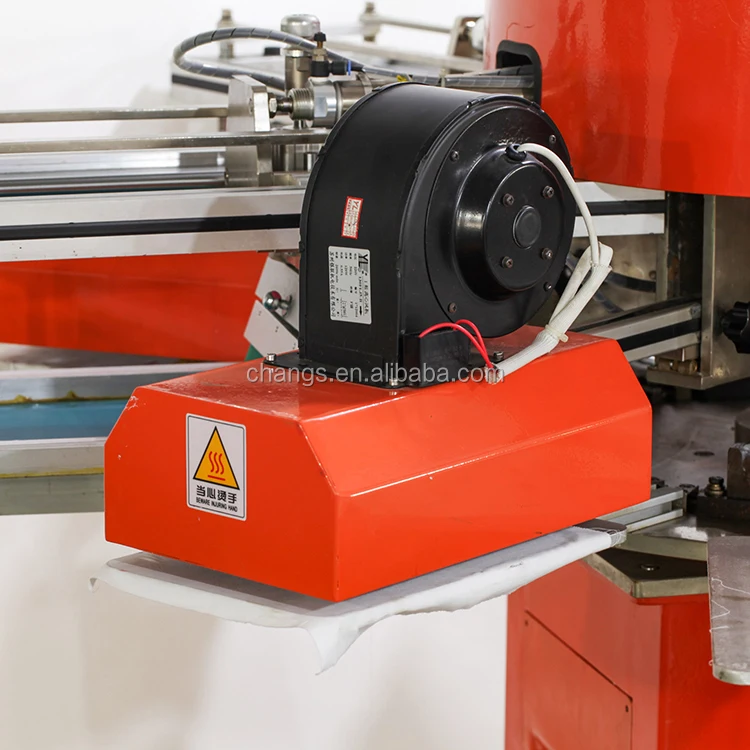

2, flat screen, infrared drying, particularly suitable for small-area printing inks and printing different frame types. Such as T-shirt collar and so on.
3,8-position by a stepper motor drive, smooth running smoothly.
4, scraper, back blade can adjust the angle, also adjust the level to ensure equalized printing pressure. When color printing, the second color screen printing templates around, precise adjustment.
5, 8-station rotary table, place one workpiece station, two stations printing, drying four stations, one station takes the workpiece, eight stations simultaneously at high speed.
Explanation:
Printing speed and loading and unloading, the print stroke and products and other factors
Another may be the design and manufacture of special equipment according to customer requirements
About US
Our Service
- 1.Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty period , we will send a free replacement parts to you .
2.Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and training, but all the charges for the engineers should be paid by buyer.
3.Quotation
The quotation is available in 30 days
Payment And Ship
FAQ
Q1: We are interested in the screen printing machine,Could you quote the latest price to us?
A1: In order to recommend the suitable machine for you ,please provide following information before we quote price:
1.How many colors do you want to print ?
2.What''s the max printing size? (Such as 500x700mm or biger or smaller)
3.What''s the capacity per hour do you request? (Such as 900pcs/h)
Q2:What''s the MOQ, Delivery time and payment terms?
A2: 1. MOQ: 1 set
2. Delivery time: 19 workdays after receiving T/T 30% payment deposit
3. Payment Term: T/T 30% as deposit, T/T 70% before shipment or L/C at sight
