Автоматически 6 видов цветов трафаретная печатная машина для

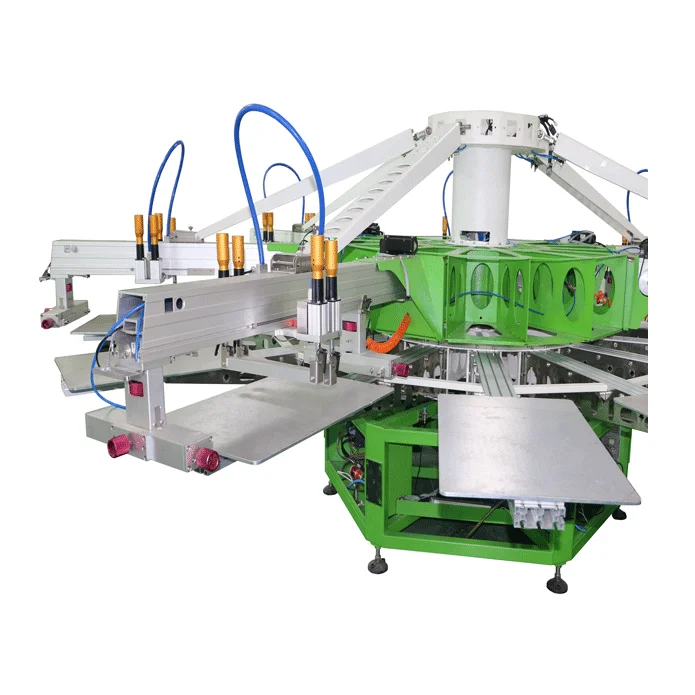

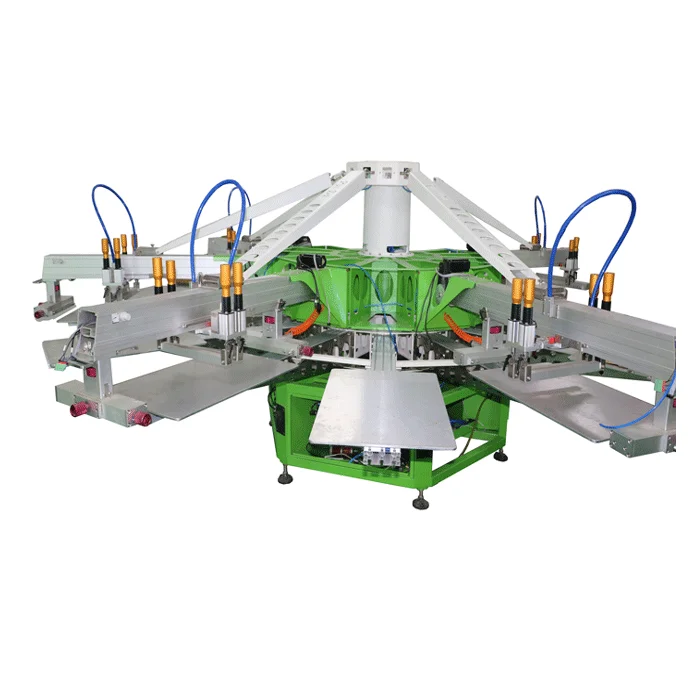

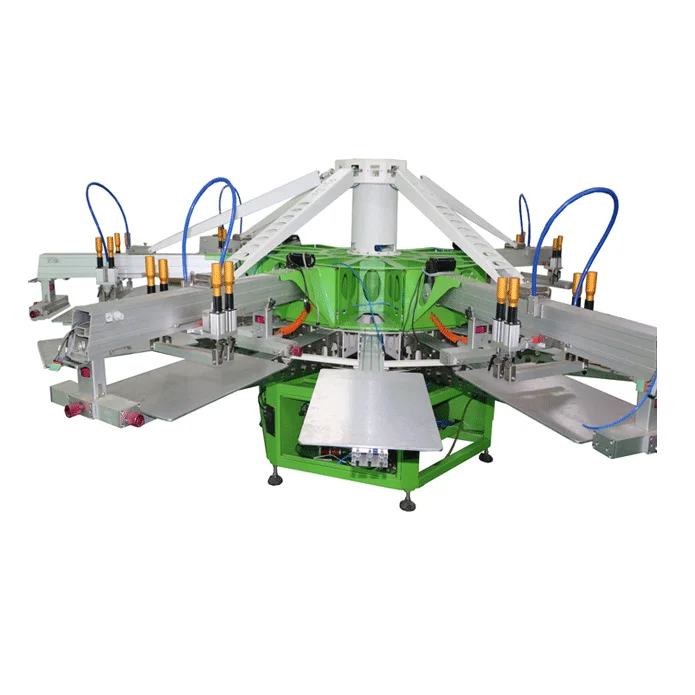

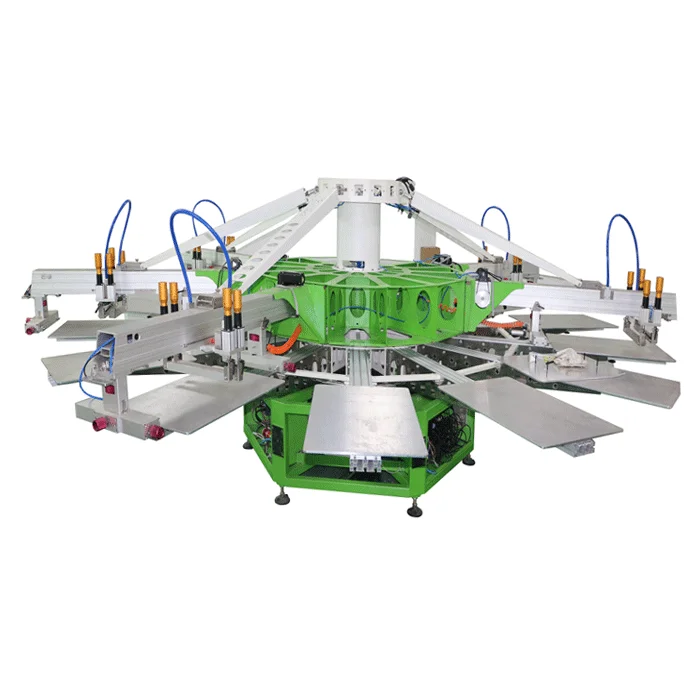

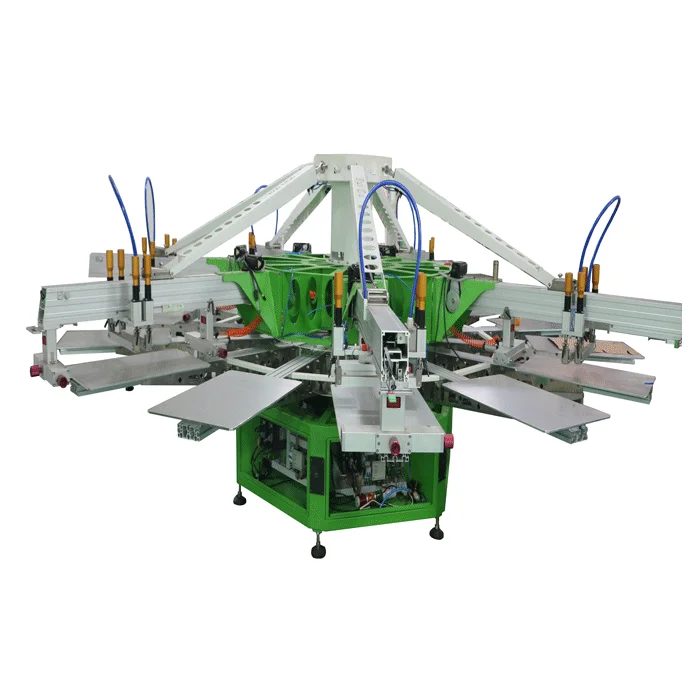

SA6-4565 Automatically 6-color garment screen printing machine//Structure

Location

Sensor

Machine diameter:

4.66M

Max Frame size

500*750mm.

Working table

High strength cast aluminum plate -450*650mm

Actions

automatically Rotating screen plate

To be printed

• Fabric

Rotating angle

60

Squeegee and screen plate control

 High precision rotating the disc

Ink drying

Heat set ink, IR Drying

SA6-4565 automatically -color Garment screen printing machine//Usage and characters

Guide

• This is a rotary clothes 6-color manual screen printing machine, suitable for printing 450mm * 650mm about the format of the fabric, paper, clothes; T-shirts and other products.

•  Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors.


• Workbench coated with solvent glue is recommended  for accurate print positioning;


• Have place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm;


• Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator;


• More suitable for heat set printing ink, printing ink thickness, ink, bright;


• Configuration of infrared drying device, which will help the plastisol ink is fast drying;


• automatically Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.

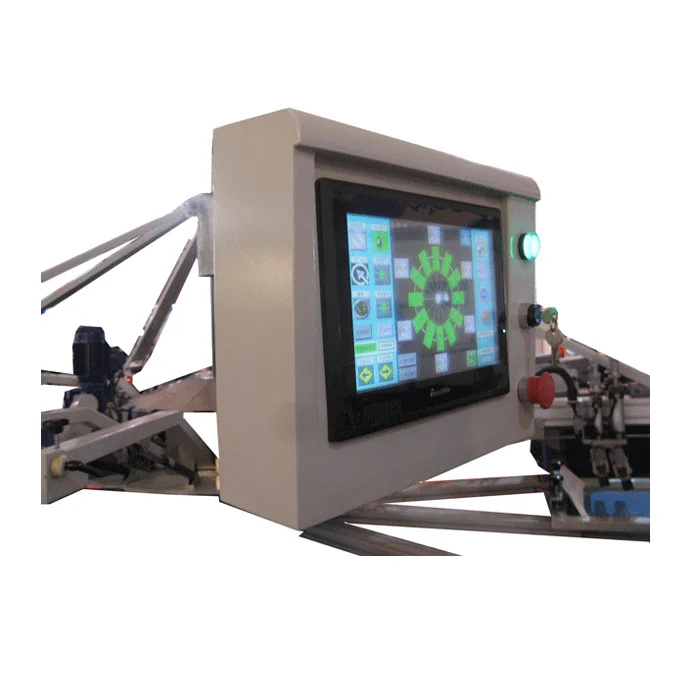

• PLC Operation technical;

Application

• T-shirt, Clothes, Garment, Fabric, Textile Printing, Cotton

SA6-4565 Automatically 6-color garment screen printing Machine //Parameters

Technical parameters

SA6-4565 6-colour automatically  rotating flat screen printing machine

• Max printing thickness:0-20 MM;


• Net weight: 965KG;


• Max printing area:400X600mm


• Size of the working table: 450×650mm;


• Max printing speed:2500cs/H.


• Printing number: 6;


• Drying mode: IR;


• Max height of screen frame: 40mm;


• Max size of screen frame: 550*680mm;


• The wattage of heater: 30KW.

SA8-4565 8-colour automatically rotating flat screen printing machine

• Max printing thickness:0-20 MM;


• Net weight: 1145KG;


• Max printing area:400X600mm


• Size of the working table: 450×650mm;


• Max printing speed:2200pcs/H.


• Printing number: 8;


• Drying mode: IR;


• Max height of screen frame: 40mm;


• Max size of screen frame: 550*680mm;


• The wattage of heater: 35KW.

SA10-4565 10-colour automatically rotating flat screen printing machine

• Max printing thickness:0-20 MM;


• Net weight: 1365KG;


• Max printing area:400X600mm;


• Size of the working table: 450×650mm;


• Max printing speed:2000Pcs/H.


• Printing number: 10;


• Drying mode: IR;


• Max height of screen frame: 40mm;


• Max size of screen frame: 550*680mm;


• The wattage of heater: 38KW

Works supply

• 3 Phase 380V Power supply;


• 5-7 Bar compress air

Package parameters

• Gross weight: 2329kg


• Wooden case dimension:2430×2430×1850mm;


• 10.9241CBM

H.S.CODE

8443198000

Certificate

CE

SA6-4565 Automatically 6-color garment screen printing machine//Advantage

Function

• Full automatically operation process ;


• The total-steel rotating-axis system ensures whirling free and Adaptability.


• A high-strength support pole makes the machine structure rigidity.


• Six-color screen printing one time, overprint is precision.


• Screen frames can be adjustable according to different objects to be printed.


• Screen frames can rise up after printing so that printing quality.

•  High-stabilization working table ensure non-shaking when printing;


• IR Dryer with the machine make the clothes drying fast

• PLC controlling ensure operation easier
