Экран без монитора I7 6700 HQ Шэньчжэнь мини-ПК для рекламной машины доски банкомата платежный
- Категория: Barebone System >>>
- Поставщик: Xuzhou,Venoen,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.31 $* | 0.79 $* |
| Aug-15-2025 | 0.51 $* | 0.85 $* |
| Jul-15-2025 | 0.34 $* | 0.89 $* |
| Jun-15-2025 | 0.69 $* | 0.99 $* |
| May-15-2025 | 0.59 $* | 0.34 $* |
| Apr-15-2025 | 0.37 $* | 0.3 $* |
| Mar-15-2025 | 0.83 $* | 0.56 $* |
| Feb-15-2025 | 0.55 $* | 0.66 $* |
| Jan-15-2025 | 0.7 $* | 0.78 $* |
Характеристики
Product Description
No Monitor Screen I7 6700 Hq Mini Pc For Advertising Machine Board Atm Payment Kiosk
Tips: Big discount and free shipping is only for samples, if you need to order 1 unit, please send inquiry.
This link is for quick samples. If you need other configuration, customization service, LOGO service etc, please contact us.
For bulk order, please send us inquiry, for example: We need 50units with 8GB RAM 512GB SSD, please give us a quotation.
About Free sample: If your order is big, please send us inquiry for negotiate about the possibility of free samples.
Thik link configuration is RAM+SSD, not HDD, if you need HDD, or want customize, pls clck here tell us.
Default: Win 10 Pro. Optional: Windows 7, 8, Ubuntu.
Processor: Intel i7-6700HQ CPU; 4 Cores, 8 Threads; Main Frequency: 2.6GHz, Max Turbo Frequency: 3.5GHz, 6M Smart Cache
Graphics:
Integrated: Intel HD Graphics 530, Graphics Base Frequency: 350MHz; Graphics Max Dynamic
Frequency: 1.05GHz; Graphics Video Max Memory: 64GB; Max Resolution: 4096x2304
Dedicated: Nvidia GTX 960M, VRAM 4G: CUDA Cores: 640; Base Clock: 1096MHz + Boost; Memory
Clock: 2500MHz; Memory Interface: GDDR5; Memory Bandwidth : 80GB/sec

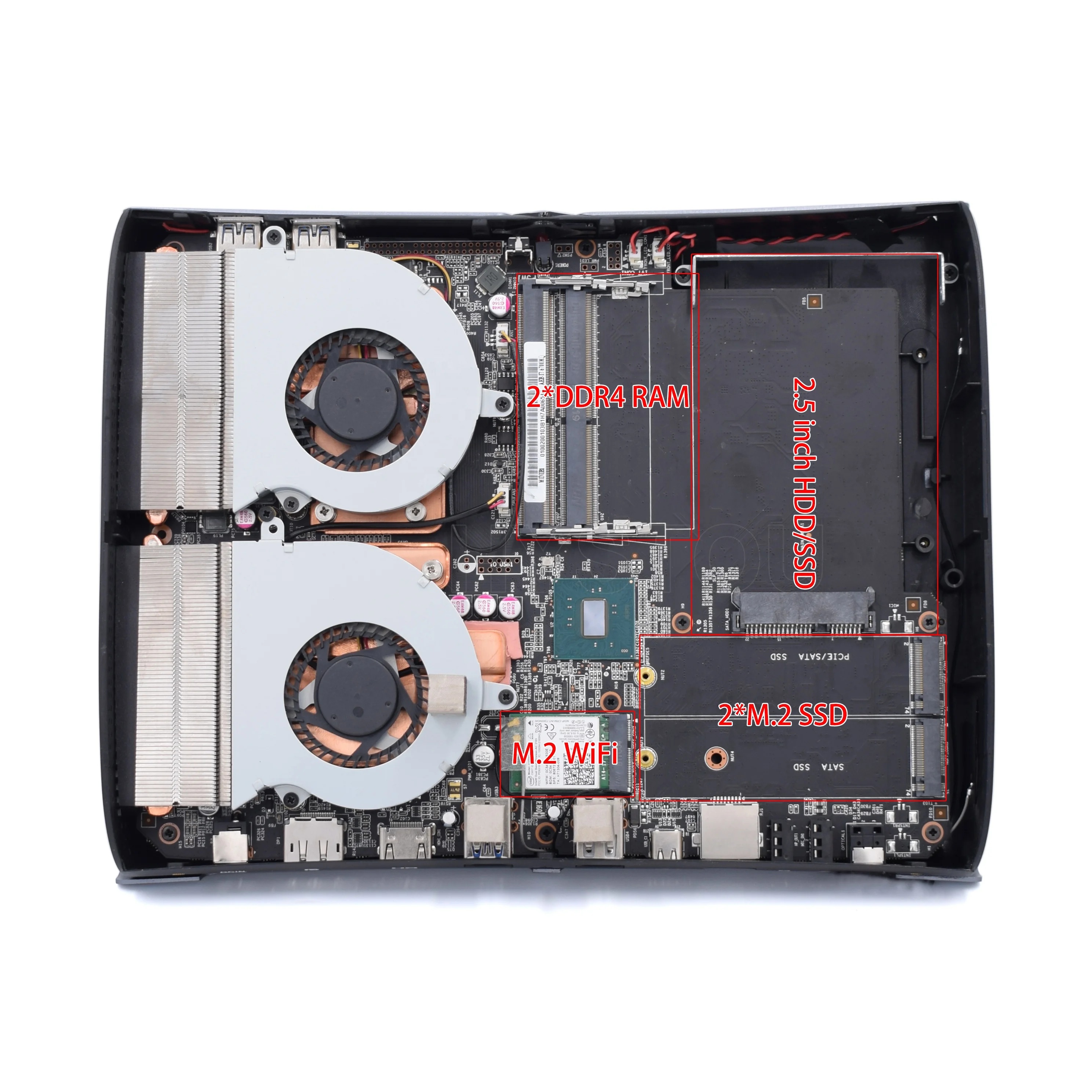

Storage Supported:
SSD: Two M.2 22*80 SSD slots;
HDD: one 2.5 inch 7.0mm HDD;
Audio:
Realtek MIC-in Line-out /Azalia Codec
WiFi+BT:
PCI-e interface, Intel Dual Band Wireless-AC 3160/3165, Bands: 2.4GHz+5GHz, BT4.0/4.2

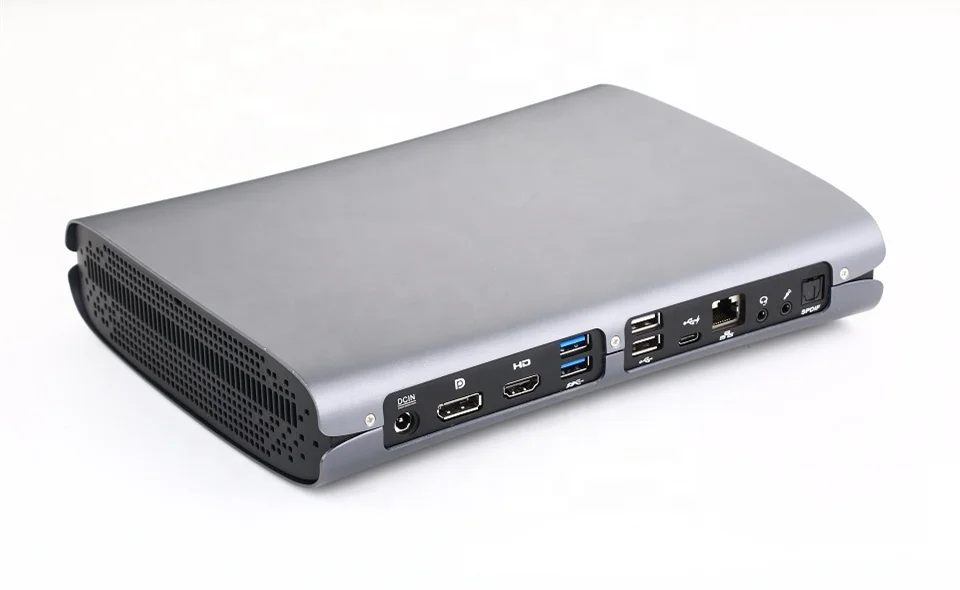

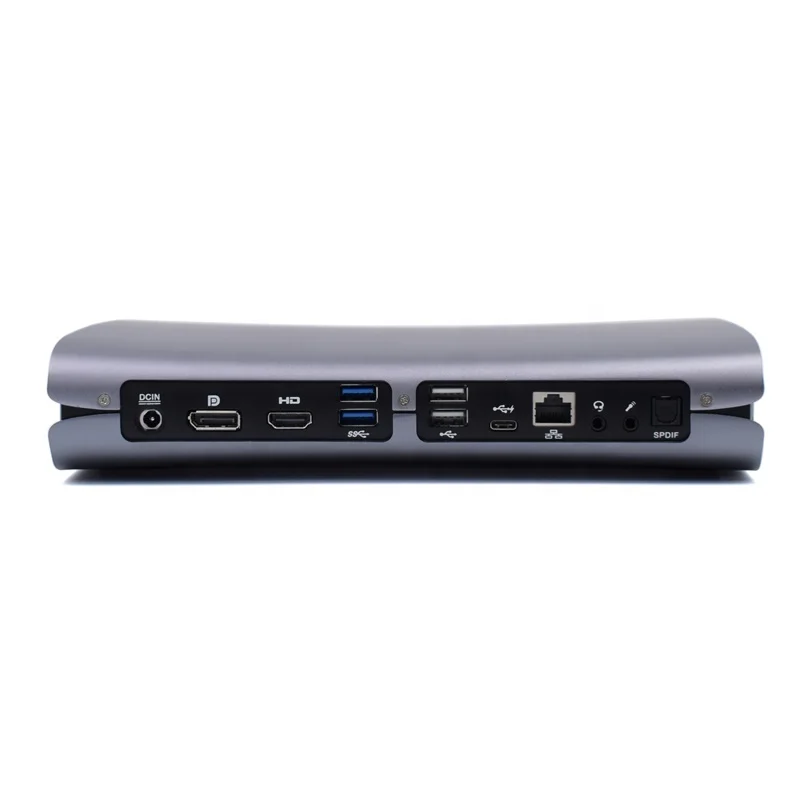

Rear I/O:
1* DP; 1* HD; 1*Type-C; S/PDIF OUT: Yes (Optical)
2*USB3.0, 4*USB2.0(double-deck), 2*Jack: Mic Jack, Headphone Jack
1* DC-In, 1* RJ45 (100M/1000M)
Dimension: 194*250*49.5mm; Weight: 2.2Pound
Color: Gray
AC Adapter: Input: 100~240V 50~60Hz 2A; Output: 19V, 6.3A.
Computer Rating Power Consumption:
65W(UMA model); 120W (Nvidia GPU model)
Thermal design: silent working fan.
Specification
Model | M1-6700HQ | |||
Processor | Intel® Core™ i7-6700HQ Processor, 4 Cores, 8 Threads, 6M Cache, up to 3.50 GHz, | |||
Chipset | Skylake single chip | |||
Memory | Dual DDR4 Slot support 2* 260 pin DDR4 laptop memory | |||
Display | Intel® HD Graphics 530, NVID GeForce GTX 960M Network | |||
| Network | Realtek RTL8168/8111/8112 Gigabyte RJ45 Lan Port; | |||
Storage | 2*m.2 Port for m.2 SSD; 1*SATA Port for 2.5 inch HDD/SSD | |||
Audio | On board ALC662 6 channel high fidelity audio controller, support MIC-in/ Speak-out. | |||
Expansion | 1*m.2 (support WIFI ) | |||
Display | 1 * DP Port, 1*HD Port | |||
USB | 4*USB 3.0 Port; 2*USB 2.0 Port,; 1*Type C, | |||
Fan Design | 2 Fans(CPU/Graphics) | |||
System | support Win7, Win8, win10, Linux | |||
Power Type | DC 19V 120W Power adapter, 1*DC 19V in, 1*On/Off switch | |||
Working Temperature | -10℃~55℃ | Storage Temperature | -20℃~70℃ | |
Working Humidity | 0%-95% relative humidity, no condensation. | |||
Dimension | 250*194*51mm | |||
Product Uses
Packaging & Shipping
PACKAGE:
1 unit/ 1 Color box; 10 units / Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Buy tips
1. Which RAM SSD HDD can used in this pc?
DDR4 RAM: 4G, 8G, 16G/ 32G;
SSD: 16G, 32G, 64G, 128G, 256G, 512G,1TB;
HDD: 500G, 1TB, 2TB.
2. Different Power Plug for Different Country.
