Китай завод производство высокого COP моноблок низкая температура тепловые
- Категория: Нагреватели воды с тепловым насосом >>>
- Поставщик: Shenzhen,Power,World,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2318.46 $* | 2434.29 $* |
| Aug-15-2025 | 2299.31 $* | 2414.15 $* |
| Jul-15-2025 | 1929.37 $* | 2025.91 $* |
| Jun-15-2025 | 2260.36 $* | 2373.42 $* |
| May-15-2025 | 1967.91 $* | 2065.27 $* |
| Apr-15-2025 | 2221.67 $* | 2332.95 $* |
| Mar-15-2025 | 2201.37 $* | 2311.13 $* |
| Feb-15-2025 | 2182.7 $* | 2291.91 $* |
| Jan-15-2025 | 2162.96 $* | 2270.25 $* |
Характеристики
Product Description

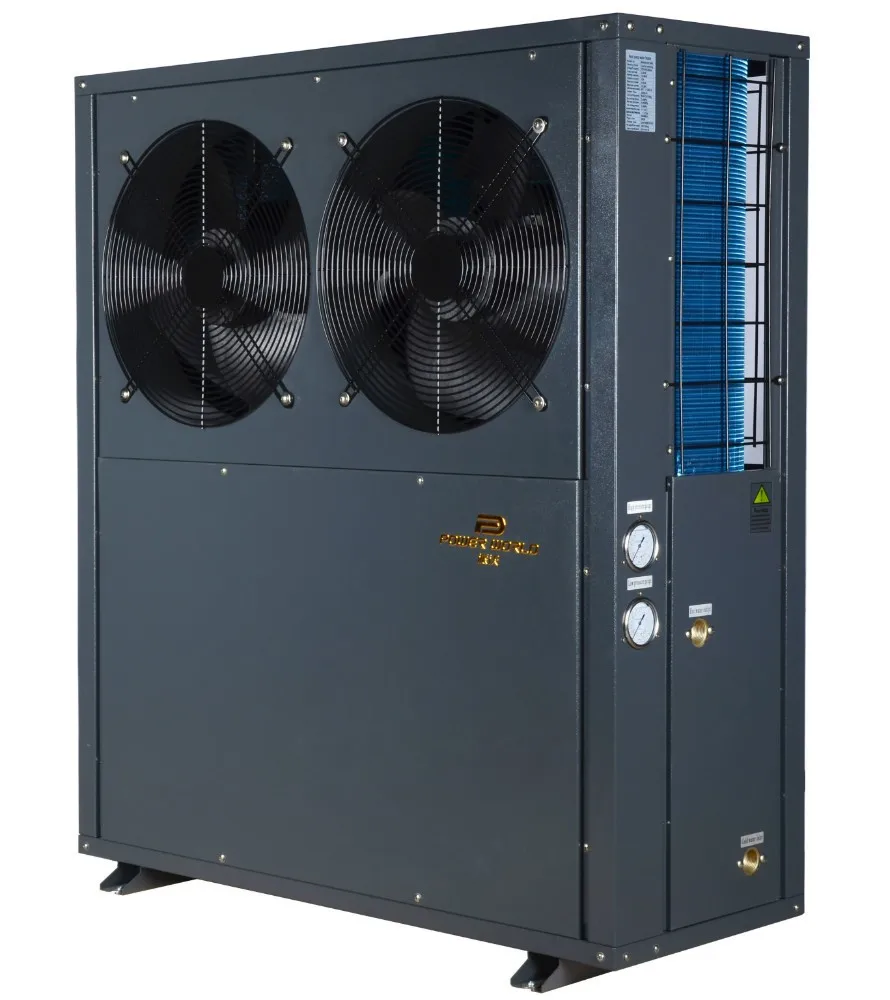

Standard Side Blowing Air Source Heat Pump For Hot Water and Heating
These series popular for the areas not so cold in the winter at -7 degrees above.They can provide sanitary hot water and house heating for family by connecting with fan coil units and underfloor heating.They have control function for 3-way valve,domestic hot water as priority.
| Product model | PF030-KFXLN-S | PF030-KFXLN | PF045-KFXLN-S | PF050-KFXLN | PF060-KFXLN | ||
| Parameters | Cooling | Cooling capacity(kW) | 6.4 | 7.6 | 11 | 12.6 | 14.5 |
| Cooling input power(kW) | 2.1 | 2.6 | 3.7 | 4.2 | 4.9 | ||
| Rated current (A) | 10.3 | 4.6 | 5.6 | 7.3 | 8.1 | ||
| EER | 3.05 | 2.92 | 2.97 | 3.00 | 2.96 | ||
| Heating* | Heating capacity(kW) | 8.1 | 9.1 | 13.6 | 15.1 | 17.6 | |
| Heating input power(kW) | 2.4 | 2.7 | 4.1 | 4.4 | 5.2 | ||
| Rated current (A) | 10.9 | 4.8 | 18.6 | 7.5 | 8.5 | ||
| COP | 3.38 | 3.37 | 3.32 | 3.43 | 3.38 | ||
| Working area | -7~43℃ | ||||||
| IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | ||
| Anti-electric shock Rate | I | I | I | I | I | ||
| Noise (dB(A)) | ≤55 | ≤55 | ≤55 | ≤58 | ≤58 | ||
| Net weight/Gross weight(kg) | 100/106 | 100/106 | 120/126 | 145/155 | 155/165 | ||
| Diameter of pipe (mm) | DN25 | DN25 | DN25 | DN25 | DN25 | ||
| Standard Configuration | Metel plate | Galvanized steel/Spray/Gray | Galvanized steel/Spray/Gray | Galvanized steel/Spray/Gray | Galvanized steel/Spray/Gray | Galvanized steel/Spray/Gray | |
| Body size(W*D*H) | 830*490*1160 | 830*490*1160 | 1110*490*1260 | 1110*490*1260 | 1110*490*1260 | ||
| Compressor | Copeland | ||||||
| Refrigerant | R407C | ||||||
| Power supply | 220V/50Hz | 380V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz | ||
| Condenser | Tube in tube heat exchanger | ||||||
| Evaporator | U-2/1200*550/φ9.52 | U-2/1200*550/φ9.52 | L-2/990*1200/φ9.52 | L-2/990*1200/φ9.52 | L-2/990*1200/φ9.52 | ||
| Four-way valve | DSF-11 | DSF-11 | DSF-11 | DSF-20 | DSF-20 | ||
| Expansion valve | Sanhua | ||||||
| AC contactor | (220V-25A) | (220V-12A) | (220V-25A) | (220V-18A) | (220V-25A) | ||
| Motor (with capacitance) | 90W*1(5μf) | 90W*1(5μf) | 90W*2(5μf) | 90W*2(5μf) | 90W*2(5μf) | ||
| Fan | φ490*1 | φ490*1 | φ490*2 | φ490*2 | φ490*2 | ||
| Controller | Single System(Motorola Chip) | Single System(Motorola Chip) | Single System(Motorola Chip) | Single System(Motorola Chip) | Single System(Motorola Chip) | ||
| Low-voltage switch | 0.15/0.32MPa | 0.15/0.32MPa | 0.15/0.32MPa | 0.15/0.32MPa | 0.15/0.32MPa | ||
| High-voltage switch | 3.0/3.6MPa | 3.0/3.6MPa | 3.0/3.6MPa | 3.0/3.6MPa | 3.0/3.6MPa | ||
| Power line connect with unit | 3*2.5mm2 | 3*2.5mm2+2*1.5mm2 | 3*4mm2 | 3*4mm2+2*2.5mm2 | 3*6mm2+2*2.5mm2 | ||
| Package | Polywood packing | ||||||
| Remark:Cooling working condition:Inlet water temperature 12℃, Outlet water temperature 7℃, Dry bulb temperature 35℃, Wet bulb temperature 24℃. Heating working condition: Inlet water temperature 40℃, Outlet water temperature 45℃, Dry bulb temperature 7℃, Wet bulb temperature6℃. | |||||||
Features & Benefits
- Three working mode for choice(Heating only/hot water only/heating+hot water)
- Heating+hot water mode automatic switching by three way valve control.
- Environmental friendly refrigerant R407c.
- Side blowing design save installation space and reduce noise
- 304 stainless steel casing for option.
Installation:
Packaging & Shipping
Company Information
Power World is a professional heat pump manufacturer since 2004,successfully publicly listed on the NEEQ in 2016 with stock code 870092.It covers an area of 30000 m2 factory in Dongguan,China and has more than 358 employees.And it is honored to be top 10 brand heat pump supplier in China with one billion USD output value per year. Power World has a heat pump R&D center with a team of 20 engineersand four professional laboratories. Complying with ISO9001:2008 & ISO14001:2004, all products get CE,CB(IEC) certificate and ERP Energy Label on EN14825,EN14511,stictly to latest EHPA requirement.
Our Services
A. Technical Support
1. We calculate the capacity and recommend the best models.
2. We design and develop the new products according to your requirement besides our standard products.
3. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4. We supply the spare parts and technical support in & after the warranty time.
5. We supply the training course to your workers at our factory if you need.
B. After-sales service
1. Technical support for your installation, operation and maintenance.
2. 18 months’ warranty, and you can pay for extended warranty.
3. Spare parts and technical support at most economic prices after the warranty.
4. Update you the latest products information and price adjustment every year.
C. Customized service
1. OEM service
2. ODM service
3. New product R&D service
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: Do you also provide other kind of heat pump?
A: ASHP of EVI(9KW-132KW) | SWIM POOL(5KW-150KW) I Domestic heat pump(80L-300L tank size) I etc.
Q: What is your terms of payment for heat pump ?
A: You can choose 100% payment or 30% payment T/T in advance are available.
AIibaba trade assurance payment or L/C Payment are available.
