Характеристики

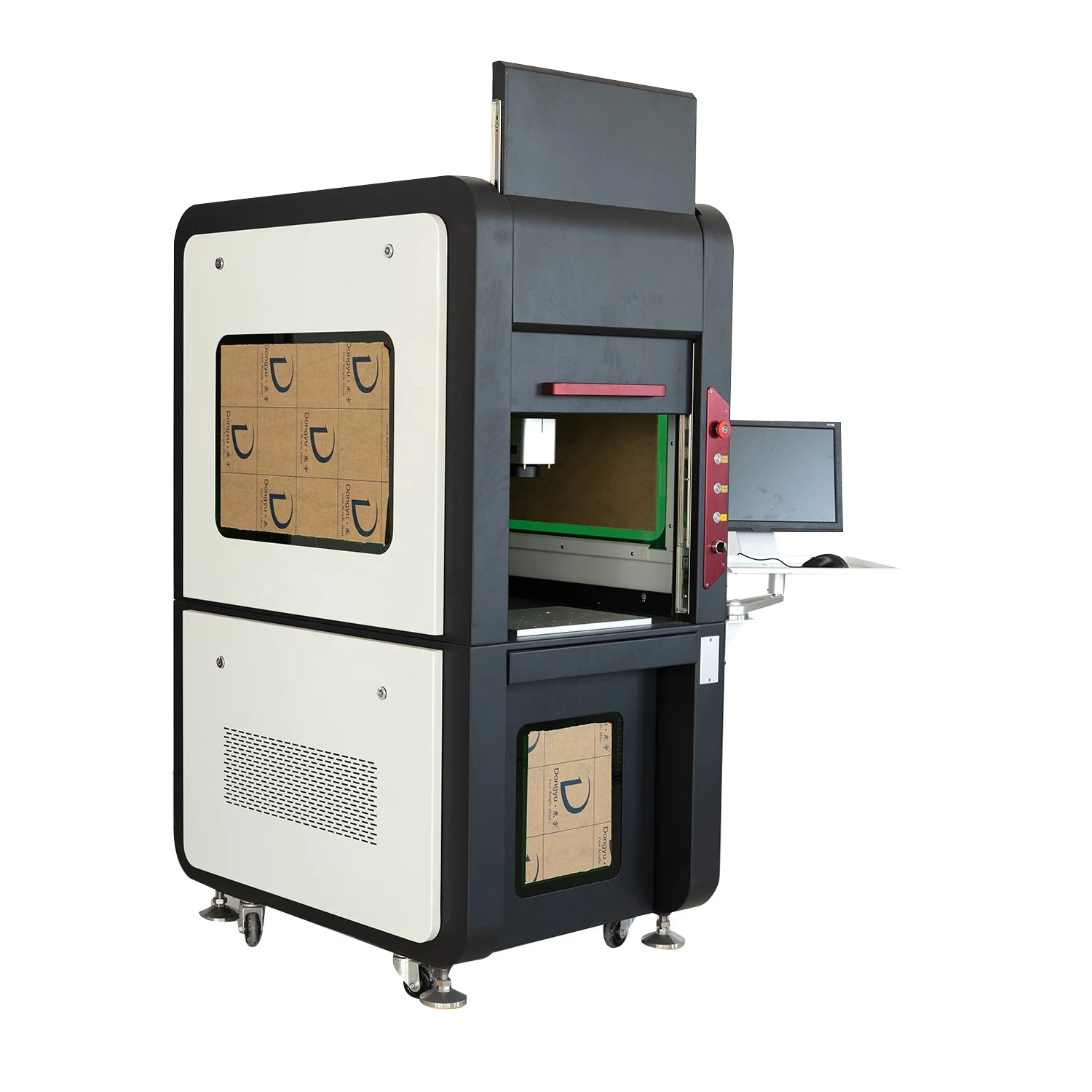

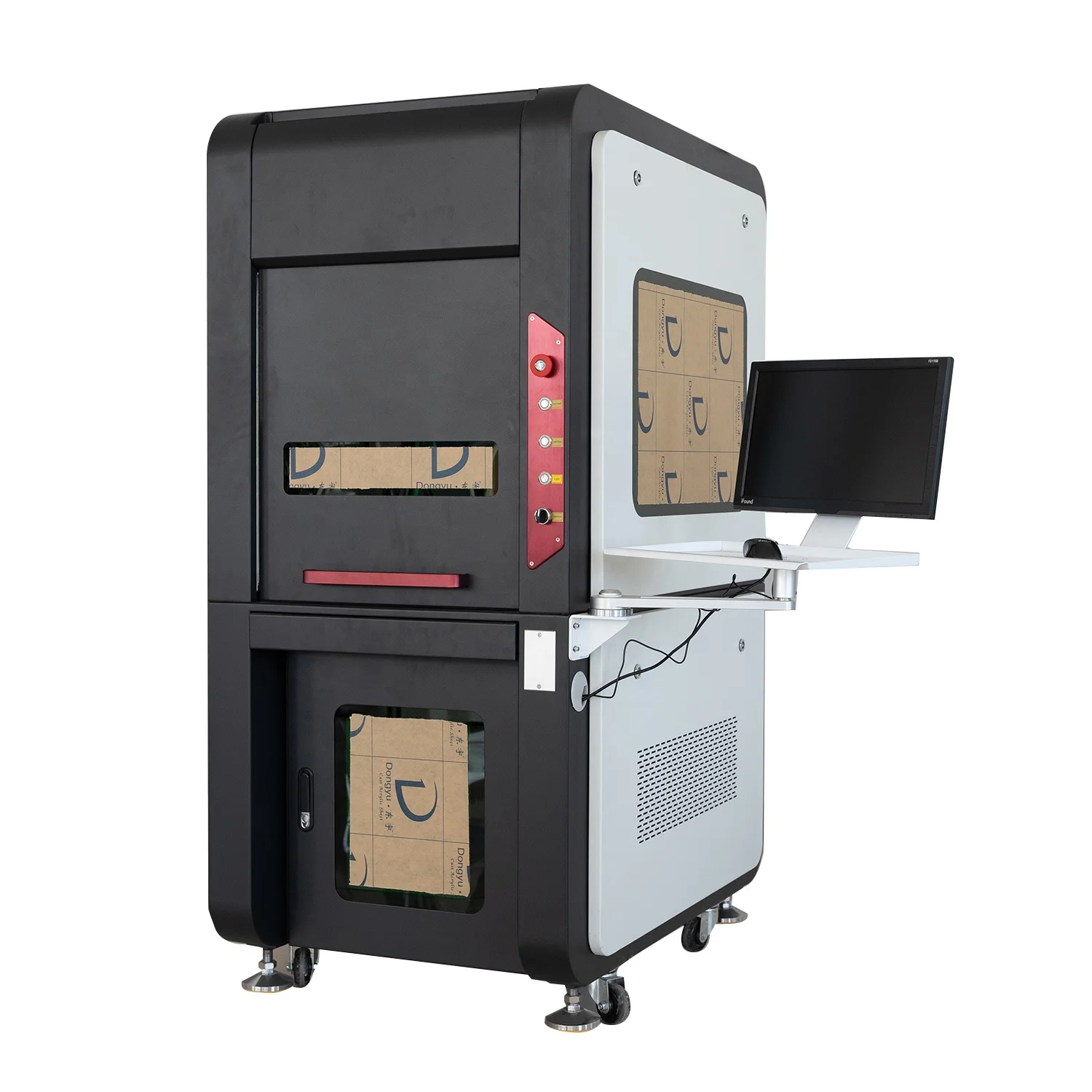

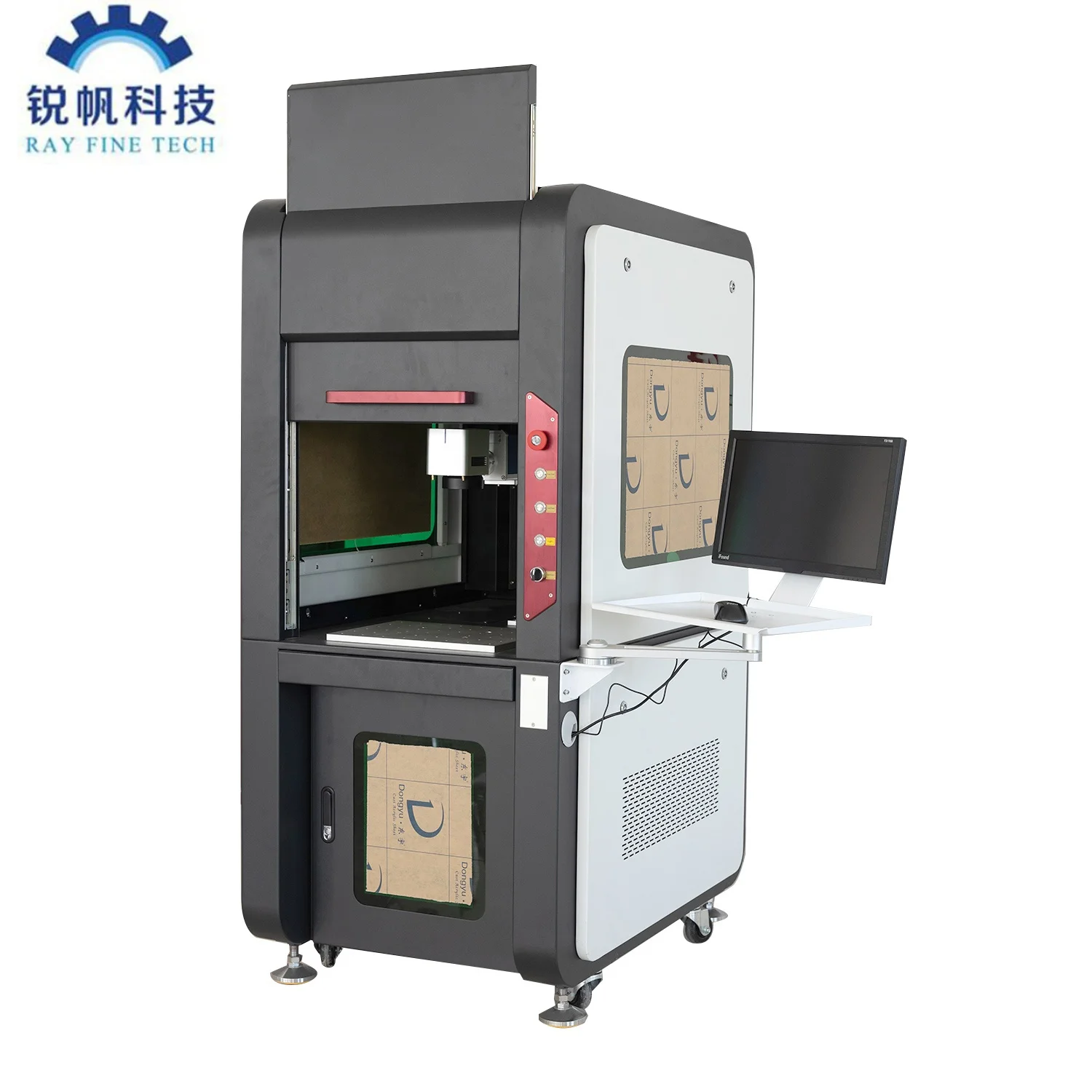

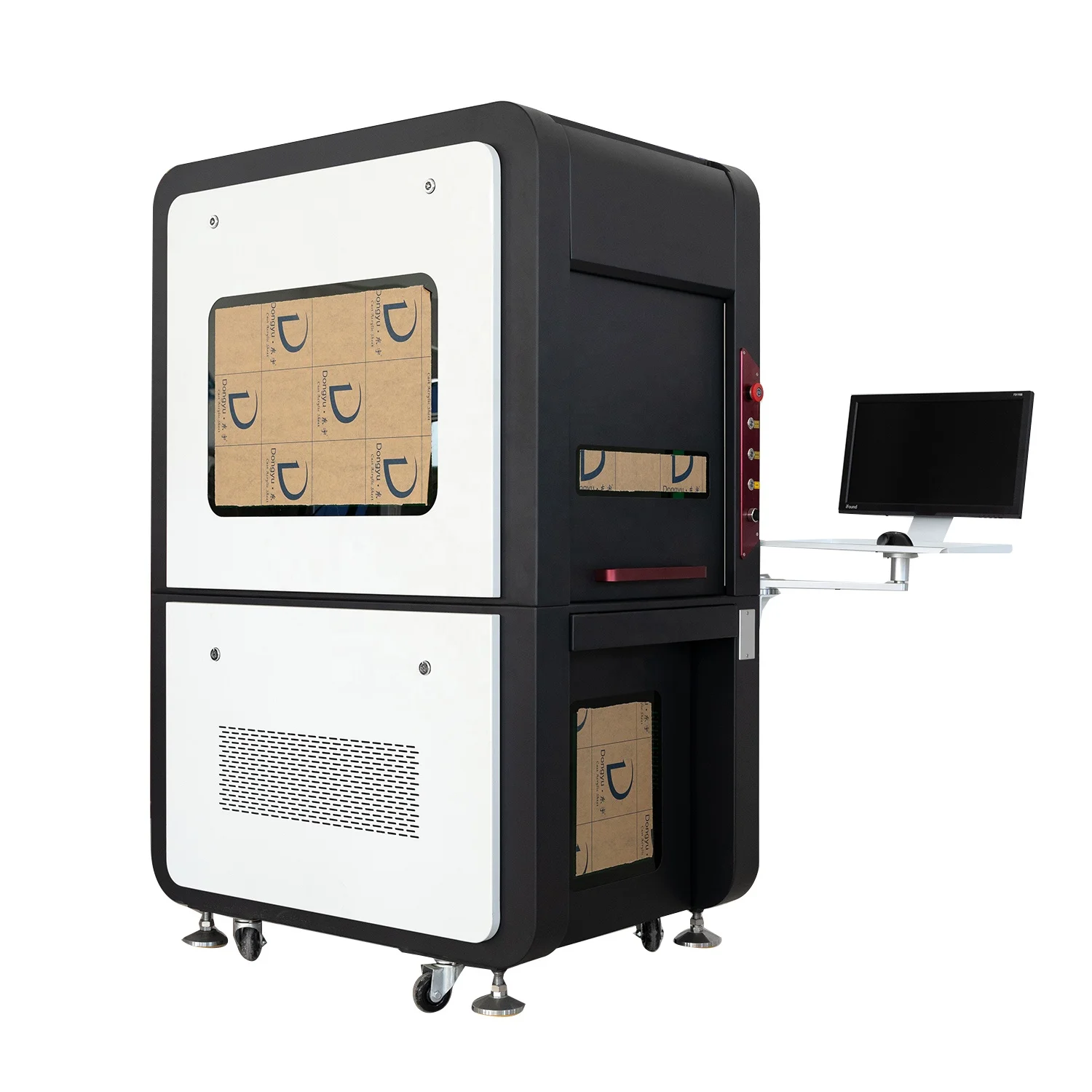

Machine display
Machine size
Height:170cm Length:75cm
Width:95cm Weight:350kg

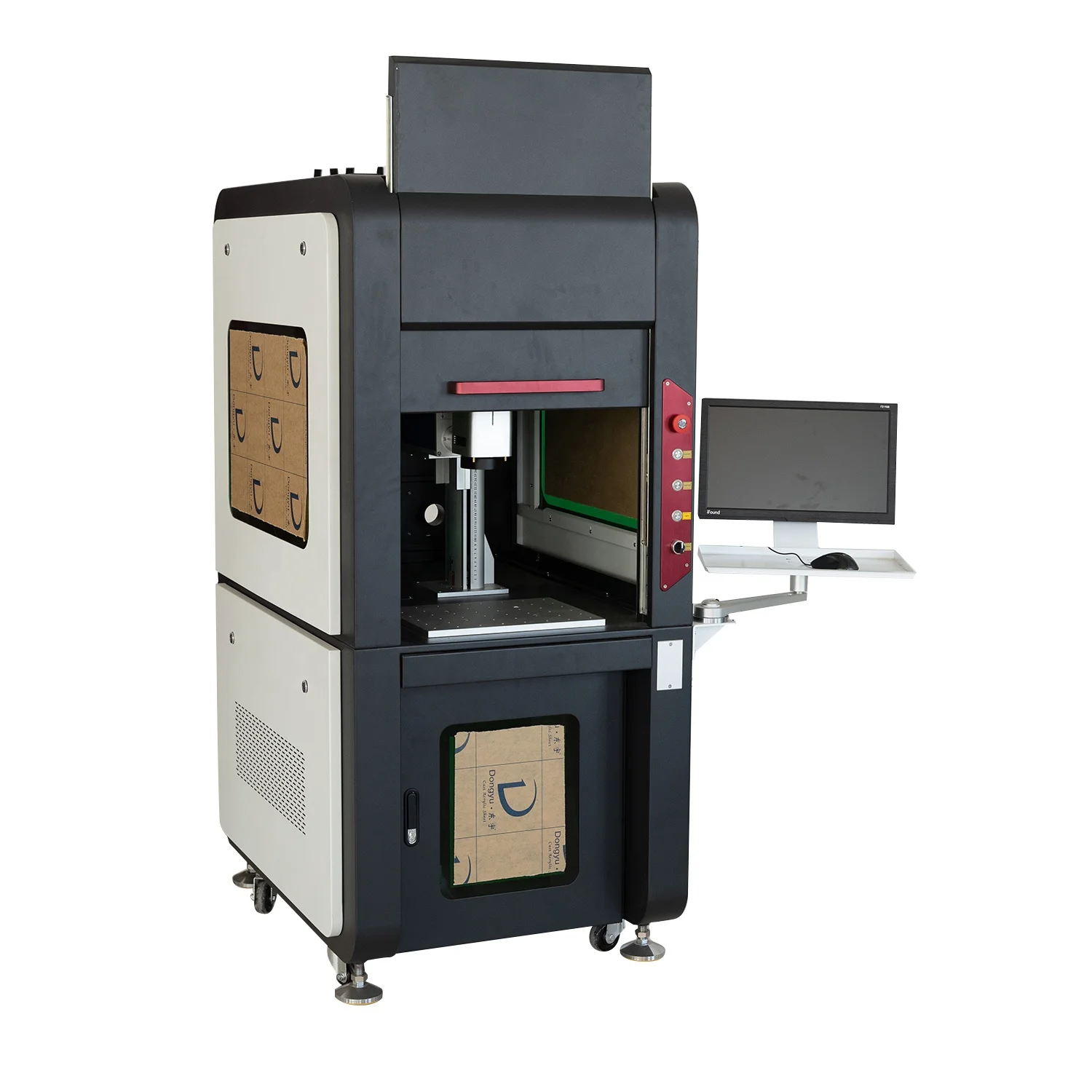

Machine windows can be opened
When the window is open, you can use it with the XY mobile platform to obtain a large marking area
>>Overall structure of the machine
1--The windows of the machine are equipped with radiation-proof glass, which can effectively protect your eyes and avoid laser radiation.(Since it is the machine window protection paper in the new machine picture, the protective glass has not been removed. After removing the protection paper, you can see the radiation protection glass.).
2--The machine itself is a very comfortable work house, with high-quality wheels installed below, you can move your work house to where you want to go at any time.
3--The machine comes with a keyboard desk and a computer workbench, which is very convenient for you to perform marking work.(Computer needs to be purchased separately)
Product Description
Product parameters
Model | RF-F-100W | ||||||
Fiber laser source | JPT M1 | ||||||
Wavelength | 1064nm | ||||||
Max Single pulse energy | 1.5mj | ||||||
Pulse Width | 250ns | ||||||
Laser beam quality M2 | <1.8 | ||||||
Frequency | 1-2000KHZ | ||||||
Marking Area | 300mm×300mm(optional) | ||||||
Full power frequency range | 60-200KHZ | ||||||
Marking Depth | 0.01-2mm | ||||||
Max position speed | 8000mm/s | ||||||
Min. linear width | 0.01mm | ||||||
Min. Character size | 0.2mm | ||||||
Repetition Accuracy | 0.005mm | ||||||
Control program | Genuine EZ-CAD control system Compatible with win7/8/10 | ||||||
Graphic format supported | Jpg,Bmp,dxf,plt | ||||||
Working voltage | AC220V 50HZ /AC110V 60HZ | ||||||
Cooling type | Air cooling | ||||||
Temperature | 0-40℃ | ||||||
Main parts of the machine
JPT mopa laser source
EZCAD control card
Sino-galvo Scan head
F-theta-lens
MeanWell power
Professionally designed chassis
Machine application
1.It can marking all metal materials,such as Gold, silver, copper, aluminum, stainless steel, aluminum alloy, iron and other materials.
2.it can perform efficient color marking on stainless steel.
3.it can cut some metal materials at 2mm.
4.it can complete deep metal carving.
If you are not sure if this machine can do the work you need, please feel free to contact me, I am happy to communicate with you about our product knowledge.
Metal engraving text
Watch text engraving
Metal plate engraving text
Stainless steel color marking
Stainless steel color marking
stainless steel color marking
Sheet metal cutting
0.3mm stainless steel cutting
Brass cutting
Machine packaging
1.Clean the machine surface and make sure that the machine surface is clean.
2.Check that there is no problem with the machine, and then wrap the machine with plastic wrap to prevent the machine from scratching.
3.Then it is packed in wooden cases, surrounded by four sides.
4.The gap between the wooden box and the machine is filled with foam plastics to prevent the machine
from moving back and forth.
5.Put all accessories in the wooden box and check whether there are missing accessories.
6.Then seal the wooden box and use steel nails to keep a firm eye on the surrounding of the wooden box to prevent the wooden box fromscattering.
7.Finally, fix the wooden box firmly with a bandage.
2.Check that there is no problem with the machine, and then wrap the machine with plastic wrap to prevent the machine from scratching.
3.Then it is packed in wooden cases, surrounded by four sides.
4.The gap between the wooden box and the machine is filled with foam plastics to prevent the machine
from moving back and forth.
5.Put all accessories in the wooden box and check whether there are missing accessories.
6.Then seal the wooden box and use steel nails to keep a firm eye on the surrounding of the wooden box to prevent the wooden box fromscattering.
7.Finally, fix the wooden box firmly with a bandage.
Company Profile
Certifications
FAQ
g1--what is the shipping date?
The final payment is generally collected and shipped within 10 working days.
2--What is the general method of delivery?
We usually deliver goods by international express delivery, but this machine is too large and heavy, it is recommended that you choose air transport.
3--I don't know how to use the machine?
Don't worry about this, we will have a dedicated after-sales service staff to guide you how to operate the machine.
4--How about warranty time?
machine 2 years,laser source 3years.
5--What are the methods of after-sales maintenance?
We provide services through e-mail, telephone, online Skype, etc. We can solve problems through remote, photo and video.
If you are interested in our products, please feel free to contact me, I am happy to exchange laser product knowledge with you.
