Моющая насадка для резервуара с реакционным приводом санитарный поворотный распылитель из нержавеющей стали
- Категория: Запчасти для очистного оборудования >>>
- Поставщик: Cleaning,Intelligent,Equipment,Technology,(Guangzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.77 $* | 0.96 $* |
| Aug-15-2025 | 0.82 $* | 0.18 $* |
| Jul-15-2025 | 0.10 $* | 0.98 $* |
| Jun-15-2025 | 0.73 $* | 0.39 $* |
| May-15-2025 | 0.46 $* | 0.74 $* |
| Apr-15-2025 | 0.94 $* | 0.26 $* |
| Mar-15-2025 | 0.59 $* | 0.56 $* |
| Feb-15-2025 | 0.81 $* | 0.63 $* |
| Jan-15-2025 | 0.66 $* | 0.46 $* |
Характеристики

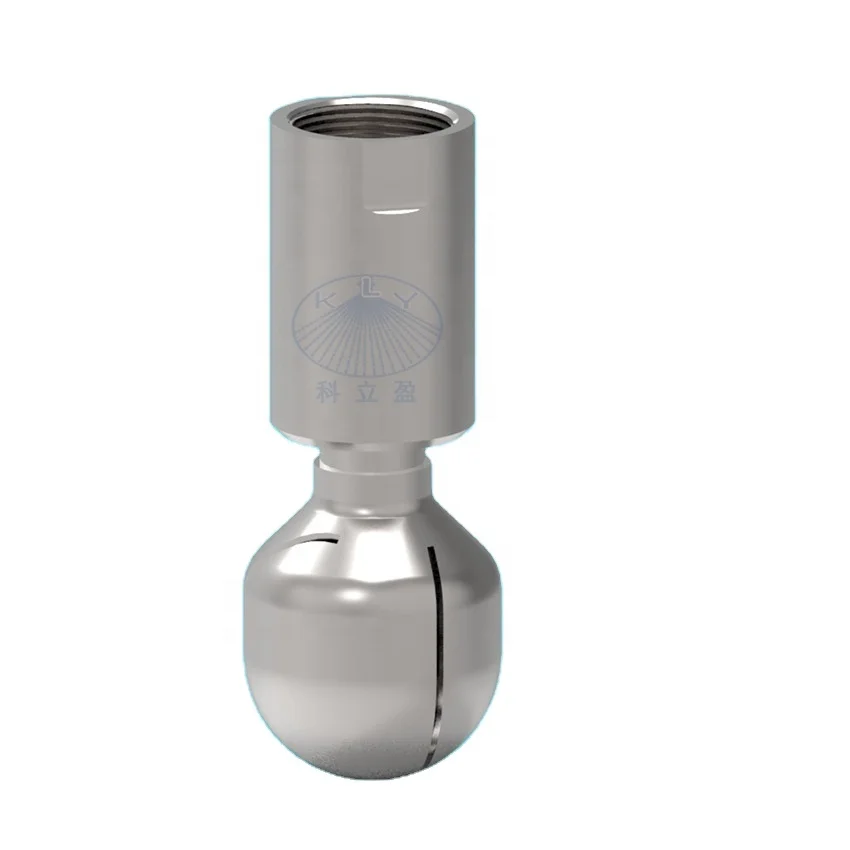

Reaction Drive Tank Washing Nozzle, Stainless Steel 316L Sanitary CIP Rotary Spray Ball
Model | Reaction Drive Tank Washing Nozzle |
Operating pressure | 1.5-3 Bar |
Max. tank diameter | 0.5-4 m |
Spay angle | 360 |
Material | 316L SS |
CONNECTION | see the table |
Application | rinsing and cleaning of tank |
Design feature | double bearing design, longer life bearing |
Temperature | 130° |
Design features :
1. Double bearing design with excellent rotation effects, and better stability and longer life
2. Self-cleaning self-lubricating design
3. 360 degree self-rotating cleaning nozzle
4. Low consumption of liquid, operating at low pressure
5. Driven and lubricated by the cleaning fluid
6. The compact and hygienic design meets requirements for use in CIP system
1. Double bearing design with excellent rotation effects, and better stability and longer life
2. Self-cleaning self-lubricating design
3. 360 degree self-rotating cleaning nozzle
4. Low consumption of liquid, operating at low pressure
5. Driven and lubricated by the cleaning fluid
6. The compact and hygienic design meets requirements for use in CIP system
Benefits:
Provides a high energy impinging spray for deep cleaning.
Reduces water consumption.
Reduces chemical consumption.
Increases vessel availability.
Reduces confined space entry.
Provides consistent cleaning.
Helps fight against bacterial infections and other “off taste” producing elements
Provides a high energy impinging spray for deep cleaning.
Reduces water consumption.
Reduces chemical consumption.
Increases vessel availability.
Reduces confined space entry.
Provides consistent cleaning.
Helps fight against bacterial infections and other “off taste” producing elements
Application:
Soup kettles
Yeast propagation tanks
Batch processing vessels
Fluid bed dryers
Ink and paint mixing vats
Brew kettles
Storage tanks
Spray dryers
Commercial ovens
e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry
Yeast propagation tanks
Batch processing vessels
Fluid bed dryers
Ink and paint mixing vats
Brew kettles
Storage tanks
Spray dryers
Commercial ovens
e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry
Performance data:

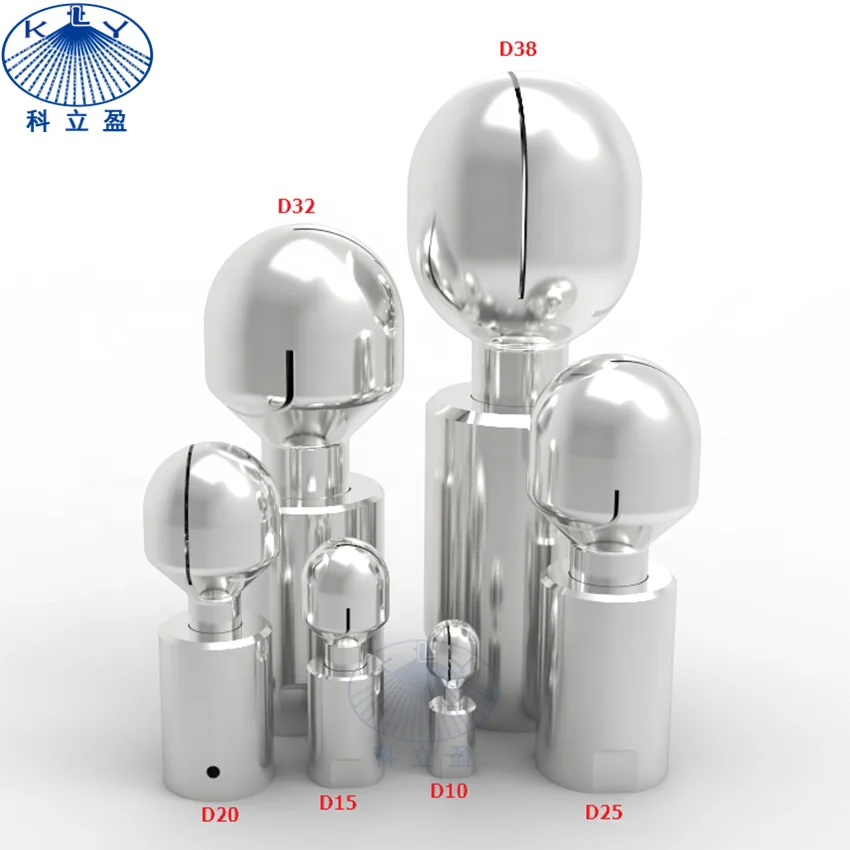

Dimensions of tank cleaning nozzle:
Cleaning process:
Cleaning effect:
Application of 3D rotary tank cleaning nozzle:
