Immersible Submersible ultrasonic transducer vibration plate is suitable for cleaning before electroplating parts, clock parts, hardware and mechanical parts, polyester filter element, semiconductor silicon wafer, tools, lenses, glasses frame, jewelry, jewelry, glass, utensils and other industries.

Advantages of ultrasonic vibration plate:

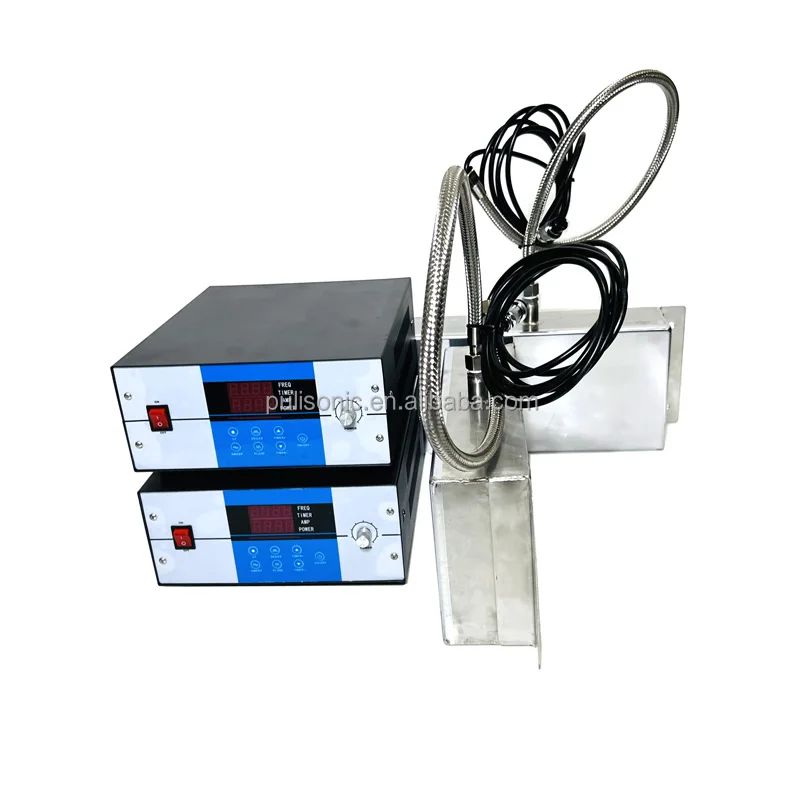

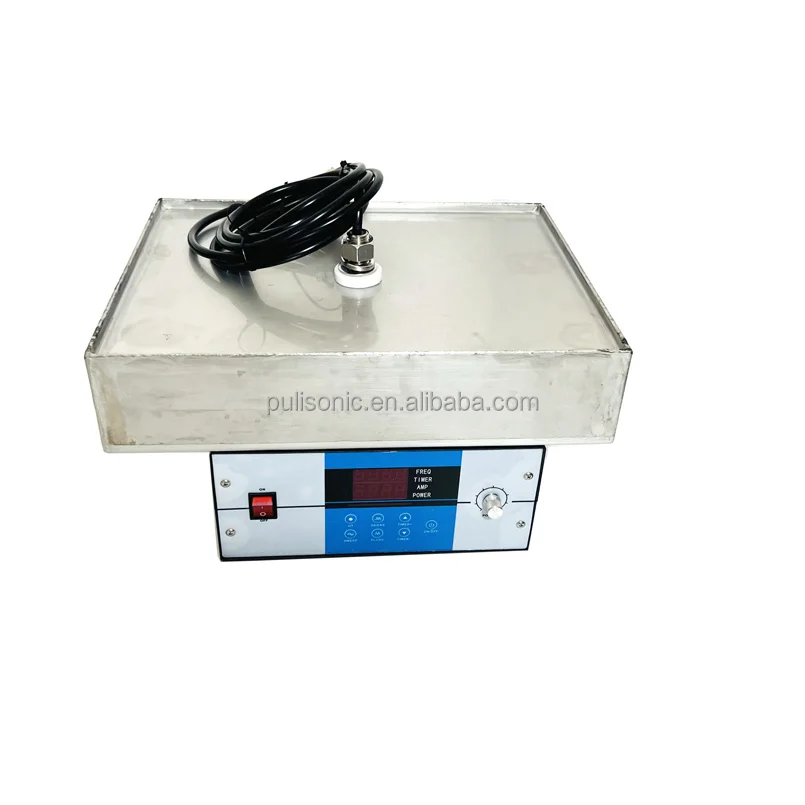

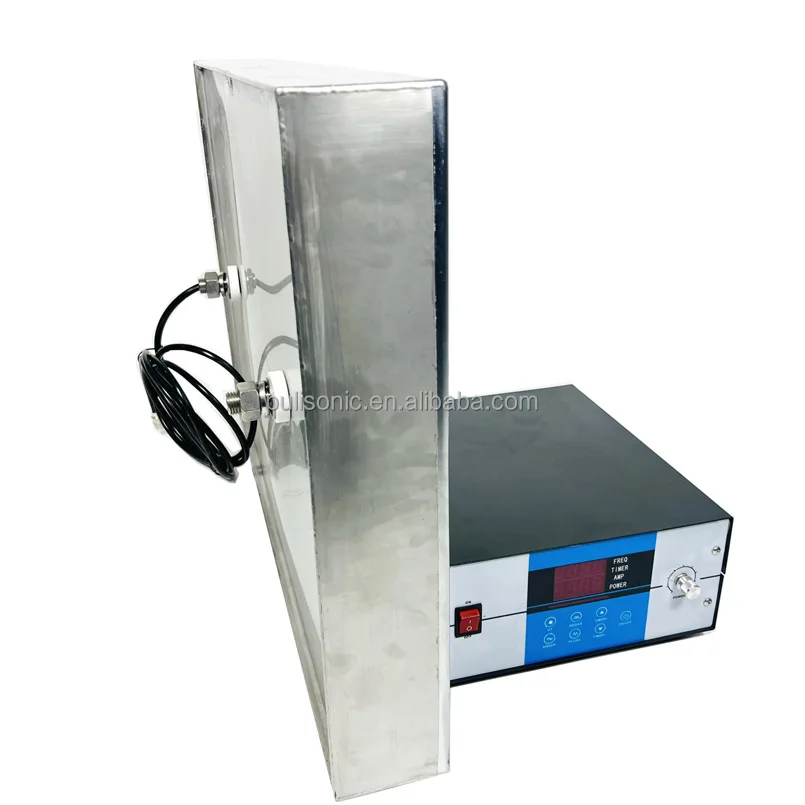

1. Immersible Submersible Ultrasonic vibration plate is composed of vibration plate and ultrasonic generator. When the standard ultrasonic cleaning machine is not suitable for specific working environment, in addition to special specifications, it can be customized. The input vibration plate device can also be refitted into an ultrasonic cleaning machine, which can save the equipment cost and achieve the cleaning effect.

2. The shock plate is made of all stainless steel, alkali and acid resistant, and the surface of the shock plate is plated with hard chromium. The ultrasonic transducer adopts high-quality and high-performance products with high electroacoustic conversion efficiency.

3. The split structure is adopted, and the high-frequency line with socket is used between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance.

4. The installation layout is flexible. According to the needs, the ultrasonic radiation surface can be arranged on the bottom, side or top of the cleaning tank.

5. Ultrasonic vibration plates can be customized according to customer requirements. Ultrasonic vibration plates are widely used in various industries such as cleaning before electroplating parts, clock parts, hardware and mechanical parts, polyester filter element, semiconductor silicon wafer, tools, lenses, glasses frame, jewelry, jewelry, glass, utensils and so on.



Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PLS-ZBH300	300*190*100	25,28,33,40,80,130	300	6
PLS-ZBH600	360*275*100	25,28,33,40,80,130	600	12
PLS-ZBH1000	450*350*100	25,28,33,40,80,130	1000	20
PLS-ZBH1200	470*380*100	25,28,33,40,80,130	1200	24
PLS-ZBH1500	520*450*100	25,28,33,40,80,130	1500	30
PLS-ZBH1800	560*450*100	25,28,33,40,80,130	1800	36
PLS-ZBH2000	650*450*100	25,28,33,40,80,130	2000	40
PLS-ZBH2400	740*520*100	25,28,33,40,80,130	2400	48
PLS-ZBH3000	820*540*100	25,28,33,40,80,130	3000	60
PLS-ZBH5000	1200*590*100	25,28,33,40,80,130	5000	100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)
