Характеристики


Product Description

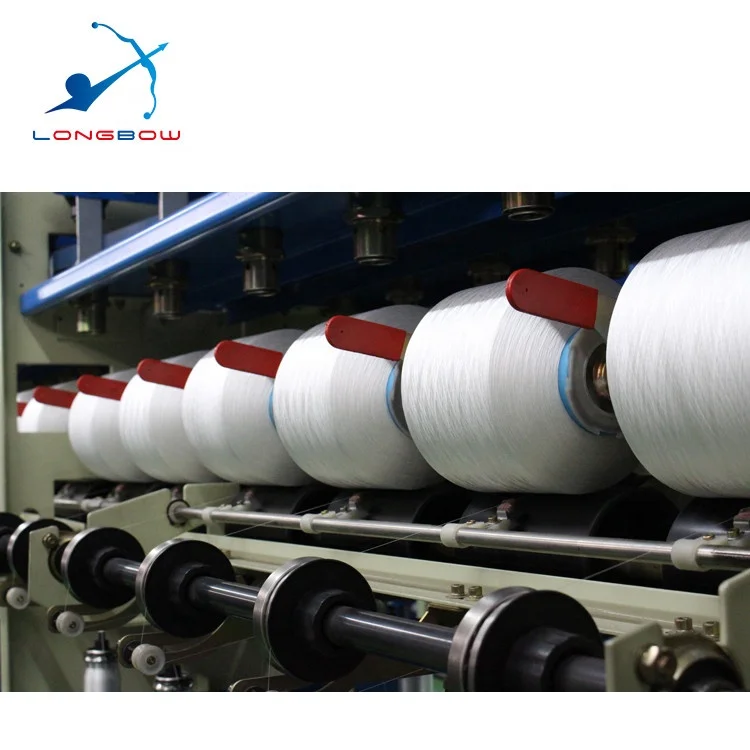

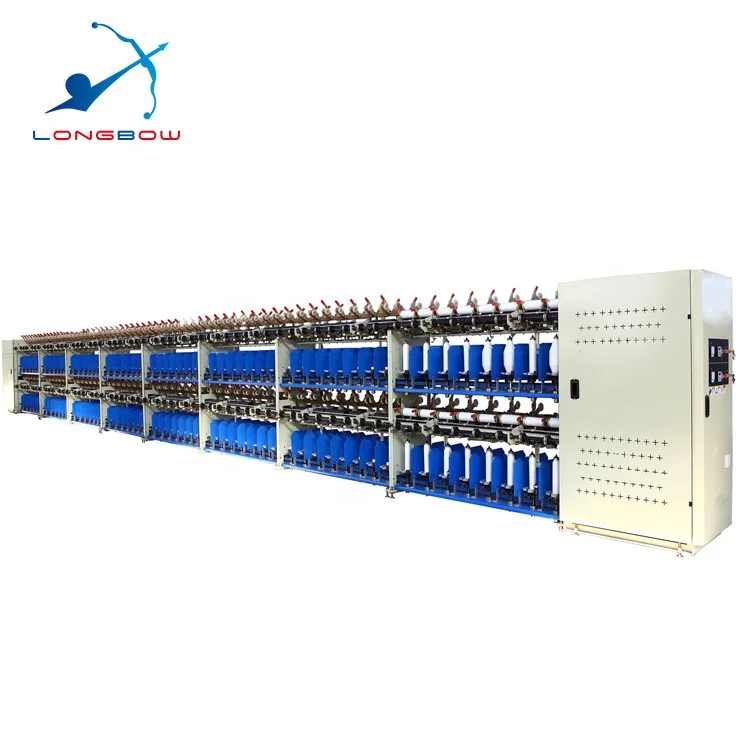

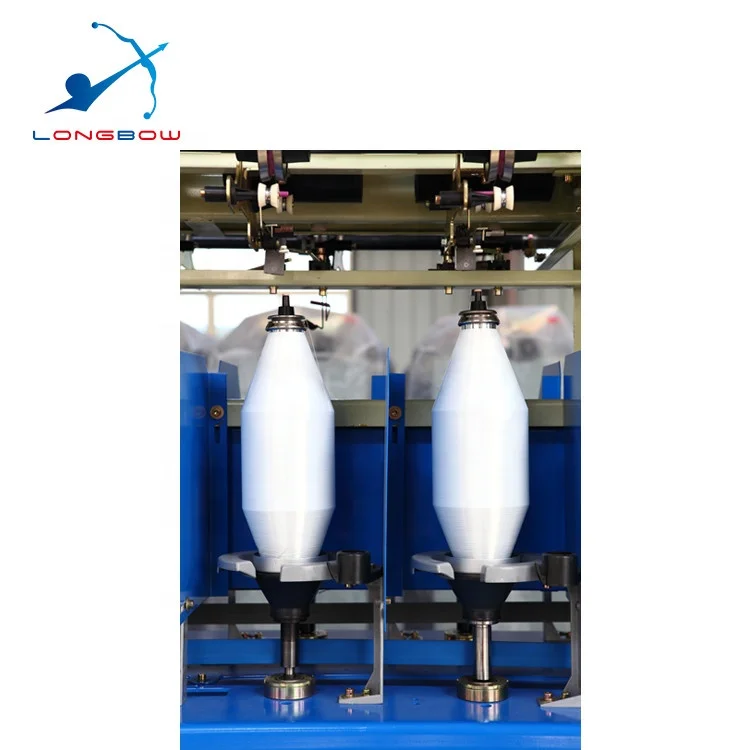

LB-310G High Speed Two-for-one Twister



Chemical fiber filament Two-for-one Twister,it achieves one rotation on the spindle, two twists in the yarn, the efficiency ratio

is fold increase compared with  traditional machine.  winding volume increased. There is no joint in ten thousand meter yarn,

twisting quality highly improved.





Features:

1. High Speed Spindle, The production increase 30%~50%.

2. Maintain easy. Don’t need to add lubrication oil.

3. Full computerized PLC system. All setting input through HMI.



Spindles Q'ty

256

Feeding bobbin size

L240~320×Φ42×Φ110mm

Take-up bobbin size

Φ62×L170mm(customized)

Spindle Gauge

225mm

Max Spindle Speed

18000rpm

Normal Spindle Speed

15000~17000rpm

Twist Range

350~3989T/M

Twist Direction

S or Z

Speed control

Inverter and PLC

Spindle driving

 Tangential Belt


Spindle fixture



Magnetic fixture



Start mode



Star-delta slow start



Tensioner



Ball tension device



Take-up tension



Adjusting the yarn angle in the roller

Motor Power

7.5Kw ×2 Or 5.5kw×2

Dimension



16410*750*1895 mm
