High Strength FDY Yarn Making Machine For PP Multifilament







Technical process :



1.pp grain get into auto-hopper------2. Melting material in screw------3.through spinneret, then wind blow to cooling ------ 4.5.6. hot rollers, drawing speed is more and more higher ------7.after yarn guide roller , then winder( 270mm length bobbin , two winders)





Item	Unit	JM261	JM241	JM811	JM161	JM141
No. of pos.	Pos.	2	2	1	1	1
No.of ends/pos.	Spinner/pos.	6	4	8	6	4
spinneret	mm	160	160	160	140	160
Output/24Hr(900d)	Kg	3456	2304	2304	1728	1152
Bobbin size	mm	¢125*¢110*200	¢125*¢110*200	¢108*¢94*115	¢125*¢110*200	¢108*¢94*230
Package size(mm)	mm	¢400*¢125*170	¢400*¢125*170	¢360*¢108*90	¢430*¢125*170	¢400*¢108*200
Dia .of screw	mm	120	105	90	90	70
Drive power	Kw/50Hz	90KW/380V	40KW/380V	30KW/380V	42.37KW/380V	35KW/380V
Heating power	Kw	190/220V	90KW/220V	75KW/220V	93.5KW/220V	90KW/220V

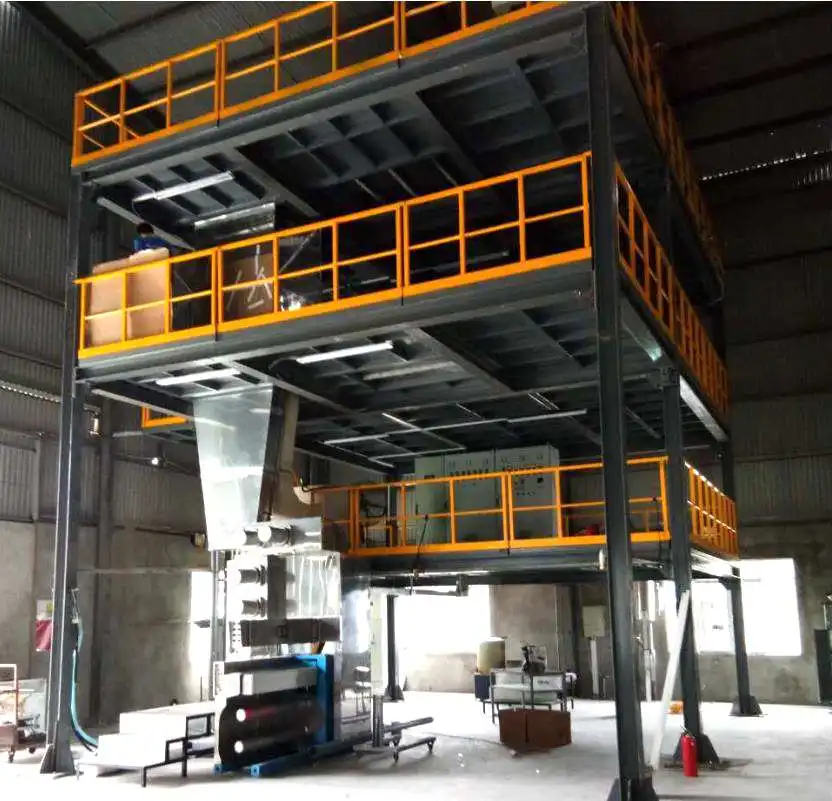

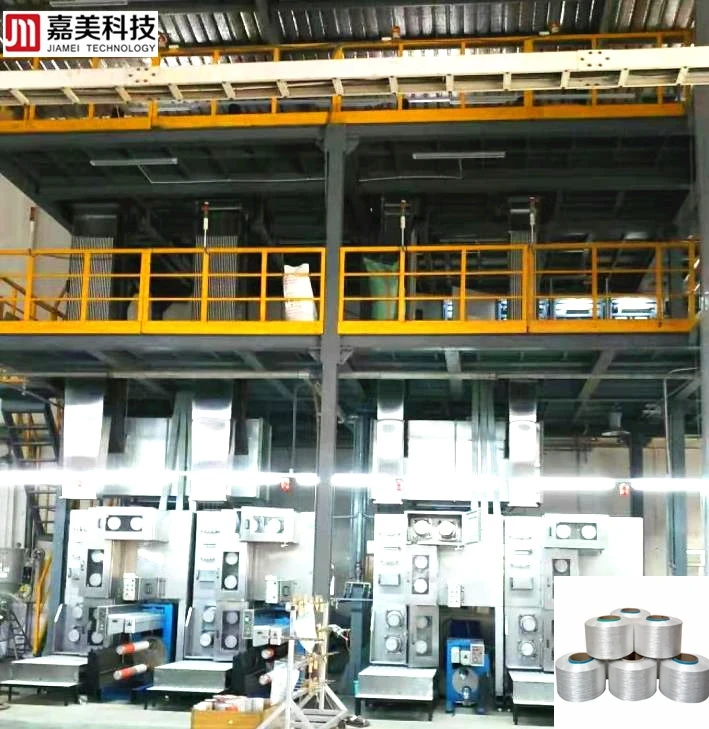

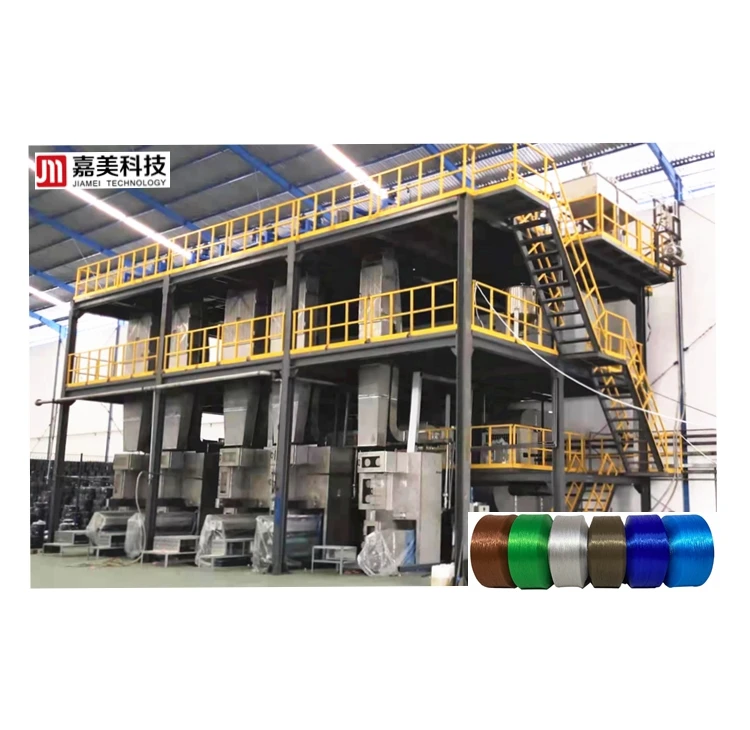

Machine Pihotos :

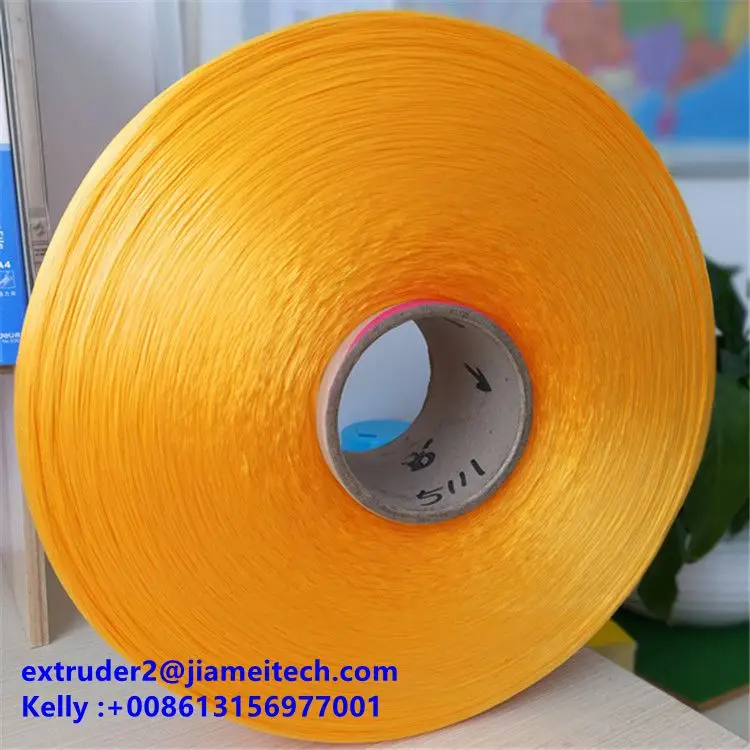

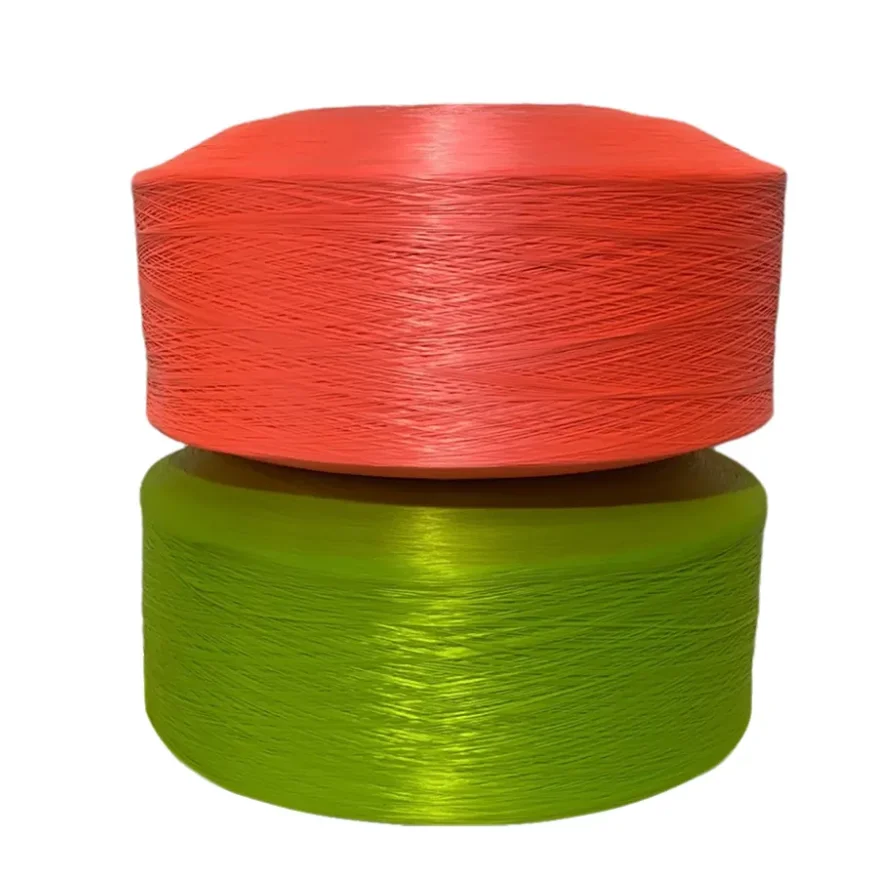

Yarn Photo:

polypropylene pp fdy automatic multifilament yarn winding machine









Yarn application:









Workshop:

we have over 30 years experience in spinning machine making, in china many local users.

Taian jiamei machinery technology co.,ltd is sepcialized in plastic extrusion technology machinery reserach, design and manufacturer. Have good experience of 30 years in machinery manufacturing and development.

Our main products including pp multifilament spinning line . polyester multi yarn spinning machine, BCF carpet multifilament spinning extrusion machine. All kinds of plastic extruding machine. Our equipment is widely used in the industrial field of braiding/ twisting rope, knirring webbing belt, construction reinforced concrete fibre, bag sewing thread, filter cloth, fishing net and narrow fabrics . so far , many customers have gain very good economic benefits with our equipment.

polypropylene pp fdy automatic multifilament yarn winding machine







Our Service:

1.Come engineer for machine set up



2. support with operating training



3. spare parts supply immediately













Related Machine:

we have helped several client to do A~Z solutions , like plastic rope and twine making, webbing kintting , and concrete fiber making , weaving filter cloth , sewing yarn making line , let’s cooperate!

1) ring twister and two for one twister  2) rope making machine 3)spool winder  4) braiding machine 5)knitting needle loom 6)concrete fiber cutting machine  7) net knitting machine

8)ring twister  9) sewing machine



1.Yarn twsiting machine







2.Fiber cutting machine(2-80mm)









Contact: Ms Kelly

Mob:+008613156977001
