Характеристики

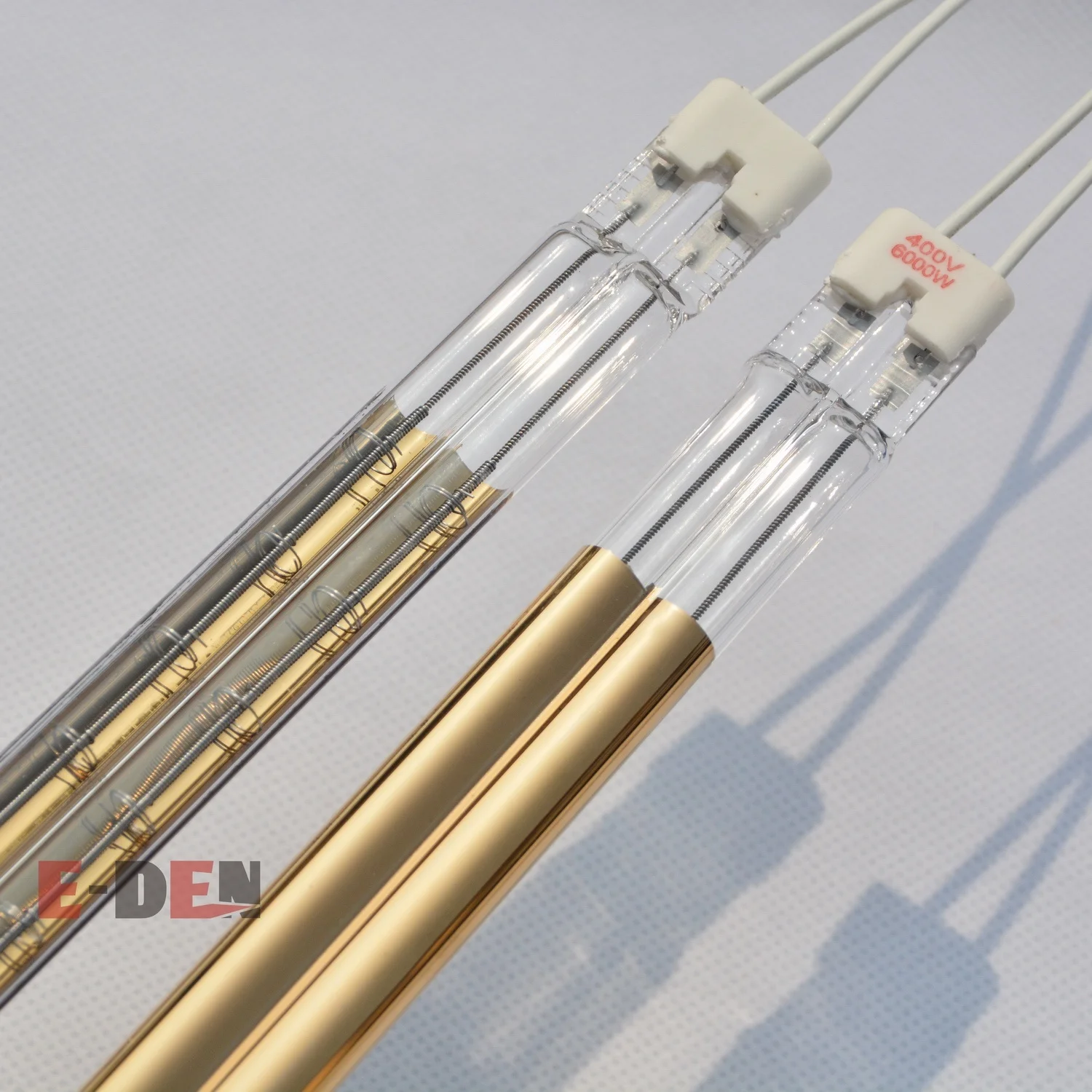

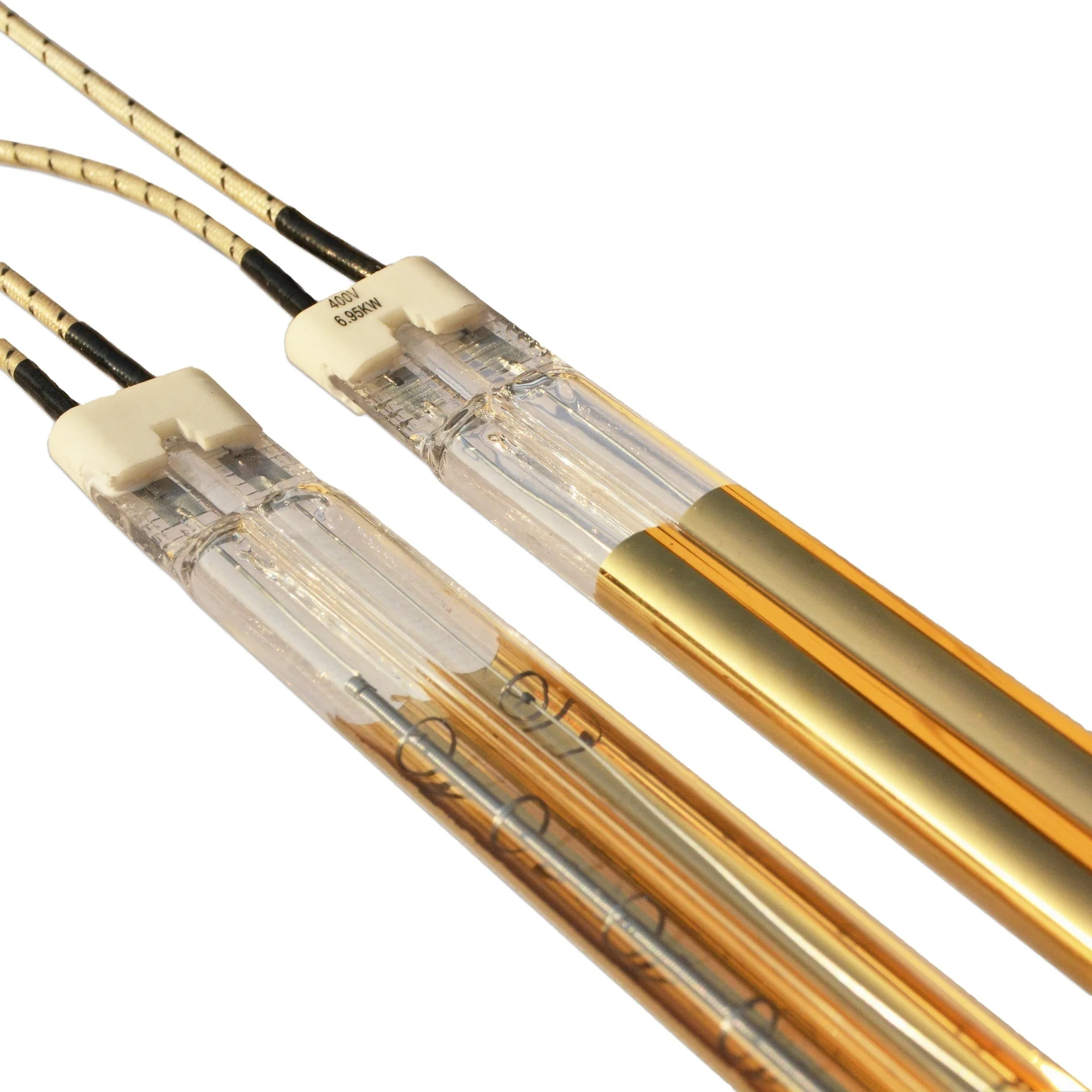

400V 6000W 1150MM Twin Tube Short Wave Infrared Heating Lamp

IRTC40-60-1150/1000-2311G

Gold reflector

Voltage = 400V

Wattage =5400W

Total length =1150mm



C-Type twin tube infrared heating lamp is two side connection, both channels heated as the following technical drawing. The C type IR heating lamp can be designed in twin tube with sizes of 23×11mm or 33×15mm. And the C type IR heating lamp can be fixed white or gold reflector directly on the quartz tube.









Short Wave Infrared Lamp
Short wave infrared lamp is designed with high heating power, the range of radiation wave is 1.0-1.4μm, it is particularly suited for fast response heating processes. This short wave infrared radiation penetrates more deeply into materials, as they can obtain their full-efficiency within seconds. In addition, a white or gold reflector can be fixed directly on the short wave infrared lamp to improve the energy radiation on the heating materials.

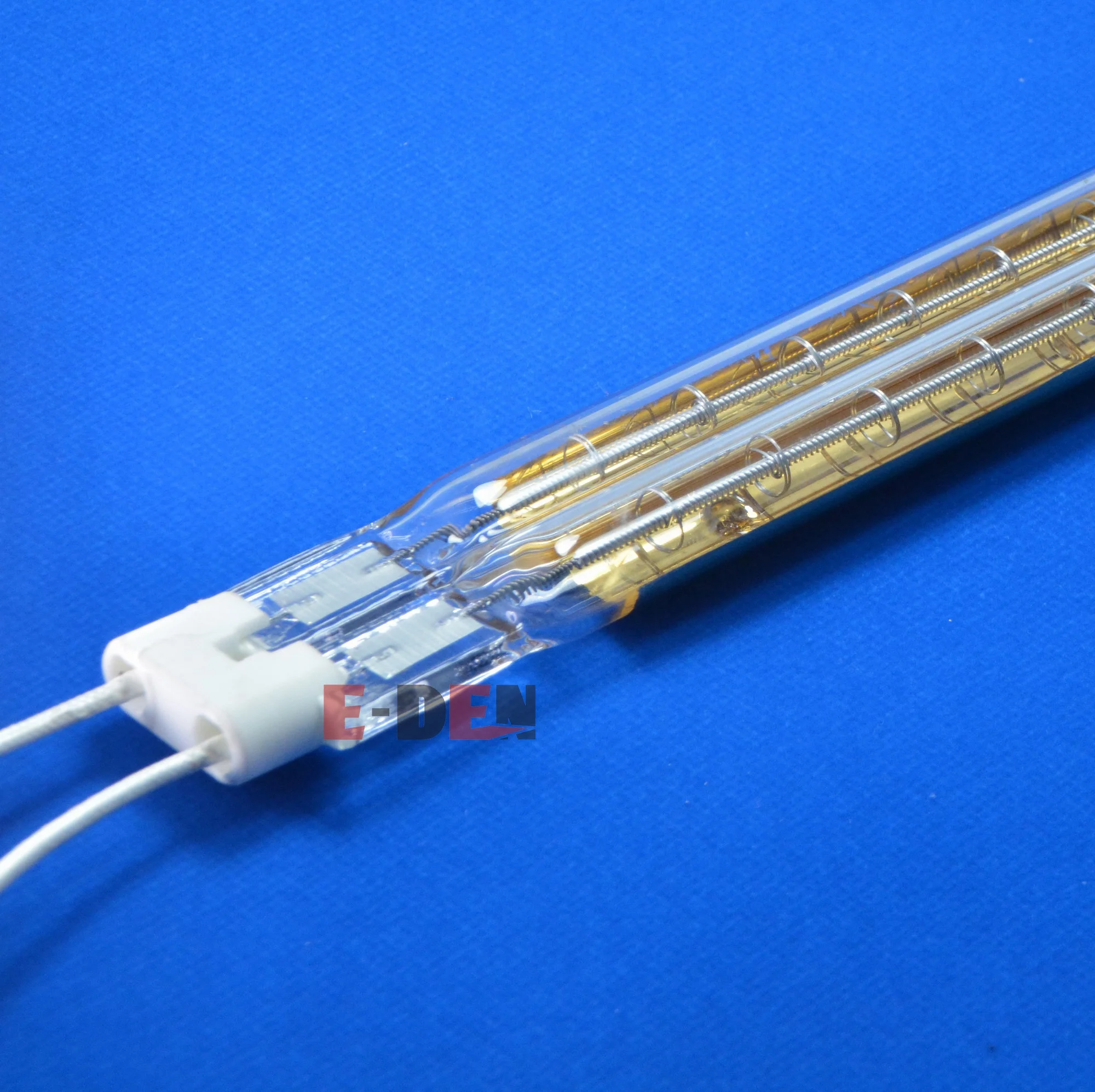

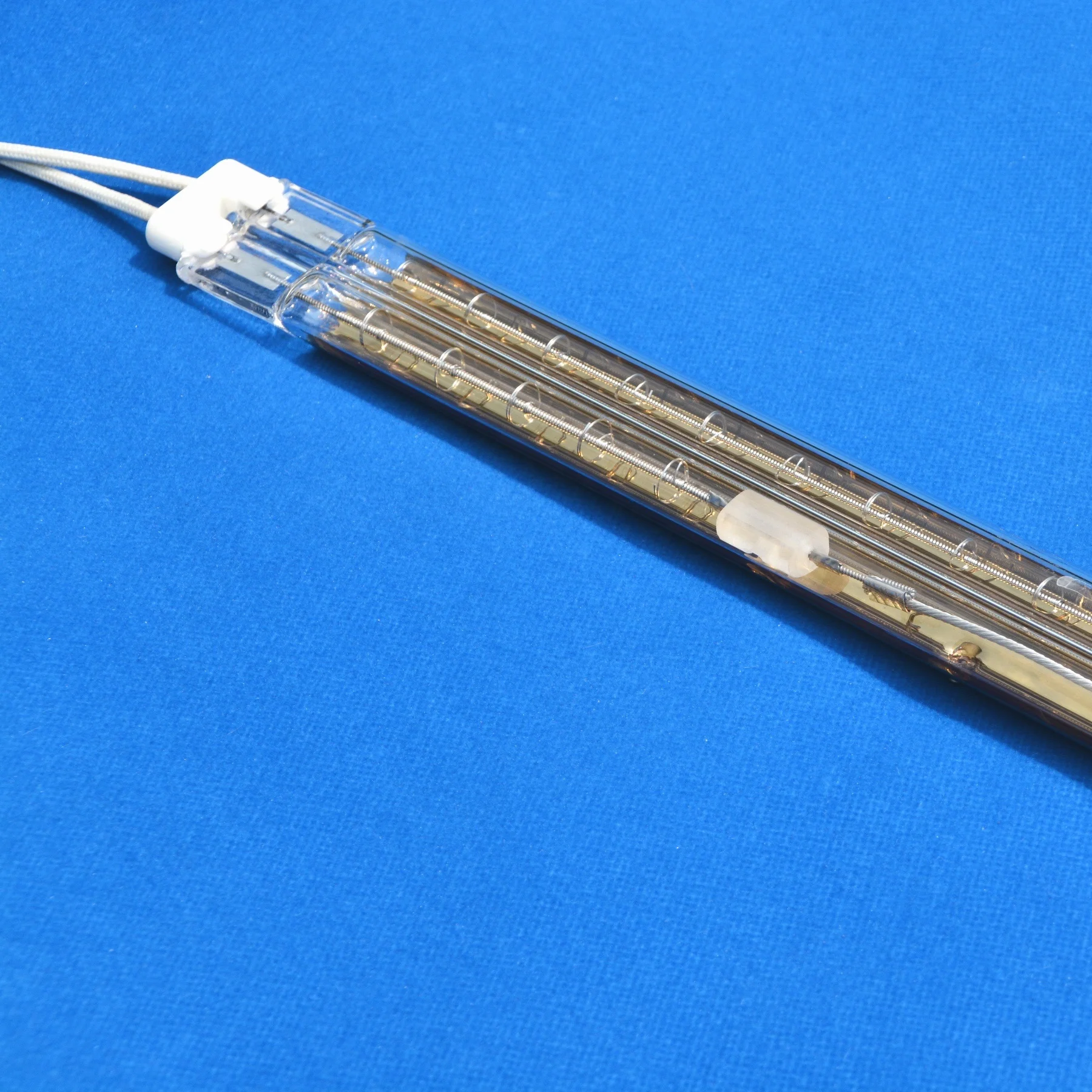

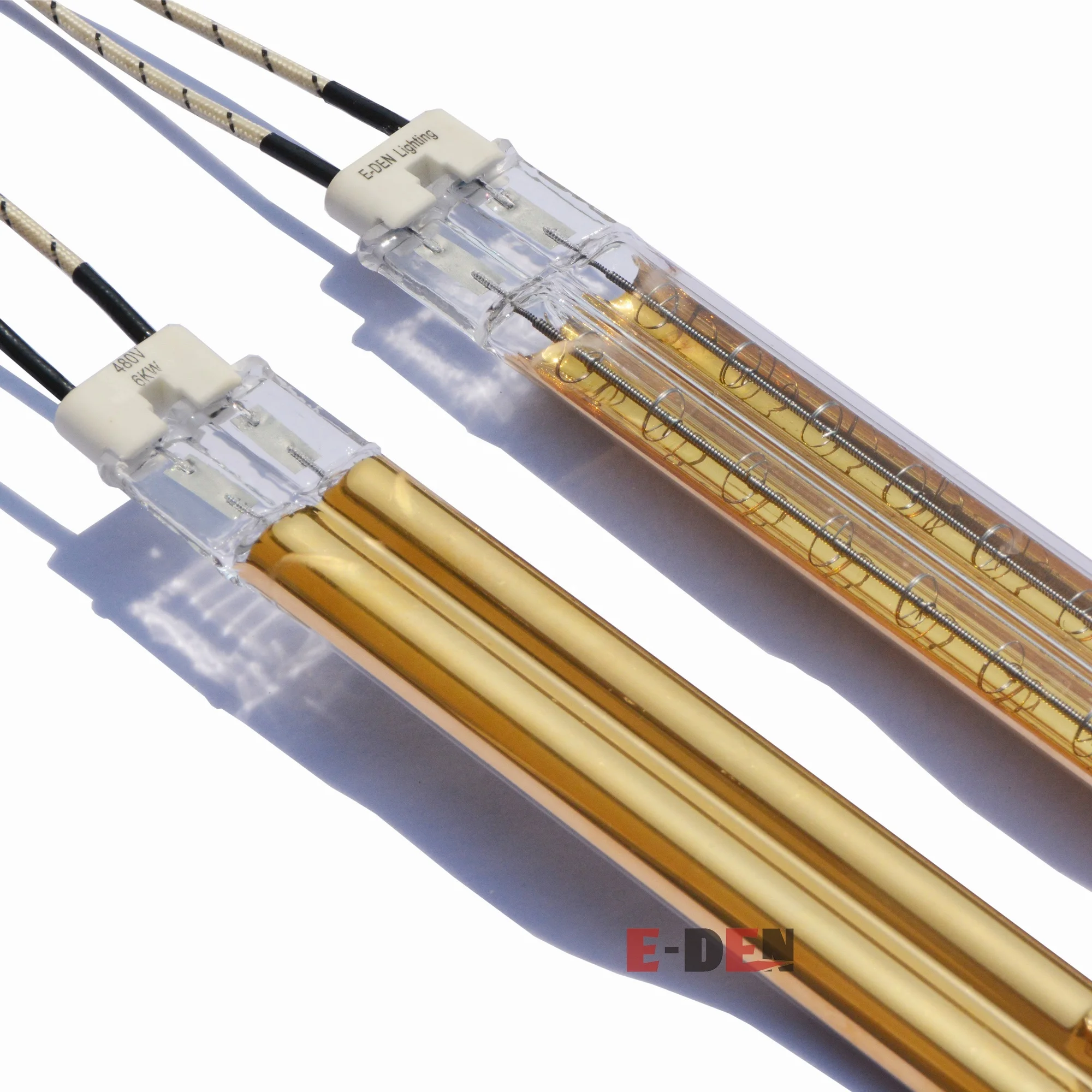

Short Wave Twin Tube IR Lamp
Peak wavelength
1.0-1.4μm
Response time
1 second
Heating filament
Tungsten
Filament working temperature
1800℃-2200℃
Max. surface power density
200kw/m2
Cross Section
23×11mm
33×15mm
Max. Length
4.5m
6.0m
Reflector
White ceramic or Gold
Burning position
Horizontal or Vertical


According to the configuration of different heating filament and ending cables, short wave twin tube infrared lamps can be produced in the following one side or two side connection configuration.


                   One Side Connection                                            Two Side Connection













NANJING E-DEN LIGHTING TECHNOLOGY LTD.一A Professional 10 years' IR HEAT LAMP MANUFACTURER


Nanjing E-DEN Lighting Technology Co., Ltd.
a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries.We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, we always do our best to provide our customers highest quality products and most satisfactory after-sales service.
