WFJ машина для порошкового измельчения промышленный фрезерный станок
- Категория: Шлифовальное оборудование >>>
- Поставщик: Wuxi,Rela,Pharma,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 14280.0 $* | 14994.72 $* |
| Aug-15-2025 | 14160.79 $* | 14868.90 $* |
| Jul-15-2025 | 11880.7 $* | 12474.28 $* |
| Jun-15-2025 | 13920.25 $* | 14616.0 $* |
| May-15-2025 | 12120.98 $* | 12726.30 $* |
| Apr-15-2025 | 13680.8 $* | 14364.95 $* |
| Mar-15-2025 | 13560.53 $* | 14238.21 $* |
| Feb-15-2025 | 13440.32 $* | 14112.1 $* |
| Jan-15-2025 | 13320.75 $* | 13986.50 $* |
Характеристики
Product Description

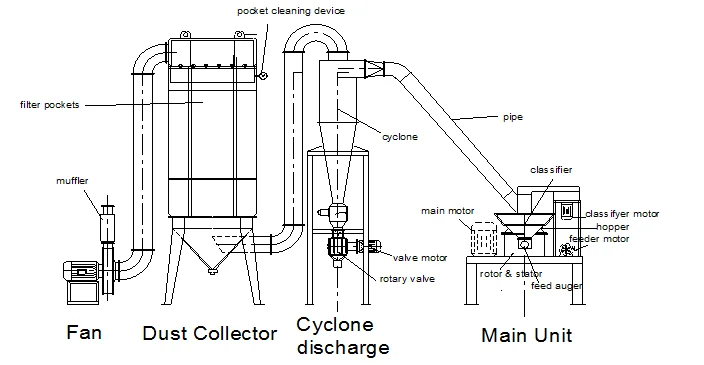

Working principle
The raw materials, being fed into the grinding chamber by auger slowly, are impacted, crashed, sheared by rotor and stator at high speed into super fine powder. The powder size is determined by the rotary speed of classifier. So there is no mesh sieve in the unit. The speed of classifier is controlled by inverter. The faster the classifier rotates, the finer the powder is. When the powder reaches the desired size, it is sucked out by fan into cyclone. Most powder are discharged via rotary valve. A little of superfine powder, as they are too light, are sucked into dust collector and filtered by pockets.
Technical Parameter
Model | WFJ- 8 | WFJ-15 | WFJ-30 | WFJ-45 | WFJ-60 | WFJ-80 | WFJ-100 | ||||||
Capacity ( kg/h) | 5-50 | 30-350 | 50-800 | 80-1000 | 100-1200 | 200-1500 | 300-1800 | ||||||
Feed size ( mm) | < 10 | ||||||||||||
Final size ( mesh) | 80 - 500 mesh | ||||||||||||
Total Power ( KW ) | 11.17 | 14.87 | 42.12 | 60.50 | 70.45 | 114.00 | 134.00 | ||||||
Rotary speed ( r/min ) | 5800 | 5500 | 3650 | 3200 | 2900 | 2300 | 2000 | ||||||
Weight ( kg ) | 900 | 1300 | 2000 | 2200 | 3500 | 3800 | 4000 | ||||||

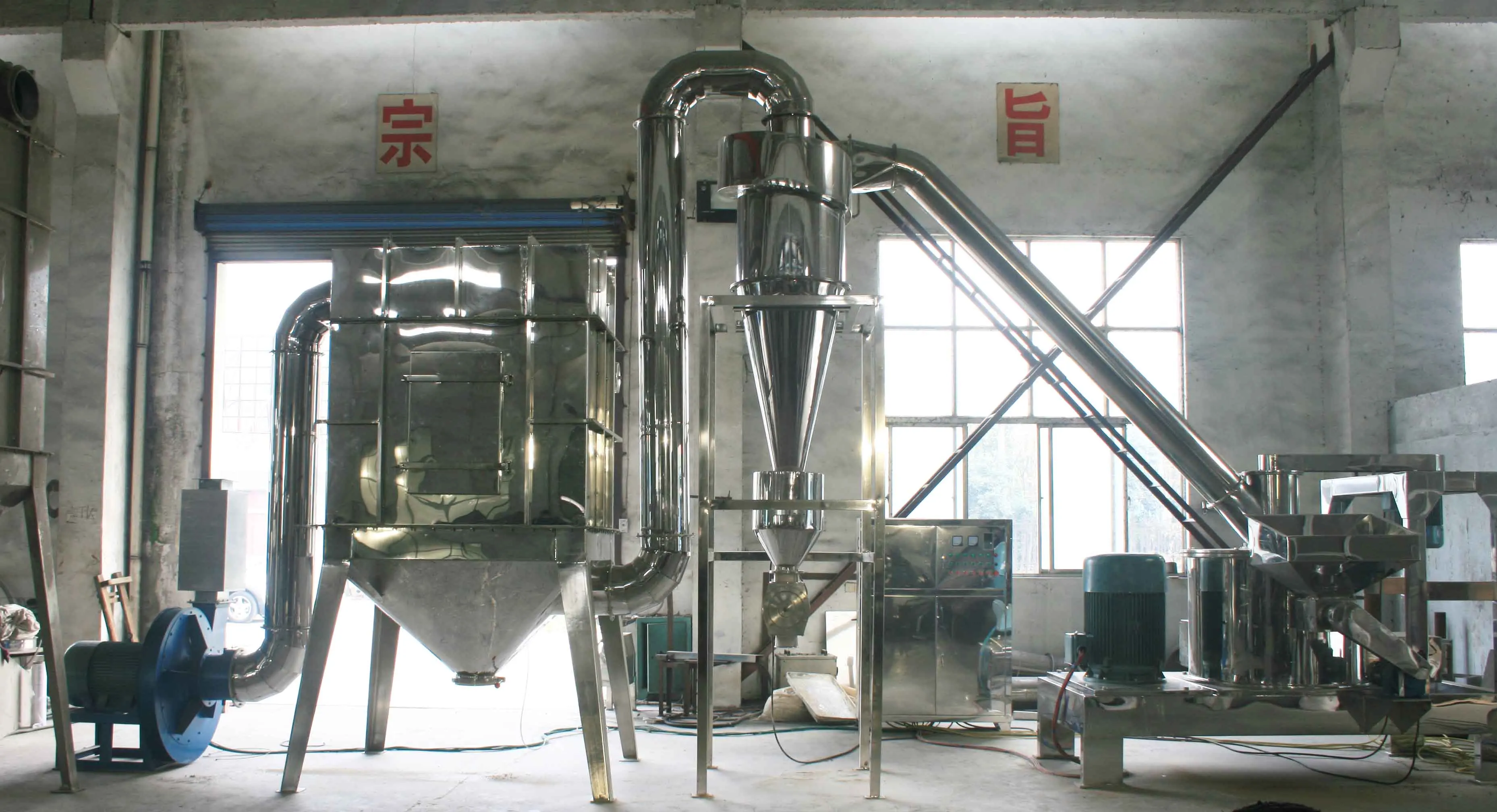

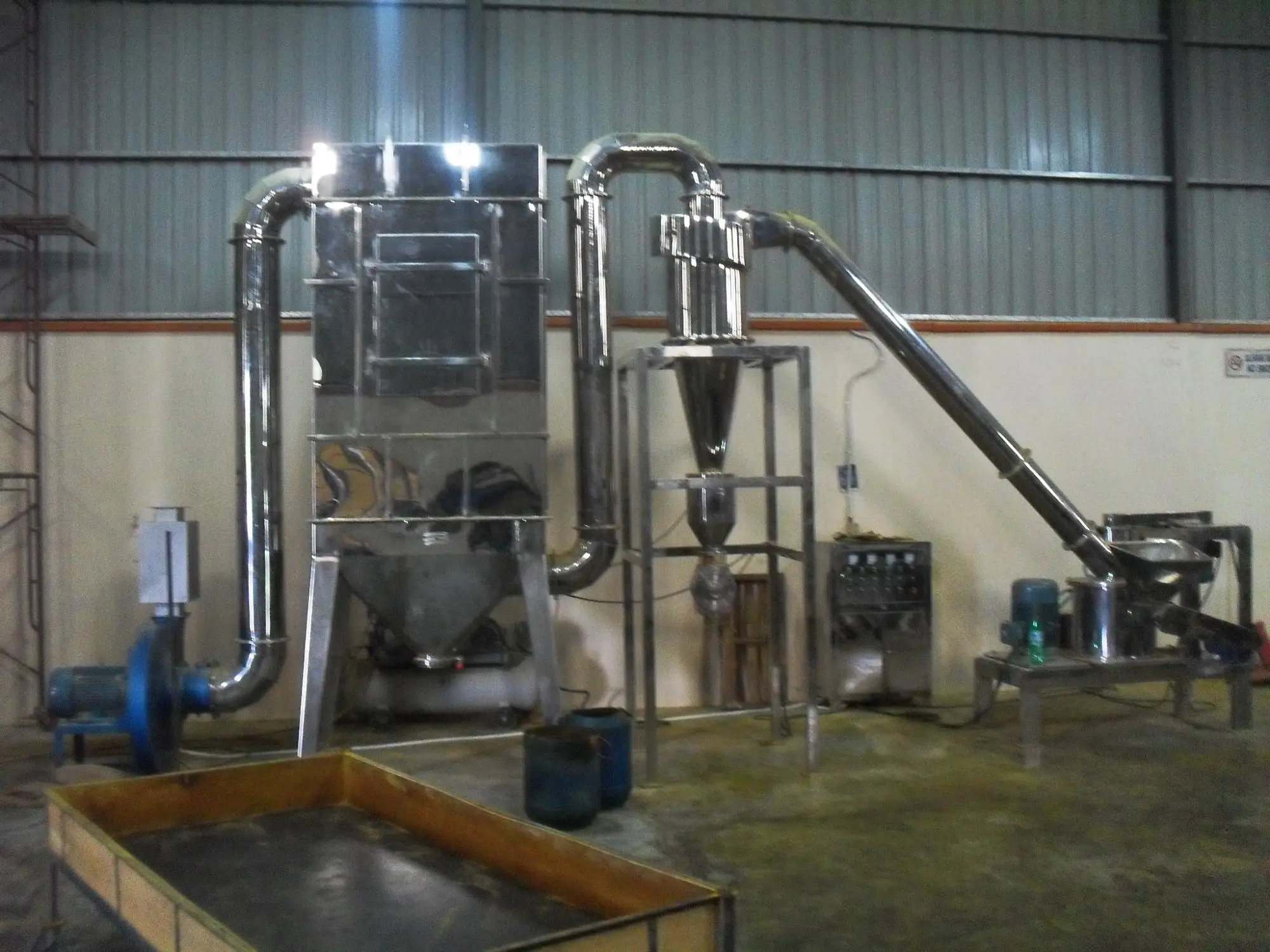

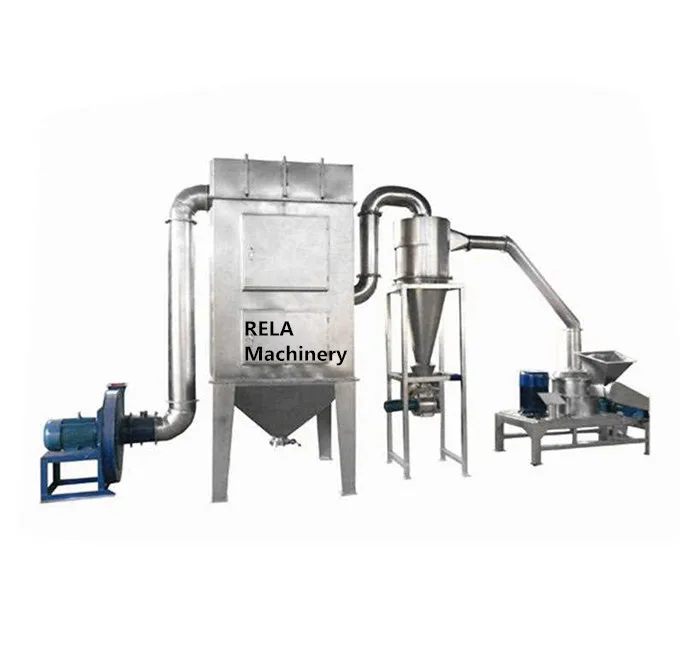

Details Images
Packing & Delivery

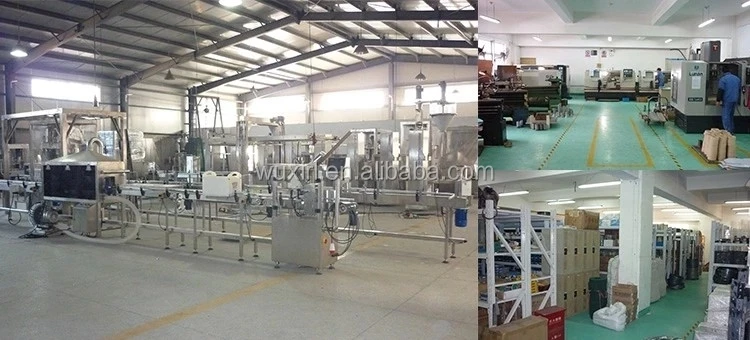

Company Introduction
Wuxi Rela Pharma Machine Co., Ltd, with more than 10 years experience, is focused on the powder solution, from the unit machine to the production line. Our main products are Pulverizer, Mixing machine, Conveying machine, Sifting machine, Granulator, Dryer... which are application to pharmaceutical, foodstuff, foodstuff, food additives, chemical raw material, baking ingredients...Stainless steel spices grinding machine pulverizer machine cost
Service
FAQ
Q: What's your items?
A: WFJ powder pulverizing machine industrial salt milling machine
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check company from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check company from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
