Тип диска горизонтальная балка для песчанная молка краска
- Категория: Grinding Equipment >>>
- Поставщик: Shanghai,SIEHE,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 9234.68 $* | 9696.27 $* |
| Aug-15-2025 | 9157.89 $* | 9615.77 $* |
| Jul-15-2025 | 7682.44 $* | 8066.46 $* |
| Jun-15-2025 | 9002.3 $* | 9452.46 $* |
| May-15-2025 | 7838.62 $* | 8230.62 $* |
| Apr-15-2025 | 8846.53 $* | 9288.45 $* |
| Mar-15-2025 | 8769.92 $* | 9207.4 $* |
| Feb-15-2025 | 8691.76 $* | 9126.25 $* |
| Jan-15-2025 | 8614.33 $* | 9045.32 $* |
Характеристики

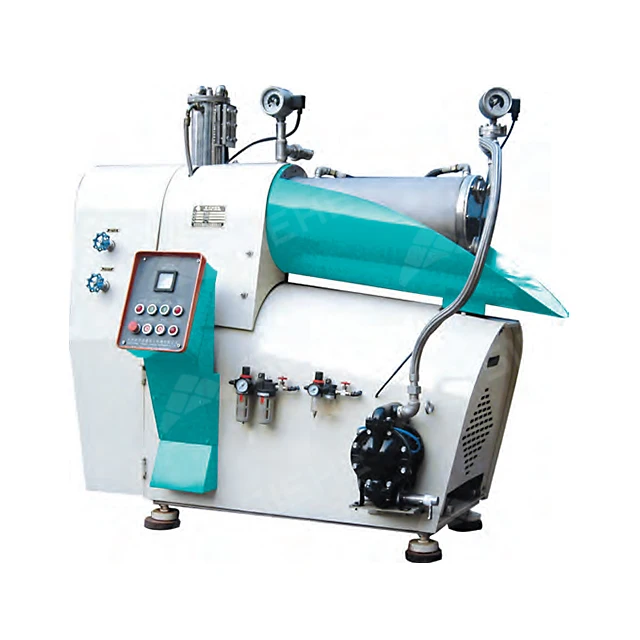

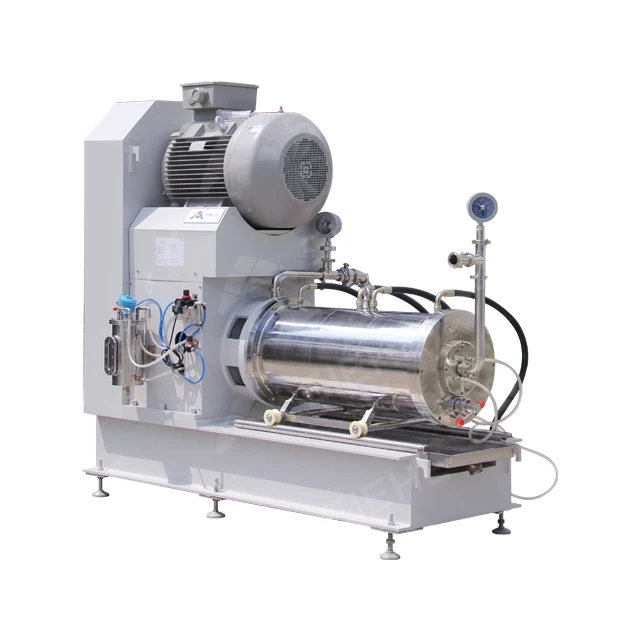

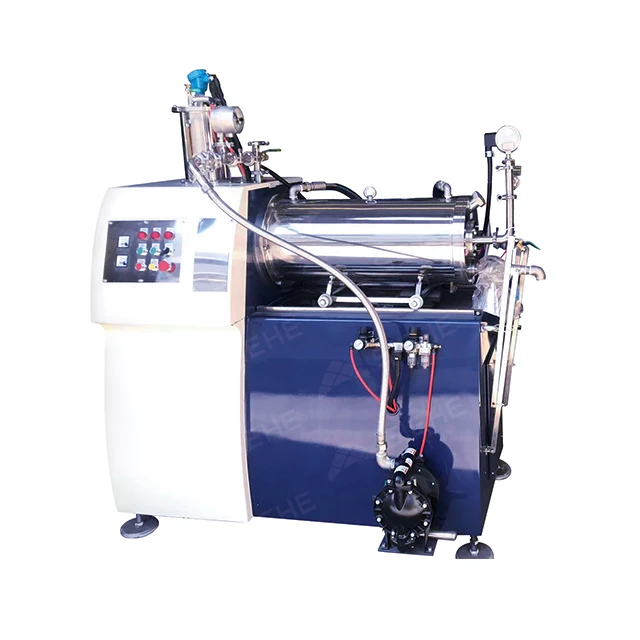

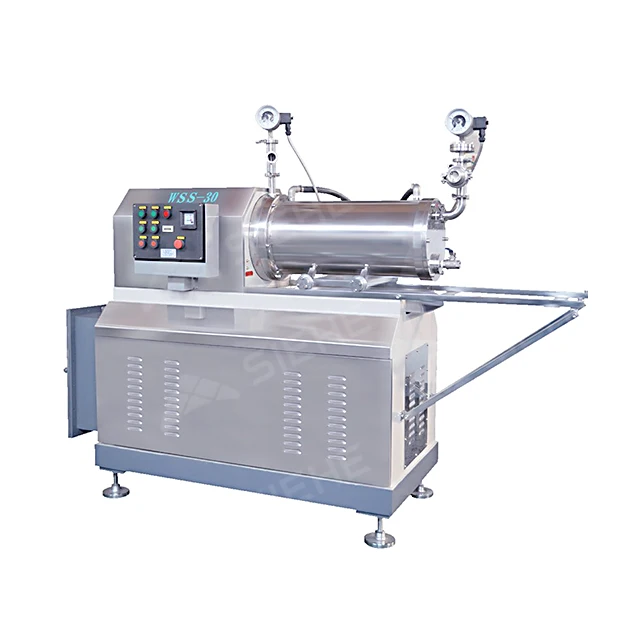

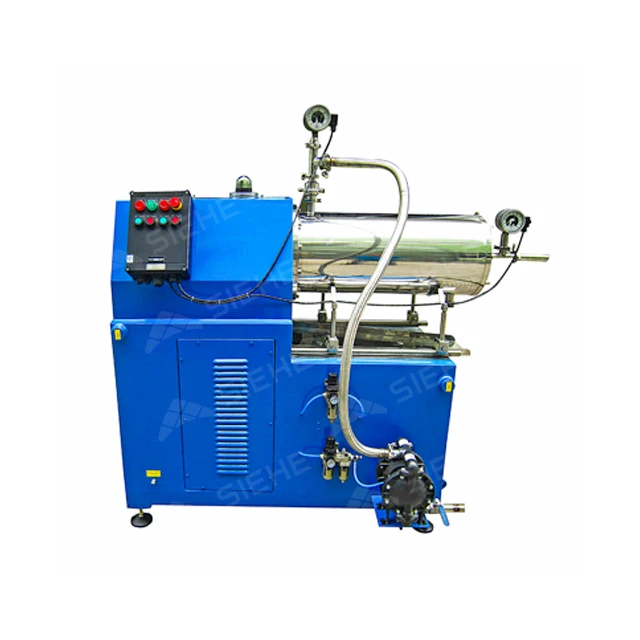

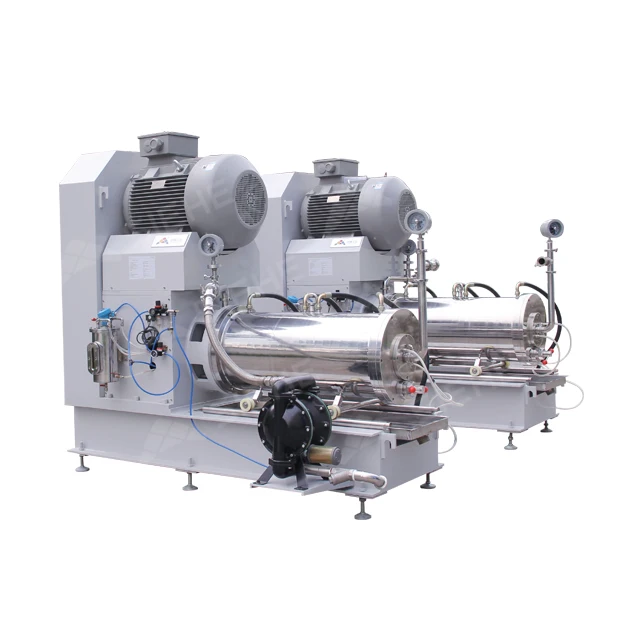

Disc Type Horizontal Beads Mill is a closed continuous production machine for grinding liquid materials. It is one of the most popular wet grinding machines in the market with good performance and mature structure. And it is characterized in simple operation, good reliability and full specifications. Its sealing structure adopts double end mechanical seal with self-lubricating system, sealing liquid is optional, more reliable and durable. The machine is also with temperature, pressure monitor and protection to ensure the quality of the finished product. Using cerium stabilized zirconium bead (80% Zirconia content), suitable for grinding paste with fineness requirements of 10-20 micron. It is widely used in coating, paint, ink, pesticide and other industries.
【Material Viscosity】 | ≤20,000 cps |
【Production Capacity】 | 100-4000L/h |
【Application Industry】 | Coating, paint, ink, pesticide and other industries |
【Applicable Materials】 | Paste with viscosity below 20,000 cps and grinding fineness can be down to 10micron, such as primer, intermediate coating, pesticide suspension agent etc. |
Low energy consumption ratio and high cost performance
Driven by a motor to transmit power to the main shaft through big and small pulleys, which is easy to start; The grinding disc is with a special disc structure, which brings high efficiency and low power consumption; It is a product with high cost performance among the different beads mills.
Easy to operate and clean
With site control panel, which is integrated with the machine frame, easy to operate; With beads collection tray, the grinding chamber is easy to assemble and disassemble with the frame. With a pulley grinding chamber removal device, it can effectively clean the grinding chamber and zirconium beads for materials of different colors and varieties.
Safe monitoring, stable finished products
The grinding chamber is equipped with a special cooling water jacket. When the machine running, input cooling water for cooling. The cooling result is excellent. The conventional temperature rise is less than 10ºC. The equipment is equipped with temperature and pressure monitoring, which can set the "protection value" to ensure finished product quality.
Full specification, customized options
Full specification from 20L to 300L. Can be customized to be Explosion proof type.
Driven by a motor to transmit power to the main shaft through big and small pulleys, which is easy to start; The grinding disc is with a special disc structure, which brings high efficiency and low power consumption; It is a product with high cost performance among the different beads mills.
Easy to operate and clean
With site control panel, which is integrated with the machine frame, easy to operate; With beads collection tray, the grinding chamber is easy to assemble and disassemble with the frame. With a pulley grinding chamber removal device, it can effectively clean the grinding chamber and zirconium beads for materials of different colors and varieties.
Safe monitoring, stable finished products
The grinding chamber is equipped with a special cooling water jacket. When the machine running, input cooling water for cooling. The cooling result is excellent. The conventional temperature rise is less than 10ºC. The equipment is equipped with temperature and pressure monitoring, which can set the "protection value" to ensure finished product quality.
Full specification, customized options
Full specification from 20L to 300L. Can be customized to be Explosion proof type.
