1400 мм
- Категория: Packaging Forming Machines >>>
- Поставщик: Cangzhou,Lighten,Import,&,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 186354.70 $* | 195672.60 $* |
| Aug-15-2025 | 184788.87 $* | 194027.72 $* |
| Jul-15-2025 | 155034.37 $* | 162786.53 $* |
| Jun-15-2025 | 181656.57 $* | 190739.48 $* |
| May-15-2025 | 158166.26 $* | 166074.51 $* |
| Apr-15-2025 | 178524.38 $* | 187450.55 $* |
| Mar-15-2025 | 176958.79 $* | 185806.45 $* |
| Feb-15-2025 | 175392.25 $* | 184162.7 $* |
| Jan-15-2025 | 173826.89 $* | 182517.70 $* |
Характеристики
Product Description

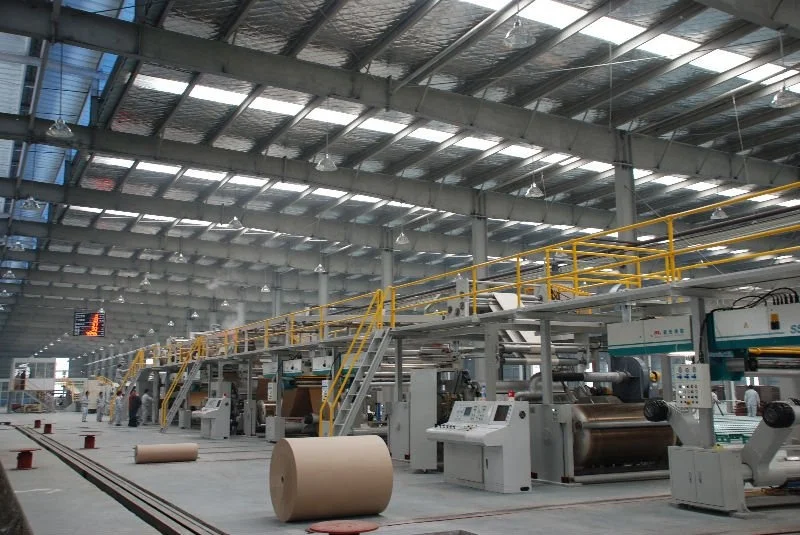

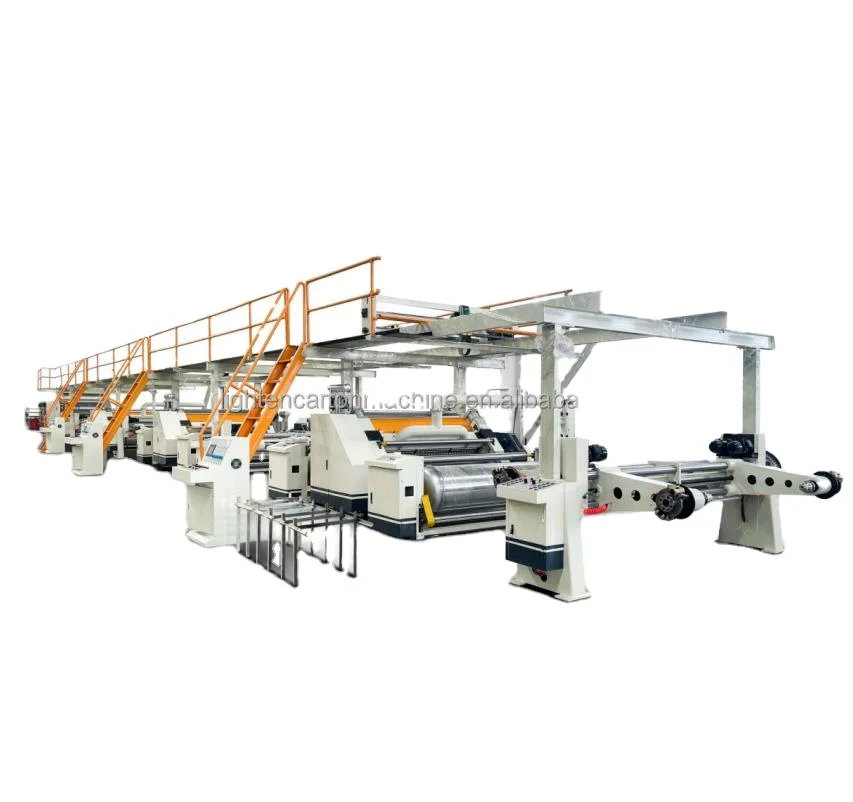

3 layer packagine line
1.Maximum production width of corrugated board：1400mm-2200mm
2.Design speed: 100-220m/min
3.Corrugated combination: A, C, B, E (or selected by the customer)
4.Equipment applicability, usable A, B, C grade domestic original paper or imported original paper

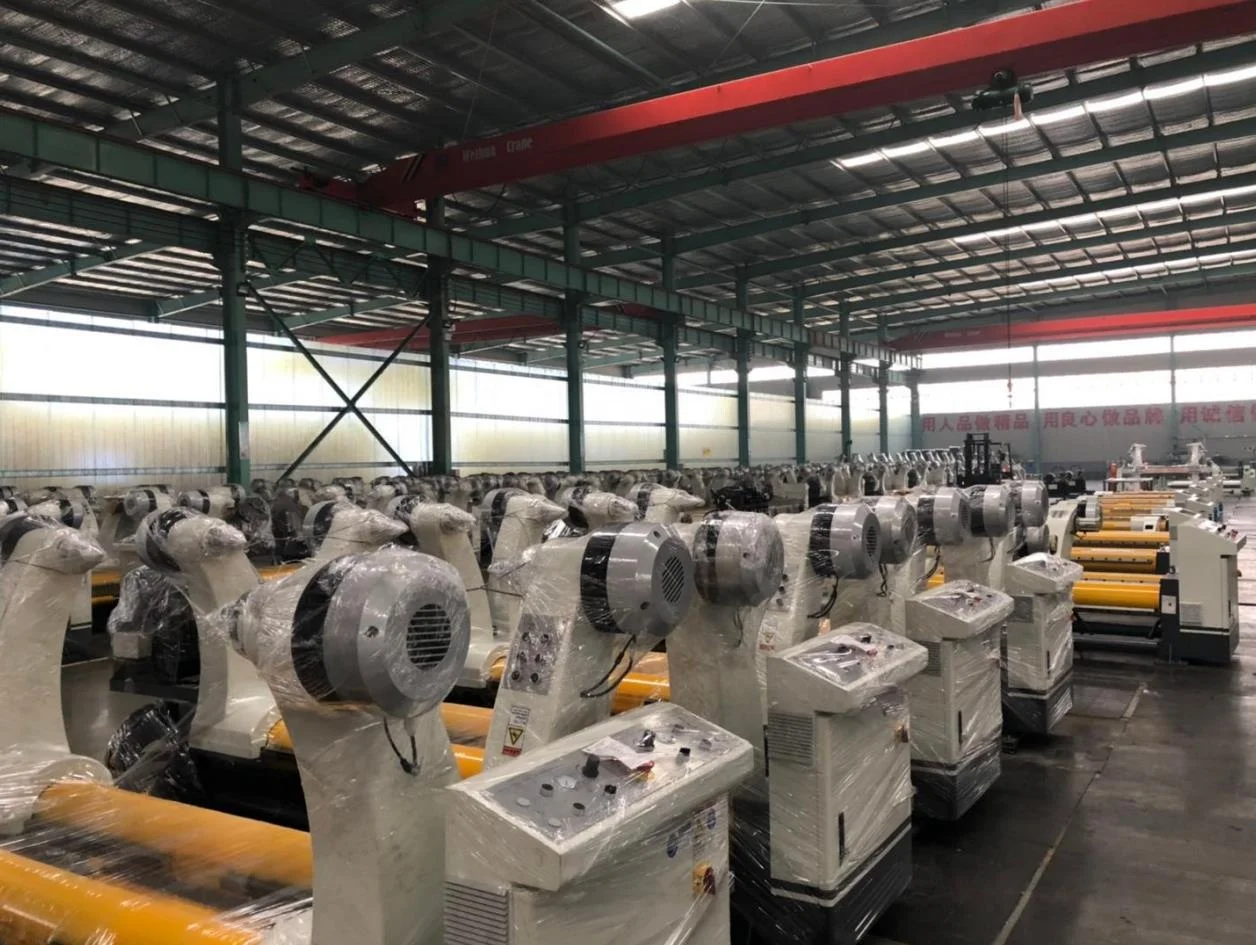

Hydraulic mill roll stand
Symmetrical structure can also install two bundles of paper at the same time，Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

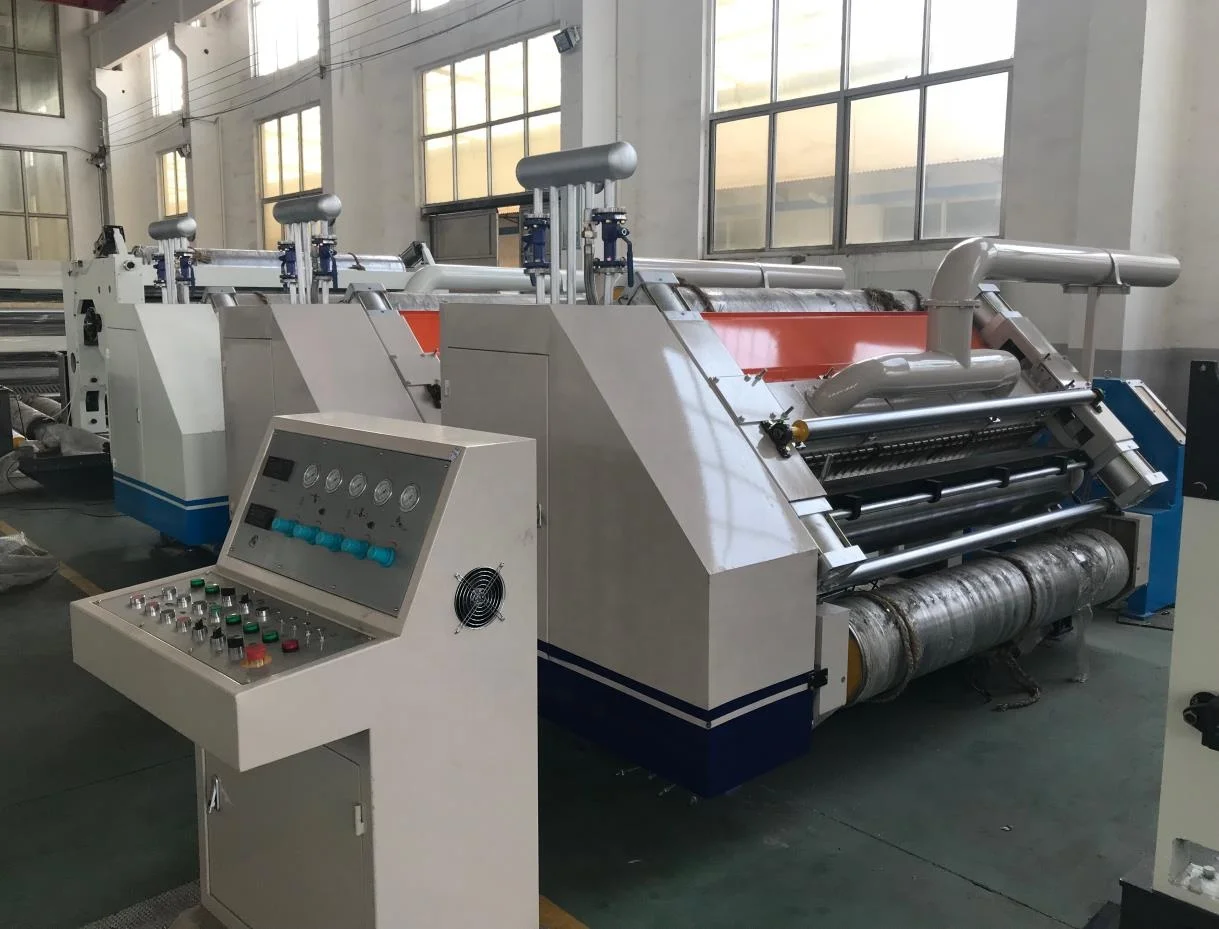

Fingerless single facer
Corrugated roller material adopt 48CrMoalloy steel,quenched、Laser hardening，Surface finish，main roll of corrugated diameter¢ 280mm，surface hardnessHRC60degree above。The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
Conveyor bridge
This part is the main beam of the 20th channel, 16-beam, angle iron 63, column, etc. are connected.Both sides of the security fence, ladder , high-strength save people the word pedals, ensure the safety of personnel and easy to operate.Vacuum tension control, 5-inch suction tube, plus regulating valves.
Glue machine
After the glue roller surface after quenching inner hole machining, grinding and dynamic balancing surface engraved with pit style textured, coating evenly, less consumption of plastic.Doctor roller surface by grinding and hard chromium plating.
Double facer
Heating plate surface by grinding treatment, hot plate width 600mm, a total of 9 heating plate and cooling 4 m。Heating plate with a container board production, in line with national standards for a class pressure vessel, with pressure vessel certificate and inspection certificate.Hot plate with intensive gravitational roll structure. Roll adopt pneumatic lifting.
Thin knife slitting
Overcome the conventional type of pole, cutting pressure lines appear when collapsed cardboard cut phenomenon, cutting board smooth, quality has improved significantly.Cutter and easy to adjust the pressure line, the error ± 0.5mm, automatic sharpening device, you can achieve timing Brothers, with intermittent Brothers and other features.The machine adopt five knives eight lines,the blade is made of tungsten alloy steel, the using life is not less than 3 million running meters。
NC cutoff
It can store 200 units orders，replace the cutter specifications quickly and accurately，changing orders without stop,And enables networked computers to facilitate production management.Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.Cutting machine adopts inlaid front steel blade knife straight structure, serrated knife. scissors, shears, shear force, long blade life.
Paper sheeet delivery and side conveyor
Adopted on the 16th channel welded.Electric adjustment of cardboard the size of the lateral output pneumatic control board, electrically adjustable conveyor speed.Cardboard sheets to the desired number or height requirements will be controlled by a foot switch out of cardboard.Vertical bin using wide flat belt conveyor transport.
Exhibition
Certifications
Why Choose Us
- 1.Many years expertise and professional experience in designing and manufacturing.
- 2.Design and customized according to customers’ requirements.
- 3.High levels of performance, quality and reliability of all equipments and services.
- 4.Reliable quality proven by customers .
- 5.Reasonable prices without compromising any products efficiency.
- 6.Promptness in both equipment delivery and technical support pre-and after sales.
- 7.we have a professional group , every department have the professional work .
