Индукционная печь для термообработки 25 кВт по


Поделиться:


Цена:1 720,00 $ - 2 150,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 2047.92 $* 2149.56 $*
Aug-16-2025 2030.63 $* 2132.93 $*
Jul-16-2025 1703.94 $* 1788.32 $*
Jun-16-2025 1995.36 $* 2095.82 $*
May-16-2025 1737.99 $* 1824.53 $*
Apr-16-2025 1961.30 $* 2059.35 $*
Mar-16-2025 1944.57 $* 2041.12 $*
Feb-16-2025 1926.80 $* 2022.59 $*
Jan-16-2025 1909.10 $* 2004.70 $*

Характеристики



Product Description




■ Adopted with MOSFET, IGBT power device and variable frequency control, LIHUA high frequency induction heaters enjoy high efficiency, energy saving and larger output power.
■ With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
■ Saving double electricity more than traditional high frequency induction heating device under the same conditions.
■ With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
■ With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
■ The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.

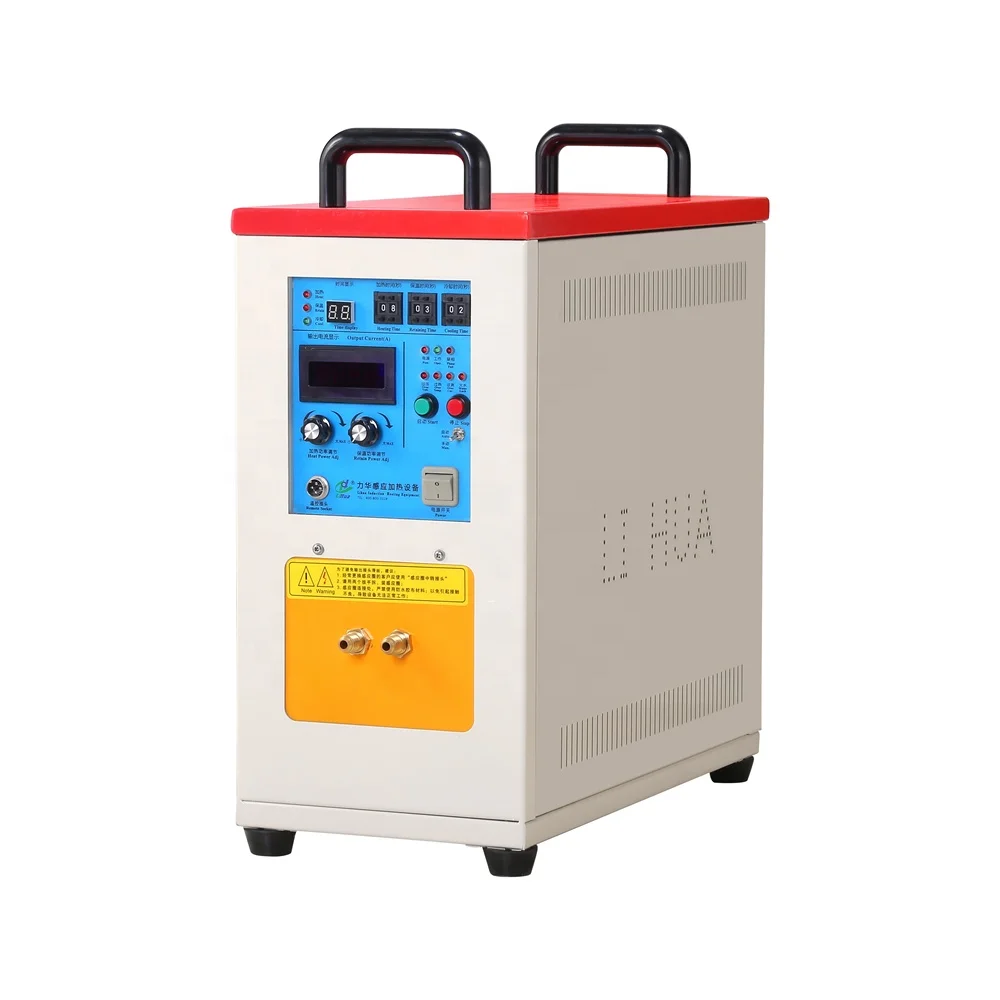

Front Side

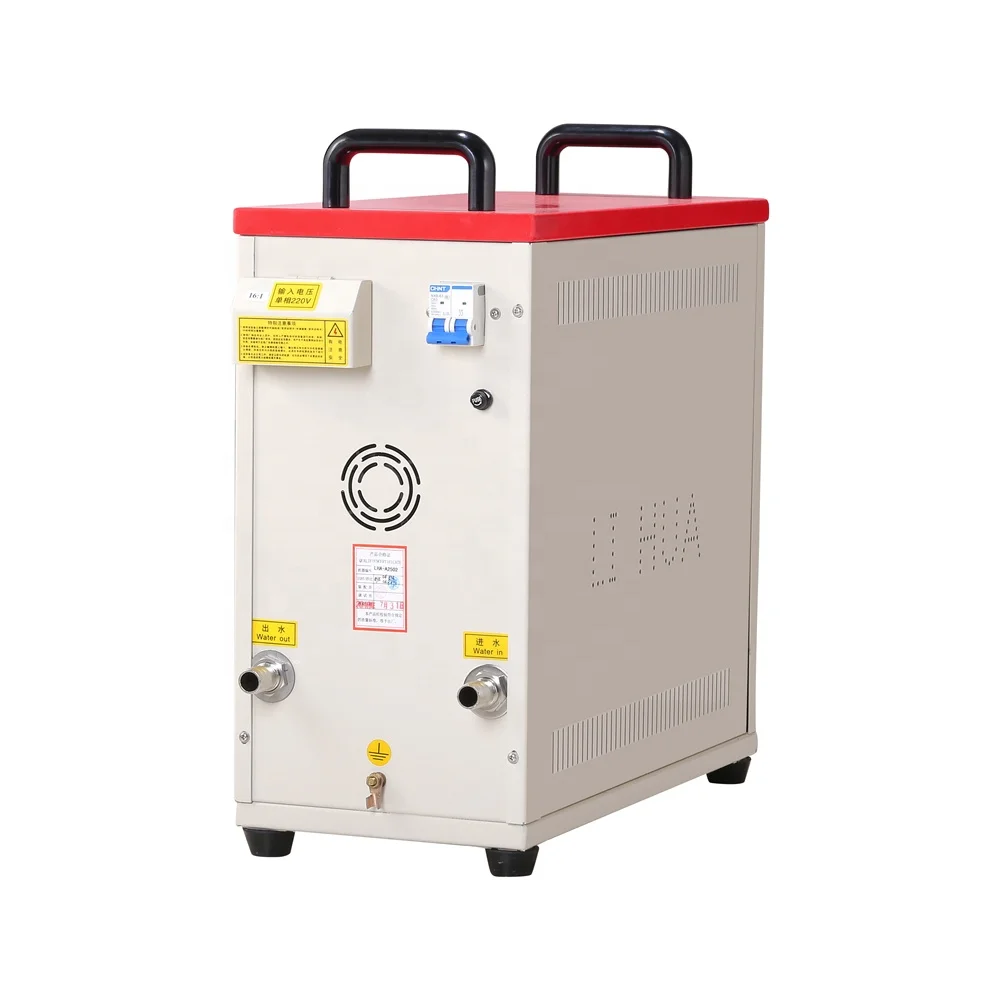

Back Side


Germany IGBT
Circuit Board




Product Paramenters




High Frequency Induction Heating System
Model
LH-15A
LH-15AB
LH-25A
LH-25AB
LH-30AB
Input voltage
100V, 110V, 115V, 120V, 127V, 200V, 220V, 230V, 231V, 240V, 380V, 480V
Output power
15kw
15kw
25kw
25kw
30kw
Frequency
30-100Khz
30-100Khz
30-80Khz
30-80Khz
30-80Khz
Output current
200-600A
200-600A
200-1200A
200-1200A
400-1500A
Timing
1-99s
1-99s
1-99s
1-99s
1-99s
Cooling water
0.06-0.12Mpa
7.5L/min
0.06-0.12Mpa
7.5L/min
0.06-0.12Mpa
7.5L/min
0.08-0.12Mpa
7.5L/min
0.08-0.16Mpa
7.5L/min
Alarm tempreture
40°C
40°C
40°C
40°C
40°C
Generator weight
25kg
10kg
30kg
18.5kg
35kg
Transformer weight
/
15kg
/
15kg
10kg
Generator dimension (mm)
535*245*550
505*235*520
535*245*550
560*235*520
595*275*580
Transformer dimension (mm)
/
340*235*405
/
425*235*420
485*275*440


Model
LH-35AB
LH-40AB
LH-60AB
LH-80AB
Input voltage
100V, 110V, 115V, 120V, 127V, 200V, 220V, 230V, 231V, 240V, 380V, 480V
Output power
35kw
40kw
60kw
80kw
Frequency
30-80Khz
30-80Khz
30-80Khz
30-80Khz
Output current
400-1600A
400-1800A
400-2400A
400-3200A
Timing
1-99s
1-99s
1-99s
1-99s
Cooling water
0.08-0.16Mpa
7.6L/min
0.08-0.16Mpa
7.6L/min
0.08-0.16Mpa
7.6L/min
0.08-0.16Mpa
9L/min
Alarm tempreture
40°C
40°C
40°C
40°C
Generator weight
35kg
35kg
37kg
54kg
Transformer weight
10kg
10kg
36kg
47kg
Generator dimension (mm)
595*275*580
595*275*580
650*320*590
745*345*600
Transformer dimension (mm)
485*275*450
485*275*450
485*275*450
790*425*580

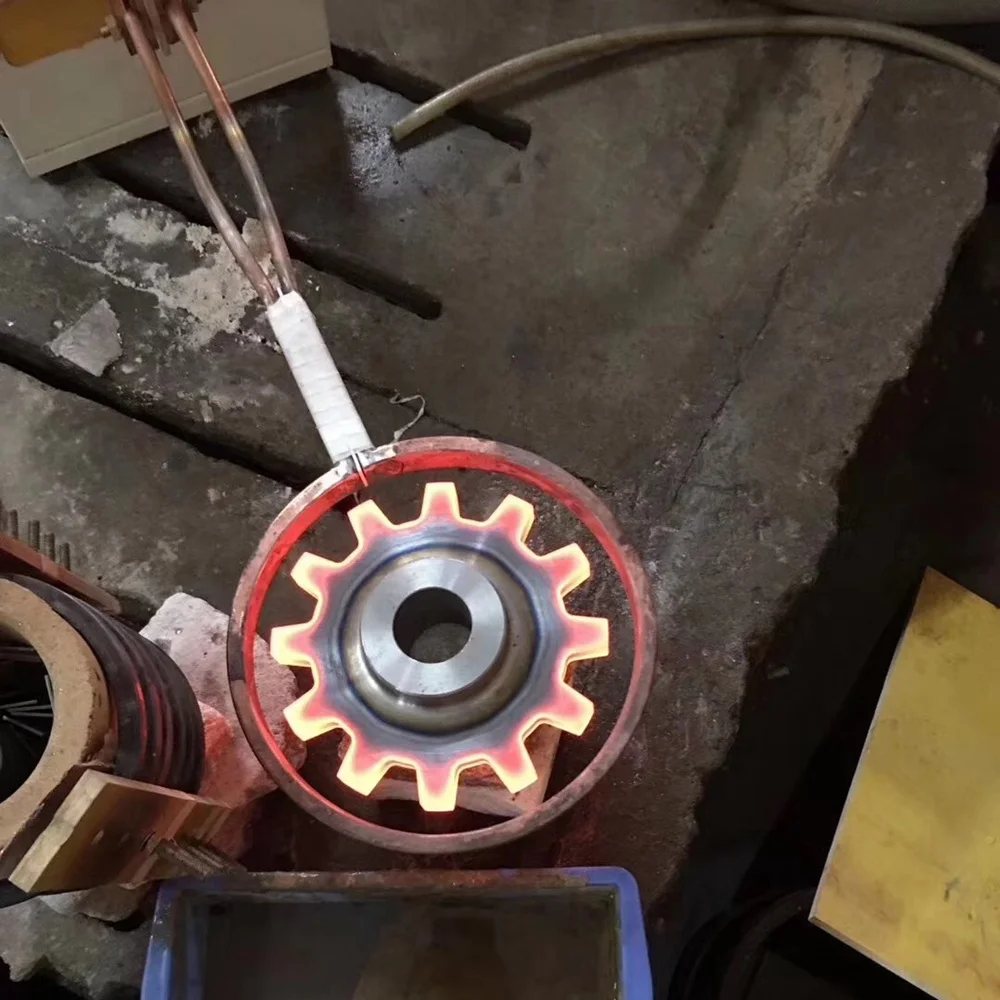

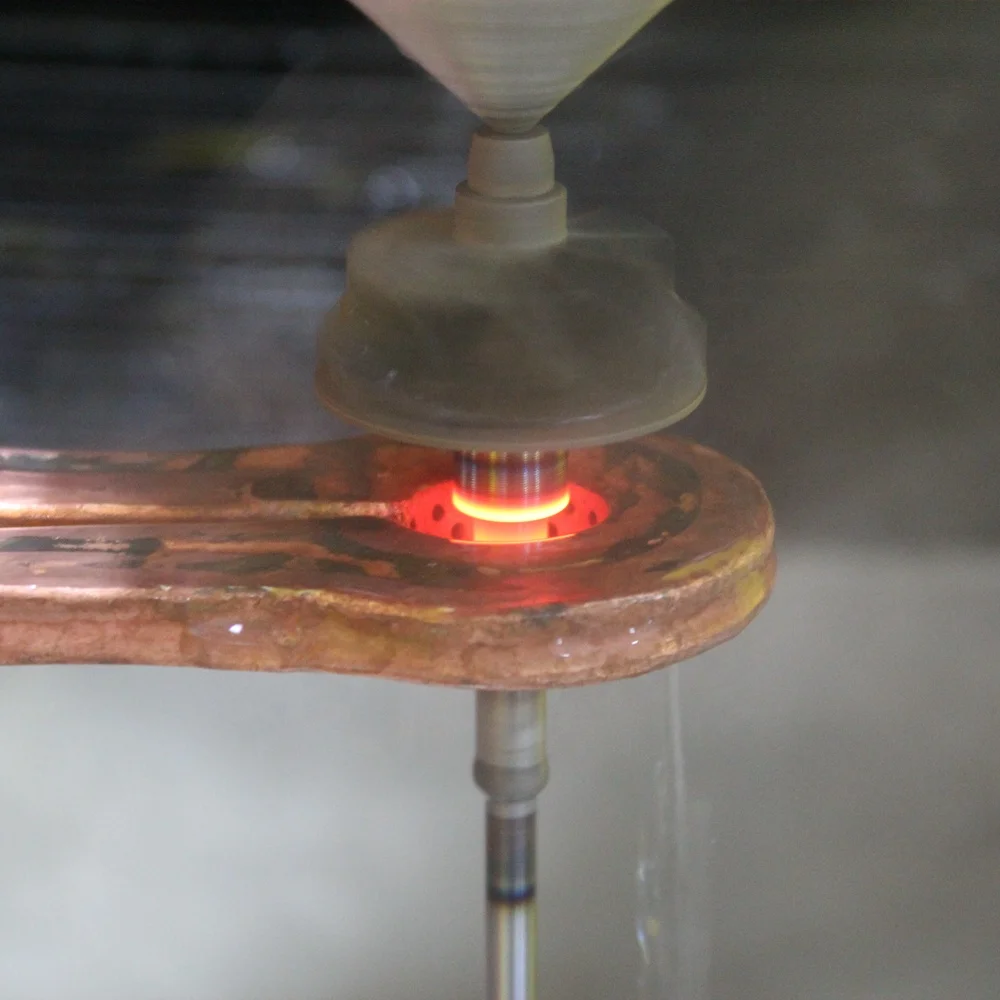

Application




Recommend Products




Production Process




Company Profile




LIHUA company has been committed to the development, production as well as the sales of induction heating equipments since 2005. Our own garden-style factory covers an area of 10,000 square meters. The company has undergone 8 times production process optimizations and 5 times production equipment updates. LIHUA obtained the honor of national high-tech enterprise and more than 60 patent certificates. We provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is LIHUA's goal!






Customer Photos




FAQ


Q: Why use induction heating?
A: ★ Improved process efficiency ★ Localized, constant and precise heating ★ Temperature control ★ Energy saving ★ Possibility of integration into production lines ★ Best quality and yield/performance ★ Pollution free, fast and secure technology ★ Improved working environment

Q: How to choose a suitable induction heater?
A: Induction heaters have many different modles with different power and frequency.
1. The higher power, the faster of the heating speed. so if you want to heat fast then you'd better choose a high power induction heater.
2. The higher frequency, the lower of the heating layer. So for some surface hardening, we suggest use a higher frequency heater, for some entire heating (like forging and melting) we suggest to use low frequency heater.
3. If you are not sure of which model is suitable for your work, please ask our salesman for suggestion before you place an order.

Q: Are you a factory or trading company?
A: We are a professional manufacturer of induction heating equipments since 2005. Welcome to visit our factory anytime.

Q: Do you have any equipment in stock?
A: Yes, we have some standard models in stock, and can deliver immediately after payment.

Q: How is your quality control?
A: We have a professional team responsible for product testing and packaging before delivery. You can buy without hesitation.

Q: If the machine get damaged, what can I do?
A: Some spare parts are free of charge during the one-year warranty period. If you don't now how to repair, please take photos or record a video and send to us., our engineer will guide you to perform the repair. If still cannot solve the problem, we can send our engineers to your factory.
