Горячая распродажа машина для изготовления плит Terrazzo бетонной
- Категория: Building Material Machinery >>>
- Поставщик: Zhengzhou,Yuxi,Machinery,Equipment,Co.,Ltd.Zhengzhou,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5052959.76 $* | 5305607.11 $* |
| Aug-16-2025 | 5010497.27 $* | 5261022.91 $* |
| Jul-16-2025 | 4203722.73 $* | 4413908.29 $* |
| Jun-16-2025 | 4925573.78 $* | 5171852.33 $* |
| May-16-2025 | 4288646.37 $* | 4503078.28 $* |
| Apr-16-2025 | 4840650.18 $* | 5082683.63 $* |
| Mar-16-2025 | 4798188.16 $* | 5038097.70 $* |
| Feb-16-2025 | 4755726.22 $* | 4993512.26 $* |
| Jan-16-2025 | 4713264.89 $* | 4948927.54 $* |
Характеристики
Product Description

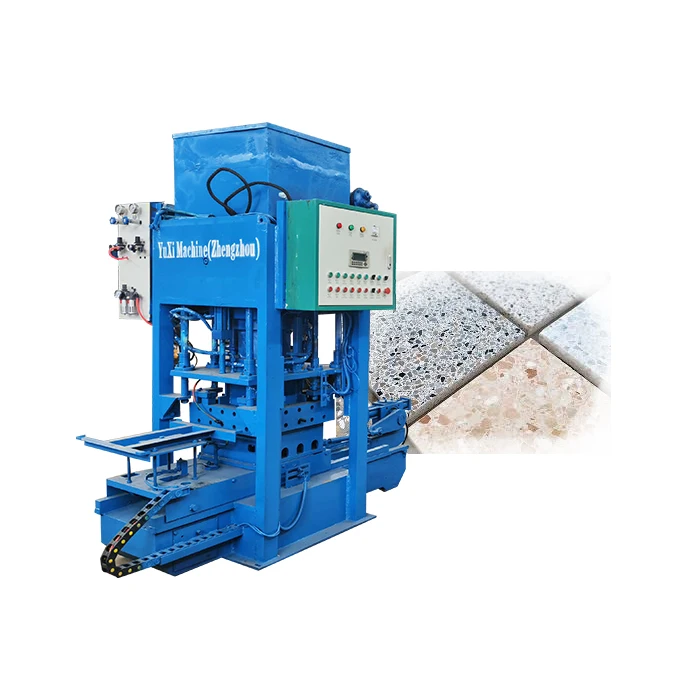

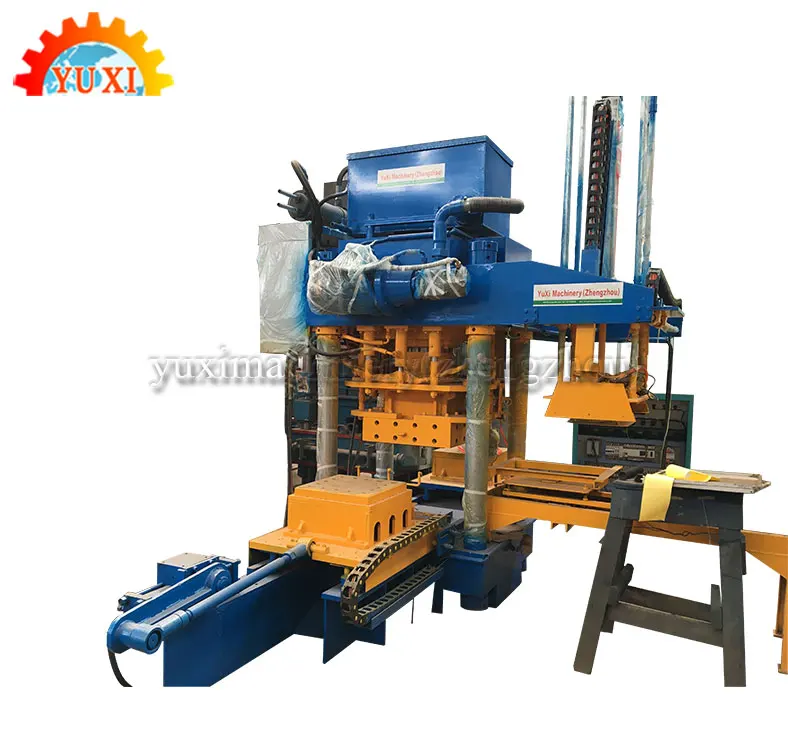

Floor Tile Making Machine is a machine that presses cement concrete into terrazzo through an automatic&hydraulic system.
● By changing the mold, YX-400 Floor Tile Making Machine can produce many sizes of terrazzo tiles, product thickness and weight can be adjusted by adjusting the quantitative cup.
● High degree of automation, simple operation. It just needs 2-3 persons to operate the complete equipment, and the production is 3000 pcs/shift.
● High degree of automation, simple operation. It just needs 2-3 persons to operate the complete equipment, and the production is 3000 pcs/shift.
Product Processing:
♣ . At first, the raw materials are put into the floor tile making machine bucket elevator, then deliver to the rolling mixer, at this time, you must add some water into it.
♣ . After mixing, the mixture comes into the dosing feeder, then, the measurable mixture that one tile need will put down on the mold below through a small hole.
♣ . Then, a tile can be formed by high pressure, the pressure is about 125 tons. So the produced tile is very stable and dense.
♣ . The tile needs to dry out for about 10 days.
♣ .The dried terrazzo can be polished and colored by the polishing machine to obtain a finished product.
♣ . After mixing, the mixture comes into the dosing feeder, then, the measurable mixture that one tile need will put down on the mold below through a small hole.
♣ . Then, a tile can be formed by high pressure, the pressure is about 125 tons. So the produced tile is very stable and dense.
♣ . The tile needs to dry out for about 10 days.
♣ .The dried terrazzo can be polished and colored by the polishing machine to obtain a finished product.
Products Parameter
Specification | YX-400 | YX-500 | YX-600 | YX1000 |
Rated pressure | 128 Tons | 200 Tons | 500 Tons | 1000 Tons |
Production capacity | 6-8 pcs/min | 5-7 pcs/min | 4-6 pcs/min | 2-3 pcs/min |
Power | 7.5KW | 7.5KW | 15KW | 33 KW |
Weight | 4.8 Tons | 5.2 Tons | 5.8 Tons | 28 Tons |
Dimension(mm) | 2900*1450*2550 | 2900*1530*2550 | 3300*3150*3200 | 6700*2900*2600 |
Product specification(mm) | Max 400*400 | Max 500*500 | Max 600*600 | Max 1500*1000 |
Product Features
1. The floor tile is featured by diversiform pictures, vivid flower pattern, various colors, etc. It can also replace the granite tile and marble tile, also can be considered as the optimal ground surface materials.
2. The raw material is cement, stone dust and gravel, which is very cheap and easy to find.
2. The raw material is cement, stone dust and gravel, which is very cheap and easy to find.
Application
1. Raw materials: sand, cement, concrete, slag.
2. Uses: squares, paving, blind roads, or hospital halls, bath pools.
2. Uses: squares, paving, blind roads, or hospital halls, bath pools.
3. Mold: By changing different molds, the tile making machine can produce various patterns, pattern clear lines.

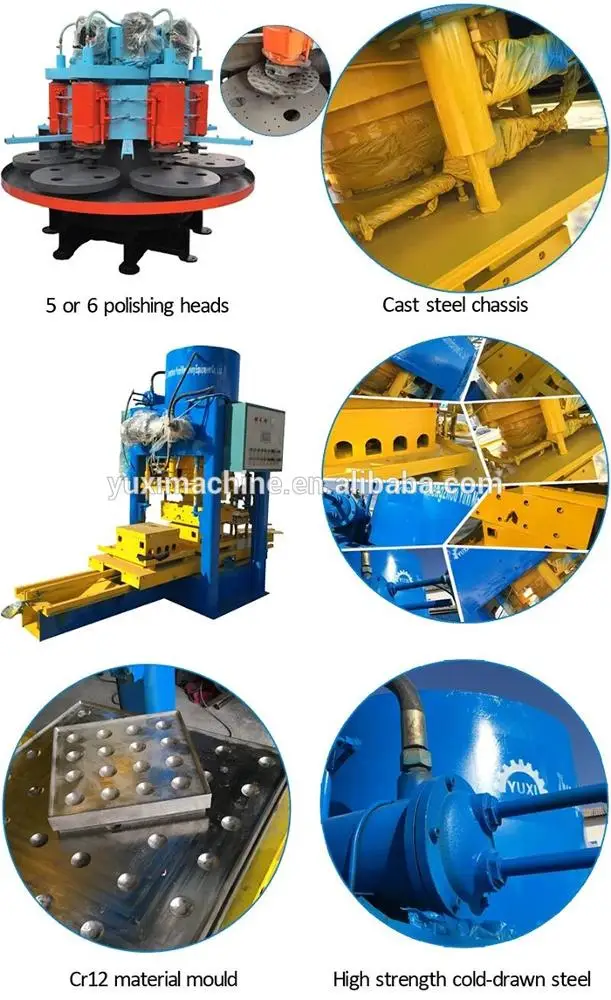

Details Images

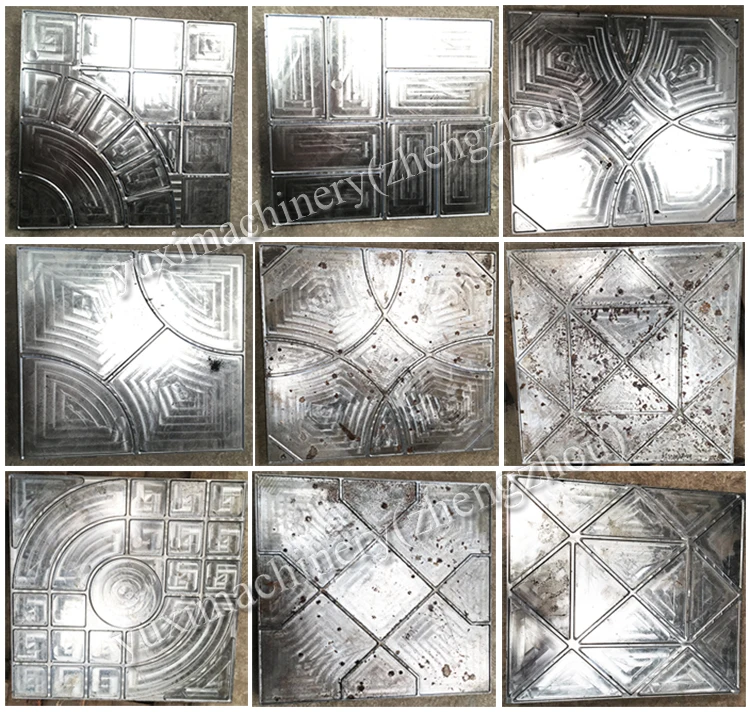

♥ Mould
Adopt Cr12 and other special mould steel materials. Through forging, milling, cutting, grinding, carving and quenching, the mould has high accuracy, strength and abrasion resistance, wear well without any distortion.
♥ Controlling System
Computer control & human-machine interface. Controlling system adopts Japanese Mitsubishi or Taiwan Taida PLC system, integrate mechanical and electrical, hydraulic pressure and pneumatic, make the whole system high automation degree and easy operation.
♥ Hydraulic Pump
The hydraulic pump is characterized by small size, high efficiency, long life, advanced design, compact structure and easy maintenance.
♥ Hydraulic Cylinder
Hydraulic cylinder is clevis mounted, and exceeds the highest standards. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance.
♥ Main Frame
All of the parts of floor tile making machine are precision finishing, adopting cast steels and other high quality steels, high compression strength, high resistance to deformation with stable performance, firm & durable.
♥ Product Precision
Dimension precision, high strength and density, low broken rate.
Related Products

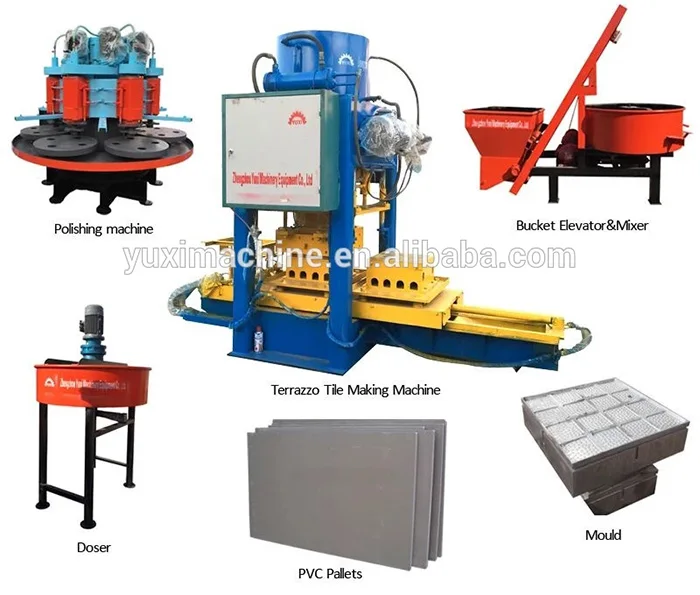

Accessory equipment of terrazzo tile making machine include, elevator, mixer, doser, and automatic tile polishing machine.
Bucket Elevator&Mixer | ||||
Bucket Elevator | 820*700mm | Mixer | ||
Power | 2.2KW | 5.5KW | ||
Weight | 0.4 Tons | 0.61 Tons | ||
Dimension （mm） | 5900*3000*1100 | 1420*1350*1150 | ||
Specification | Apply to all type floor tile machine | Apply to all type floor tile machine | ||
Doser | ||
Power | 1.5 KW | |
Weight | 0.6 Tons | |
Dimension | 1500*1300*2100 mm | |
Specification | Apply to all type floor tile machine | |
3040 Automatic Polishing Machine | ||
Power Of Pump Station | 5.5KW | |
Gross Power Of Grinding Head Motor | 20-24KW | |
Number Of Grinding Head | 5-6 | |
Production Standard | 300*300 mm, 400*400 mm | |
Productivity Effect | 200㎡-350㎡/shift | |
Overall Dimension | Φ2000*1750mm | |
Weight | 3.8 Tons | |
Specification | Apply to all type floor tile machine | |
There are more models of this product, please contact us. | ||
Note: The price does not include accessories, please contact us if you need accessories.
Packaging & Shipping
1. All the machines will be wrapped up with plastic film first.
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
About Us
YUXI is a pioneer terrazzo tile machine manufacturer with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices, and innovative design, our terrazzo tile making machines are extensively used in square, sidewalk, subway, indoor and outdoor flooring, roadside, roof, community, hospital, school, power plant, etc. We also have gained the CE, ISO9001 certification much honor for stable quality.
