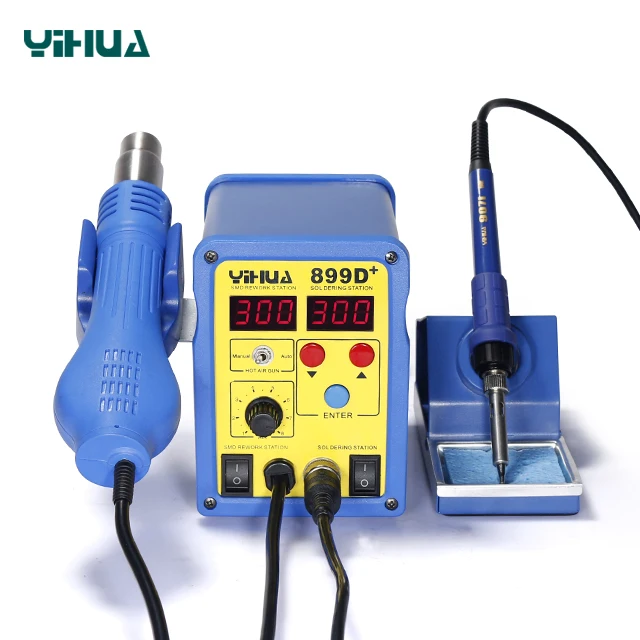

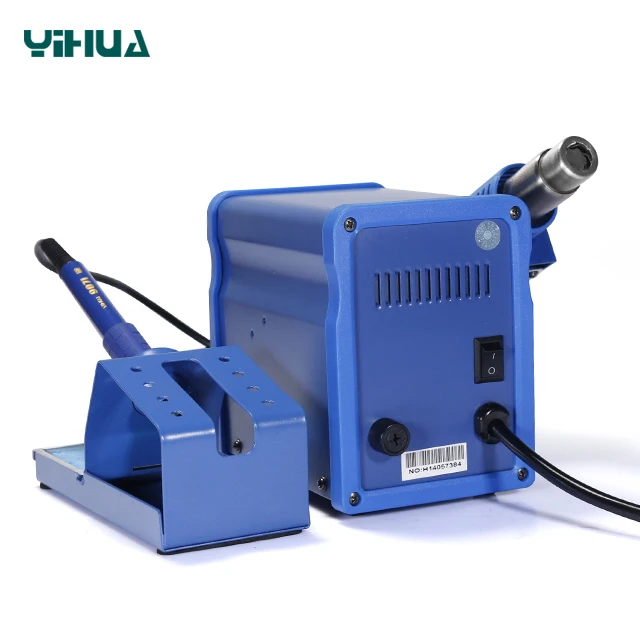

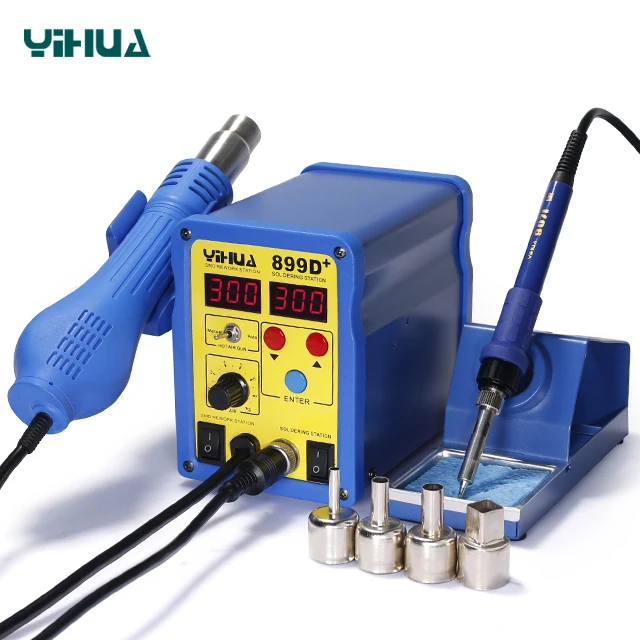

2 в 1 SMD паяльная станция YIHUA-899D

Цена:44,48 $*

Количество:

YIHUA .jpg

Product features

1.Air guns and iron work together , LED double digital display, the compact, feature

-rich, space saving, low transportation cost.

2.Using SCM, PID program to speed 200ms cycle tracking wind gun air

inlet temperature and iron temperature, real-time correction!Air temperature high stability.

3.Humanized design wind gun part is provided with a manual / automatic function,

according to the use environment settings, the frequent use of air gun can be selected

manually eliminating repeated heating time, convenient and efficient, improve the work

efficiency!

4.Air gun handle lines using high temperature silicone line (300 degrees of iron Tsui

exposure to silica line 30s without injury), stainless steel steel tube, the latest technology

ceramic skeleton type heating core, stability and reliable with high performance.

5.Quality of brushless fan (standard working life: 30000 hours), a spiral wind, wind is

uniform and soft, delicate components to avoid scalding.

6.Iron handle line using the same high temperature silicone line, a heating core is used

imported high-power heater, temperature compensation, except for general solder joint

welding, especially suitable for welding thick terminal, large joints, miscellaneous difficult

to solder joint.

7.Iron parts automatic sleep function, according to the different time of operation and

setting, can effectively protect the soldering iron head and a soldering iron core oxidation

8.Machine parts device is provided with the self testing function, all the smart temperature,

short circuit, open circuit, overload fault prompt and protection function.

Product parameter

Machine parameter
Rated voltage		AC 220V±10% 50Hz
Machine power		750W
working environment		0~40℃ Relative humidity<80%
Storage temperature		-20~80℃ Relative humidity<80%
machine size		13.51510cm
weight		2.65KG
Part of performance parameters	Hot air gun		Solering iron
Working voltage	AC 220V±10% 50Hz		AC 26V±10% 50Hz
Output power	650W		60W
temperature range	100℃~480℃		200℃~480℃
Mode of airflow	brushless fan		---
airflow	120L/min(max)		---
Temperature stability	±15℃ (static)		±10℃ (static)
Display	LED (red/green)		LED (red/green)
Temperature correction	PID digital program proofreading		PID digital program proofreading
PID temperature cycle	Fast 200ms		Fast 200ms
heater	Heating core ceramics heater		Improt high-power heater
Tips to ground impedance	---		<2Ω
Tips voltage to ground	---		<2mV
