Pen type vibration meter ACEPOM311WSJ

ACEPOM311WSJ (velocity / displacement / acceleration) is a type of rechargeable and accurate pen type vibration meter , easy carrying ,smart , convenient. Body material of which is high-strength aluminum alloy and machined by CNC to protect the components from dropping and vibration. It can be used to measure rotating machinery, mainly applied for quick checking and repairing of motors, fans, pumps, compressors, and machine tools. It will be easier for IPQC to prevent faults on machines. Vibration value presents on the semi-liquid crystal display screen. During the measurement, keep the meter firmly in touch (pressure 5~20N suggested) with the projects to be tested.

product feature:

♦Backlight function, to support being used in dark environment.

♦High accuracy , well protected and anti-interference

♦Convenient to use, only two buttons for displaying.

♦Well designed, smart, easy-carrying,and reliable.

♦With chargeable lithium battery (3.7V) inside (USB) .

♦Low power, a full charge can support it for 30 hours.

♦Conform to ISO2372.

Parameters

Type:ACEPOM311WSJ

Test function:velocity / displacement / acceleration

Environment:temperature 0℃~40℃,humidity 30~90RH

Frequency:acceleration: 10HZ~1KHz(L0W)

1KHz~15KHz(HI)

Velocity: 10Hz~1KHz

Displacement: 10Hz~500Hz

Range:acceleration:0.1~199.9m/s2 Peak(RMS×1.414)

velocity:0.1~199.9 mm/s RMS

displacement:0.001~1.999 mm P-P(RMS×2.828)

Accuracy : ±5%

Calibration period , 1 Year;

Display:semi-liquid crystal display screen

Safety standard: GB 4793.1—2007

Pollution lever:2

Battery: lithium battery (3.7V) inside (charged by USB),one full charge last for 30 hours;

Size:152mmx23mmx12mm

Weight:80g

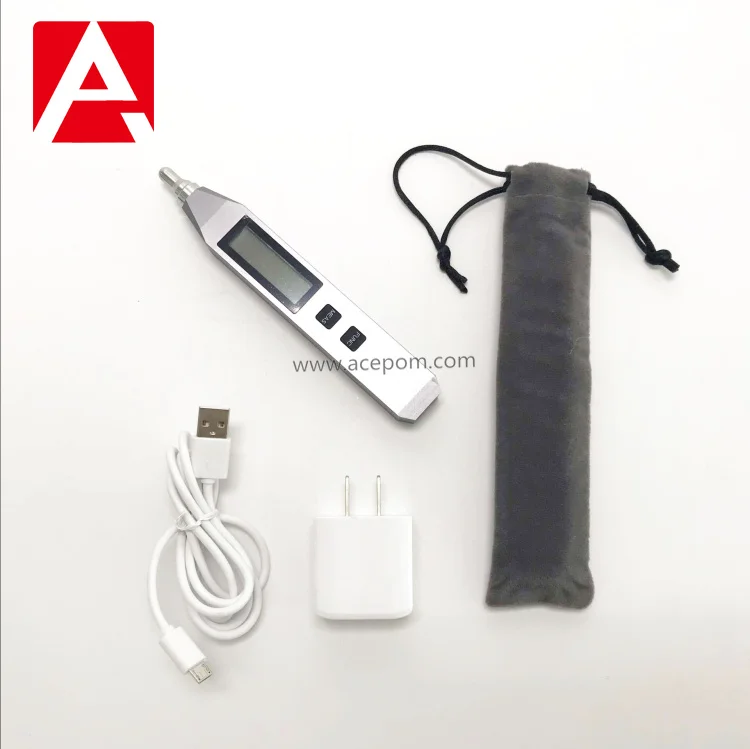

Configuration:

Host ------------------1

Charger --------------1

Package box---------1

Warranty card------1

Specification--------1
