Характеристики

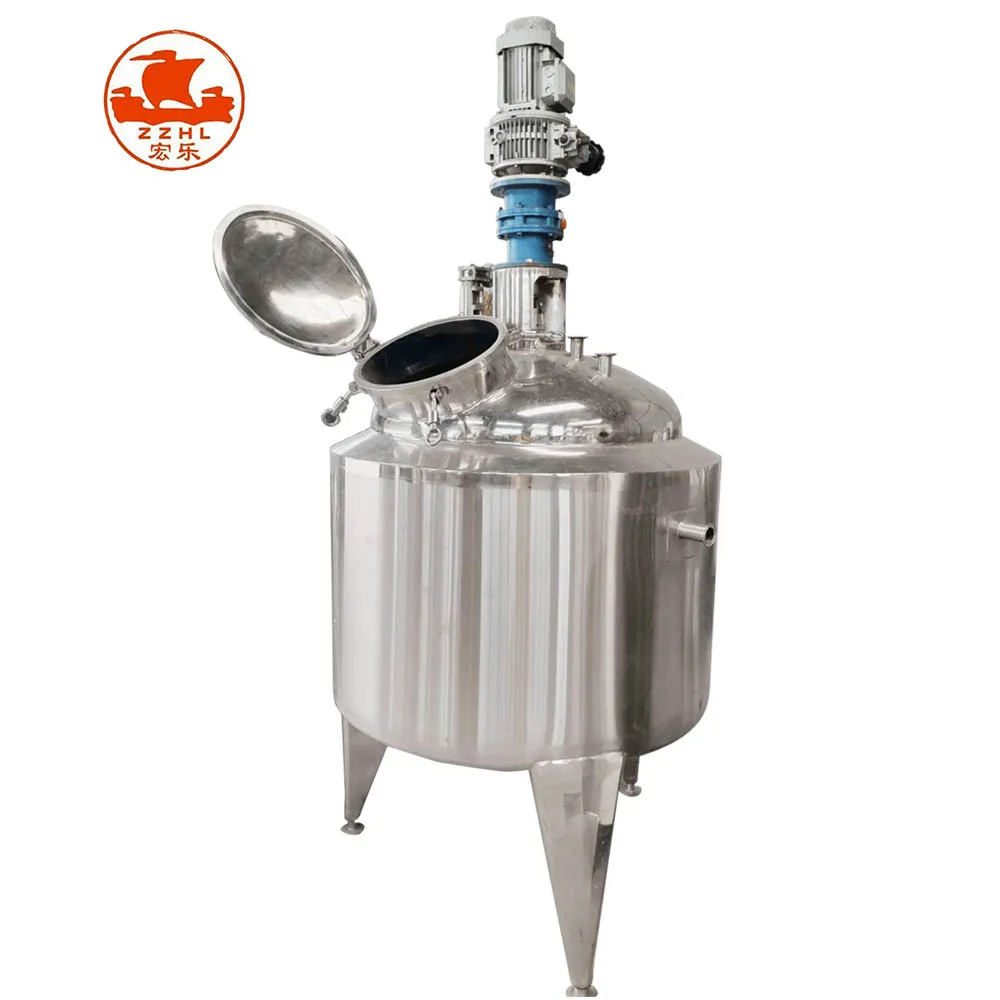

Customized Stainless Steel Storage Tank
Product Description
1.Application of the liquid storage tank
It is widely used in preparation, dissolution, heating, cooling, heat preservation, culture, sterilization and storage of biological pharmaceutical production process.
2. Technical parameter of the liquid storage tank
Model | Specification | 1Model | 2Model | 3Model | 4Model | 5Model | 6Model | 7Model | |
Thick dispenser tank | 500L | 1000L | 1000L | 1000L | 1500L | 2000L | 2500L | ||
Liquid medicine pump | 3T/h | 3T/h | 3T/h | 5T/h | 5T/h | 8T/h | 10T/h | ||
Filter for thick dispensing | 3 core | 3 core | 5 core | 7 core | 7 core | 8 core | 10 core | ||
Thin dispenser tank | 1000L | 2000L | 2000L | 2000L | 3000L | 4000L | 5000L | ||
Filter for Thin dispenser | 3 core | 3 core | 5 core | 7 core | 7 core | 8 core | 10 core | ||
Macromolecule filter | 1 core | 1 core | 1 core | 2 core | 2 core | 2 core | 2 core | ||
Pipeline | Θ32 | Θ38 | Θ38 | Θ38 | Θ38 | Θ38 | Θ38 | ||
Valve | Dn25 | Dn32 | Dn32 | Dn32 | Dn32 | Dn32 | Dn32 | ||
Fittings | Elbow three-way respirator filter pressure gauge thermometer, etc | ||||||||
Material | 304/316L | 304/316L | 304/316L | 304/316L | 304/316L | 304/316L | 304/316L | ||
3. Configuration of the liquid storage tank :

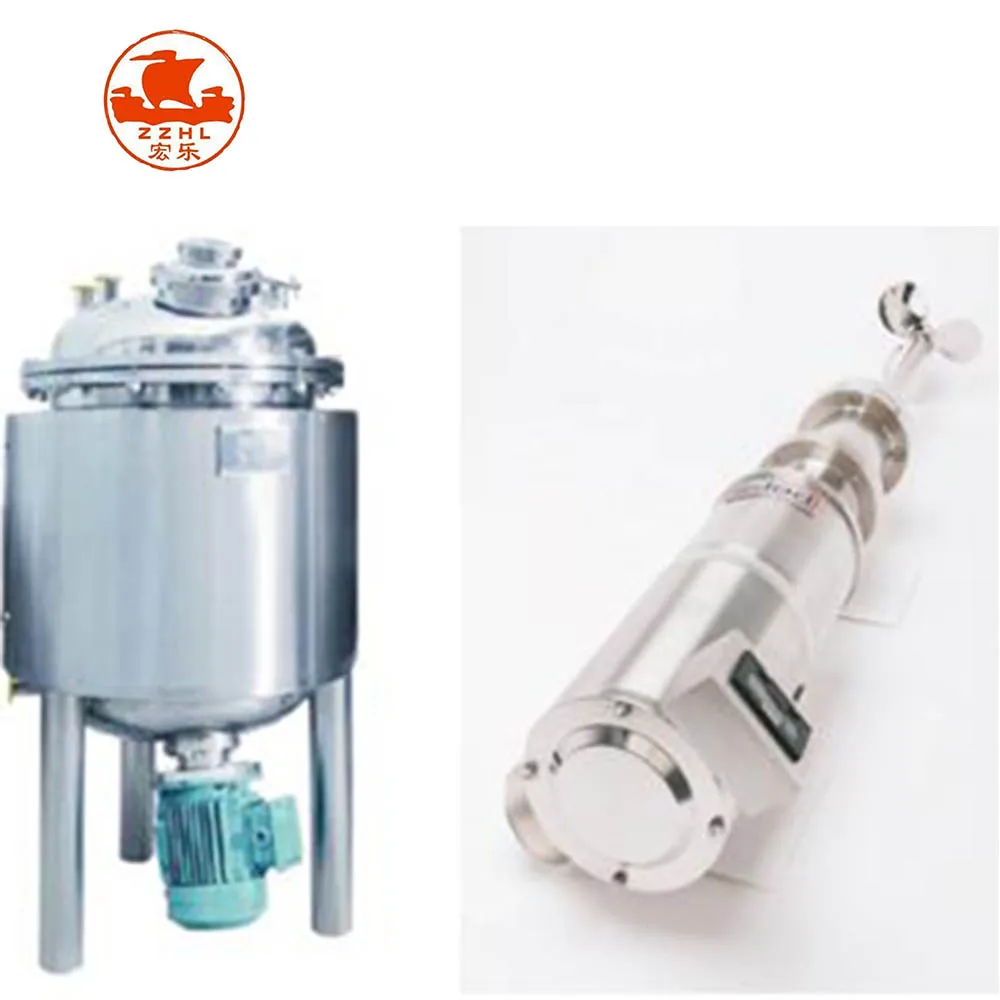

The stirring speed reducer is installed on the top or bottom of the tank according to requirements. The stirring forms include mechanical stirring, magnetic stirring and air stirring system, and the stirring blades are of anchor type, propulsion type and spiral type. Quick-opening manhole, one-piece mirror lights, thermometer (number display and dial) level gauge interface (point capacitance, ultrasonic, differential and glass tube liquid level meter for choice), clean air to breathe interface interface (360- degree rotating the cleaners or binary automatic washer), import and export of material liquid, spare mouth, import and export,import and export of condensation water of steam.
Detailed Images
