Характеристики

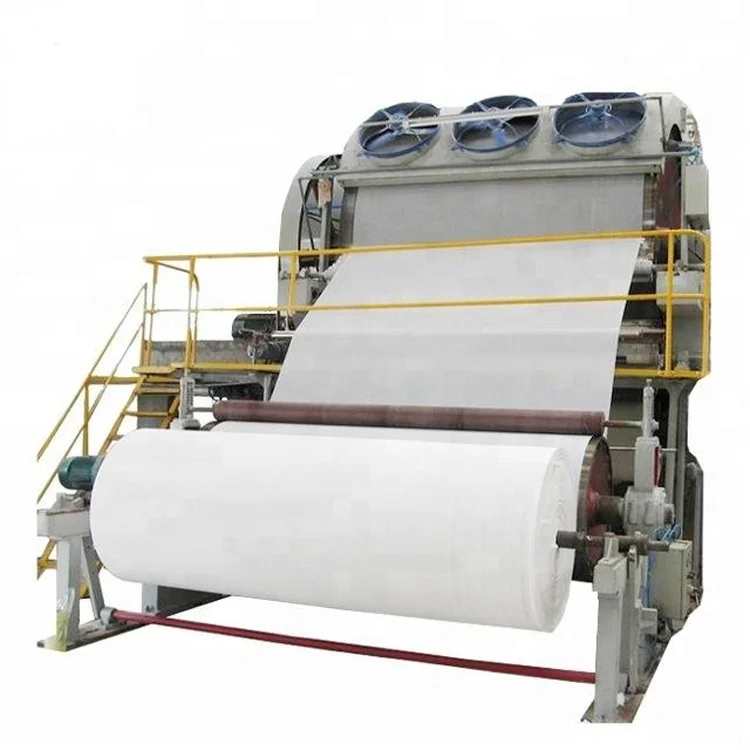

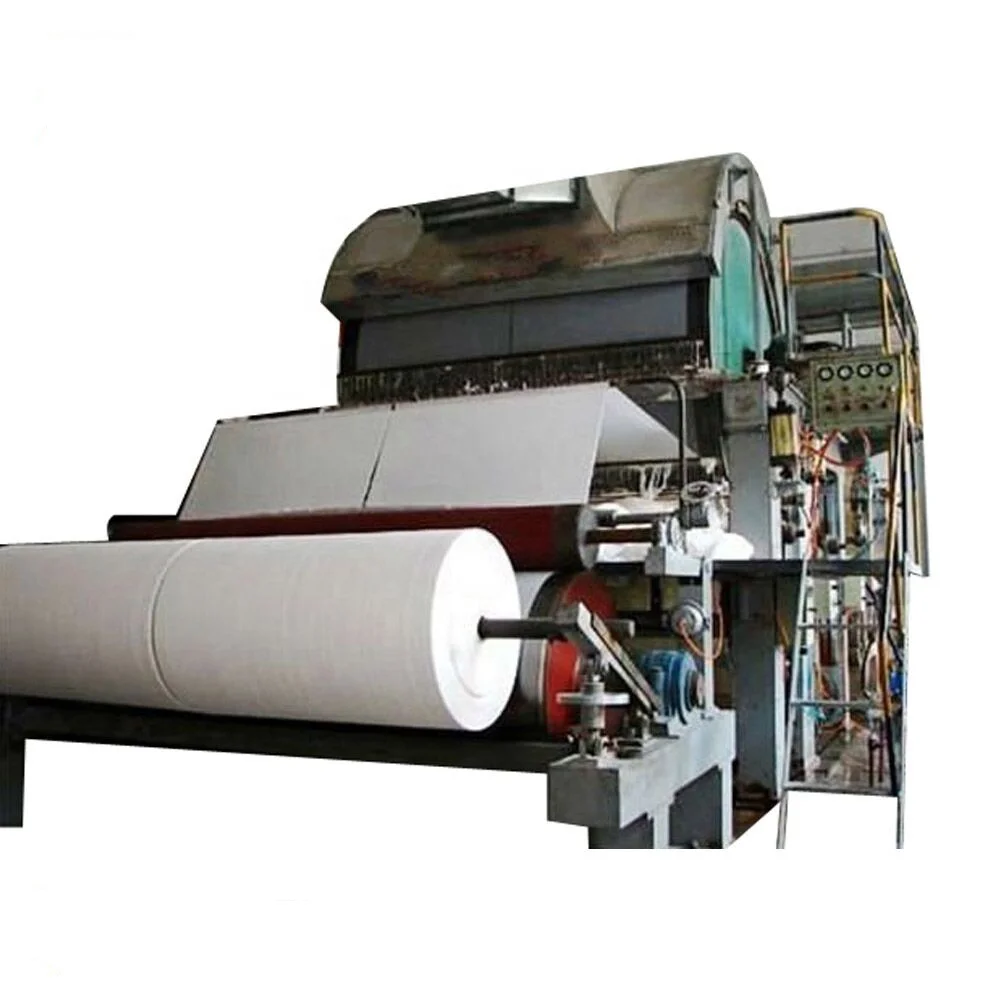

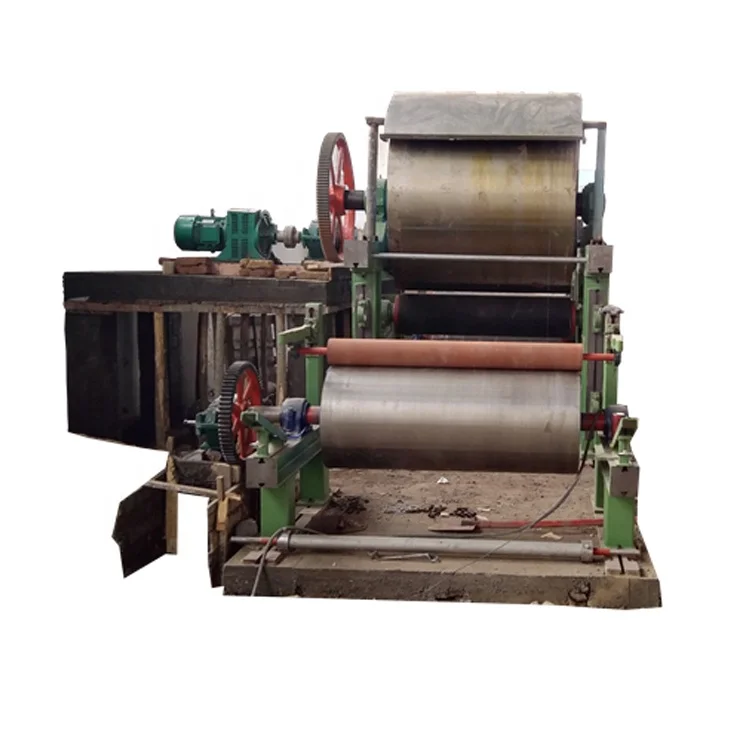

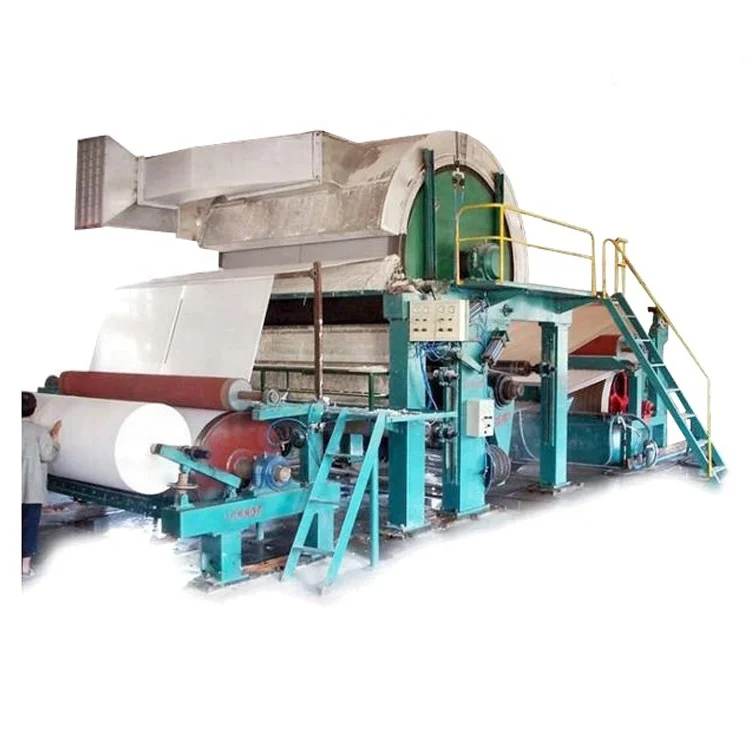

bagasse paper tissue pulp molding making production line machine
Finished Product
Bagasse paper tissue pulp molding making production line machine make the jumbo roll paper,then the jumbo roll paper is made into different finished with paper converting machine.
Product Description
PRODUCT BRIEF
There are many models and different capacity production line, Such as 787/1092/1575/1760/1880/2000/2400/3600 model and so on. The China factory 787 tissue toilet paper napkin machine for sale is a set of production line from waste paper recycled/vigin pulp board to finished paper, also called: toilet paper machine for sale,787 toilet paper machine,tissue paper napkin machine.
PRODUCT CONFIGURATION
Product Name | bagasse paper tissue pulp molding making production line machine | |||||
Paper Machine Model | SF-787 | SF-1092 | SF-1575 | SF-1880 | SF-2400 | |
Outpaper width(mm) | 787-900 | 1200 | 1750 | 1880-2000 | 2400 | |
Gauge(mm) | 1300 | 1800 | 2400 | 2800 | 3400 | |
Machine Capacity(T/D) | 0.8-1 | 1.5-3 | 3-5 | 5-7 | 6-8 | |
Cylinder mold specification(mm) | φ 700*1100 | φ1000- 1250*1450 | φ1250-1500*1950 | φ1500*2350 | φ1500*2850 | |
Dryer specification(mm) | φ1000*1100 | φ1500-2500*1450 | φ1500-3000*2000 | φ2500*2350 | φ2500*2850 | |
Work speed(m/min) | 20-40 | 20-80 | 100-150 | 100-180 | 150-200 | |
Raw material | Waste paper ;Vigin Pulp Board;Waste paper &Vigin Pulp Board Mixed | |||||
Output paper style | Jumbo Roll Paper | |||||
Paper weight | 15-40g/m2 | |||||
Drive mode | Reduce drive(250type reducer) | |||||
Warranty | 12 months | |||||
Time of delivery | 15-30days | |||||
PRODUCT FEATURE
1) Reliable quality, stable performance, convenient operation, energy conservation, environmental protection
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) It is made up of molding, drying, transmission, pressing, walking platform and reeling parts.
4) Running in a high automatization and intellectualization.
5) Computer PLC control system with easy operation
Production Flows
The main paper making flows is as the following
--------------------------------------------------------------------------------------------------------------------
>>>>>1.Pulp making production line
(A)Raw Material
Pulp is a lignocellulosic fibrous material prepared by chemically or mechanically separating cellulose fibres from raw material : waster paper,recycled paper ,wood ,bamboo ,reed ,wheat straw cotton and bagasse etc.Pulp is the first step to making paper.
B)Main paper pulp making parts:
The following pulp making equipment convert raw material into paper pulp.
Click To Send An Inquiry !!!
>>>>>2.Paper making production line

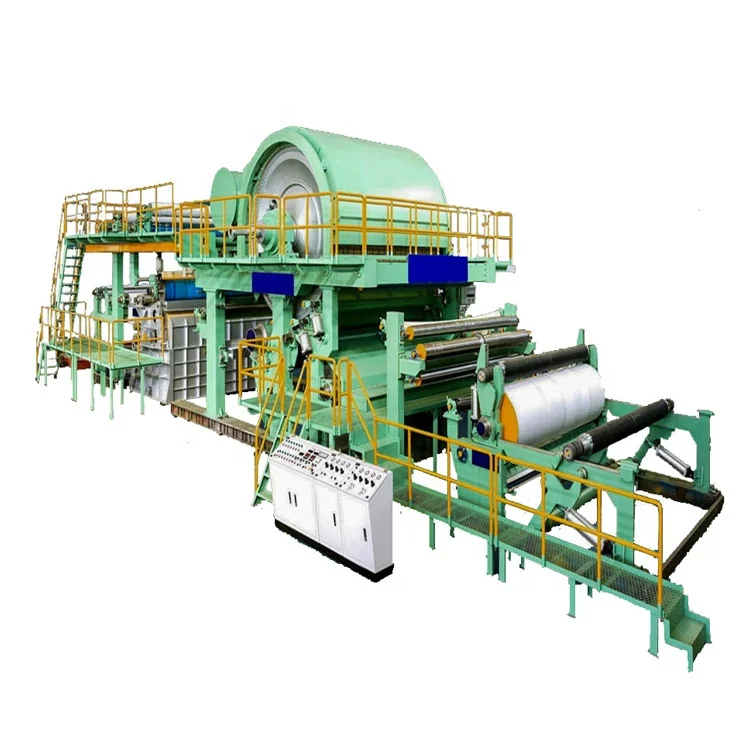

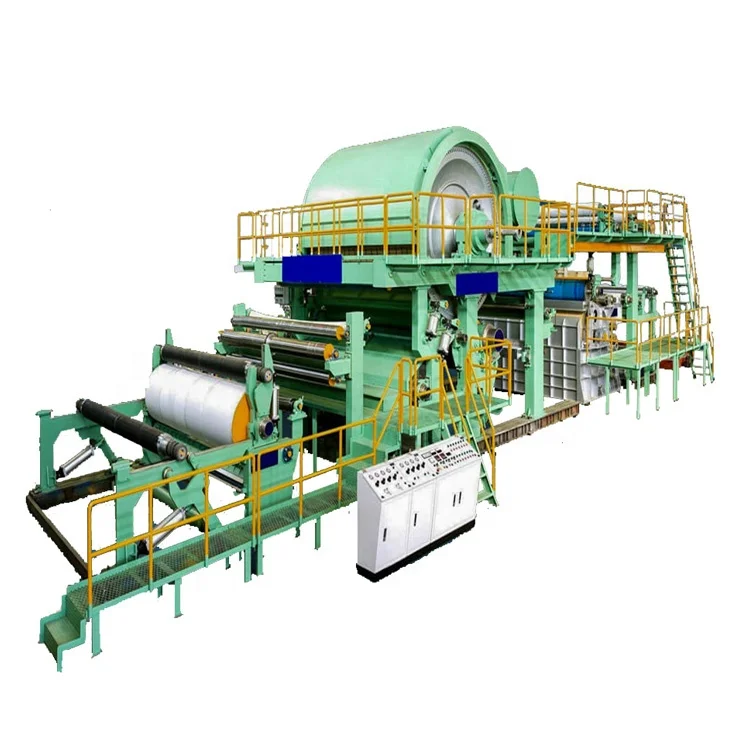

The paper making machine mainly includes forming section, pressing section, drying section, reeling section, driving section, air compressor system, foundation part and electric control system. Some paper machines also include glue sizing section, calendaring section and so on. The model of the paper machine depends on the paper capacity/width/weight you want.
![bagasse tissue paper tissue pulp molding making production line machine]()
Click To Send An Inquiry !!!
>>>>>3.Paper converting section
The paper processing machine can convert jumbo paper rolls into small toilet rolls or folded napkins. the small rolls, napkins or bobbin paper can be in different size, with or without embossing. Toilet tissue converting machinery includes paper rolling embossing rewinder machine, toilet paper bandsaw cutter, toilet paper roll packaging sealing machine, Jumbo toilet tissue roll slitting machine, Toilet tissue bobbin paper slitting machine, Log saw cutting machine, napkin folding machine etc.The process paper flows is as the following:
>>>>>4.Boiler Section
Boiler function is provide the steam for the whole paper making line.
1.Boiler type:steam boiler 1.boiler type:steam boiler 1.Boiler type:steam boiler
2.Working medium:coal-fired 2.working medium:electricit 2.Diesel or natural gas fired
Company Information
Shunfu paper making machinery co.,ltd main machines:
1) 787 1092 1575 1760 1880 2400 2640 2800 3200 paper making machine
2) Kraft corrugated paperboard curture paper machine
5) Paper processing equipments
Production of paper making equipments re sold throughout the country over 20 provinces and areas,and exported to Vietnam, Burma,Uzbekistan,Russia ,Kyrgyzstan, Nigeria, Ukraine, Botswana,Libya,Algeria, El Salvador ,Lebanon, Moldova, Bolivia,Egypt,South Africa and other countries.The trust and praise by the user.
