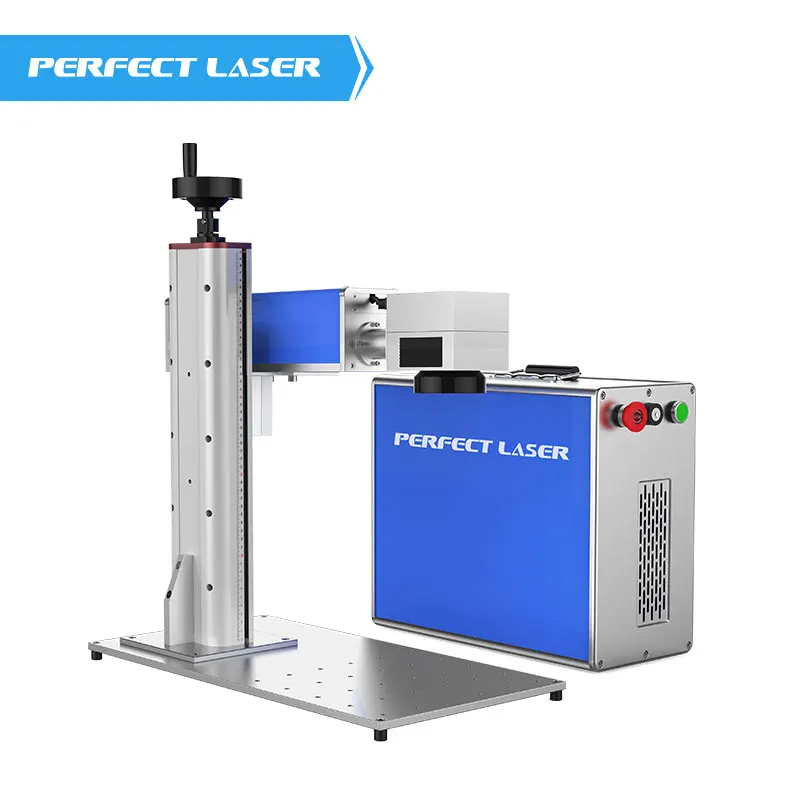

This model is PEDB-400B laser marking machineadopts most advanced Germany technology. And the fiber lasers are of exceptional quality and can last up to 8-10 years without consumables and any maintenance. Perfect Laser's Fiber Laser Marking System offers excellent laser beam quality with the latest technology. Our pulsed fiber system delivers superior performance and reliability. Providing an industrial solution for product identification and traceability, our laser marking machineallow manufacturers to mark serial numbers, bar codes, 2D Data Matrix and graphics on the widest variety of materials, including metals, plastics and ceramics .
Application
This laser marking machine is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware,tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

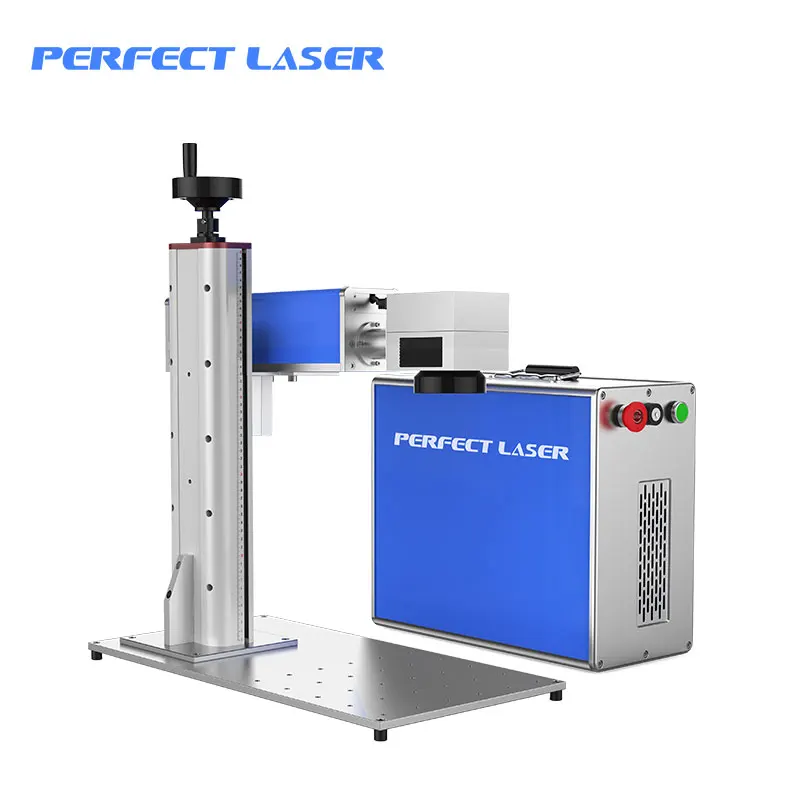

Machine Details
Features of the laser marking machine1. High-quality imported fiber lasers: The metal laser marking machine has exquisite marking effects, and all kinds of fine and complex patterns can be marked on the surface of the product with fiber laser marking system, which is suitable for all types of super-fine marking. 2. Optional multi-power laser light source: No matter what industry you belong to, no matter what material you use, this fiber laser engraving machine can customize the most suitable marking machine for your personality. 3. Fast marking and high efficiency: In the same time, the output of workpieces processed by the metal laser marking machine is obviously improved, and the return on investment of users is accelerated. 4. Long life: The metal laser marking machine can work continuously in harsh working environments, and the laser is free of maintenance for 100,000 hours. 5. High-efficiency photoelectric conversion rate: no loss of power coupling, no consumables, obviously reducing operating costs for customers. 6. Compact and compact: easy to handle and save production space.
Technical Data
Model No
PEDB-400A
PEDB-400B
PEDB-400C
PEDB-400D
Type
Portable
Desktop
Colorful
Standby
Computer
Not includes PC
Includes PC
Laser Source
IPG Series
Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation
Pulsed
Polarization
random
Nominal average output power
10W - 30W For PEDB-400A /400B /400C 10W - 50W For PEDB-400D
Central emission wavelength
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM)
<10 nm
Long-term average power instability
<5%
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80 kHz
Energy per pulse (PRR = 20 kHz)
0.95 mJ
Typical beam quality, M2
<1.8
Output fiber delivery length
3m
Operating voltage
220V
Max. Power consumption
600W
Net Dimensions
70*20*50cm
80*38*72cm
70*20*50cm
143*62*101cm
Net Weight
44 kgs
53 kgs
44 kgs
130 kgs
Gross Weight
60 kgs
70 kgs
60 kgs
200 kgs
Laser system
Scanning Speed
0-7000mm/s
Marking Speed
0-5000mm/s
Marking size
110mm×110mm (F-theta 160)
Spot size
≤ 40 micron (F-theta 160)
Cooling unit
Air cooled
Pilot laser
650nm diode laser, visible red light for marking guide
Continuous working time
≥16h
Humidity
45～85% (no condensation)
Operating temperature
0~40℃
Control units
Laser Mark (English Version)
Related Product
Marketing Campaign
Packaging Details
1. We have 3 layers package.
For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protectthe machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard.
Company Profile
We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with CE/ISO, we asims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
