Высокоточная машина для сбора и размещения SMT550 с 6 камерами + 50 Кормушками поставщика производственной линии
- Категория: Electronics Production Machinery >>>
- Поставщик: Wenzhou,Yingxing,Import&export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.72 $* | 0.41 $* |
| Aug-18-2025 | 0.85 $* | 0.72 $* |
| Jul-18-2025 | 0.30 $* | 0.51 $* |
| Jun-18-2025 | 0.73 $* | 0.78 $* |
| May-18-2025 | 0.87 $* | 0.44 $* |
| Apr-18-2025 | 0.50 $* | 0.91 $* |
| Mar-18-2025 | 0.11 $* | 0.59 $* |
| Feb-18-2025 | 0.87 $* | 0.12 $* |
| Jan-18-2025 | 0.65 $* | 0.86 $* |
Характеристики
Wenzhou Yingxing Technology Co.,Ltd
Specialises in SMT Production Line (PNP Machine） More than 9 years
Specialises in SMT Production Line (PNP Machine） More than 9 years

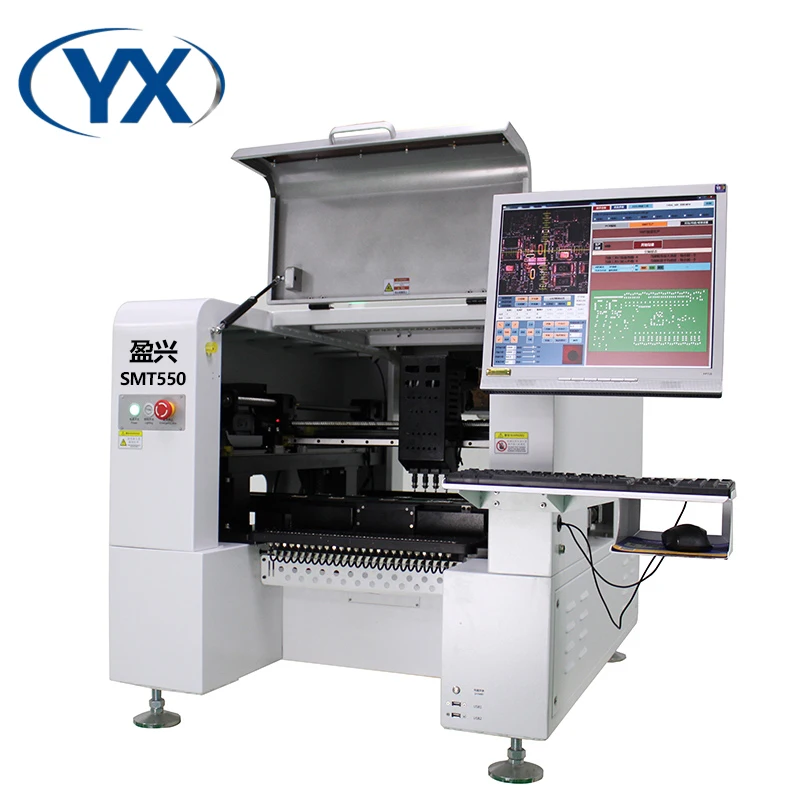

Pick and place SMT550
With Servo Motor +Screw Guider
Can meet 0201
Can meet 0201
Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（Within 1 YEAR warranty ）
2.24-hour online support
3.Goods tracking support
4.Free broken parts（Within 1 YEAR warranty ）
Product Paramenters
Internal details

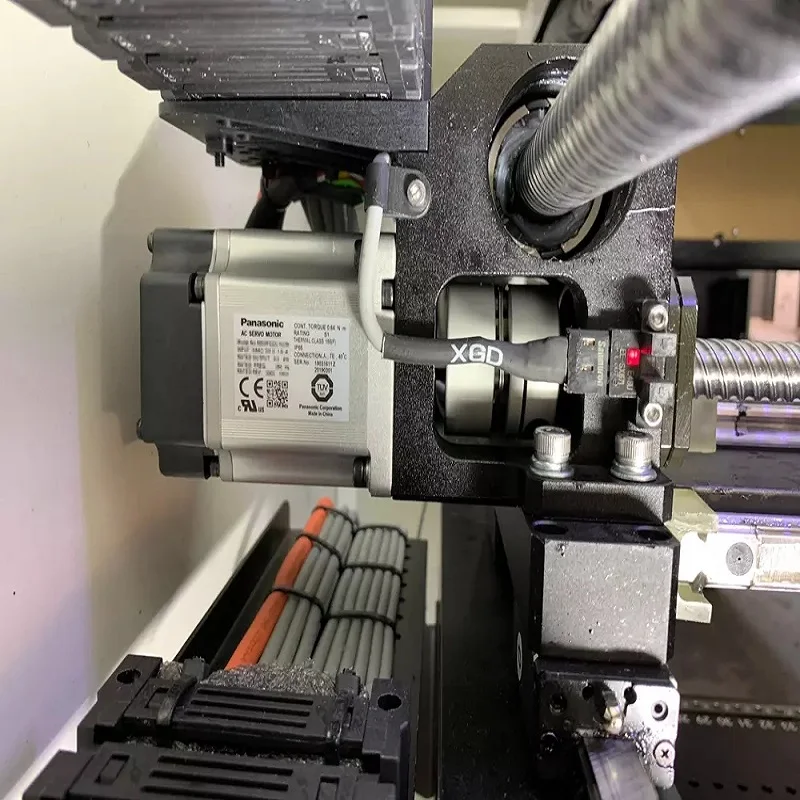

Panasonic Servo Motor

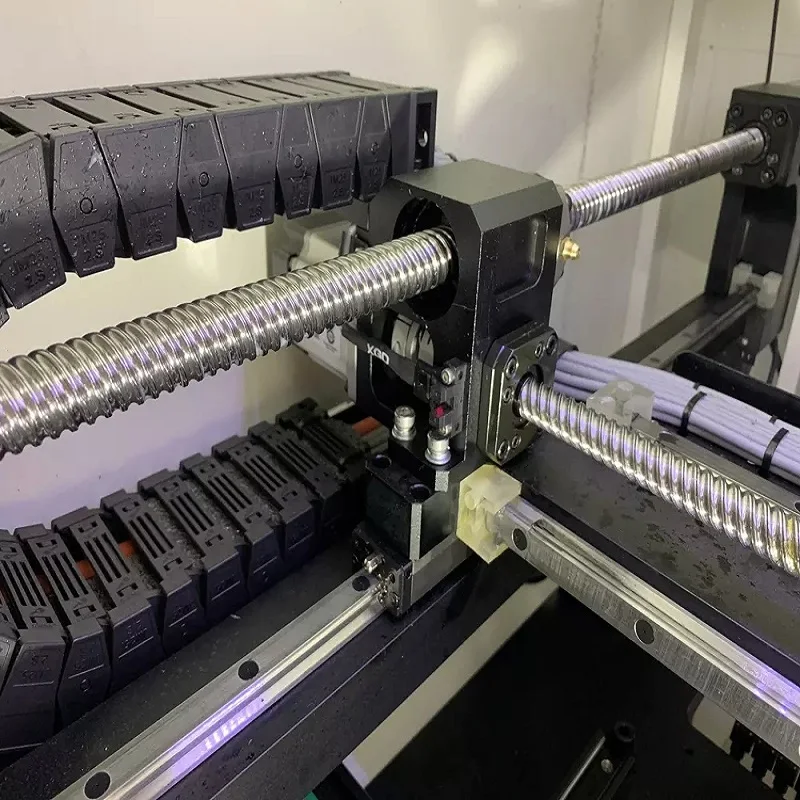

Screw Guider
Liner Guide Rail
Placement for 0201

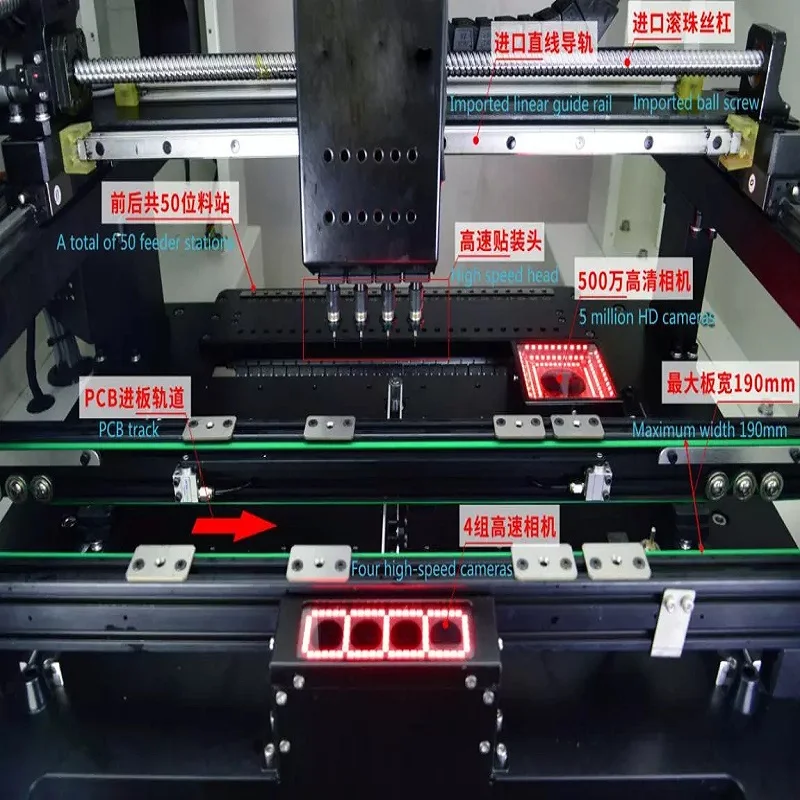

SMT550 with 50 feeders +4 heads+6cameras+servo motor+screw guider BEST FOR 0201

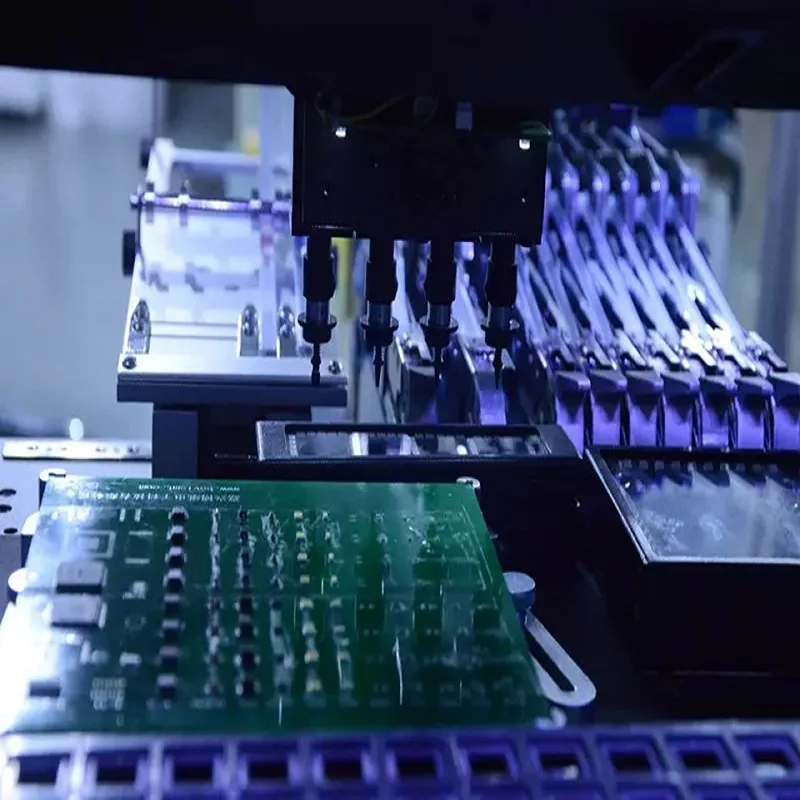

High Precise JUKI Universal Nozzle+4 Placement Heads
Specification | ||
Maximum circuit board area: | 400*200 mm | |
Number of mounting heads: | 4 | |
Maximum movement range of Z axis: | 20 mm | |
Maximum mounting rate: | 9,500 PCS/hour | |
Average mounting rate: | 8,000 PCS/hour | |
Positioning accuracy: | 0.01 mm | |
Buffering range of suction nozzle: | 4.5 mm | |
Power supply: | 220V/110V, 50 Hz | |
Compressed air: | 0.6-0.7 Mpa | |
Average power: | 400 W | |
Recognition Mode: | Four Heads Synchronized Recognition | |
Number of cameras: | a Mark camera, four high-speed cameras, a high-definition camera | |
Product weight: | 210KG | |
PCB access mode: | automatic Left-in and right-out access, supporting left-right device connection function | |
Quantity of trays: | Up to 48 non-feeder feeding components are supported, each of which can specify its coordinates within the mounting range. | |
Complex speed to mount resistance and Chip: | 6000/h | |
Mounting accuracy range: | 0201-40*40mm,Pin spacing 0.3mm | |
Chip(Matching which support electric feeder can mount the 0402,0201) | ||
Quantity of feeders: | 50 PCS | |
Service motor: | Panasonic servo motor | |
Guide rail: | Taiwan TBI Linear Guide rail | |
Driving mode: | Taiwan TBI ball screw | |
Nozzle Vacuum Source: | Japan CKD High Speed On-off Vacuum Generator with Vacuum Damage | |
Minimum air capacity of pump: | 80-120 L/min, volume more than 60 L | |
Gas quality requirements: | oil-water separation device, dust filter device, air pressure stabilization device | |
Dimension: | 900×1140×900mm | |
Packing details
Certificate
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
A:After buying our machines,your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
A:Yes
