Высокоскоростной силовой пресс для мотора статора и ротора пробивая машина Для петель заклепки из Китая CNC

Высокоскоростной силовой пресс для мотора статора и ротора пробивая машина Для петель заклепки из Китая CNC

Категория: Punching Machines >>>
Поставщик: Dongying,Besco,Machine,Tool,Limited

Цена:7 500,00 $ - 8 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	8925.61 $*	9371.94 $*
Aug-15-2025	8850.31 $*	9293.47 $*
Jul-15-2025	7425.78 $*	7796.35 $*
Jun-15-2025	8700.56 $*	9135.15 $*
May-15-2025	7575.55 $*	7954.10 $*
Apr-15-2025	8550.24 $*	8978.18 $*
Mar-15-2025	8475.2 $*	8899.74 $*
Feb-15-2025	8400.45 $*	8820.32 $*
Jan-15-2025	8325.47 $*	8741.96 $*

Характеристики

Product Description

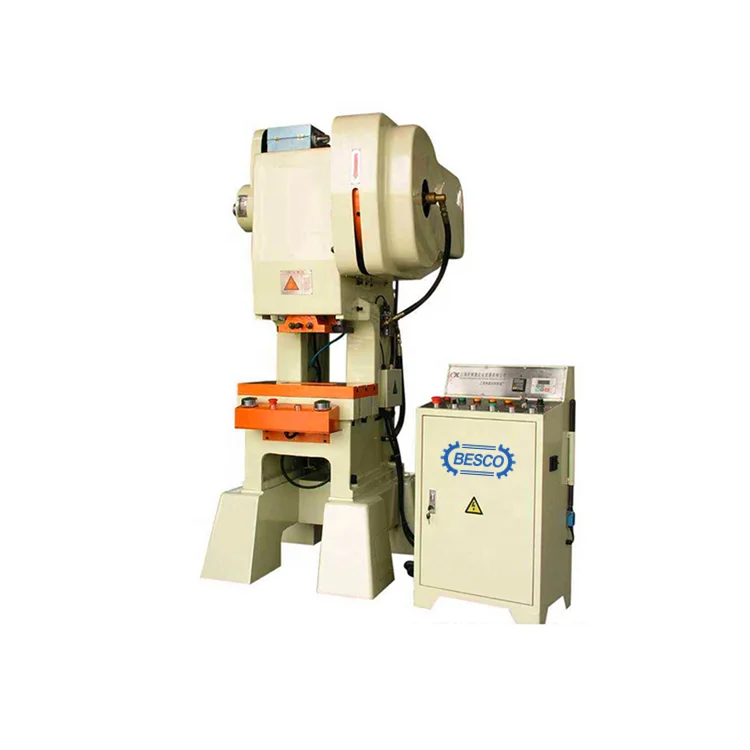

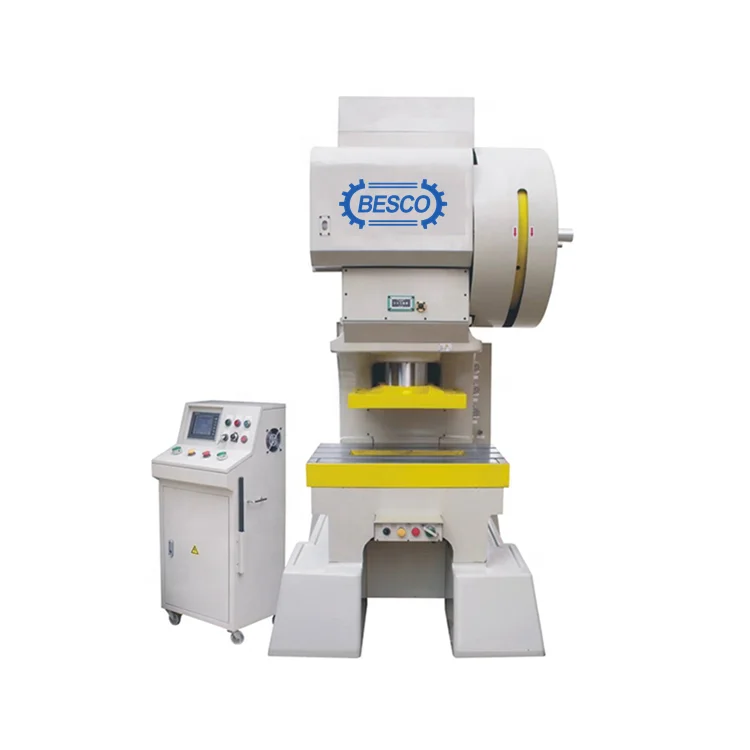

High Speed Punching Machine

Advantages of the machine

1.Body material: use high strength steel, hard chrome plated to make sure of high precision.
2.Lubrication system: special structure with automatic closed lubrication, special industrial design so those main bodies get quicker and more natural cooling.
3.Equipped with reverse dynamic balanced device to realize high speed operation and prolong useful life of main parts.
4.Computer control system: display working status and fault. Top dead center control to remove fault easily.
5.Air pressure system: use with standard parts to make system stable.
6.Adjustment mould operation control system, separate structure and function to be safer, stable and precision.
7.For main system (air, lubrication and air pressure locked) equipped with pressure show and pressure switch protector
device to make all system more stable.
8.Use with force cooling circulation system in the main parts to prefect transfer mechanism, meanwhile prolong useful life.
9.Equipped with location direction for direction device to be more precision, easy test and repair.

Name	Unit	RC21G-16	RC21G-25	RC21G-45	RC21G-60
Nominal Pressure	KN	160	250	450	600
Nominal Power Stroke	mm	1.5	1.5	1.5	1.5
Stroke of slide	mm	20	20	30	30
Strokes	S.P.M	150-500	150-500	150-450	150-400
Max Die Set Hight	mm	200	220	250	280
Die Height Adjustment	mm	50	50	50	50
Depth of Throat	mm	160	190	235	270
Distance Between the Pillars	mm	260	300	350	400
Bottom Size of Slide	(L-R)mm	350	400	460	540
Bottom Size of Slide		(F-B)mm	240	270	300	350
Size of Table	(L-R)mm	600	660	720	850
Size of Table		(F-B)mm	300	360	450	520
Mian Motor Power	KW	3	4	7.5	11
Dimensions	(L-R)mm	900	945	1080	1245
		(F-B)mm	1452	1475	1620	1890
		Height	1920	2045	2405	2675
