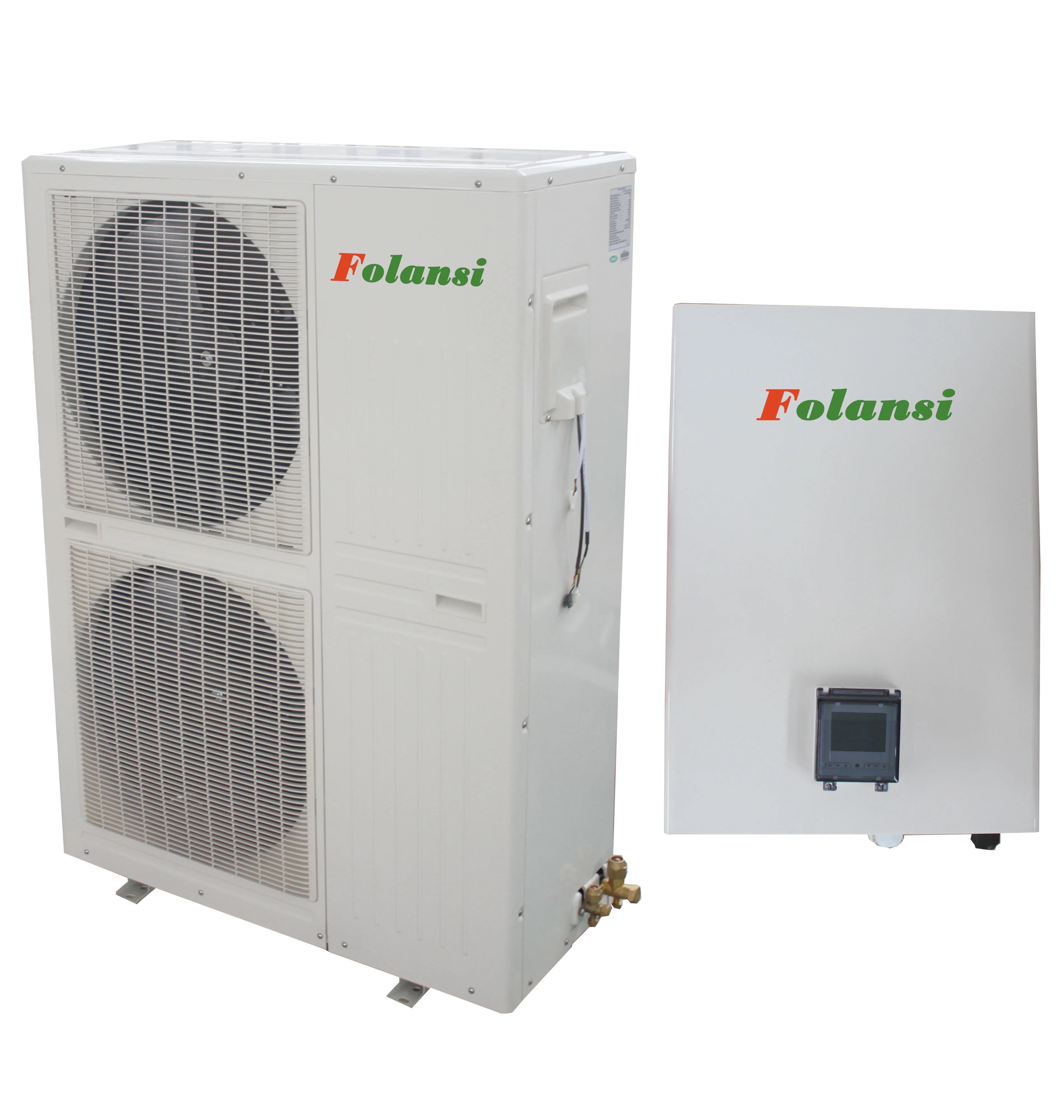

14 кВт внутренний разделенный воздушный тепловой насос

14 кВт внутренний разделенный воздушный тепловой насос

Категория: Heat Pump Water Heaters >>>
Поставщик: Guangdong,Folansi,Energy,Saving,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.49 $*	0.94 $*
Aug-17-2025	0.19 $*	0.92 $*
Jul-17-2025	0.20 $*	0.53 $*
Jun-17-2025	0.2 $*	0.23 $*
May-17-2025	0.0 $*	0.98 $*
Apr-17-2025	0.36 $*	0.57 $*
Mar-17-2025	0.9 $*	0.43 $*
Feb-17-2025	0.28 $*	0.84 $*
Jan-17-2025	0.75 $*	0.83 $*

Характеристики

Split Air source heat pump ( heating and cooling)
Model			FAR-14c
technique parameter	Heating capacity	KW	14
	Heating capacity	btu	46758
	heating input power	KW	3.9
	cooling capacity	KW	11.7
	cooling capacity	btu	39932
	cooling input power	KW	4.00
	Max outlet temp	℃	60
	Rated outlet temp	℃	55
	water flow	m3/h	2.40
	water pressure down	Kpa	28
	net(outdoor unit)	kg	116
	Gross(outdoor unit)	kg	136
	net(indoor unit)	kg	25
	gross(indoor unit)	kg	33
	Nosie	db	58
	connect size	inch	1/2",3/4"

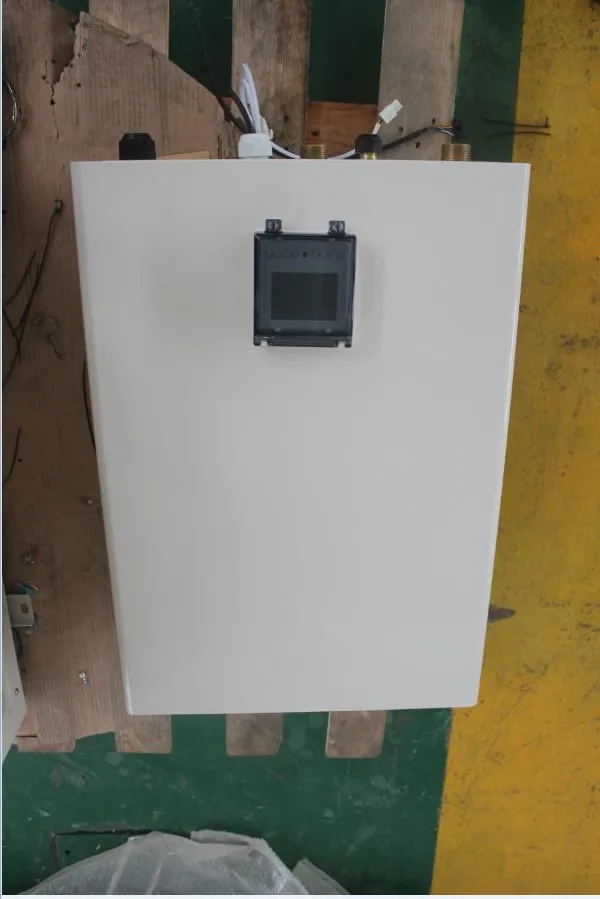

	indoor unit Specifications		water tank or Wall mounted internal machine
	power		380V/3PH/50Hz
	net size(outdoor unit)	mm	9303901270
	packing size(outdoor unit)	mm	9704301400
	net size(indoor unit)	mm	400170820
	packing size(indoor unit)	mm	450220890
Standard configuration	compresor	brand	sanyo/panasonic
	compresor	qty	1
	Condenser		Plate heat exchanger / tube in shell heat exchanger
	Evaporator		Hydrophilic aluminum foil + internal thread copper pipe
	4-way valve		Sanhua or dunan
	Throttling device		snahua electric expansion valve
	AC contactor		LG
	fan power		50W*2
	cabient		Galvanized white metal sheet or staniless steel
	controller		Chinese brand large LCD screen controller
	high pressure switch		3.0/2.4MPa
	low pressure switch		0.02/0.15MPa
	working mode		heating or heating/cooling
	circulate water pump		wilio RS25/8
	electric heater		optional
	refrigerant		R410a
	connect pipe		5m

1,unit working ambient temperature:-15℃ to 43℃

2,heating working condition:ambient temperature7℃/6℃,inlet water/outlet water40℃/45℃; coling working condition:ambient temperature35℃/24℃,inlet water/outlet water12℃/7℃;

3,indoor unit can is water tank or Wall mounted internal ;
