SINOTRUK HOWO 6X4 371HP 70T внедорожный горно-KING DUMP самосвал грузовик с задних ворот

Описание и отзывы

Трекер стоимости

Характеристики

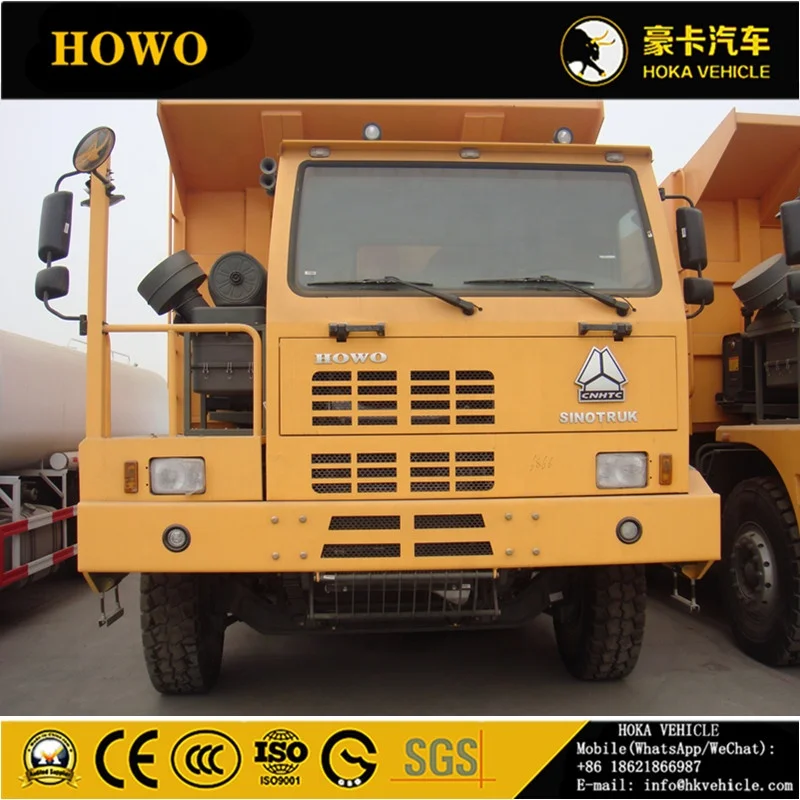

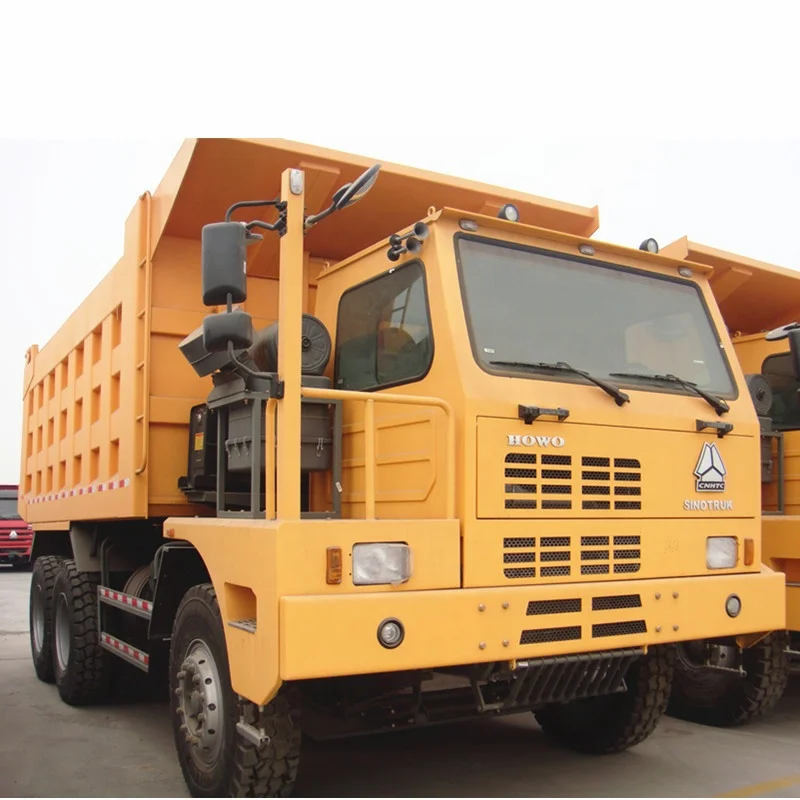

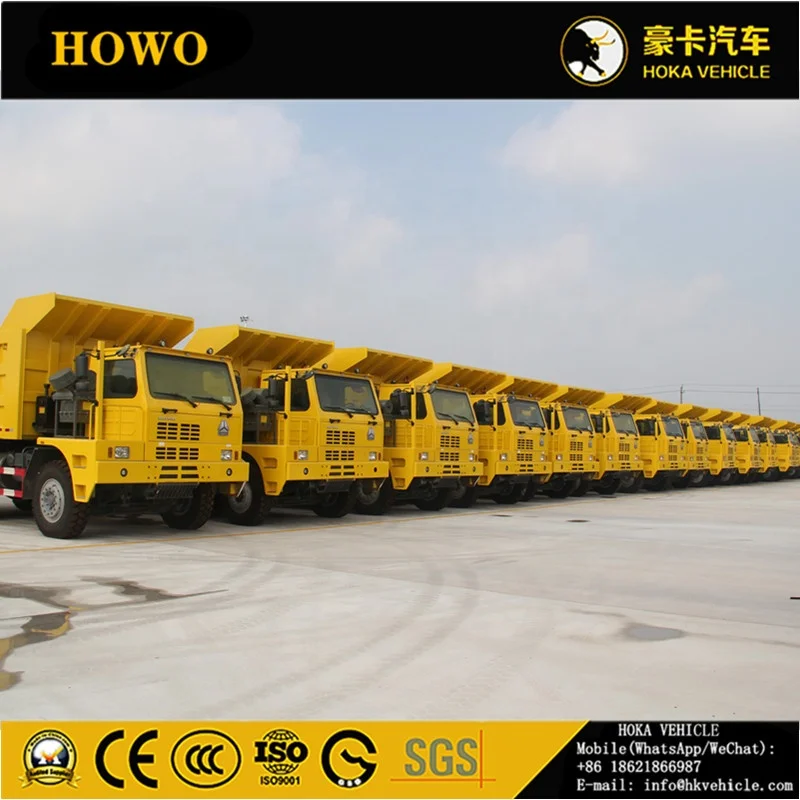

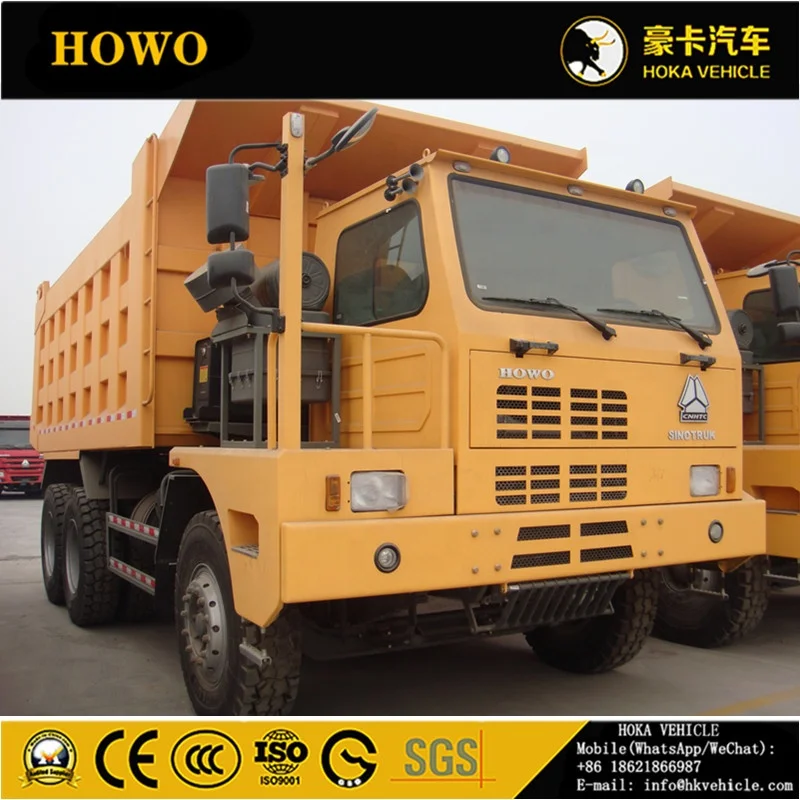

SINOTRUK HOWO 6X4 371HP 70T OFF-ROAD MINING KING DUMP TRUCK WITH REAR GATE ZZ5707S4040AJ

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

Weight	Chassis weight(kg)	17300
	Dead weight(kg)	30000
	Max. Theoretical Loading Weight(kg)	50000
	Max. Theoretical G.V.W(kg)	75000
Performance	Min. Turning Diameter(m)	22
	Max. Speed(km/h)	50(57)
	Fuel Tank Capacity(L)	500
Chassis frame	Type	strengthened adequate ladder type frame
	Main beam cross-section	380*120*10(mm)
	Auxiliary beam cross-section	355*110*10(mm)
Transmission	Model	HW19710
	Forward Ratio	14.28 10.62 7.87 5.87 4.375 3.26 2.43 1.8 1.34 1
	Reverse Ratio	13.91  3.18
Wheel alignment	Front-wheel camber	1°
	kingpin inclination(Inward)	5°
	kingpin inclination(Rear)	3°7′
Driving axle	Model	Central reduction with hub reduction
	Ratio	10.47   Option: 8.51
	Differential Locks	Exist between wheels and axles

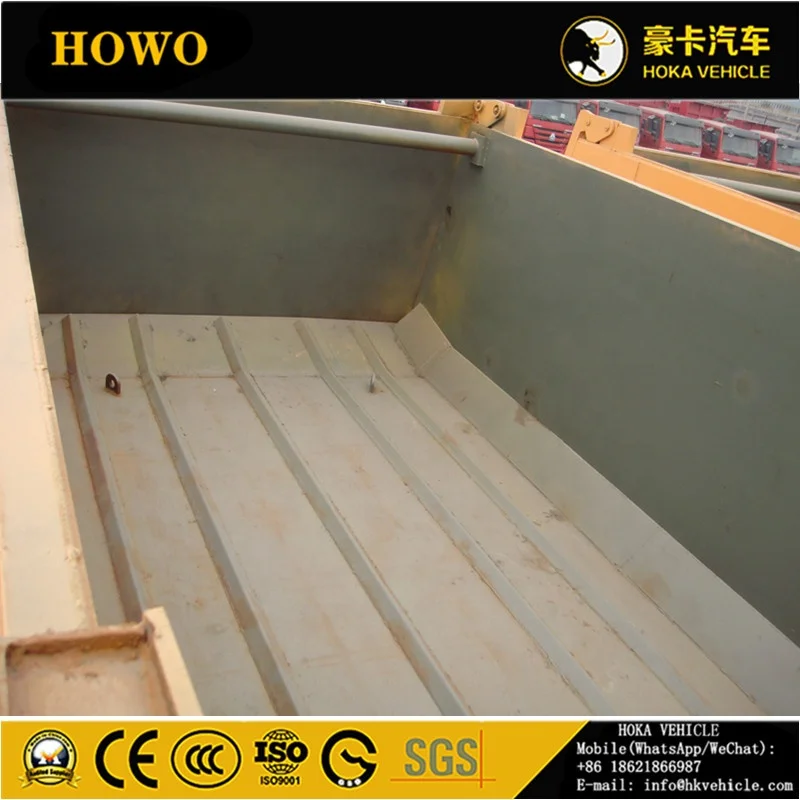

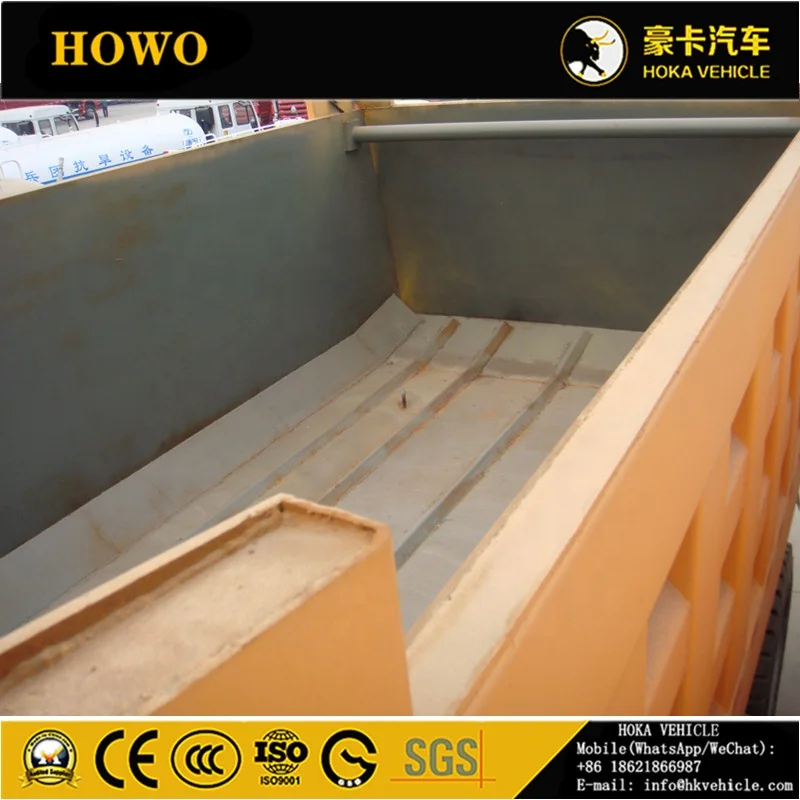

Body(Tilting End)	Dimension(L*W*H mm)	6000*3100*1500
	Thickness(Floor*Side mm)	16*12
	Hoist System	HYVA 196
Dimension	Overall dimension(mm)	8900*3300*4000
	Wheelbase(mm)	3800+1500
	Front/Rear overhang(mm)	1500/1800
	Front/Rear wheel track(mm)	2750/2520
	Min. ground clearance(mm)	340
	Approach/Departure angle(°)	30/40
Engine	Model	WD615.47
	Displacement(L)	9.726
	Rated power hp (r/min)	371/2200
	Max. torque Nm(r/min)	1500/1100~1600
Cabin	Type	HW7D
	Nos of passengers	1 person
Clutch	Φ430(mm),1900mm
Steering	Model	ZF8118
Brake	Service brake	Dual circuit compressed air brake
	Parking brake (emergency brake)	Spring energy, compressed air operating
	Auxiliary brake	Engine exhaust brake
	Others	Brake heat sink
Electrics	Operating voltage	24 V, negative grounded
	Alternator	1500w
	Battery voltage/capacitance(V/Ah)	12/180
Tire	Model	14.00-25(14.00R25 for option)
