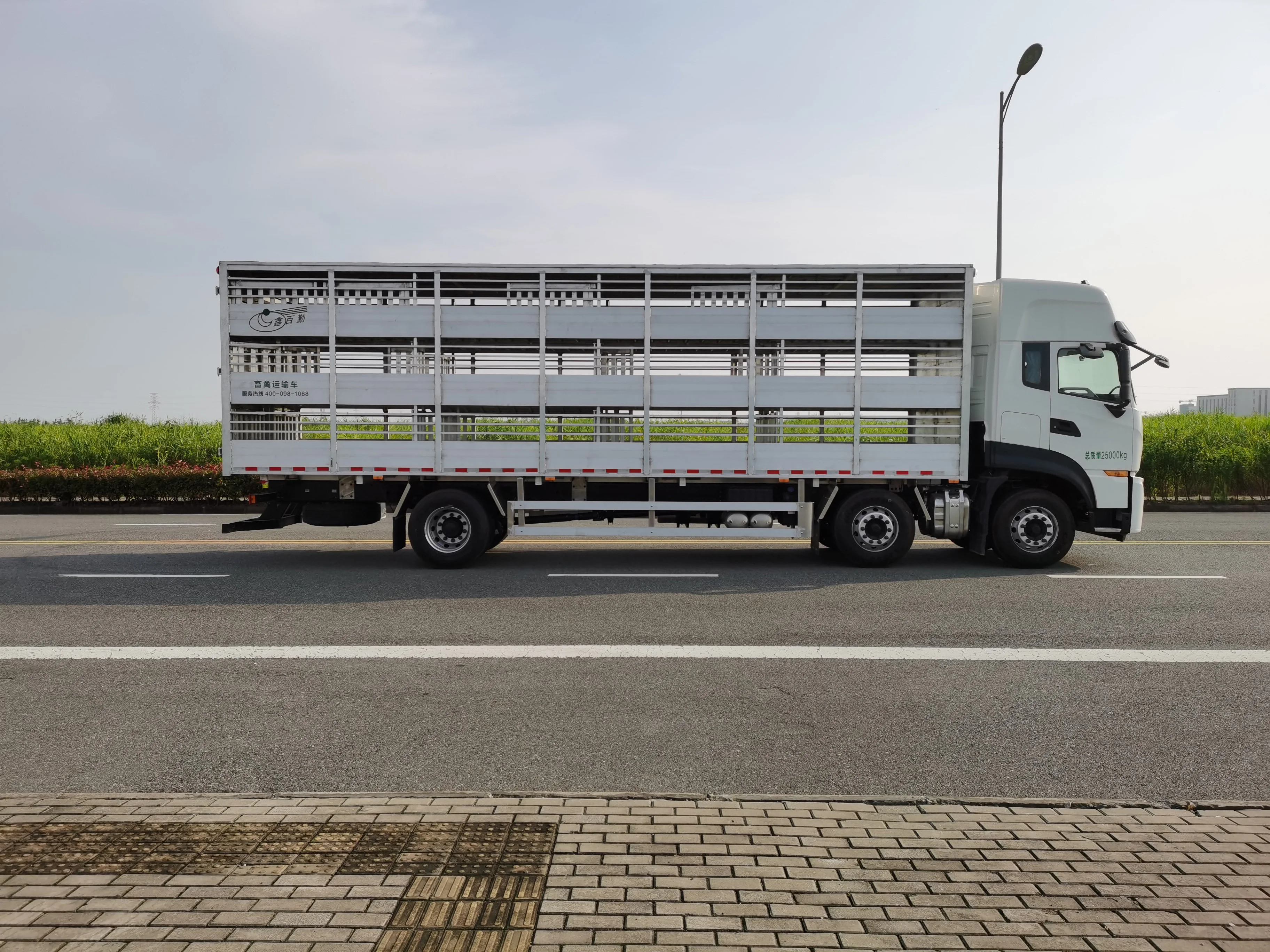

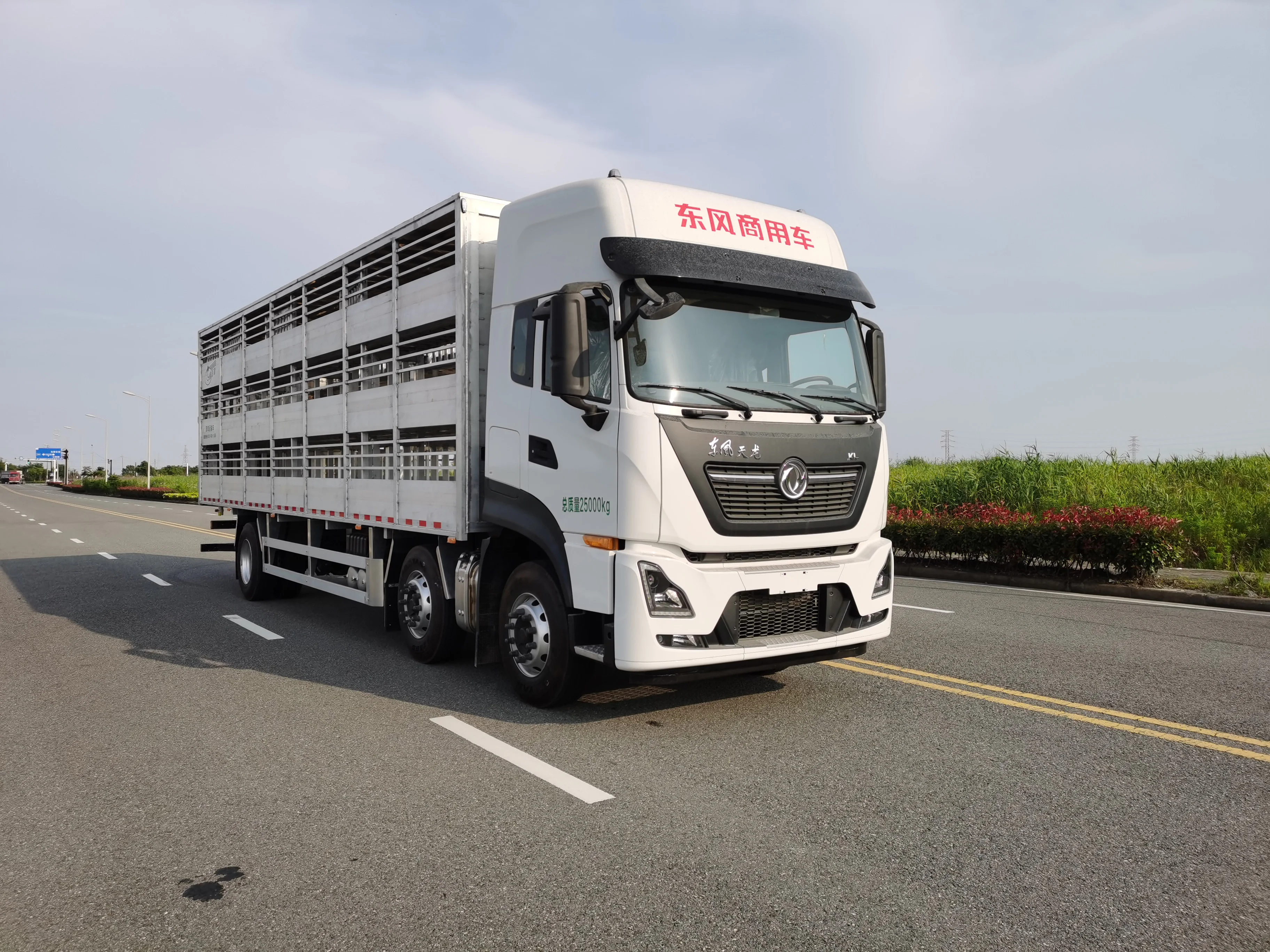

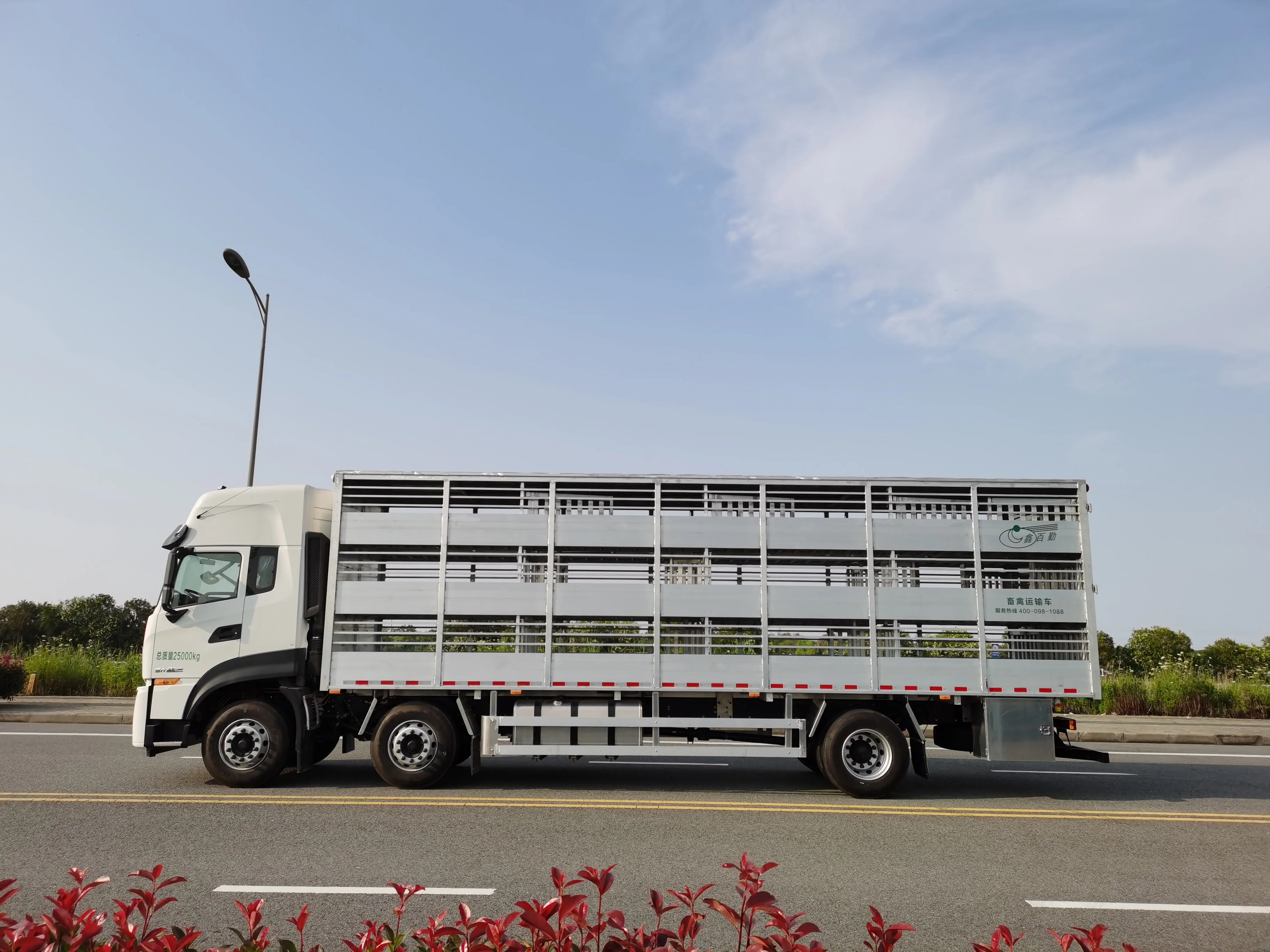

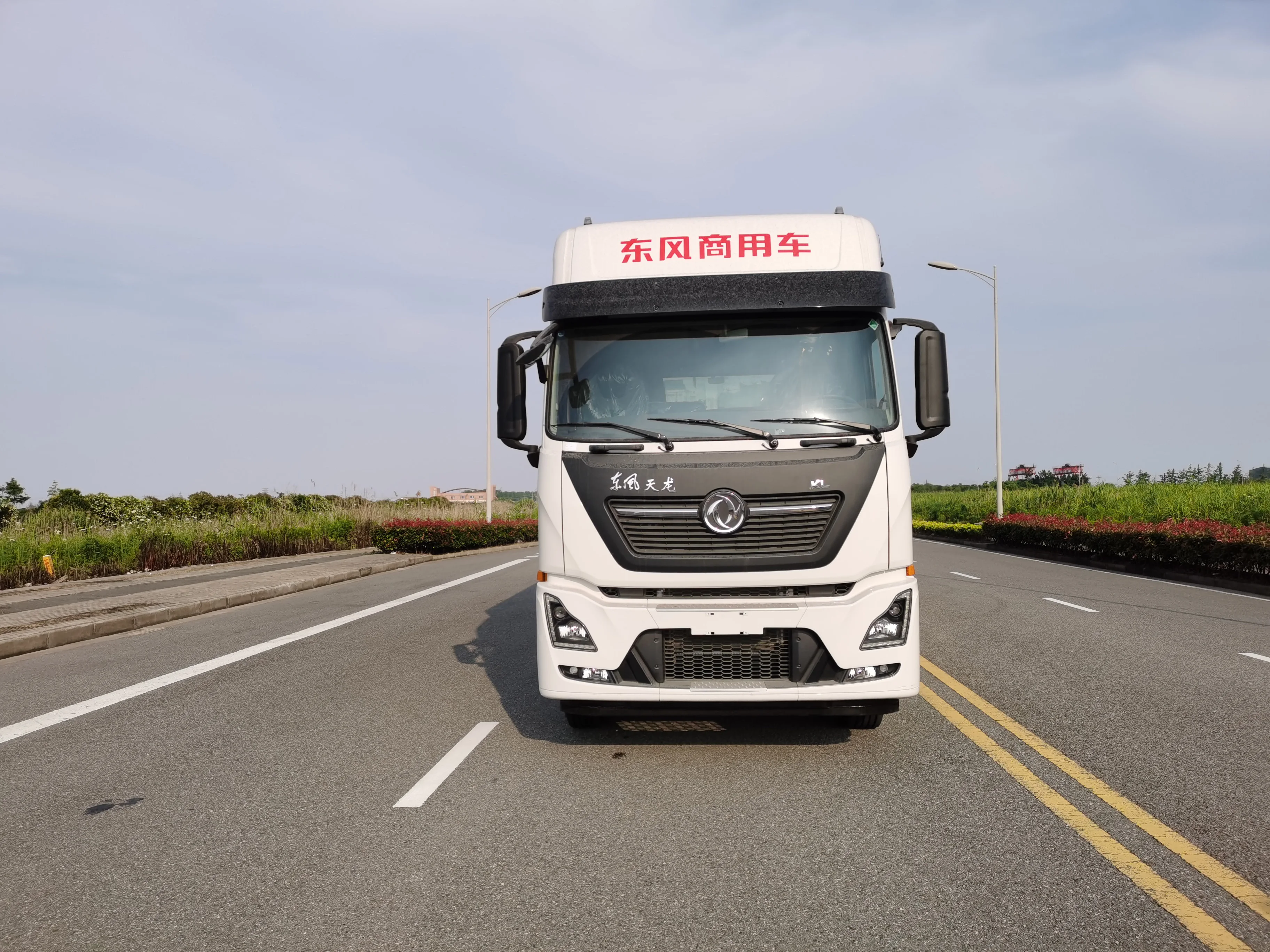

Новый дизайн Dongfeng Tianlong 6x2 3 террас для перевозки домашней птицы живая доставка свиней грузовик

Vehicle Parameters

Overall Dimensions(L*W*H)(mm)

11825×2530×3970

 Total Mass(kg)

25000

 Curb Weight(kg)

11105

 Bulletin loading(kg)

13765 kg for 2 person
13700kg for 3 person

 Fuel consumption (l/100km)

30.2

 Max speed(km/h)

 89

 Minimum turning radius(m)

 12

Minimum ground clearance(mm)

230

Approach/departure angle (°)

13/10

Front overhang/ rear overhang (mm)

1480/2900

Front/ rear track(mm)

2010/2010/1860

Chassis Parameters

 Chassis Model/ Manufacturer

DFH1250D2 /Dongfeng Trucks Company

 Engine model / manufacturer

DDi75E300-60 /Dongfeng Cummins Engine Co., Ltd

 Transmission model / manufacturer

9JS119TA/Shaanxi Fast Gear Co.,ltd

 Drive Mode:

6×2 rear wheel drive

 Wheelbase(mm)

1995+5450

 Engine capacity(ml)

7500

 Maximum torque (n.m)/(r/min)

 1250/1200-1700

 Rated power(kw)/(r/min)

220/2300

 Tire specifications

295/80R22.5 18PR

Standard Configuration

Inner size of body work(L*W*H)(mm)

9270×2420×2585

Area of work body(m²)

67

Structure of body work

All aluminum alloy

Stall qty

12

 Layer height per floor (mm)

830/830/830
