Plastic bottle blow moulding


Поделиться:


Цена:13 800,00 $ - 14 600,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 16422.29 $* 17243.31 $*
Aug-18-2025 16284.16 $* 17098.12 $*
Jul-18-2025 13662.52 $* 14345.49 $*
Jun-18-2025 16008.15 $* 16808.58 $*
May-18-2025 13938.64 $* 14635.65 $*
Apr-18-2025 15732.49 $* 16519.70 $*
Mar-18-2025 15594.36 $* 16374.66 $*
Feb-18-2025 15456.52 $* 16229.51 $*
Jan-18-2025 15318.42 $* 16084.10 $*

Характеристики

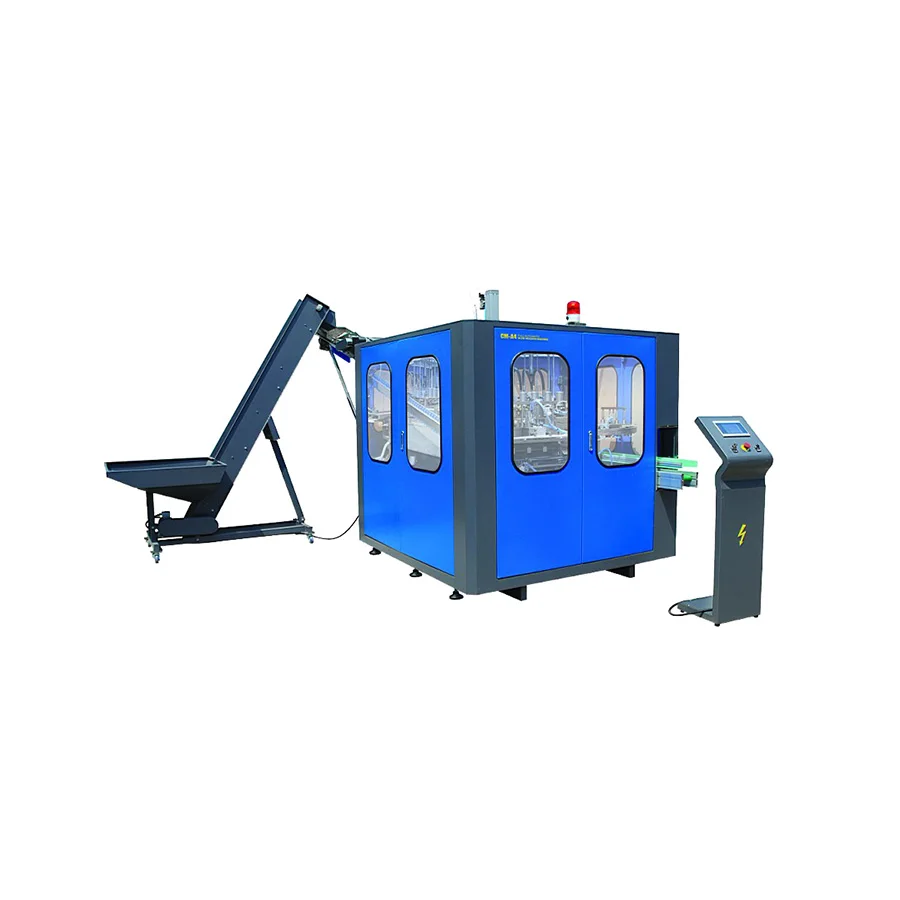

4000BPH plastic blow moulding machine


Engineering item:


1.  Capacity: 3200-4000pcs/hr (based on bottles)


2.  Max volume of product: 2 liter


CM-A4 Full automatic plastic blow moulding machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used for producing the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle and cosmetics bottle.

*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.

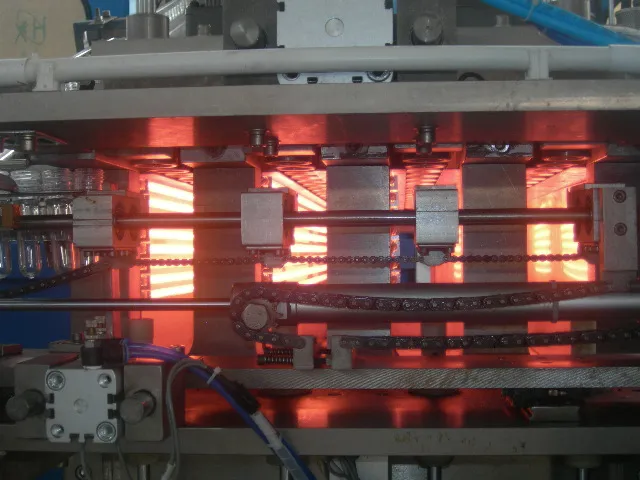

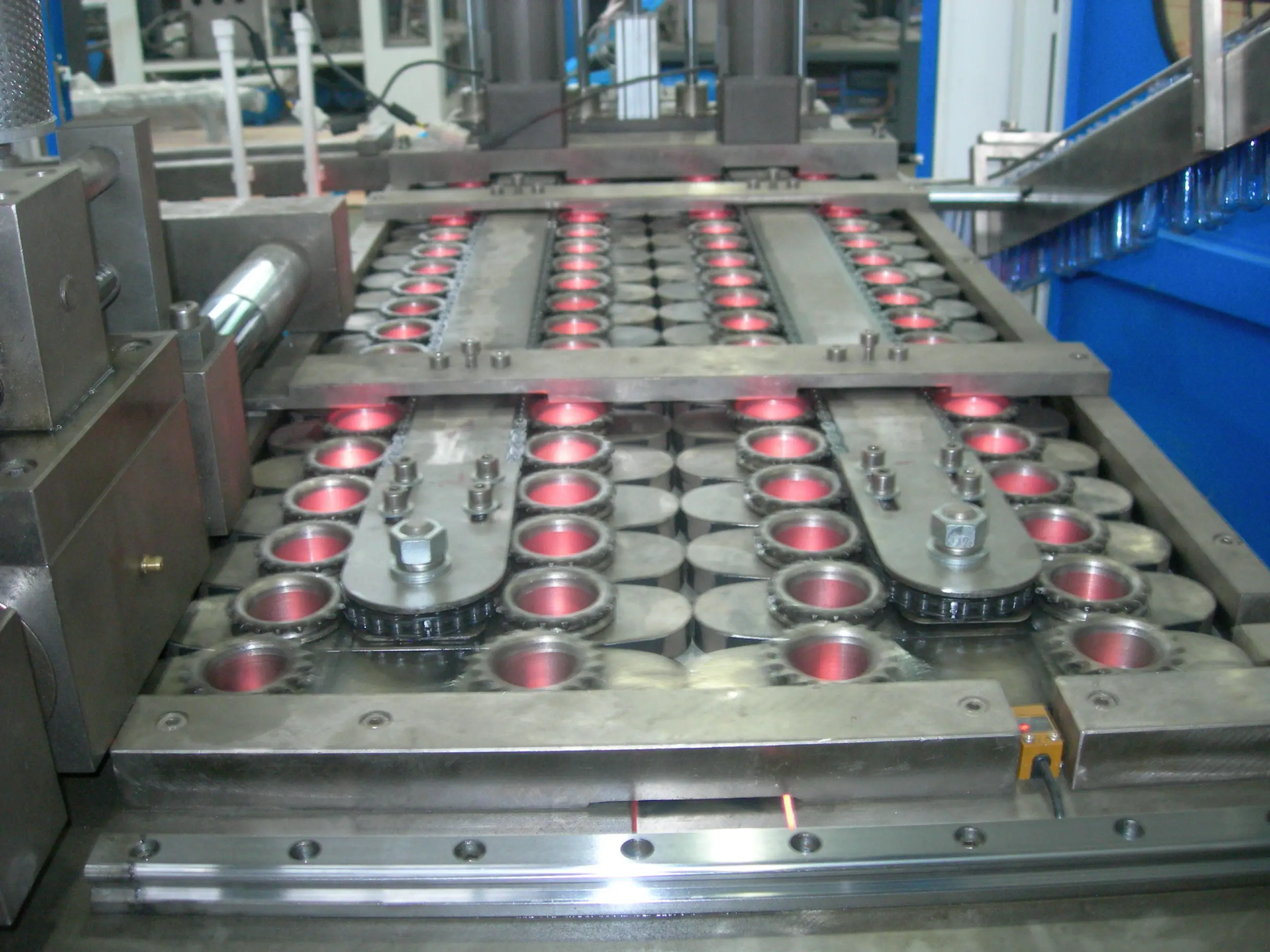

*Infrared oven heater adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe for operation, easy for maintenance.

















































































































































Main part:



Pneumatic part



Valve



SMC







Cylinder







Electric part



PLC



LG







Operating system



LG







Relay



OMRON







Infrared thermometer



raytek



Note



All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.



Main parameter:



Model



CM-A4 plastic blow moulding machine



Productivity



Depend on bottle design



3200-4000PCS/H



Product type



Body diameter



20mm-100mm







Height



50mm-350mm







Neck diameter



15mm-38mm



Mold



Cavity



4cavities







Mold thick



240mm







Mold



500*500mm



Main machine power



Electrical source power



380v 3Phase /220v 3Phase  50/60HZ







Rated Power



49kw







Really use power



10kw



Air source



LP air compressor



1.6m3/min 1.0MPa 1set (12KW)







HP air compressor



1.0m3/min 3.0MPa 2sets (each set 11KW)







Air dryer



2.0m3/min 3.0MPa 1set



Cooling water



Cooling water



15L/min



Size



L*W*H



1908*1858*1920mm







Weight



3600kg

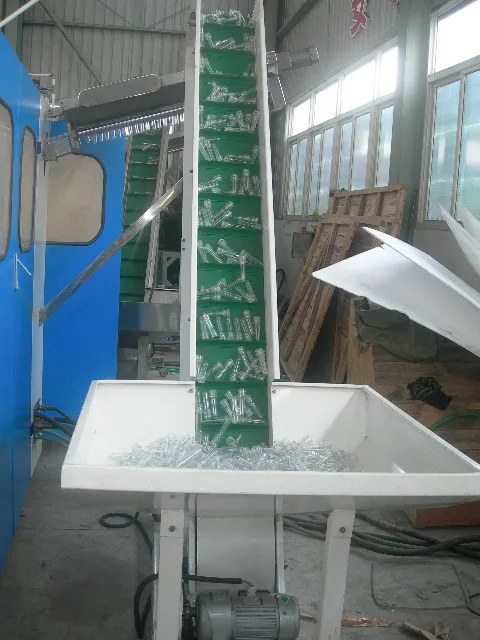

Auxiliary equipment(preform unscrambler)



L*W*H



276*106*186mm







Weight



250kg



Resin available







PET










FQA blowing machine


1. can this plastic mineral water bottle making machine/equipment/system blow 500ml PET bottle ?

Answer: Yes ,this plastic mineral water bottle making machine can blow bottle volume 0.1-20L bottle ,but the blowing speed will be too slow for small bottle , this CM-9B designed to blow 5-10 L bottle , if you get blow small bottle you may get money lost on the electricity ,

2. is there complete machine include bottle mould and air compresor ?

Answer: Yes ,what we are provide is the complete system , not like other factory ,they may provide you main machine and you will need speed a lot to find the suitable air compresor and chiller...ect..

3.can we get extra bottle mould ?

Answer: Yes , we cam help you finish the mould design ,and the extra mould should be payed .

4.What is the language of the PLC and touch button ?

Answer: No metter where are you from , we can translate the PLC ,Touch Screen/button in your language ,make sure ytou will have a easy operation .

5.can you help us with the shipment of this machine ?

Answer: Yes , with honour ,we have our special shipment company which already cooperate more than 10 years , please contact John for the freight , we will give you the best price we can .
