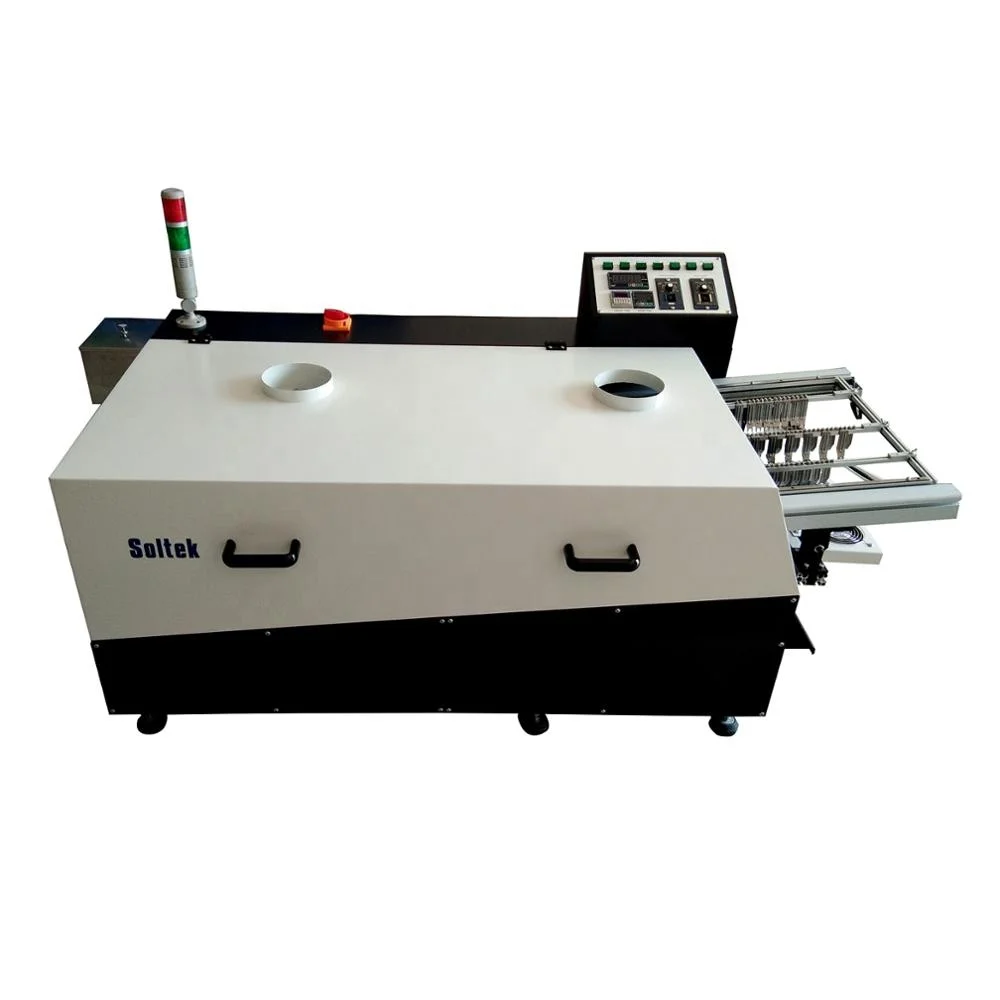

Настольная волновая паяльная машина с флюсовой

Описание и отзывы

Трекер стоимости

Характеристики

Specification sheet:

1.- FLUXING UNIT

- Fluxer water solvable, rosin based or no-clean fluxes.

- Flux capacity : 7 liters.

- One spray nozzle built in.

- Exhaust pipe on the cover.

2.- PREHEATER UNIT

- IR heating elements

- Length of preheating stage 400 mm

- Max power 3 KW

- Adjustable time to stop the carriage over the preheating stage  in order to get the desired temperature of the PCB.

3.- CARRIER CONVEYOR UNIT

- For PCBs of max. size 350 x350 mm

- Adjustable speed : from 0 to 150 cm/min.

-Conveyor height can be adjusted,welding angle is 3-6

4. - SOLDERING UNIT

- Solder bath capacity :85 Kg of eutectic alloy.

- Power consumption :3.6KW

- Wave with adjustable height from 0 to 12 mm.

- Heat up time : approx.45 minutes

- Low temperature pump protection.

- Regulation of bath solder temperature within the range 200-280 deg C

- K type thermocouple to control temperature

5. - CONTROL UNIT
A simple operator panel composed by independent modules built in a power unit to control all the main machine functions and parameters :

- power supply module for solder pot and preheater power control

- Soldering temperature control module

- Time control unit for preheating stage

- Conveyor speed control unit

- Solder alloy pump speed control unit

6.- UTILITIES REQUIRED

- Electrical power supply : 220V - 1 Phase – 50 Hz

- Max consumption (total) :6.6 Kw (28 amperes service)

- Cable section needed : 4 mm each wire

- Extraction fumes duct : 1 duct of 150 mm diameter with fan built in (300 m³/h)

and controlled by the main power control unit





7. - LOGIC OF OPERATION

- By pressing the 1/O switch on the control unit the machine turns on the conveyor

and the flux zone. The carriage passes over the flux and then over the solder pot

(that in this phase is off). After that the carriage stops over the preheater for a time

adjustable by the control unit.After this time the conveyor and the main wave turn on and the carriage passes over the pot and returns to the operator.

8. - PHYSICAL CHARACTERISTICS

- System overall dimensions

- Length : 1750 mm   - Width : 830 mm - Height : 720 mm

- Weight :205 Kg (max weight, without solder alloy)

- 230Kg (max weight with alloy and packaging complete)



(option:wave nozzle can 200mm/250mm/300mm)
