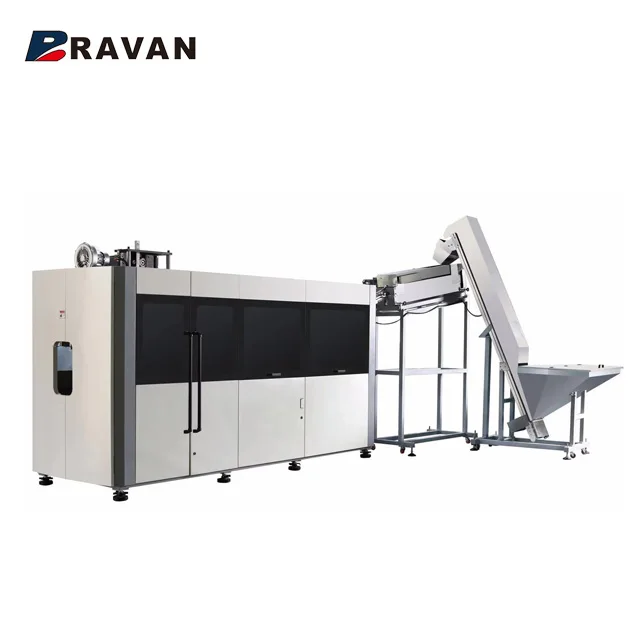

Fully Automatic Blowing Machine Water Juice Bottle Making Machine









SPECIFICATION

Specification		Unit	BR-8000SE
CONTAINER	Number of cavities	cav	8
	Max.Container volume	L	0.06-0.6
	Neck diameter	mm	38
	Max.Container diameter	mm	65
	Max.Container height	mm	250
	Theoretical output	bph	9600(*)
POWER	Max.heating power	Kw	48
	Motor power	Kw	15
	Total power	Kw	63
AIR SYSTEM	Operating pressure	Mpa	7
	Low pressure air consuming	L/min	1400
	Blowing pressure	Mpa	35
	High pressure air consuming	L/min	5200(**)
MOULD COOLING	Pressure	Bar	3-5
	Temperature	℃	10-12
	Flow rate	L/min	60
	Cooling Capacity	Kcal/hr	11000
OVEN COOLING	Pressure	Bar	3-5
	Temperature	℃	10-12
	Flow rate	L/min	60
	Cooling Capacity	Kcal/hr	10000
MACHINE	Size(L×W×H)	M	4.2*2*2.2
	Weight	kg	7000





Feature:

1) Preform conveyor equipped with sliding wheels, precise orientation, stable and reliable
2) Operation panel by touch LCD, friendly interface and easy operation
3) Laytered preform heating system, easy temperature regulation, uniform heating effect to improve blow moulding result to thr utmost.
4) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
5) Used for :Mineral water, Medicine, Oil, Alcohol, Carbonated, drink, Cosmetics, High-temperature-resistant bottles and any kinds of Wide jar bottles
