Высокоскоростной лазерный станок для резки рама отрезного станка определенную длину линия поперечной

Высокоскоростной лазерный станок для резки рама отрезного станка определенную длину линия поперечной

Категория: Линия поперечной резки >>>
Поставщик: Jiangsu,Bronx,Machinery,Co.,Ltd.

Цена:117 300,00 $ - 117 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	139587.8 $*	146566.18 $*
Aug-20-2025	138414.4 $*	145335.16 $*
Jul-20-2025	116127.77 $*	121933.29 $*
Jun-20-2025	136068.0 $*	142871.71 $*
May-20-2025	118473.30 $*	124397.12 $*
Apr-20-2025	133722.52 $*	140408.81 $*
Mar-20-2025	132549.15 $*	139176.32 $*
Feb-20-2025	131376.10 $*	137945.86 $*
Jan-20-2025	130203.30 $*	136713.52 $*

Характеристики

PERFORMANCE AND STRUCTURE

Such a line normally containing below working procedures:

1.unloading cart (optional)
2. uncoiler
3. shoveling and pressing device
4. correcting facility
5. pinching
6. leveling (four high structure)
7. length fixing
8. shearing
9. stacking (optional)
10. electric control system
11. hydraulic control system

Quality assurance:

1. Our factory has decades of experience for metal coil and sheet processing machines production.
We have professional engineer team for technical support.
Over 30 years practical installing and testing experience accumulated makes sure the good running for machines.
2.Our QC department tracing every procedures during machine making to guarantee the qualified final output.
3. The electric and hydraulic elements using in our machines are all famous and long cooperated in China.
They can work stable and have long working life.

coil thickness	1-3mm
coil width	400-1600mm
coil weight	12tons max.
line speed	0-60m/min
flatness tolerance	≤±1.0mm/m2(for board without defect)
length tolerance	≤±1.0mm/2000mm(for board without defect and without oil film)

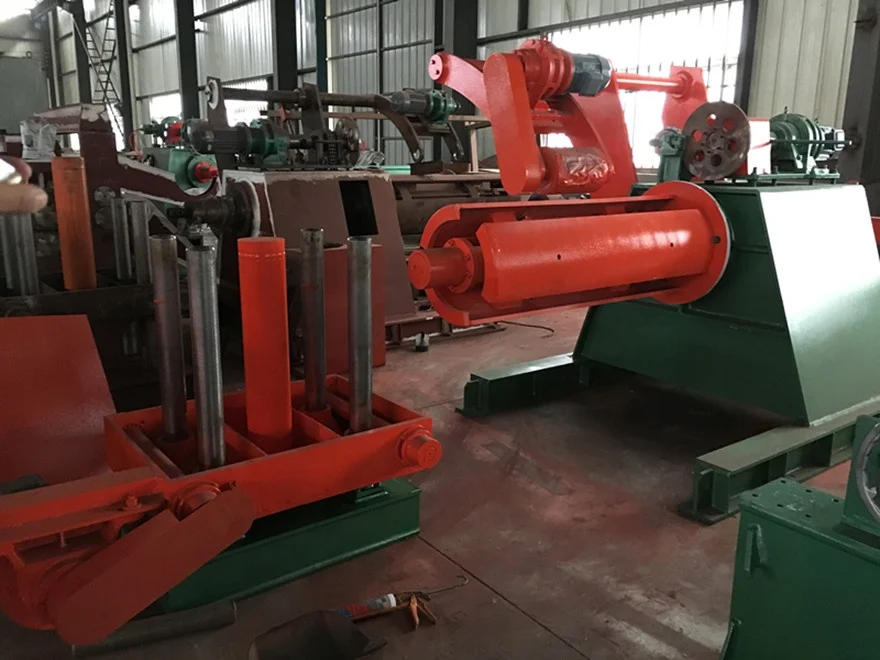

uncoiler

This uncoiler part is used to open the coil.

For 1-3 mm thickness coil, normally uses symmetric structure of uncoiler.

This structure can bear 20 ton coil max.

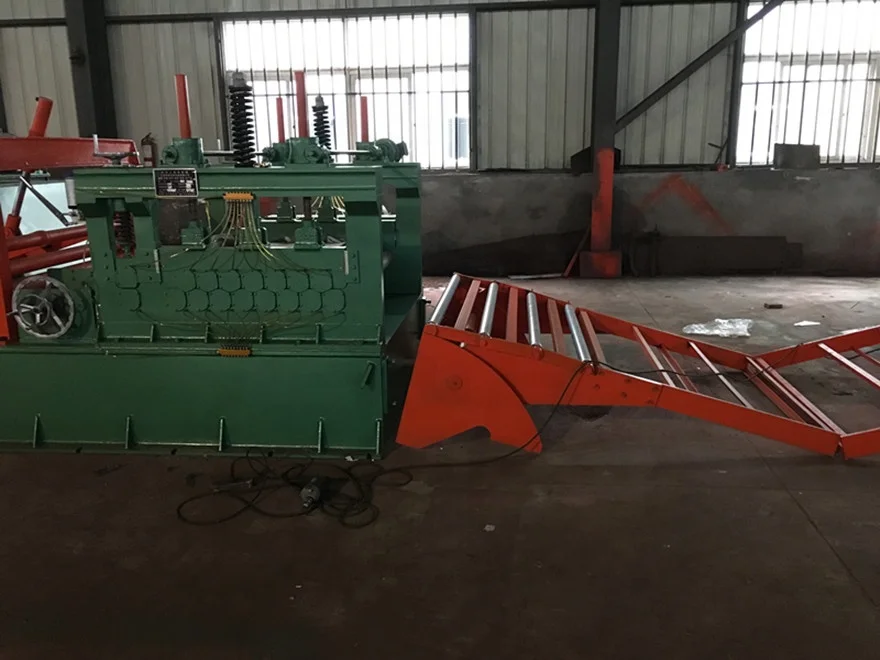

pinching and leveling machine

There is one pair of pinching rollers before the leveling machine.
The leveling machine is two high structure, 15 pcs of rollers in all (7 up 8 down).
This part of machine can flatten the coil from uncoiler and the send the coil into the shearing machine to get plates in required length.

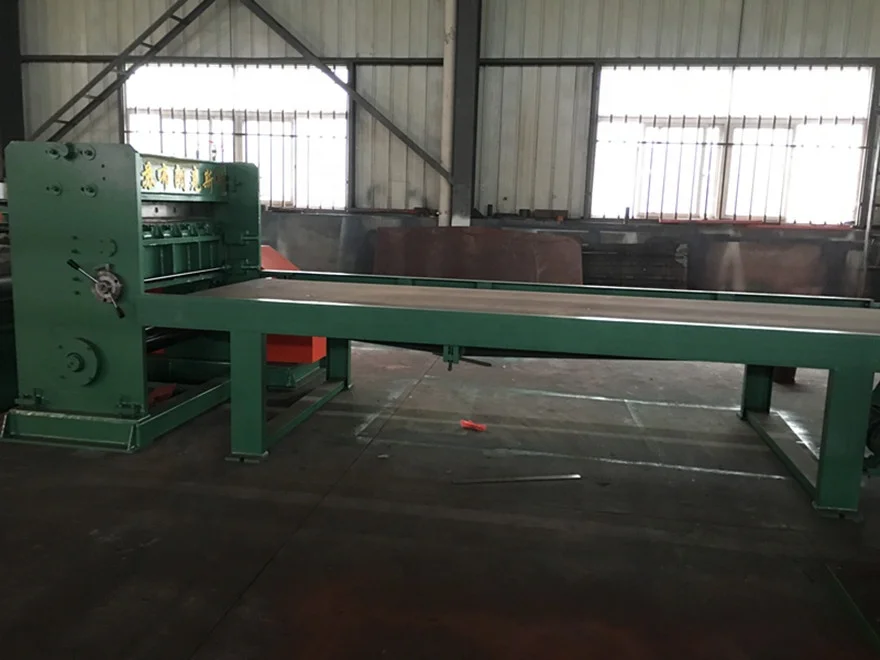

shearing machine

After the length fixing facility, the shearing machine can cut the coil into required length.

So customers can get plates in the end, such as 1m, 2m, 3m, 4m, 5m, 6m etc..

All figure can input into PLC, the total machine will run automatically.

Palletizing

controlling table

This controlling table structure is designed by our engineers. It is really smart and practical.
PLC and all controlling buttons are in the table.
Operator can input figures according to real requirements and press start button to make the total line work.

Finished product

(1) What is your advantages?
A1: More than 20 years experience in manufacturing and R&D, we are professional and humanized .
A2: Since we are a manufacturer, not a trading company, we can provide good quality pre and after sales service on time.

A3: production efficiency: 3-4 line per month
(2) Do you have after sales support?
A:Yes, we have a 15 persons professional installation and testing team. And will provide service for you during the machine life time. Any problem, contact us freely and we will try to solve asap.

(3) How to visit your company?
A:Our factory is located in Haian city, near Shanghai. From Shanghai to Haian, there are many schedules of direct bus. It will cost only 3 hours by bus.
