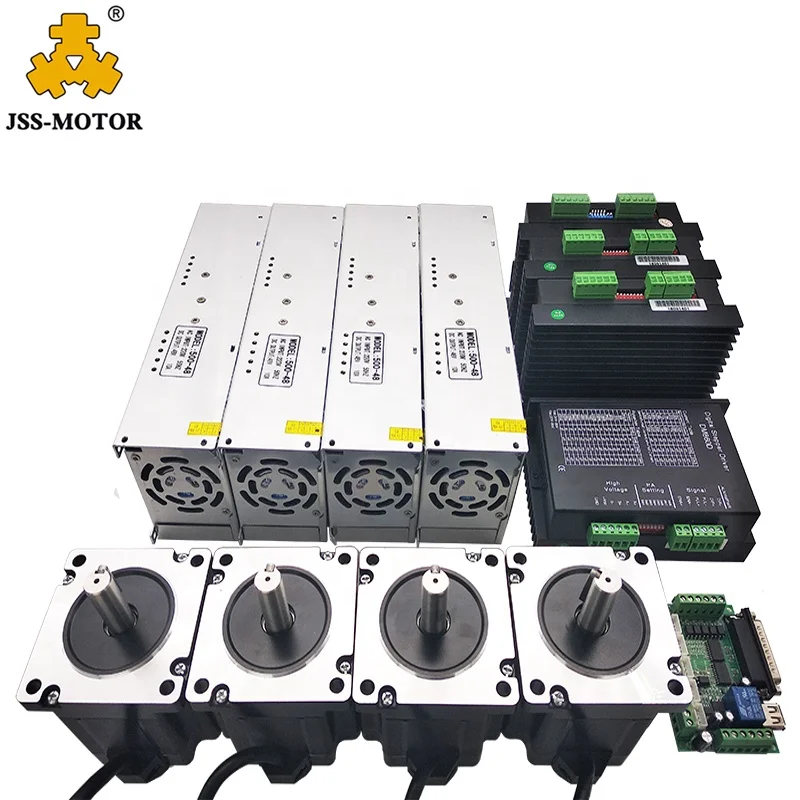

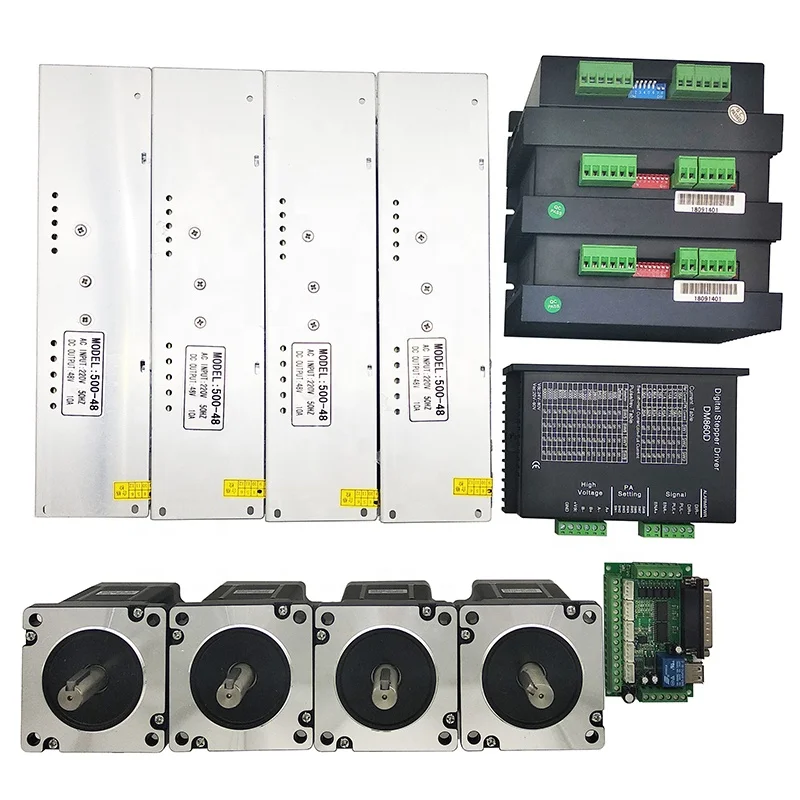

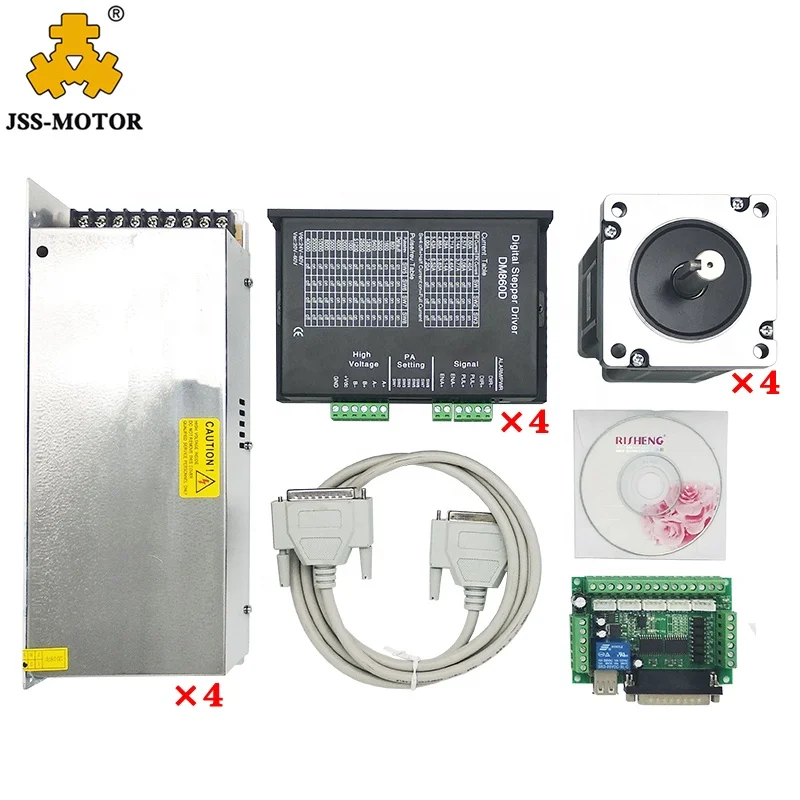

Высокое качество 4 оси nema34 шаговый двигатель
- Категория: Шаговый электродвигатель >>>
- Поставщик: Changzhou,Jinsanshi,Mechatronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 441.0 $* | 450.99 $* |
| Jul-16-2025 | 357.94 $* | 364.94 $* |
| Jun-16-2025 | 434.76 $* | 443.59 $* |
| May-16-2025 | 430.40 $* | 439.58 $* |
| Apr-16-2025 | 344.36 $* | 351.81 $* |
| Mar-16-2025 | 423.13 $* | 431.5 $* |
| Feb-16-2025 | 420.90 $* | 428.79 $* |
| Jan-16-2025 | 416.93 $* | 424.94 $* |
Характеристики
Product Description
NEMA34 1.8° 2-Phase Hybrid Stepper Motor
Application
(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.
General specification:
| Step Angle | 1.8° |
Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃ Max∼+50℃ |
| Insulation Resistance | 100M ΩMin.,500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Asial Force | 60N |
Electrical Specification:
| Model No. | Step Angle (°) | Voltage /Phase (V) | Current /Phase (A) | Resistance /Phase (Ω) | Inductance Phase (mH) | Holding Torque (kg.cm) | Detent Torque (g.cm.Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wires No. | Motor Weight (kg) |
| 86HS65-3004 | 1.8 | 3.3 | 3 | 1.1 | 6.5 | 28 | 800 | 1000 | 65 | 4 | 1.7 |
| 86HS68-4004 | 1.8 | 1.3 | 4 | 0.33 | 1.6 | 35 | 1000 | 1200 | 68 | 4 | 1.7 |
| 86HS78-4004 | 1.8 | 1.5 | 4 | 0.38 | 2.5 | 35 | 1200 | 1400 | 78 | 4 | 2.3 |
| 86HS78-4204 | 1.8 | 1.9 | 4.2 | 0.45 | 4 | 45 | 1200 | 1400 | 78 | 4 | 2.3 |
| 86HS78-6006 | 1.8 | 3.0 | 6 | 0.5 | 4 | 45 | 1200 | 1400 | 78 | 8 | 2.3 |
| 86HS82-4504 | 1.8 | 1.4 | 4.5 | 0.32 | 2.8 | 45 | 400 | 1500 | 82 | 4 | 2.5 |
| 86HS82-5604 | 1.8 | 2.0 | 5.6 | 0.35 | 3 | 50 | 1300 | 1500 | 82 | 8 | 2.5 |
| 86HS100-5006 | 1.8 | 2.5 | 5 | 0.5 | 4 | 68 | 1300 | 2100 | 100 | 4 | 3.2 |
| 86HS100-5004 | 1.8 | 2.5 | 5 | 0.5 | 4 | 65 | 2000 | 2100 | 100 | 8 | 3.2 |
| 86HS118-6004 | 1.8 | 3.6 | 6 | 0.6 | 6 | 85 | 2400 | 2700 | 118 | 4 | 3.7 |
| 86HS118-5604 | 1.8 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2400 | 2700 | 156 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 9 | 120 | 3600 | 4000 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 9 | 122 | 3600 | 4000 | 156 | 8 | 5.5 |
Installation Size: Wiring Diagram:
Product Description
Product Description
Produce process
Our Services
Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
First-class service:
customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
Company Information
Changzhou jss Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.
Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
Certifications:
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
