PET water bottle blowing


Поделиться:


Цена:6 000,00 $ - 6 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 7140.19 $* 7497.32 $*
Aug-16-2025 7080.61 $* 7434.46 $*
Jul-16-2025 5940.6 $* 6237.66 $*
Jun-16-2025 6960.29 $* 7308.64 $*
May-16-2025 6060.98 $* 6363.76 $*
Apr-16-2025 6840.5 $* 7182.23 $*
Mar-16-2025 6780.84 $* 7119.63 $*
Feb-16-2025 6720.14 $* 7056.87 $*
Jan-16-2025 6660.83 $* 6993.72 $*

Характеристики

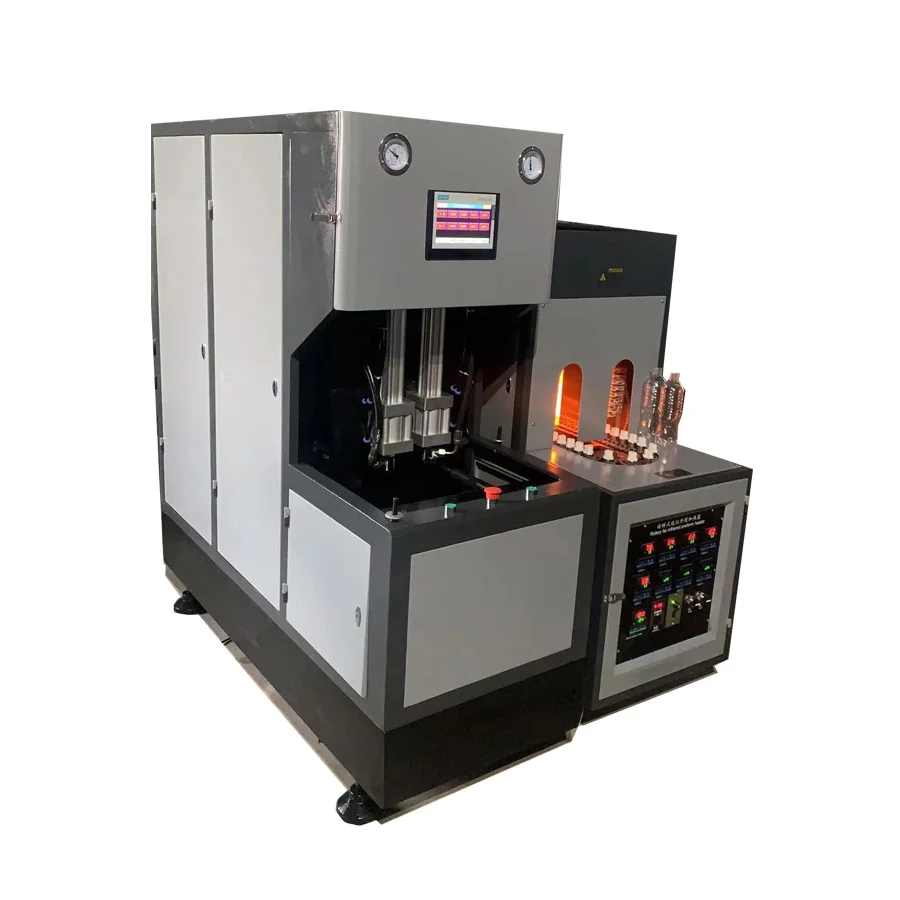

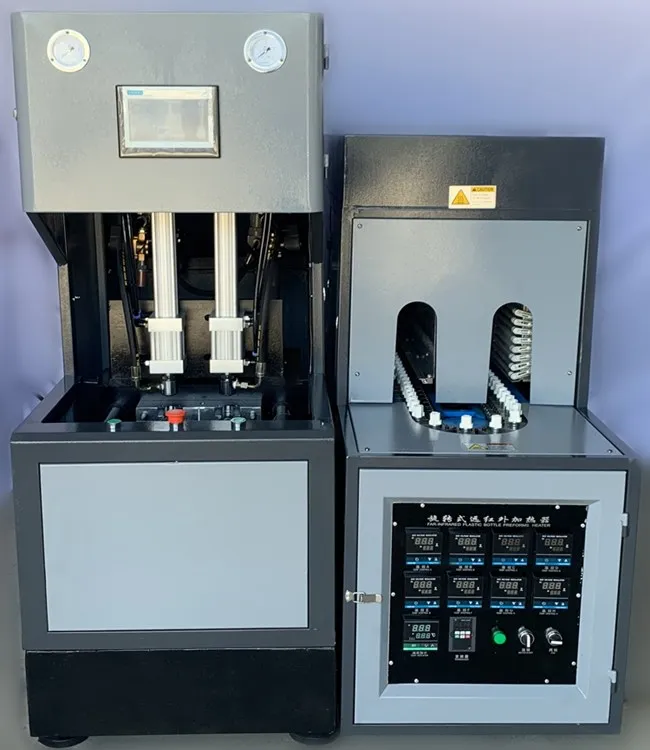

pet water bottle blowing machine
pet machine flow chat.jpg


CM-8Y1 pet water bottle blowing machine is suitable for producing PET plastic containers and bottles from 0.1 to 2L. It is widely used to produce the carbonated  bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.


*Advanced double-crank clamping and mid-platen moving design ensure preforms do not drop during mould closing.
*Imported high pressure blowing system eusures higher clarity and faster production.
*Space saving, structure stable, easy and safe for operating.



Engineering item:


1. Capacity:600-900pcs/hr


2. Max volume of product: 2Liter


blowing machine.pngbottle blow system.jpg


Description:


Technique Parameter of pet water bottle blowing machine:








































































Main parameter:



Model



CM-8Y1 pet water bottle blowing machine



Container



Product material



PET



Volume



0.1L-2L



Theoretical output



600-800PCS/H



Preform length



15mm-350mm



Preform inner diameter



φ5mm-38mm



Moulding



Max.mould plate Dimenstion(L x W)



350x380mm



Max.mould thickness



180mm



Clamping force



45KN



Mould opening stroke



160mm



Machine size and weight



Main machine (L x W x H)



160x60x161cm



Main machine weight



500Kg



Heater (L x W x H)



187x63x145cm



Heater weight



250Kg



Power



17.5kw



heating oven1.jpginfrared lamp.jpgrotary driving motor.jpg
HP Air compressor with tank

HP air compressor.jpg

Chiller with air filter
chiller with air filter.jpg

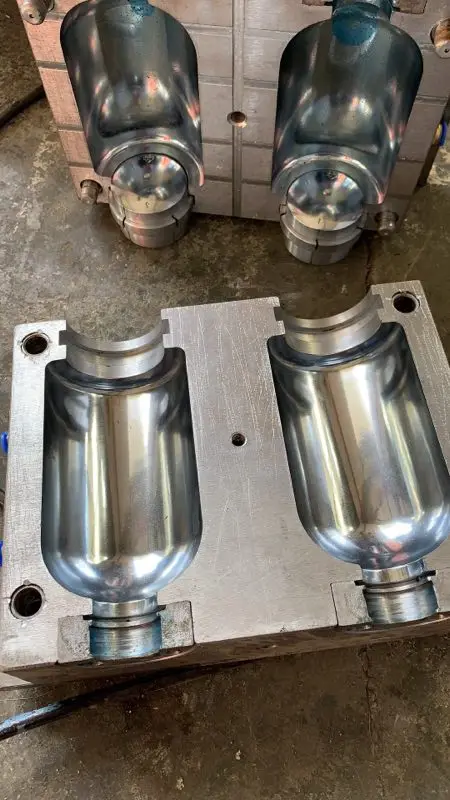

Bottle Mould 2 cavity

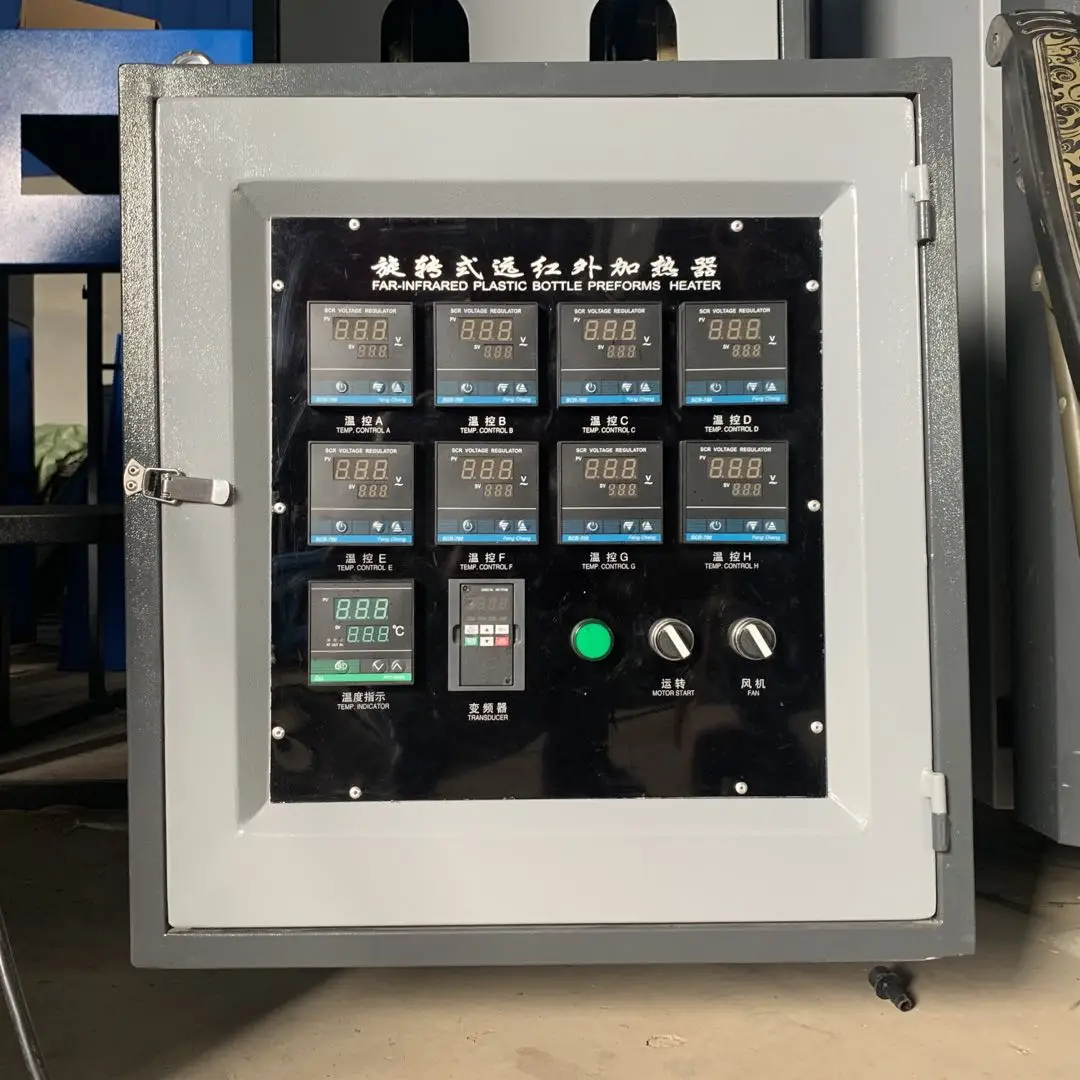

Machine Preform Heating Oven:



FQA blowing machine


1. can this blowing moulding machine blow 500ml PET bottle ?

Answer: Yes ,this machien can blow bottle volume 0.1-20L bottle ,but the blowing speed will be too slow for small bottle , this CM-9B designed to blow 5-10 L bottle , if you get blow small bottle you may get money lost on the electricity ,

2. is there complete machine include bottle mould and air compresor ?

Answer: Yes ,what we are provide is the complete system , not like other factory ,they may provide you main machine and you will need speed a lot to find the suitable air compresor and chiller...ect..

3.can we get extra bottle mould ?

Answer: Yes , we cam help you finish the mould design ,and the extra mould should be payed .

4.What is the language of the PLC and touch button ?

Answer: No metter where are you from , we can translate the PLC ,Touch Screen/button in your language ,make sure ytou will have a easy operation .

5.can you help us with the shipment of this machine ?

Answer: Yes , with honour ,we have our special shipment company which already cooperate more than 10 years , please contact John for the freight , we will give you the best price we can .





Associated Brands






































Main part:



Pneumatic part



Valve



SMC/Airtech/FESTO







Cylinder



SMC/Airtech/FESTO

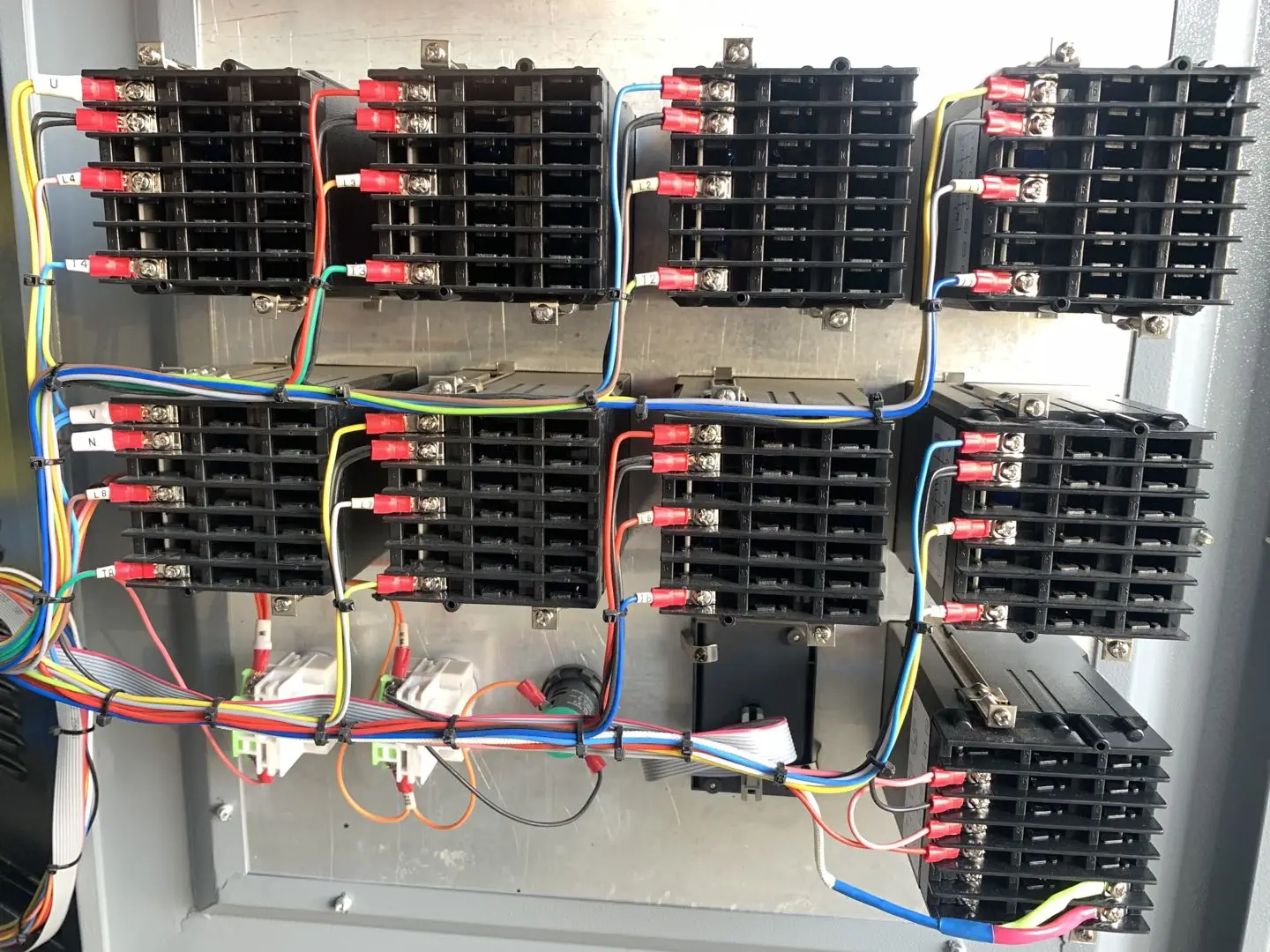

Electric part



PLC



LG/SIEMENS







Operating system



LG/SIEMENS







Relay



SCHNEIDER



Note



All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.




bottle blower machine1.jpg











Company Information


company information1.jpg


Shenzhen Kisen Drinking Water Equipment Co.,Ltd.was founded in 2016, It is the leading manufacturers and suppliers of water filter system,Ro water treatment plant/Mineral water plant,water bottling machines and liquid filling machine for the pure water, mineral/spring water carbonated drink, juice beverage,pet bottle blowing machine,plastic moulding machine and water pouch packing machine in South of China. We have been dedicated to make it easy for customer to open one water bottling plant.





We provide over 70 types of products, including water purification machine,Ro water purifier, bottle washing filling capping machine, blow molding machine, bottle labeling & packing machine and more.Moreover,Shenzhen Kisen Drinking Water Equipment Co.,Ltd. has found markets in over 60 countries Eritrea, Tanzania, Seychelles Libya, Morocco, Guinea, Liberia, Ghana, Nigeria, Cameroon, Equatorial Guinea, Gabon, Congo, Democratic Republic of Congo, Zambia, Angola Botswana, South Africa, Mauritius, Iraq, Qatar,India, Sri Lanka, Burma,Russia, Malaysia, Philippines, Azerbaijan,Suriname, Peru,United States.





Our vision: Make it easy to start bottled water business.





Shenzhen Kisen Drinking Water Equipment Co.,Ltd. believes that only our customers achieve sustainably economic success and then we can develop and grow together. Our corporate philosophy and decision-making strictly follow this principle.


We listen carefully to our customers and study their ideas, and then offer high quality, customized and feasible products. Of course, it is far from enough.


We regard every customer as our partners, and provide service, support and advice for factory planning, installation, training, operation and product marketing from an integrated perspective, no matter if they buy individual components or complete production lines.


All the machines and equipments we sold have gone through goverment inspection before shipment, and come with regular spare parts and tools, and plus our excellent after-sales service, which in the long run, can avoid many expensive downtimes for our customers.


company information2.jpg





Packaging & Shipping


packing and shipping.jpg
