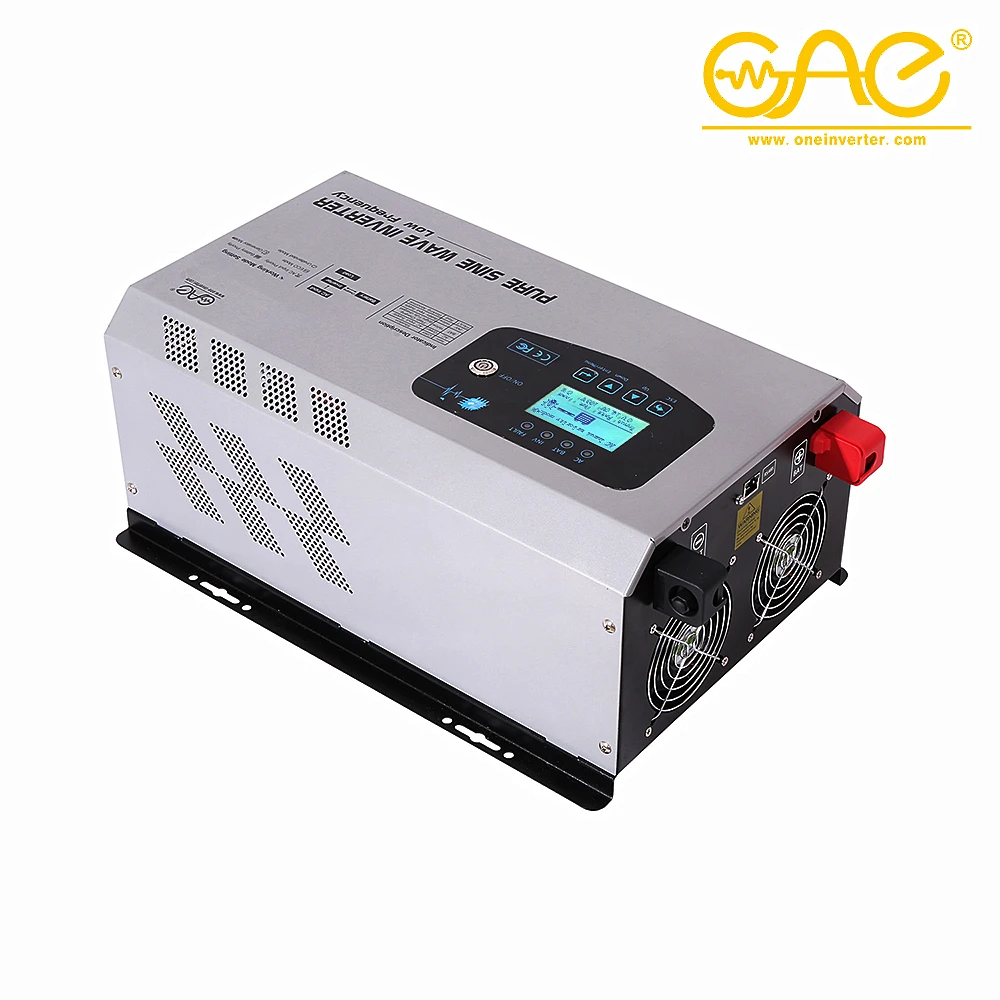

Преобразователь частоты 10 ква от 50 Гц до 60 немодулированный инвертор синусоидальной волны для домашнего солнечного
- Категория: Солнечные инверторы >>>
- Поставщик: Foshan,Top,One,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 197.13 $* | 201.69 $* |
| Jul-17-2025 | 160.85 $* | 163.58 $* |
| Jun-17-2025 | 194.79 $* | 198.42 $* |
| May-17-2025 | 192.92 $* | 196.99 $* |
| Apr-17-2025 | 153.78 $* | 156.64 $* |
| Mar-17-2025 | 189.45 $* | 193.59 $* |
| Feb-17-2025 | 188.81 $* | 192.49 $* |
| Jan-17-2025 | 186.51 $* | 190.10 $* |
Характеристики
Products Description
MODEL | FT-102 | FT-202 | FT-302 | FT-402 | FT-502 | FT-602 | ||||||
RATED POWER | 1KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||||||
SURGE POWER | 3KW | 6KW | 9KW | 12KW | 15KW | 18KW | ||||||
INPUT | ||||||||||||
VOLTAGE | 220VAC | |||||||||||
SELECTABLE VOLTAGE RANGE | 145-265VAC | 170-265VAC | ||||||||||
FREQUENCY RANGE | 50HZ/60HZ±5HZ | |||||||||||
OUTPUT | ||||||||||||
AC VOLTAGE REGULATION(BATT. MODE) | (DC BATT.MODE)220VAC±3% | |||||||||||
TANSFER TIME | ≤5ms | |||||||||||
WAVE FORM | PURE SINE WAVE | |||||||||||
BATTERY | ||||||||||||
BATTERY VOLTAGE | 12V/24V | 24V/48V | ||||||||||
FLOATING CHARGE VOLTAGE | 13.8V(12V)/27.6V(24V)/55.2V(48V) | |||||||||||
OVERCHARGE PROTECTION | 17V(12V)/34V(24V)/68V(48V) | |||||||||||
AC CHARGER | ||||||||||||
STANDBY POWER COMSUMPTION | 15W | |||||||||||
MAXIMUM AC CHARGE CURRENT | 35A | |||||||||||
PHYSICAL | ||||||||||||
DIMENSION,D*W*H(MM) | 530*335*250MM | 740*335*275MM | ||||||||||
G.W.(KGS) | 17.3 | 23.3 | 26.8 | 33.4 | 35.4 | 37.4 | ||||||
ENVIRONMENT | ||||||||||||
HUMIDITY | 0~95%（NO CONDESNSATION) | |||||||||||
OPERATING TEMPERATURE | 0~60℃ | |||||||||||
STORAGE TEMPERATURE | 0~60℃ | |||||||||||
*PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT FURTHER NOTICE | ||||||||||||
FAQ
Q1: Does your company also provide other solar products except Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger and other accesories
related to the solar power system.
Q2: How to choose a right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 5 days for sample; 7-15 days for bulk order.
Q4: What is the warranty of inverter?
A4: 2 year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
