СС и алюминиевый плоский металлический автоматический гибочный станок для
- Категория: Channel Letter Bending Machine >>>
- Поставщик: Wuhan,Beisida,Laser,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.5 $* | 0.7 $* |
| Aug-18-2025 | 0.27 $* | 0.44 $* |
| Jul-18-2025 | 0.85 $* | 0.23 $* |
| Jun-18-2025 | 0.9 $* | 0.62 $* |
| May-18-2025 | 0.95 $* | 0.70 $* |
| Apr-18-2025 | 0.69 $* | 0.57 $* |
| Mar-18-2025 | 0.52 $* | 0.36 $* |
| Feb-18-2025 | 0.24 $* | 0.81 $* |
| Jan-18-2025 | 0.69 $* | 0.92 $* |
Характеристики
Product Description

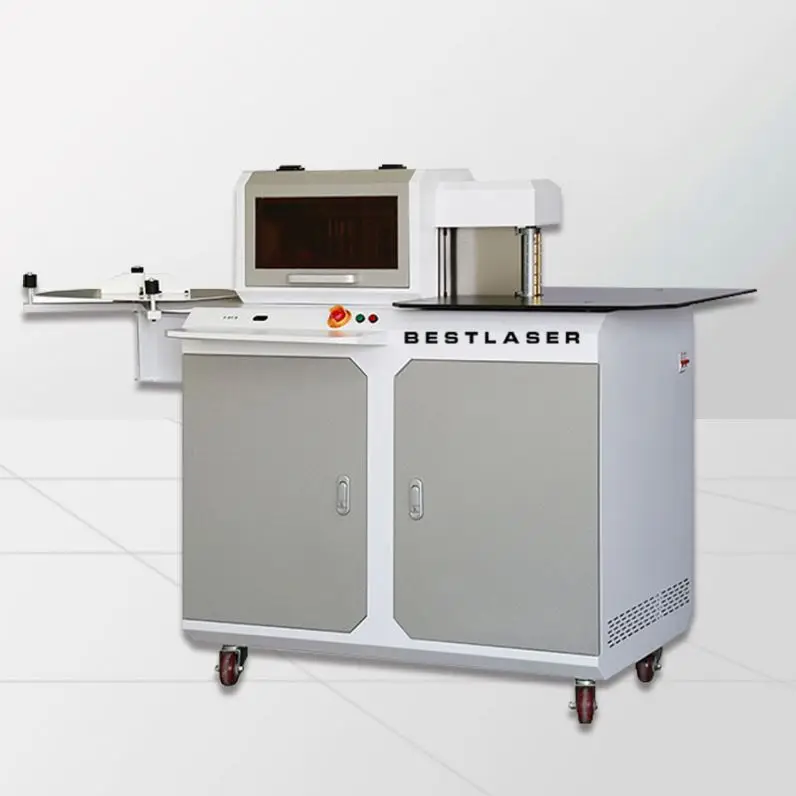

SS and aluminum flat metal auto channel letter bending machine
Model No.:mini economic auto channel letter bending machine BEL-B130
sign channel letter bending machine brief introduction:
The mini model channel letter bending machine BEL-B130 adopts stainless steel design, polyurethane rubber roller shaft feeding mechanism and closed loop feeding length compensation mechanism, which can ensure accurate feeding of flat aluminum and fold edge
aluminum.
channel bending letter machine B130 can be used for bending various flat materials like aluminum strip, aluminum profile, stainless steel trip, galvanized sheet ,etc .with compact size and economical price, which is the ideal choices for the small business who want to enter advertising and signage industry.
bending channel letter machine Main Features
1.The mini aluminum bending machine use stepping motor to control the cutting and lifting, which can quickly adjust the cutting height and improve work efficiency.
2.Single rail lifting and cutting mechanism, integrated alloy cutting and milling cutter and compact structure.
3.The knife can be placed back and forth to ensure fold edge aluminum different cutting angles
4.Pneumatic clamping ensures clamping strength and material clamping flatness. Quick thickness adjustment mechanism and easy adjustment different materials
cutting thickness.
cutting thickness.
5.With precise electrical controller design and integrated circuit board , which makes the electrical part part modular and clear in layout, can quickly and clearly control the classification, the circuit part is separated with strong and weak, no interference, and the equipment is more stable.
6.Software has a fool-type calibration function (length cutting and bending), one-button operation, fast and convenient;
6.Software has a fool-type calibration function (length cutting and bending), one-button operation, fast and convenient;
7.main operation interface can set different material height and thickness and match different engraving equipment tool compensation functions.
Detailed Images
Rolling continuous feeding structure
(Closed loop self-test system)
(Closed loop self-test system)
Accurate feeding, non-scratch on aluminum, fast speed with material calibration function
Feeding encoder
Accurately calculate the feeding length and speed to ensure that the material position is correct and no aluminum is wasted.
Motors&cylinder
Two-phase stepper motor 4 set
DC carbon brush motor 1 set
The cylinder work under air compressor.
It works with motor to control the swing of notching knife.
Notching Knife Swing
Under the force of cylinder and motors, the notching knife swings front back left right up and down to realize flexible cutting on aluminum materials.
Bending Part
Two-axis linkage copper shaft roller extrusion system(Non-scratch material)
Flat aluminum bending
Bending thickness: 0.5-0.8mm Bending height: 20-130mm
Big or small letters all produce.
Folding Aluminum bending
Bending thickness 0.6mm max
Bending width 20-130mm
AI PLT DXF NC format support

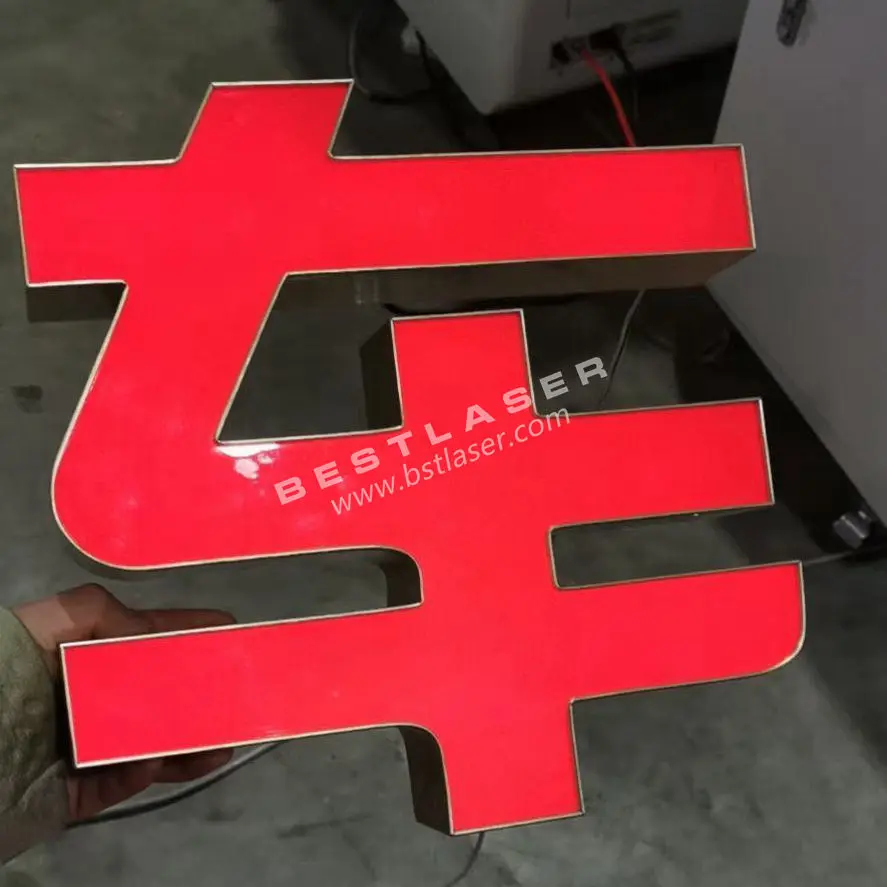

Sample letters
Although B130 is mini size economic type aluminum letter bending machine, but the bending effect is excellent!
Technical Data
Feeding system | Rolling continuous feeding structure (Closed loop self-test system) |
Slotting system | Electronic lifting rotary milling cutter structure |
Bending System | Two-axis linkage arc system/ Two-axis linkage copper shaft roller extrusion system(Non-scratch material) |
Driving Motor | Two-phase stepper motor 4 set DC carbon brush motor 1 set |
Dimensions | L1650mm×W700mm×H1150mm |

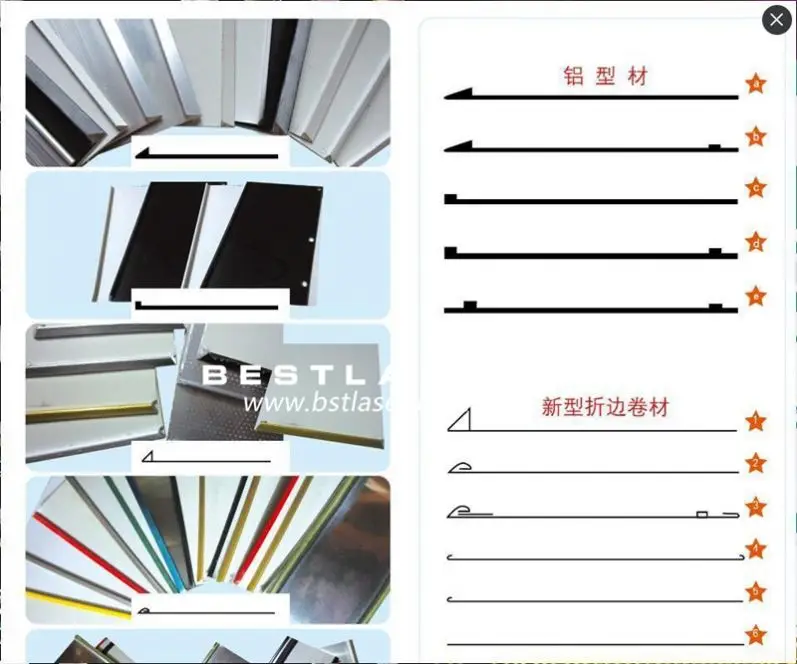

Material category | Folded aluminum Flat aluminum |
Material thickness | Flat aluminum 0.5-0.8mm, folding aluminum 0.6mm max. |
Support Format | AI PLT DXF NC |
Feeding accuracy | Length±0.1mm Radius>7mm |
Control Card | Four-axis motion control card |
Software system | Autodrive auto bending system |
Input Voltage | 220V 50Hz 3Kw |
Air Pressure | 0.6-0.8MPa |
Application
Application for cnc channel letter bending machine
BEL-B130 auto channel letter bending machine is a professional equipment for making metal edge strips LED luminous channel Letter. B130 can simultaneously cut and bend metal such as aluminum profiles, flat aluminum, flat stainless steel and galvanized sheets.
It needs laser cutting machine and laser welding machine if making stainless steel letter .Which can complete the process of all metal words on the market when matching with 1325 engraving machine.
Packing & Delivery
Packaging | ||
Size | 110*65*135cm | |
Weight | 100KG | |
Package Details | Professional Export Wood Craftcase with IPCC sign 1.Outside:we adopt wood craft case 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof. | |
After Service
Below are services of our company before you order the machine till you receive the machine.
Pre-Sales Service :
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Before Delivery:
* Check and test machine at least 48 hours to make sure the machine's quality.
* Also we will send you the testing report and save the machine's technical information for better after-sale service.
After-Sales Service:
* Training how to install the machine.
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Lifetime technical support and service by free.
All the services above are to make sure your will have good experience using our machine.
After-sales Service Guarantee for 2 years. Maintenance free of charge for 2 years . We will provide the consumable parts at an agency price. 24 hours online service, free technical support.
Are you curious about this bending machine channel letter B130?Here are some questions to recommend you suitable channel letter bending machine:
1. What's your mostly bending material? such as aluminum, stainless steel or something
Pre-Sales Service :
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Before Delivery:
* Check and test machine at least 48 hours to make sure the machine's quality.
* Also we will send you the testing report and save the machine's technical information for better after-sale service.
After-Sales Service:
* Training how to install the machine.
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Lifetime technical support and service by free.
All the services above are to make sure your will have good experience using our machine.
After-sales Service Guarantee for 2 years. Maintenance free of charge for 2 years . We will provide the consumable parts at an agency price. 24 hours online service, free technical support.
Are you curious about this bending machine channel letter B130?Here are some questions to recommend you suitable channel letter bending machine:
1. What's your mostly bending material? such as aluminum, stainless steel or something
2. Are you beginner in advertising industry or experienced?
\t\t\t\t\t\t\t\t\tCompany Introduction \t\t\t\t\t\t\t
As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine, automatic channel letter bending machine all have got CE certification. Best Laser also has got TUV certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!
\t\t\t\t\t\t\t\t\tContact \t\t\t\t\t\t\t
Full Solution for Channel Letter Making
As the machine manufacturer , we could supply full- solution on channel letter making ,
the details as below:
1>CO2 laser cutting machine, engraving and cutting acrylic very well, the cutting depth around 1-28mm
for different thickness.
2> CNC Router machine, engraving an cutting MDF board and Metal.
3>Mixed Cutting Laser Cutter, Cutting 2mm stainless steel and 20mm Acrylic /MDF
4>Fiber Metal Laser Cutting Machine, specially for cutting thin metal materials with high precision
and speed .
5>CNC Plasma Cutting Machine, economic metal cutting machine for cutting thin and thick metal
6> Channel letter bending machine, widely used for bending metal materials.
7> Advertising letter laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, LOGO, signs and other fast welding.
8>Acrylic Vacuum Forming Machine : Making 3d advertising acrylic / plastic letter
The best way to get a good impression of the various machines is by
testing your products on our systems during a demonstration.
Interested? Let us know! Welcome your inquiry!
Best Laser Bonnie Contact:
Web:www.bstlaser.com
Mail:bonnie(@)bstlaser.com
MP/whatsapp: +86 18971376270
Tel/Fax:(+86)-27 81787970
ADD: Optic Valley No.8 Industrial Park,No.1 Tanhu Road ,Jiangxia District,Wuhan,China.zip code :430205
Mail:bonnie(@)bstlaser.com
MP/whatsapp: +86 18971376270
Tel/Fax:(+86)-27 81787970
ADD: Optic Valley No.8 Industrial Park,No.1 Tanhu Road ,Jiangxia District,Wuhan,China.zip code :430205
