Product Description

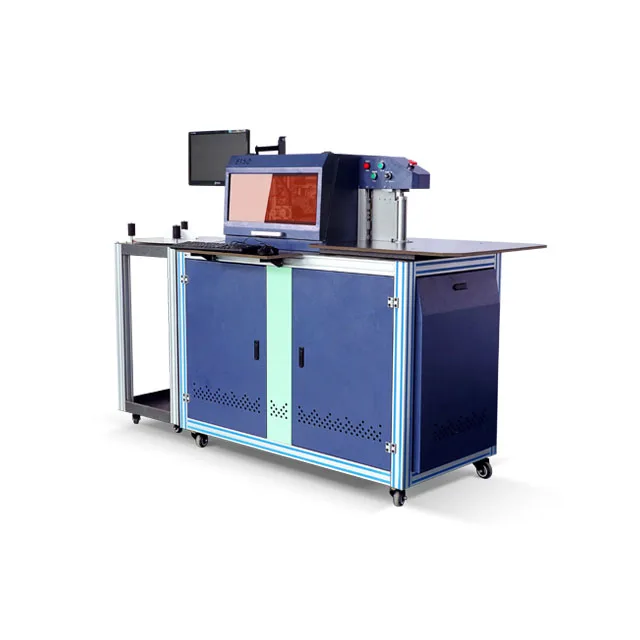

Channel Letter Making Tools 3D Sign Making Machine Aluminum Stainless Steel Channel Letter Making Machine
Whatsapp:008618866779238

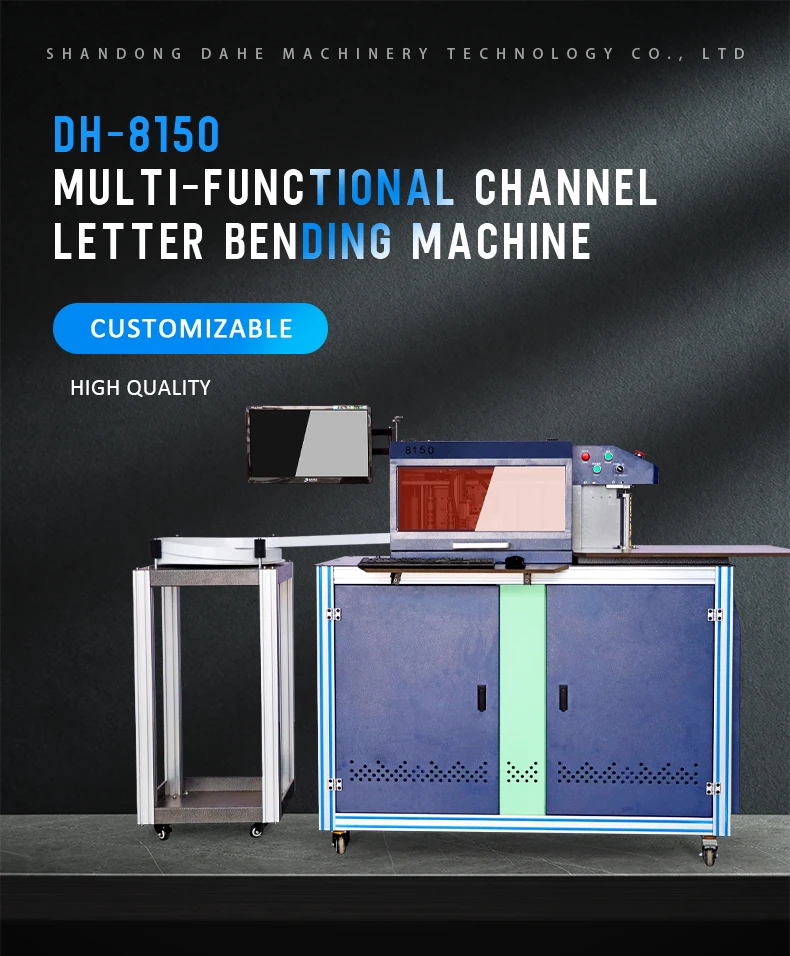

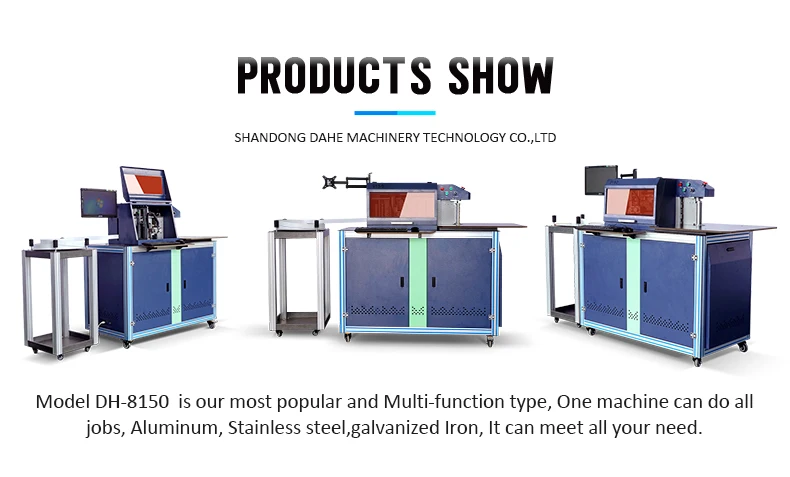

Model DH-8150 is our most popular and Multi-function type, One machine can do all jobs, It can meet all your need.
Machine Features
1.The grooving depth can be precisely controlled, and it is controlled by Number axis , so the precise depth of all kinds of materials can be achieved.
2.Intelligent control of software and intelligent interference check can avoid interference collision in bending process.
3.The symmetrical bending mode on both sides avoids interference in the bending process to the greatest extent, and greatly improves the bending strength.
4.With the unique stainless steel planer and double slotting model of profile milling groove, it can be switched by one key according to the different characteristics of the materials, which is easy and convenient.
5..With the unique stainless steel planer and double slotting model of profile milling groove, it can be switched by one key according to the different characteristics of the materials, which is easy and convenient.
6.The feeding height is adjusted by rotary hand-wheel, which is easy to operate.
7.Intelligent adjustment of slotting depth is realized by using imported linear guide rail and high precision ball screw.
8.Special specifications and requirements can be customized.
2.Intelligent control of software and intelligent interference check can avoid interference collision in bending process.
3.The symmetrical bending mode on both sides avoids interference in the bending process to the greatest extent, and greatly improves the bending strength.
4.With the unique stainless steel planer and double slotting model of profile milling groove, it can be switched by one key according to the different characteristics of the materials, which is easy and convenient.
5..With the unique stainless steel planer and double slotting model of profile milling groove, it can be switched by one key according to the different characteristics of the materials, which is easy and convenient.
6.The feeding height is adjusted by rotary hand-wheel, which is easy to operate.
7.Intelligent adjustment of slotting depth is realized by using imported linear guide rail and high precision ball screw.
8.Special specifications and requirements can be customized.
Technical Parameter
Model | DH-8150 |
Working principle | Auto feeding,notching and bending |
Applicable material | Stainless steel,Flat aluminum,Galvanized iron,Aluminum profile,Steel |
Bending Radius | ≥6mm |
Material width | ≤150mm |
Material thickness | Stainless steel 0.3mm-1.0mm Aluminum:0.3mm-1.5mm |
Machine power | ≤2200W |
File format | DXF、AI、PLT |
Supporting software | Leetro software CBS4 |
Machine weight | 385Kgs |
Gas pressure | 0.6Mpa |
Voltage | 220V50HZ1P |
Machine size | 1850mm*880mm*1350mm |
Details Images
The feeding part is clamped by rubber rollers and driven by gear belt. Fast speed can realize the continuous feeding . It is suitable for stainless steel, galvanized sheet, aluminum plate and other materials.
With the high-speed precision motor, Its high-precision performance makes the feeding control more accurate.
Stainless Steel Cutter
Aluminum Cutter
Two separate bending tools ,professional for different materials
It has fast speed, high precision, no damage to the material surface and small bending interference.
and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.
Leetro Software
The control card and software is original leetro control system,easy to study and operate,ensure the machine calculating size with zero error.
Control System
The control card running stable with strong anti-interference ability.

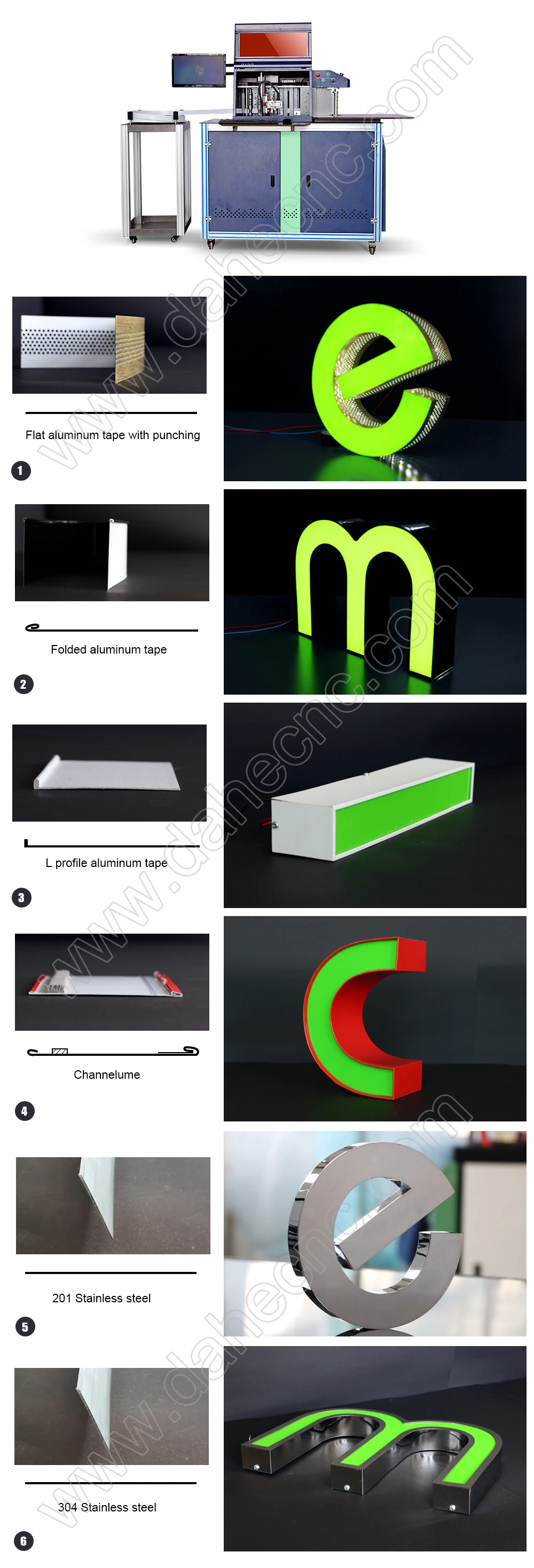

Available Material and Smaple Letter
Channel Letter Bending Machine DH-8150 can process all the following materials:
Certifications
Customer Photos
We sold the machines to more than 100 countries, customer feedback is good.
We are sincerely looking for agent and partner.
Exhibition
We participate in various international exhibitions every year.
Such as Dubai SGI Exhibition, USA ISA Sign Expo Etc.
Welcome to visit us!
Recommend Products
We also have Different kind of Aluminum coils and Stainless steel coils.
Flat, Single fold, Channelume , L Type, Flat with holes etc. Any need please just let me know.
FAQ:
1.What's the Payment terms?
1). T/T, Alibaba trade assurance include BOLETO, mastercard, visa, e-Checking, PAYLATER etc
3). Other kinds of payment like LC we can consider.
2.what's the warranty service?
One Year.
3.How to install and run the machine?
We will send the user's manual and the training video with the machine, we also have after sales team, they can provide service
everyday.
4.Do you have matching materials for sale?
Yes,we have all kinds of materials such as aluminum coil, stainless steel
5.How to choose a suitable machine?
You can tell us your request. We could recommend the most suitable machine according to our experience.
1). T/T, Alibaba trade assurance include BOLETO, mastercard, visa, e-Checking, PAYLATER etc
3). Other kinds of payment like LC we can consider.
2.what's the warranty service?
One Year.
3.How to install and run the machine?
We will send the user's manual and the training video with the machine, we also have after sales team, they can provide service
everyday.
4.Do you have matching materials for sale?
Yes,we have all kinds of materials such as aluminum coil, stainless steel
5.How to choose a suitable machine?
You can tell us your request. We could recommend the most suitable machine according to our experience.
Further more information please just contact me . Wechat/whatsapp:008618866779238
