6YL-180 винтовой Масляный
- Категория: Прессы для отжима масла >>>
- Поставщик: Henan,Lewin,Industrial,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.63 $* | 0.51 $* |
| Aug-19-2025 | 0.85 $* | 0.51 $* |
| Jul-19-2025 | 0.64 $* | 0.73 $* |
| Jun-19-2025 | 0.81 $* | 0.53 $* |
| May-19-2025 | 0.68 $* | 0.1 $* |
| Apr-19-2025 | 0.96 $* | 0.87 $* |
| Mar-19-2025 | 0.13 $* | 0.63 $* |
| Feb-19-2025 | 0.92 $* | 0.27 $* |
| Jan-19-2025 | 0.73 $* | 0.36 $* |
Характеристики
Product Description

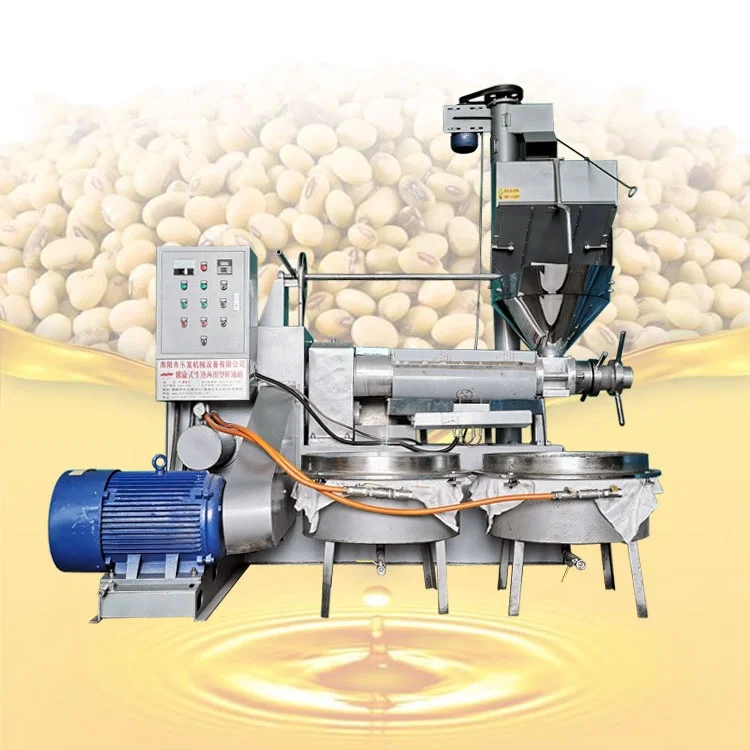

6YL-180 screw oil press
The following is the specific introduction:
Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
Parameter:
1.We have many models for you choose.
2.We also accept custom models.
Model | Weight(KG) | Power(3phase) | squeezer speed | capacity (kg/h) | Dimension(mm) |
6YL-120 | 1500 | 15kw | 100-130 | 120-160 | 2000*1600*2700 |
6YL-130 | 1600 | 22kw | 100-130 | 180-300 | 2150*1600*2700 |
6YL-130(A) | 1650 | 18.5kw | 100-130 | 160-280 | 2600*1600*2700 |
6YL-150 | 1800 | 30kw | 100-130 | 220-450 | 2550*1800*2700 |
6YL-160 | 1900 | 30kw | 100-130 | 300-600 | 2650*1900*2700 |
6YL-180 | 1980 | 37kw | 100-130 | 400-750 | 2700*2000*2700 |
Our high qulaity screw oil press machine can press lots of materials such as:Avocado, Perilla, cocoa bean,Melon seeds etc.
If there have no materials of your needs in this picture, you can contact us and we provide a free testing.
Peanut oil extraction process:
Main Features
1.Automatic screw oil presser machine with vacuum filtration, fast purification and automatic temperature control technology
2.High oil yield, about 3% higher than the average oil press, and easy to install3.The oil is purity and can be eaten directly after vacuum filtration
Detailed Images

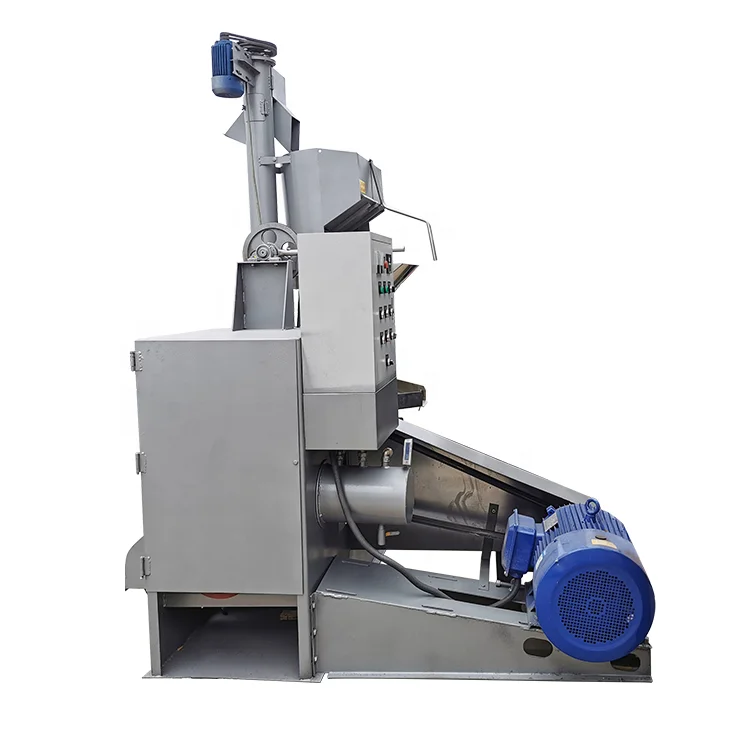

Structure:
This spiral oil press machine mainly includes four parts:
1. Main engine 2. Screw system 3. electrical system 4. L-type feeding system
The screw oil press machineWoking principle
The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Machine Parts
Name: power engine
Brand:Lewin
Pure copper motor,strong stability
Main Features
Name: Electric cabinet
Brand: Lewin
Electromechanical integration,advanced tachnolgy
Machine Parts
Name: oil filter
Brand: Lewin
Vacuum oil filter system, get pure oil
Machine Parts
Name: oil cake feeding system
Brand: Lewin
L-type feeding system, avoid oil waste
Our Service
Pre-service:
1.We will test and adjust before we send the machine, make sure it can be used with confidence after receiving it.
2.We accept the customized model.
After-service:
1.All products are guaranteed to keep in good repaired for one year. During the one year, the seller will provide free maintenance service. (Expect for failures and damage caused by human and force majeure.)
2. After receiving the inquiry for repairing the engineer of sell party will solve by phone and email. If necessary, the engineer will solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
Packing & Delivery
Packing
1. Our machines be packages by the wooden case with film.
2. Customized.
Delivery
Within 10-15 working days after receipt the deposit.
Company Profile
Our factory has 23 years of experience in the production and sale of oil presses. We have the ability to provide you with the highest quality service and the best quality machines. We have 4 warehouses for storing our machines, if You choose us, we will not let you regret, please believe us, Lewin oil press opportunities bring you a lot of surprises.
FAQ
Q:What is the slowness of raw material feeding?
A:In this case, the raw material is too wet, and the wet raw material should be fried before being dried.
Q:What about foreign matter entering the inlet?
A:Stop immediately, press the reverse button, remove the foreign matter after the foreign matter and raw materials are removed, and continue to work after the cleaning is completed
Q:Can you guarantee the quality of your machine?
A:We are a professional manufacturer with strict quality requirements
Q:How long does it take to transport?
A:7-15 days without special circumstances
Q:How can I choose the model that suits me?
A:You can tell our team your needs, we will recommend the best machine model for you.
