72V 100A SVMC72100 Sabvoton Motor Controller kits with TFT display and bluetooth adapter



It’s newest TFT speedometer with various functions, which suit for Sabvoton controller communicate via UART, e.g. temp display of motor, energy consumption (KW/H), Regen Ah.

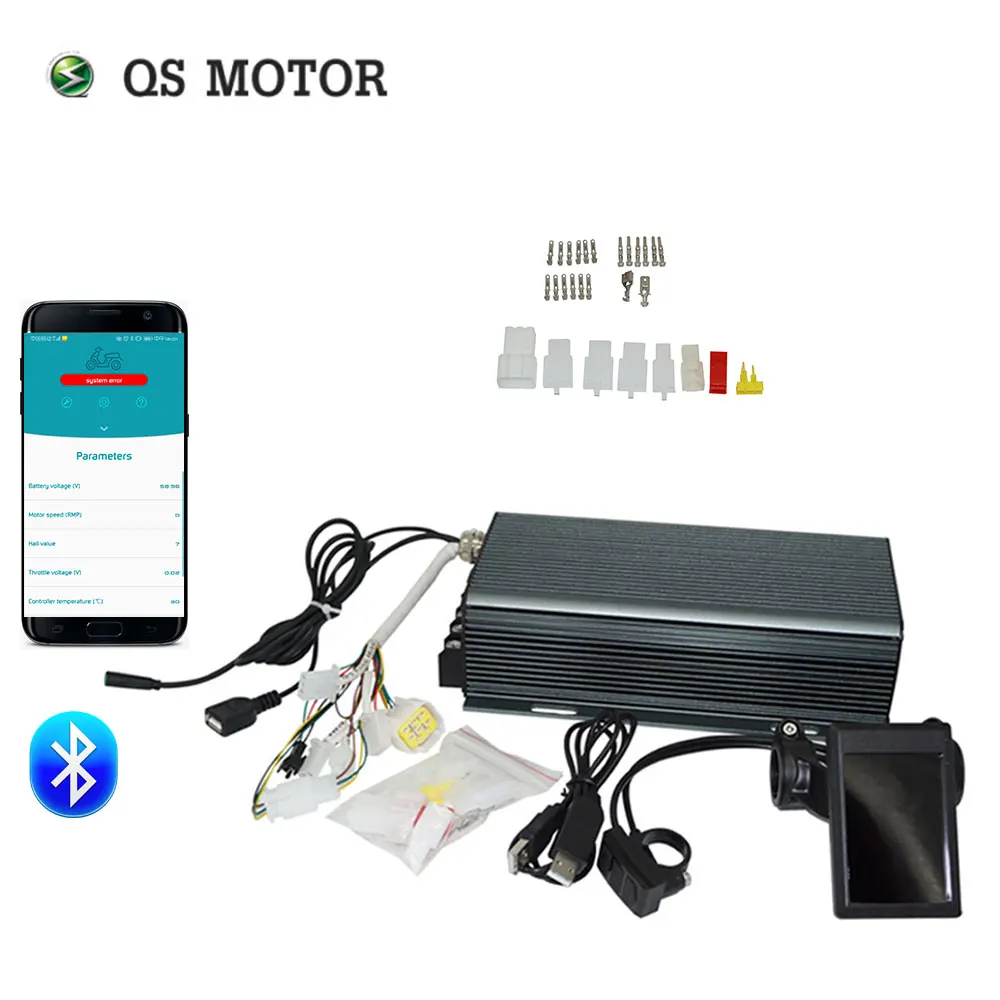

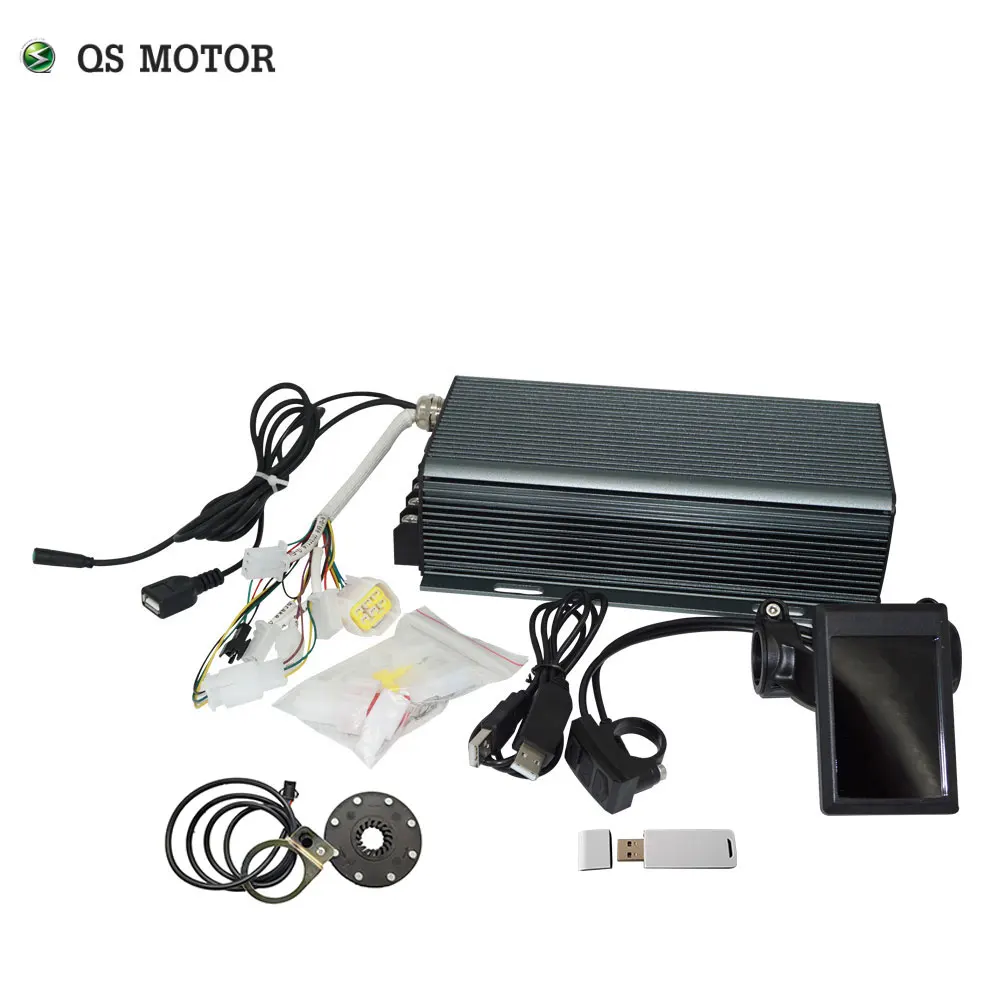

1. Kits including

1. 1pc X Sabvoton SVMC72100 motor controller (customized for H6 speedometer)

2. 1pc X TFT H6 color speedometer display

3. 1pc X PAS

4. 1pc X Bluetooth adapter







2. Product description

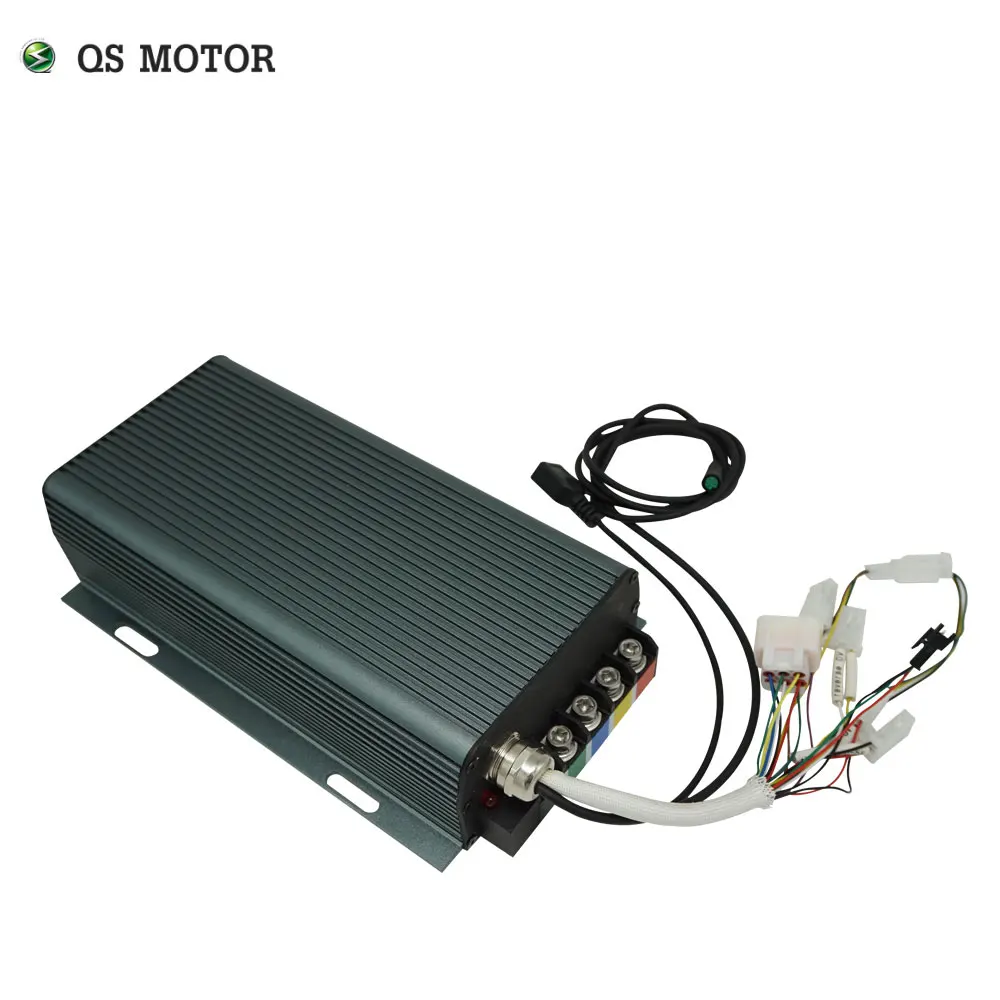

1. Sabvoton 72100 motor controller (customized for H6 speedometer)

Generally SPEC

1). sine wave controller, programmable, with regen function

2). DC Current Limit: 100A

3). Max. Phase Current: 250A

4). Protect Phase Current: 300A

5). Battery Voltage: 24V-72V rated, Max. 95V

6). Including one controller

7). controller size: 247mm*146mm*62.5mm

8). Net weight: 2kg

9). Default including bluetooth adapter.

10). Default function: Hall, Throttle, Electric brake, High Brake Level

11). Special functions: Waterproof





Drawing



Wiring









App picture

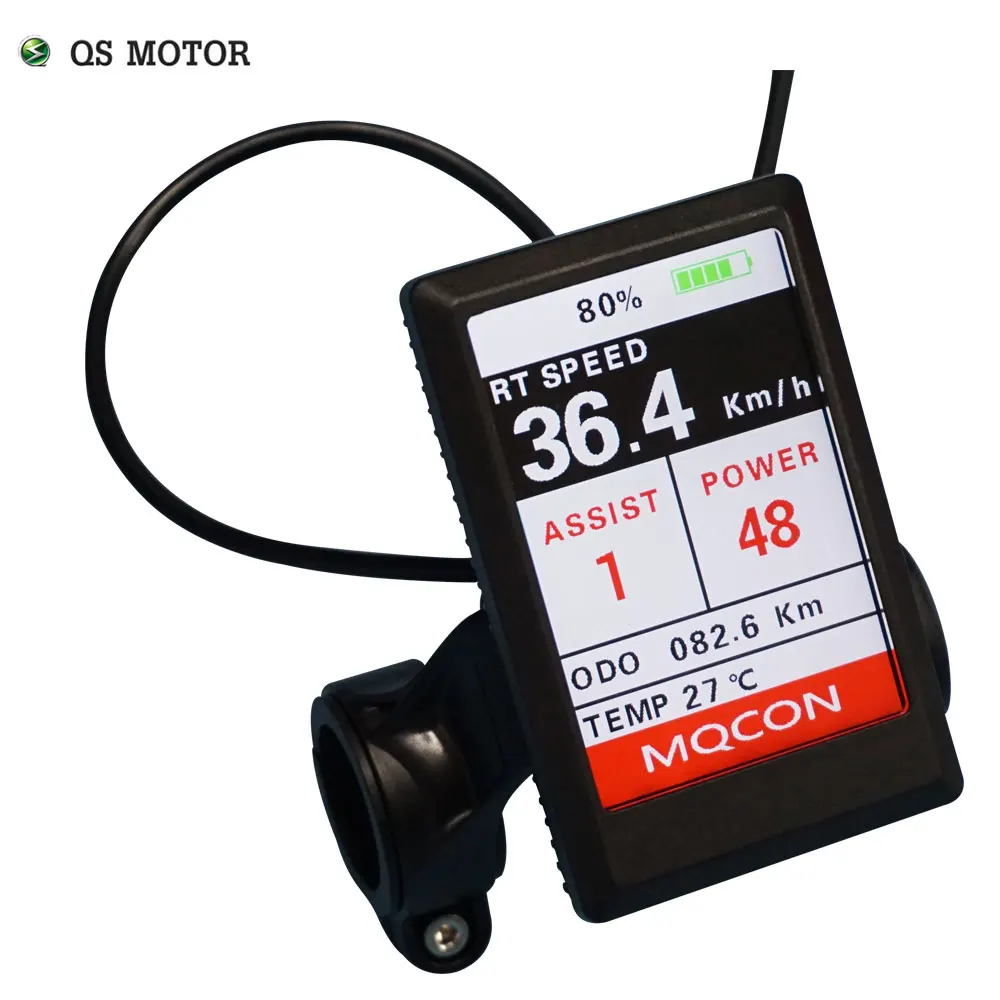

2. TFT H6 color speedometer display

SPEC

· 3.2 inch color TFT screen

· 48V/60V/72V power supply

· Shutdown leakage current <1Ua

· Supply controller terminal operating current 100mA

· Normal operating temperature of the instrument -20~65°C



Picture:





Function

1. Battery display: 5 segments of power indication, the voltage value of each segment can be set according to customer requirements;

2. Speed mode: real-time speed RT SPEED, maximum speed MAX SPEED, average speed AVG SPEED;

3. Speed display: display range 00.0. ~ 99.9, unit Km / h km per hour, MPH miles per hour;

4. Assist gear position: 0~9 files, of which 0 gear is neutral and no boost, 1~9 corresponds to boost gear, and P is displayed in 6Km push mode;

5. Headlight display: displayed when the headlights are on;

6. motor temperature: monitor motor temperature in real time;

7. Mileage mode: cumulative mileage ODO, single mileage Trip

8. WH.KM: the controller power consumption ,wh/km

9. Motor temperature.

10. Regen Ah:Cumulative Ah while controller in regen mode .

11. Clock: Built-in battery, user set up;

12. Clock: Built-in battery, user set the year, month, day, hour, minute and second.

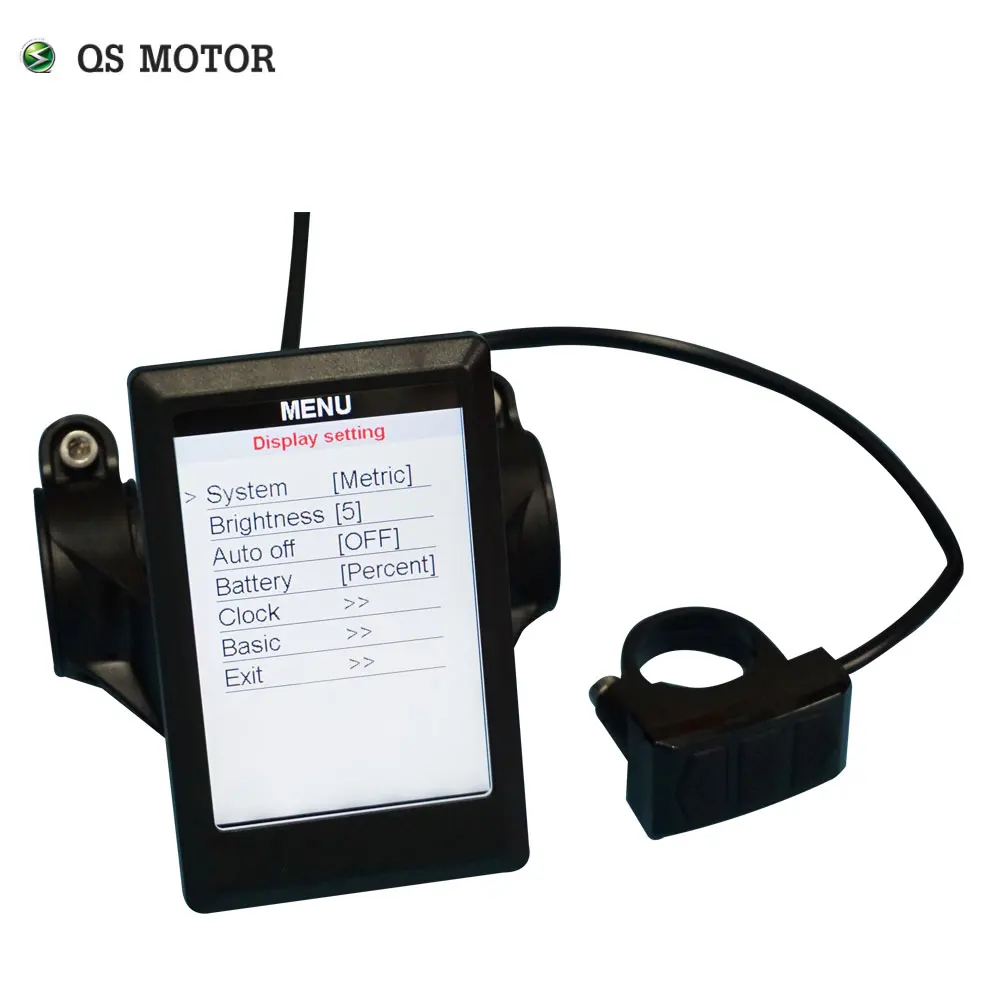

LCD display instructions



Drawing

Bracket conversion ring optional specifications:Φ22.2mm



3. PAS

Made of steel material, durable and reliable.
Mount on electric bicycle pedal, easy to install
1:1 power assist, make cycling easier and funnier.
Suitable for most of electric bicycles.

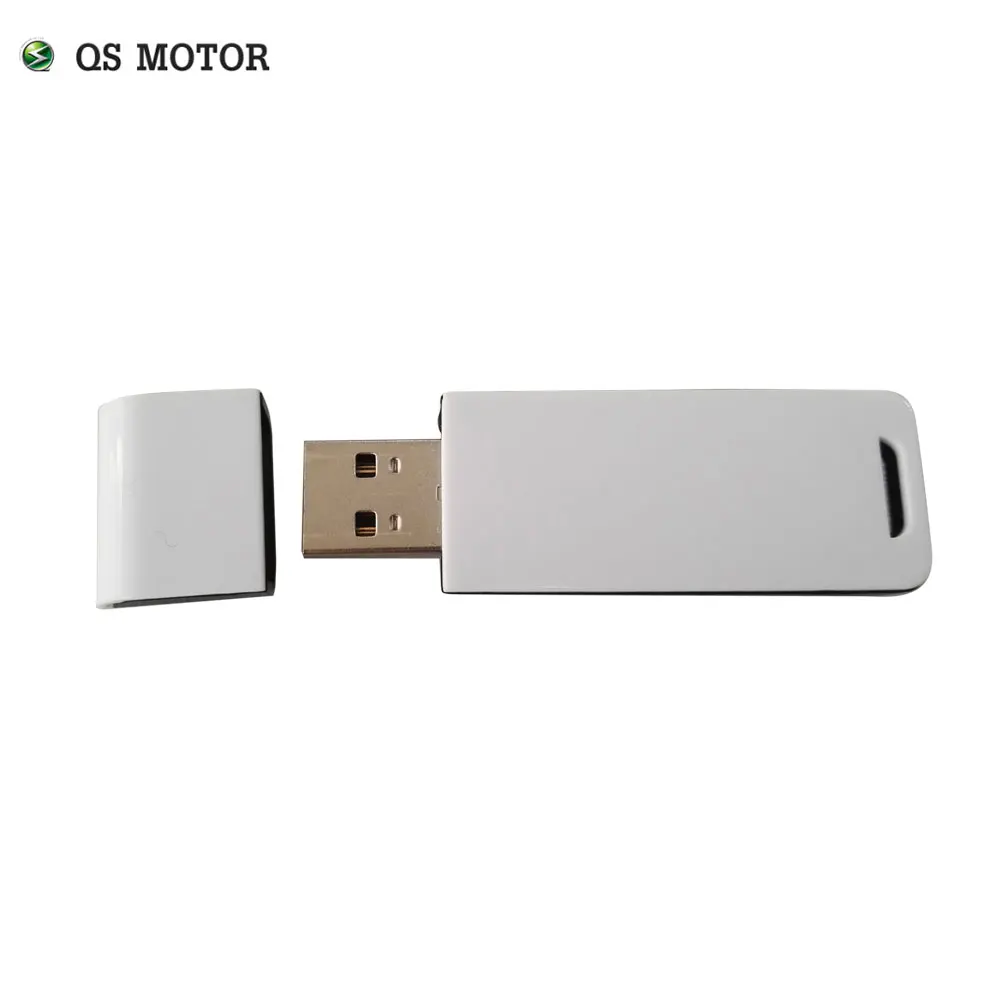

4. Bluetooth adapter
